Product description Hands-On Review: the Shure VP83 LensHopper Shotgun Microphones Read More - Shure - VP83F LensHopper Shotgun Microphone
- Product Demo

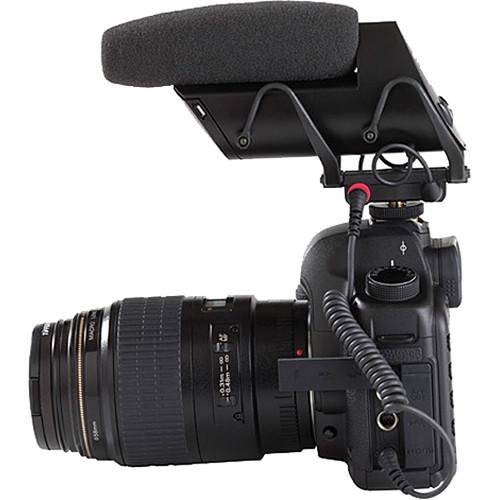

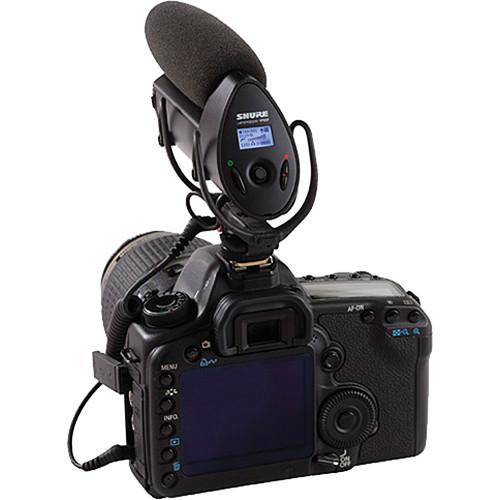

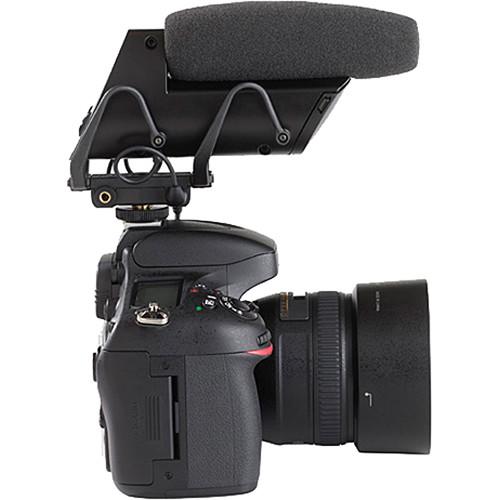

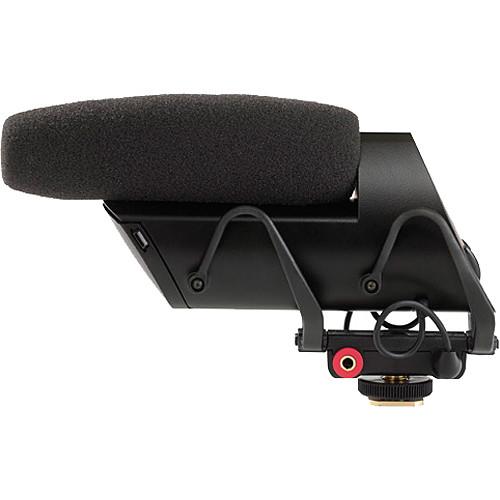

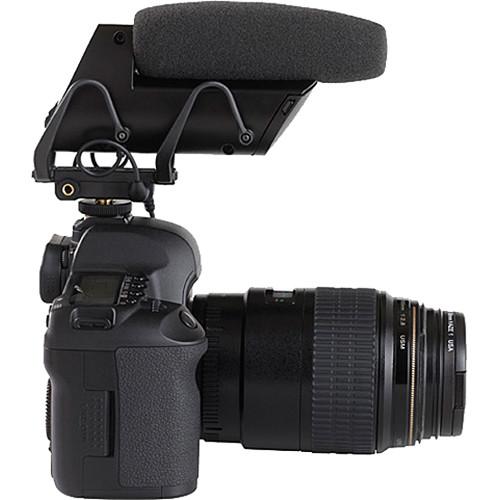

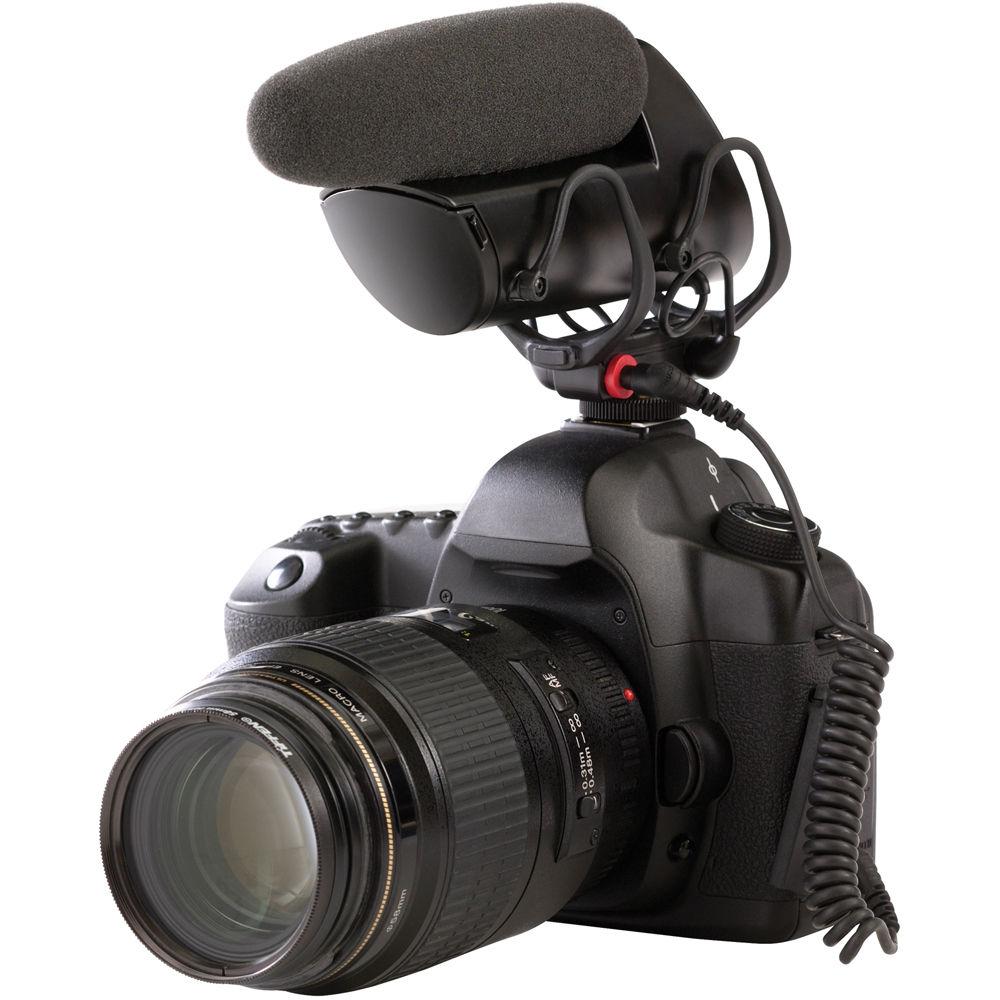

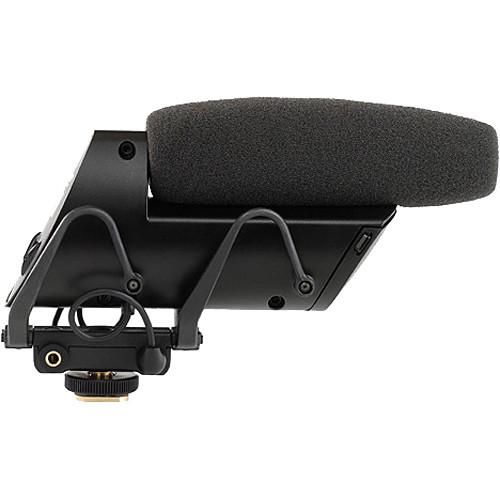

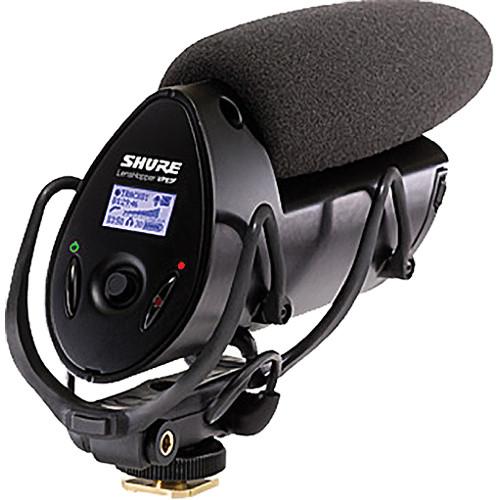

The VP83F LensHopper Shotgun Microphone with Integrated Flash Recorder from Shure is a compact camera-mount condenser that provides detailed, high-definition audio with DSLR cameras and camcorders. It records 24-bit/48kHz WAV audio files to MicroSDHC cards, supporting capacities up to 32GB. The VP83F also features one-button recording and an intuitive operating menu, making it easy to use. Additionally, an integrated Rycote Lyre shock mounting system provides isolation from vibration and mechanical noise.
The VP83F LensHopper features a 60dB gain range, adjustable in 1dB increments, as well as a low-cut filter for adapting to different recording environments. Its lightweight, yet durable, metal construction provides dependability and long-life. The VP83F easily mounts to a standard-size camera shoe or a 1/4" threaded stand. The detachable 3.5mm cable connects to your camera's audio input, while the stereo headphone output allows you to monitor incoming audio. Despite its extensive functionality, the VP83F offers 10 hours of battery life on two AA alkaline batteries. A foam windscreen is included to guard against wind and environmental noise. - Easy-to-Read Menu Display

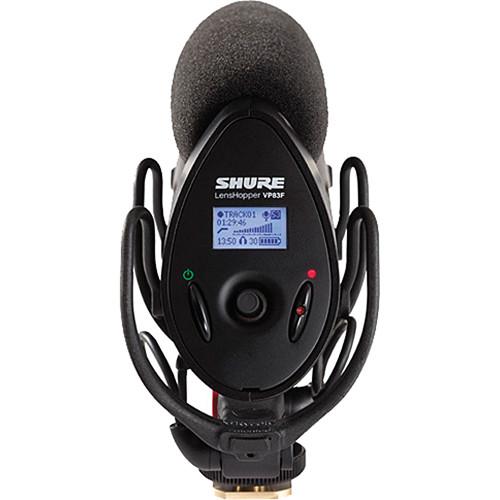

- The backlit LCD screen features complete activity monitoring from its home screen, including indicators for audio and battery metering, track information, headphone volume, mic gain, low-cut filter and remaining recording time.
- Joystick Control
- The VP83F has a five-position joystick that provides advanced user controls for headphone monitoring, low-cut filter and mic gain adjustments, track management, and playback.
UPC: 042406277006 In the Box Shure VP83F LensHopper Shotgun Microphone with Integrated Flash Recorder Foam Windscreen Gold-Plated 1/8" (3.5mm) Audio Cable 2 x Alkaline AA Battery Limited 2-Year Warranty User Manual PDF 2.8mbyveesfaubvxwcq Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure VP83F LensHopper Shotgun Microphone with Integrated Flash Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure VP83F LensHopper Specs | Cartridge Type | Electret condenser | | Frequency Response | 50 Hz to 20 kHz | | Recording Format | 24-bit / 48 kHz WAV files | | Polar Pattern | Supercardioid / lobar | | Output Impedance | Camera Output: 47 Ω
Headphone Output: 5 Ω | | Sensitivity | Open circuit voltage, @ 1 kHz, typical:
0 dB gain selection: -35.8 dBV/Pa (16.2 mV)
+30 dB gain selection: -5.8 dBV/Pa (512.9 mV) | | Maximum SPL | 0 dB gain selection, 1 kHz at 1% THD, 1000Ω load:
129 dB SPL | | Signal to Noise Ratio | +30 dB gain selection:
78 dB | | Self Noise | Equivalent SPL, A-weighted, typical, +30 dB gain selection:
15.6 dB SPL-A | | Operating Temperature | 0 to 145°F (-18 to 60°C) | | Storage Temperature | -20 to 165°F (-29 to 74°C) | | Relative Humidity | 0 to 95% | | Audio Connector | Detachable cable with 1/8" (3.5 mm) TRS connector
dual mono, unbalanced | | Output | Camera Connector: 1 x 1/8" (3.5 mm) dual mono unbalanced
Headphone Connector: 1 x 1/8" (3.5 mm) dual mono | | Shock Protection | Integrated Rycote Lyre | | Mounting Compatibility | Standard camera shoe mount
1/4" threaded base | | Battery Requirements | 2 x AA battery (alkaline, NiMH, rechargeable Li-Ion) | | Battery Life | 10 hours (record mode) | | Housing | Cast aluminum | | Weight | 7.6 oz (215 g) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 10.0 x 5.8 x 4.5" |
