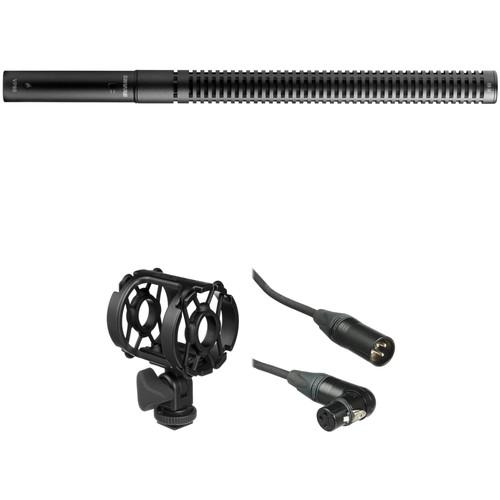

User Manual for Shure VP89 Medium Shotgun Microphone Shockmount Bundle Click to enlarge the picture
Contents of the user manual for the Shure VP89 Medium Shotgun Microphone Shockmount
- Product category: Shotgun Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Shotgun Microphones
|
User manual for the Shure VP89 Medium Shotgun Microphone Shockmount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The VP89 Medium Shotgun Microphone Shockmount Bundle is a Kit that includes a modular microphone whose side noise rejection and overall sound are a tailored fit for camera mounted applications, and small A/V field recording applications.
The included shockmount features a built-in shoe for easy camera mounting in addition to its boom pole mounting ability. A cable is provided. - Shure VP89M Modular Shotgun Microphone The Shure VP89M Modular Shotgun Microphone features an interchangeable capsule that displays high RF (Radio Frequency) rejection, superior side noise rejection, and is paired with the detachable VP89 Preamp. Long, short and medium sized capsule barrels are available to suite various recording needs, rejection angles and frequency response types.
This model ships with the medium capsule, and includes a windscreen and zippered pouch. The state-of-the-art low noise preamplifier design features a low frequency roll-off switch for eliminating noise below 200Hz. The usefulness of the microphone can be further extended by buying one of the other length capsule and simply attaching it to the already included preamp. - State-of-the-art preamplifier redesign
- Internal low-frequency roll-off
- Recessed low-cut filter switch for additional control
- Superior Shure design and rugged, roadworthy construction
Medium Capsule Design - Features a narrow pickup angle and wide target aperture for greater degree of ambience (audience response, talk shows, live concerts)
- Unmatched quality of off-axis rejection
UPC: 042406205702 - Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles The Auray DUSM-1 Universal Shockmount features a four-point suspension to accommodate shotgun and other cylindrical microphones measuring 0.74-0.98" (19-25mm) in diameter. The shockmount is easily angled with its rubberized adjustment knob. There is a built-in shoe for camera mounting, and a 3/8"-16 thread connection at the base mounts the shockmount to boompoles and universal hand-grips. UPC: 847628562776
- Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (1.5') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.
Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise.
- Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
- 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
- Cotton yarn reduces electrostatic and microphonic noise.
- All solder points shrink-wrapped for protection.
- Neutrik XX silver connectors offer high conductivity.
- Caged type contact and improved ground contact.
UPC: 847628558229 In the Box - VP89M Modular Shotgun Microphone ycetsbbvewcwdyyb
- Carrying Case
- Foam Windscreen
- Limited 2-Year Warranty
- Auray - DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles ycetsbbvewcwdyyb
- Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure VP89 Medium Shotgun Microphone Shockmount Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Shure VP89M Modular Shotgun Microphone
| Transducer | Electret Condenser | | Polar Pattern | Hypercardioid / Lobar | | Frequency Response | 100Hz to 20kHz | | Dynamic Range (Typical) | Dynamic Range (@ 1 kHz)
2500 Ohms load: 117.0dB1000 Ohms load: 113.5dB | | Signal-to-Noise Ratio | 79.0dB | | Maximum Input Sound Level | 2500 Ohms load: 132.0dB SPL
1000 Ohms load: 128.5dB SPL | | Input Clipping Level | Clipping Level (@ 1 kHz, 1% THD)
2500 Ohms load: 4.0 dBV1000 Ohms load: 0.0 dBV | | Power Requirements | 11-52V DC phantom power (IEC-61938), <2.0 mA | | Output Impedance | 115.0 Ohms | | Sensitivity | -33.5 dBV/Pa (2.11 mV) | | Noise | Self Noise (equivalent SPL, A-weighted, typical):
15.0dB | | Output Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 | | Low Frequency Roll-Off | 200Hz | | Temperature | Operating: -18°C (0°F) to 57°C (135°F)
Storage: -29°C (-20°F) to 74°C (165°F) | | Power Requirements | 11-52VDC phantom power (IEC-61938), < 2.0 mA | | Weight | VP89L: 174g (6.1 oz.)
VP89M: 138g (4.9 oz.)VP89S: 117g (4.1 oz.) | | | | Box Dimensions (LxWxH) | 16.0 x 3.6 x 3.4" | - Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles
| | | Box Dimensions (LxWxH) | 4.65 x 3.2 x 2.65" | - Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female Right-Angle | | Cable Length | 1.5' / 0.45 m | | Shielding | 95% Spiral | | Conductor Material | Oxygen-Free Copper (OFC) | | Number of Conductors | 2 | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | Jacket Type | Polyvinyl Chloride (PVC) | | Insulation Type | Polyethylene | | | | Box Dimensions (LxWxH) | 4.8 x 3.1 x 0.9" |
