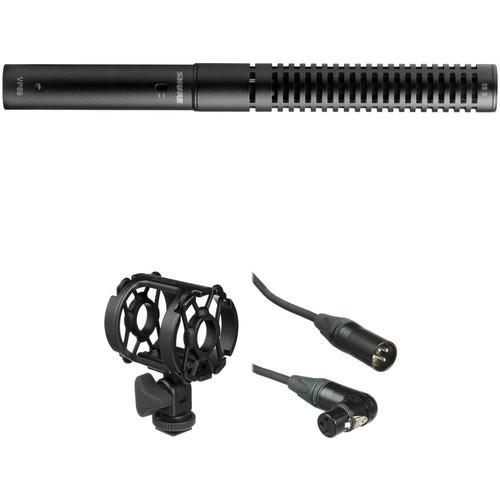

Shure VP89 Short Shotgun Microphone Shockmount

User Manual for Shure VP89 Short Shotgun Microphone Shockmount Bundle

• Product category: Shotgun Microphones Shure
• Brand: Shure
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Shure Shotgun Microphones

Product description

• Shure VP89S Modular Shotgun Microphone
  • Product Tutorial Video
  The Shure VP89S Modular Shotgun Microphone features an interchangeable capsule that displays high RF (Radio Frequency) rejection, superior side noise rejection, and is paired with the detachable VP89 Preamp. Long, short and medium sized capsule barrels are available to suite various recording needs, rejection angles and frequency response types.

  This model ships with the short capsule, and includes a windscreen and zippered pouch. The state-of-the-art low noise preamplifier design features a low frequency roll-off switch for eliminating noise below 200Hz. The usefulness of the microphone can be further extended by buying one of the other length capsule and simply attaching it to the already included preamp.
  • State-of-the-art preamplifier redesign
  • Superior RF immunity
  • Internal low-frequency roll-off
  • Recessed low-cut filter switch for additional control
  • Smaller footprint
  • Superior Shure design and rugged, roadworthy construction

  Short Capsule Design

  • Features a wide pickup angle for greatest degree of ambience in near-field target range (camera mounting, discrete mounting)
  • Unmatched quality of off-axis rejection
  UPC: 042406205719
• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles
  • Product Tutorial Video
  The Auray DUSM-1 Universal Shockmount features a four-point suspension to accommodate shotgun and other cylindrical microphones measuring 0.74-0.98" (19-25mm) in diameter. The shockmount is easily angled with its rubberized adjustment knob. There is a built-in shoe for camera mounting, and a 3/8"-16 thread connection at the base mounts the shockmount to boompoles and universal hand-grips. UPC: 847628562776
• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black
  • Product Tutorial Video
  The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (1.5') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

  Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Caged type contact and improved ground contact.
  UPC: 847628558229

• VP89S Modular Shotgun Microphone
• Carrying Case
• Foam Windscreen
• Limited 2-Year Warranty

• Auray - DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles dzqxsxxzwxwwcz

• Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Shure VP89S Modular Shotgun Microphone

  Transducer	Electret Condenser
  Polar Pattern	Hypercardioid / Lobar
  Frequency Response	140Hz to 20kHz
  Dynamic Range (Typical)	Dynamic Range (@ 1 kHz) 2500 Ohms load: 117.0dB 1000 Ohms load: 113.5dB
  Signal-to-Noise Ratio	79.0dB
  Maximum Input Sound Level	2500 Ohms load: 132.0dB SPL 1000 Ohms load: 128.5dB SPL
  Input Clipping Level	Clipping Level (@ 1 kHz, 1% THD) 2500 Ohms load: 4.0 dBV 1000 Ohms load: 0.0 dBV
  Power Requirements	11-52V DC phantom power (IEC-61938), <2.0 mA
  Output Impedance	115.0 Ohms
  Sensitivity	-33.5 dBV/Pa (2.11 mV)
  Noise	Self Noise (equivalent SPL, A-weighted, typical): 15.0dB
  Output Polarity	Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
  Low Frequency Roll-Off	200Hz
  Temperature	Operating: -18°C (0°F) to 57°C (135°F) Storage: -29°C (-20°F) to 74°C (165°F)
  Power Requirements	11-52VDC phantom power (IEC-61938), < 2.0 mA
  Weight	VP89L: 174g (6.1 oz.) VP89M: 138g (4.9 oz.) VP89S: 117g (4.1 oz.)

  Box Dimensions (LxWxH)	14.0 x 2.5 x 2.5"

• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles

  Box Dimensions (LxWxH)	4.65 x 3.2 x 2.65"

• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female Right-Angle
  Cable Length	1.5' / 0.45 m
  Shielding	95% Spiral
  Conductor Material	Oxygen-Free Copper (OFC)
  Number of Conductors	2
  Wire Gauge	24 AWG
  Contact Plating	Silver
  Jacket Type	Polyvinyl Chloride (PVC)
  Insulation Type	Polyethylene

  Box Dimensions (LxWxH)	4.8 x 3.1 x 0.9"
