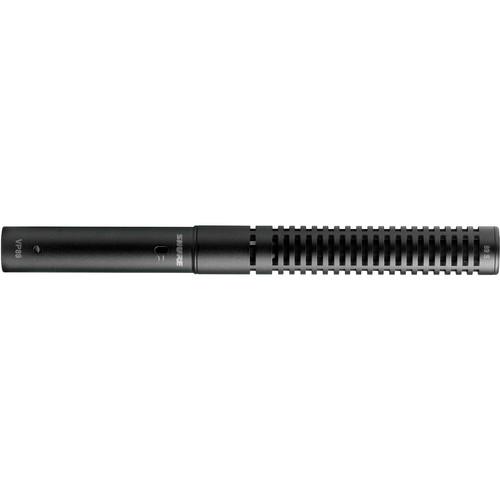

User Manual for Shure VP89S Modular Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the Shure VP89S Modular Shotgun Microphone
- Product category: Shotgun Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Shotgun Microphones
|
User manual for the Shure VP89S Modular Shotgun Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure VP89S Modular Shotgun Microphone features an interchangeable capsule that displays high RF (Radio Frequency) rejection, superior side noise rejection, and is paired with the detachable VP89 Preamp. Long, short and medium sized capsule barrels are available to suite various recording needs, rejection angles and frequency response types.
This model ships with the short capsule, and includes a windscreen and zippered pouch. The state-of-the-art low noise preamplifier design features a low frequency roll-off switch for eliminating noise below 200Hz. The usefulness of the microphone can be further extended by buying one of the other length capsule and simply attaching it to the already included preamp. - State-of-the-art preamplifier redesign
- Internal low-frequency roll-off
- Recessed low-cut filter switch for additional control
- Superior Shure design and rugged, roadworthy construction
Short Capsule Design - Features a wide pickup angle for greatest degree of ambience in near-field target range (camera mounting, discrete mounting)
- Unmatched quality of off-axis rejection
UPC: 042406205719 In the Box Shure VP89S Modular Shotgun Microphone Carrying Case Foam Windscreen Limited 2-Year Warranty User Manual PDF 2.5mbvqxwwruyvcwctt Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure VP89S Modular Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure VP89 Specs | Transducer | Electret Condenser | | Polar Pattern | Hypercardioid / Lobar | | Frequency Response | 140Hz to 20kHz | | Dynamic Range (Typical) | Dynamic Range (@ 1 kHz)
2500 Ohms load: 117.0dB1000 Ohms load: 113.5dB | | Signal-to-Noise Ratio | 79.0dB | | Maximum Input Sound Level | 2500 Ohms load: 132.0dB SPL
1000 Ohms load: 128.5dB SPL | | Input Clipping Level | Clipping Level (@ 1 kHz, 1% THD)
2500 Ohms load: 4.0 dBV1000 Ohms load: 0.0 dBV | | Power Requirements | 11-52V DC phantom power (IEC-61938), <2.0 mA | | Output Impedance | 115.0 Ohms | | Sensitivity | -33.5 dBV/Pa (2.11 mV) | | Noise | Self Noise (equivalent SPL, A-weighted, typical):
15.0dB | | Output Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 | | Low Frequency Roll-Off | 200Hz | | Temperature | Operating: -18°C (0°F) to 57°C (135°F)
Storage: -29°C (-20°F) to 74°C (165°F) | | Power Requirements | 11-52VDC phantom power (IEC-61938), < 2.0 mA | | Weight | VP89L: 174g (6.1 oz.)
VP89M: 138g (4.9 oz.)VP89S: 117g (4.1 oz.) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 14.0 x 2.5 x 2.5" |
