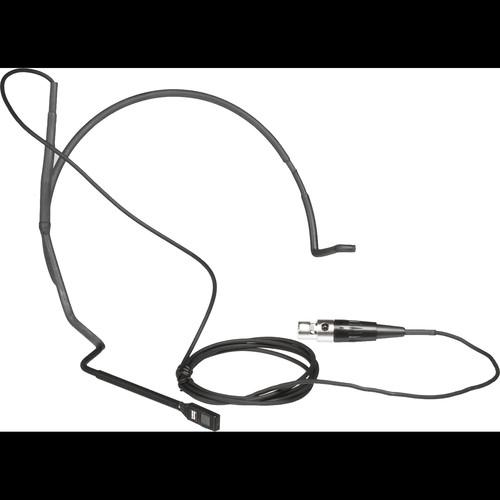

User Manual for Shure WCM16 Cardioid Headworn Condenser Vocal Microphone Click to enlarge the picture
Contents of the user manual for the Shure WCM16 Cardioid Headworn Condenser Vocal
- Product category: Microphones for Wireless Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Microphones for Wireless
|
User manual for the Shure WCM16 Cardioid Headworn Condenser Vocal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure WCM16 Cardioid Headworn Condenser Vocal Microphone is intended for wireless use by performers, lecturers, and others who require the highest quality voice pickup with maximum mobility. Its wide frequency response, low RF susceptibility and reliable operation at temperature and humidity extremes make the WCM16 suitable for virtually any vocal application. When used with the Shure Bodypack Transmitters, the performance of the WCM16 closely resembles the finest conventional vocal microphones.
Miniaturized active circuitry included in the cartridge assembly provides equalization that tailors the low-frequency response to resemble the warm proximity effect of larger vocal microphones. Because of this low-end response, it is not necessary to position the microphone directly in front of the mouth, thus avoiding much popping and breath noise, even without the included foam pop screen.
The microphone's hypercardioid unidirectional pickup pattern provides maximum isolation from ambient noise and from adjacent sound sources such as musical instruments, loudspeakers and other performers. This permits higher gain before feedback without loss or masking of vocals. - Extra lightweight, adjustable headband stays secure and virtually disappears while being worn.
- Response comparable to finest conventional vocal microphones.
- Hypercardioid polar pattern provides maximum isolation from vocalist's own instrument and those of other performers.
- Uniform polar pattern at all frequencies for maximum gain before feedback.
- High input clipping level eliminates overload distortion.
- Cable terminates as 4-pin mini connector.
- Supplied acoustic foam pop screen.
- Reliable at temperature and humidity extremes.
UPC: 042406053228 In the Box Shure WCM16 Cardioid Headworn Condenser Vocal Microphone Foam Pop Screen Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure WCM16 Cardioid Headworn Condenser Vocal Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure WCM16 Specs | Transducer | Electret Bias Condenser | | Polar Pattern | Hypercardioid | | Frequency Response | 50 Hz - 18 kHz | | Dynamic Range (Typical) | 121 dB | | Signal-to-Noise Ratio | 65 dB at 94 dB SPL | | Maximum Input Sound Level | 150 dB at 1% THD | | Power Requirements | Powered from the +5 VDC Source at Microphone Connector Pin 2 of a Shure Transmitter. | | Output Impedance | 1200 Ohms | | Output Connectors | 4-Pin, Tini Q-G Connector | | Dimensions | Cable: 5' (1.5 m), small-diameter | | Weight | 1.27 oz (36 g) | | | | Package Weight | 0.49 lb | | Box Dimensions (LxWxH) | 9.9 x 7.6 x 3.2" |
