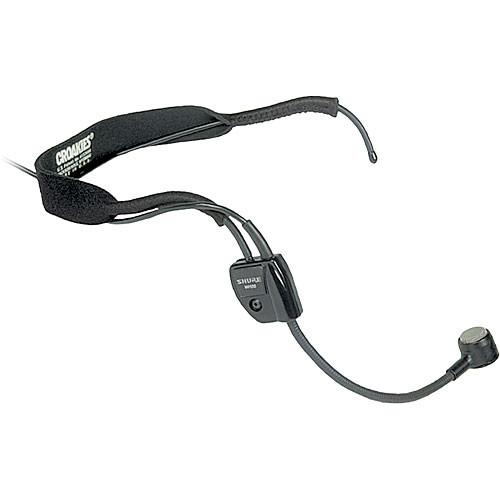

User Manual for Shure WH20 Headset Mic with TA4F Connector for Shure Bodypack Transmitters Click to enlarge the picture
Contents of the user manual for the Shure WH20 Headset Mic with TA4F
- Product category: Microphones for Wireless Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Microphones for Wireless
|
User manual for the Shure WH20 Headset Mic with TA4F contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The improved version of the WH10, the Shure WH20, is a rugged, lightweight, dynamic headset microphone that provides high-quality voice pickup. It fits securely for active microphone users, such as aerobics instructors and musicians, with low visibility for stage appearances. The WH20 is suitable for any voice communications application where comfort and reliability are required. The WH20 has a cardioid (unidirectional) pickup pattern. This provides greater gain-before-feedback and isolation from ambient noise and other unwanted sound sources, such as air conditioning, musical instruments, and loudspeakers. A carefully shaped frequency response includes a voice-frequency presence peak and a low-frequency roll off to compensate for the proximity effect inherent in cardioid microphones during close-talk operation. An integrated elastic CROAKIES headband secures the headset comfortably. The headband, wireframe, and gooseneck are adjustable to accommodate any head size or shape. - TA4F connector for Shure bodypack transmitters is included
- Lightweight wireframe and headband adjust for a secure, comfortable fit
- Extra-strong, small-diameter attached microphone cable resists breakage
- Collapsible microphone boom for easy storage and transportation
- Smooth, natural frequency response comparable to high-quality dynamic handheld vocal microphones
- High input clipping level eliminates overload distortion
- Reliable at temperature and humidity extremes
UPC: 042406066037 In the Box Shure WH20 Headset Mic with TA4F Connector for Shure Bodypack Transmitters Foam Windscreen Clothing Clip Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure WH20 Headset Mic with TA4F Connector for Shure Bodypack Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure WH20 Specs | Transducer | Dynamic, close-talking | | Polar Pattern | Cardioid | | Frequency Response | 50 Hz to 15 kHz, Measured @ 0.3" (8.0 mm) | | Power Requirements | Dynamic (Requires NO Phantom Power) | | Impedance | 150 ohms (200 ohms actual) | | Output Level | Open Circuit Voltage: -67 dB/Pa (1.48' / 0.45 m)
1 Pa = 94 dB SPL
Close-talked (@ 0.50" / 12.5 mm) @ 1,000 Hz | | Electromagnetic Hum Sensitivity | 38.4 dB equivalent SPL in a 1 mOe field | | Operating Temperature | 0 to 140°F (-18 to 60°C) | | Storage Temperature | -20 to 165°F (-29 to 74°C) | | Connector | TA4F connector for Shure bodypack transmitters | | Cable Length | 4.0' (1.2 m) | | Dimensions | Not specified by manufacturer | | Weight | 2.2 oz (63 g) including connector | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 7.6 x 6.4 x 3.1" |
