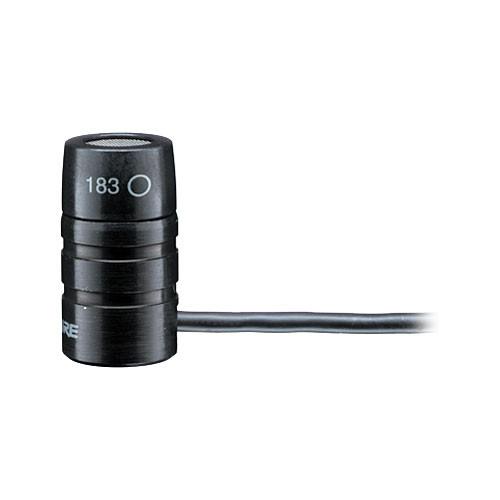

User Manual for Shure WL183 Omnidirectional Lavalier Microphone Click to enlarge the picture
Contents of the user manual for the Shure WL183 Omnidirectional Lavalier Microphone
- Product category: Microphones for Wireless Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Microphones for Wireless
|
User manual for the Shure WL183 Omnidirectional Lavalier Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure WL183 is a miniature omnidirectional microphone designed for general recording and sound reinforcement application. The omnidirectional pattern provides a generous pick up at the perimeter of the capsule, enhancing ambient audio pick up while minimizing handling noise. The WL183 features a wide sensitivity and frequency response, reproducing speech with great detail and clarity. The 4 foot (1.2 meter) cable cable terminates to a 4-pin TA4-female connector, compatible with Shure wireless transmitters and power supplies. - Miniature Profile
- The miniature profile of the WL183 capsule allows the microphone to be easily concealed during performances or video shoots.
- Omnidirectional Pattern
- The omnidirectional polar pattern provides a 360 degree pick up range, enabling a generous signal pick up without added noise.
- TA4 Female Connection
- The 4 foot (1.2 meter) cable terminates to a TA4 female connection, compatible with Shure wireless transmitters and power supply modules.
UPC: 042406055307 In the Box Shure WL183 Omnidirectional Lavalier Microphone 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure WL183 Omnidirectional Lavalier Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure WL183 Specs | Transducer | Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 50 Hz - 17 kHz | | Dynamic Range (Typical) | 102.5 dB | | Signal-to-Noise Ratio | Output Noise: 22.5dB SPL | | Maximum Input Sound Level | 125 dB | | Power Requirements | +5v DC on Pin 2, Return on Pin 1 (Ground) Provided by Wireless Transmitters | | Output Impedance | 1800 ohms | | Output Connectors | TA4F Mini 4-Pin Connector | | Pad | None | | Low Frequency Roll-Off | None | | Dimensions | Cable Length - 4 feet (1.2m) | | Weight | not specified by manufacturer | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 6.7 x 4.4 x 3.3" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 54 owners. Add your rating and experience with the product.
