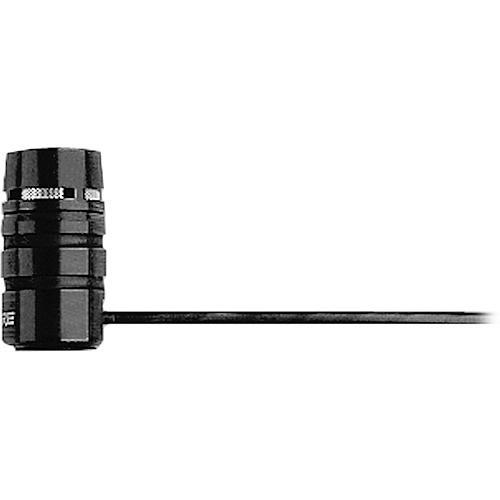

User Manual for Shure WL184 Supercardioid Lavalier Microphone Click to enlarge the picture
Contents of the user manual for the Shure WL184 Supercardioid Lavalier Microphone
- Product category: Microphones for Wireless Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Microphones for Wireless
|
User manual for the Shure WL184 Supercardioid Lavalier Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure WL184 is a super-cardioid subminiature lavalier microphone with signal characteristics ideal for general sound reinforcement applications. The super-cardioid pick up pattern provides adequate rejection of off-axis ambient signal that can cause noise and feedback. The low-profile subminiature design is ideal for applications where the microphone must be concealed. The hardwired 4 foot cable terminates to a 4-pin TA4-female connector which is compatible with Shure wireless transmitters and power supplies. - Subminature Profile
- The miniature capsule is easy to conceal during video, broadcast, stage and sound reinforcement applications.
- Super-Cardioid Polar Pattern
- The super-cardioid polar pattern effectively minimizes noise and ambiance at the off-axis sections of the capsule, reducing noise and feedback.
- Full Signal Reproduction
- A wide frequency response and high SPL rating results in full, clear audio reproduction for speech.
- TA4-Female Connection
- The hardwired cable terminates to a TA4-female connection, compatible with Shure wireless microphone transmitters.
UPC: 042406055314 In the Box Shure WL184 Supercardioid Lavalier Microphone Windscreen 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure WL184 Supercardioid Lavalier Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure WL184 Specs | Transducer | Electret Bias | | Polar Pattern | Super-Cardioid | | Frequency Response | 50Hz to 17kHz | | Dynamic Range (Typical) | 102dB | | Signal-to-Noise Ratio | 27dB SPL (A-weighted) | | Maximum Input Sound Level | 129.5dB | | Power Requirements | Regulated Nominal +5 Vdc (2 Vdc to 10 Vdc) | | Output Impedance | 18 kHz | | Output Connectors | TA4-Female | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | Cable length: 4 foot (1.2 meter) | | Weight | not specified by manufacturer | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 6.6 x 4.4 x 3.3" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
