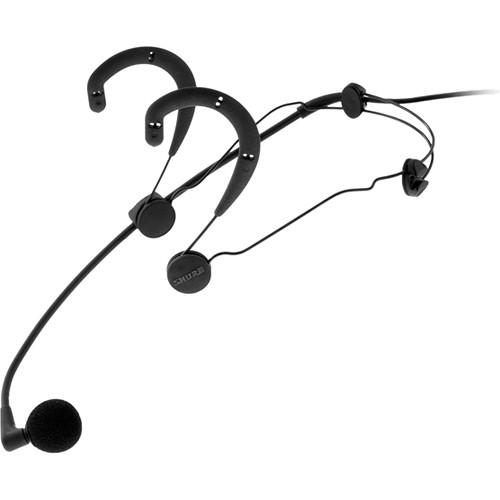

User Manual for Shure WMH54 Supercardioid Headworn Condenser Microphone with TA4F Connector, Black Click to enlarge the picture
Contents of the user manual for the Shure WMH54 Supercardioid Headworn Condenser Microphone
- Product category: Microphones for Wireless Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Microphones for Wireless
|
User manual for the Shure WMH54 Supercardioid Headworn Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure WBH54 is a fully adjustable supercardioid condenser microphone, designed for applications where inconspicuous appearance and incredible sound quality are required. Its lightweight, adjustable, modular headband, flexible wireframe and soft earpieces provide a comfortable fit while still allowing the WMH54 to be positioned as close to the left or right corner of the mouth as possible, assuring maximum voice pickup. The WMH54 microphone itself features an extended frequency response and high SPL handling ability.
The WMH54 is uniquely designed to provide the sound quality and performance consistency required for environments such as professional theater, event production, trade shows or seminars - the best sound with minimal visibility. - Comfortable, latex-free Dynaflex earforms that hide behind the ears
- Thin, non-reflective wireframe that is easily hidden underneath hair
- Ultra-thin detachable microphone boom mount for right or left positioning
- Interchangeable frequency response caps (mild or high, two pieces each)
- Clothing clip for securing cable
- Durable carrying case for protective storage
- TA4F (Mini 4-Pin) connector for use with wireless systems
UPC: 042406113441 In the Box Shure WMH54 Supercardioid Headworn Condenser Microphone with TA4F (Mini 4-Pin) Connector, Black Plastic Carrying Case 2 x High Boost Equalization Caps 2 x Mild Boost Equalization Caps 2 x Foam Windscreens Swiveling Lapel Clip Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure WMH54 Supercardioid Headworn Condenser Microphone with TA4F Connector, Black in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure WMH54 Specs | Transducer | Electret Bias Condenser | | Polar Pattern | Supercardioid | | Frequency Response | 20 Hz - 20 kHz | | Dynamic Range (Typical) | 103 dB | | Signal-to-Noise Ratio | 55 dB at 94 dB SPL | | Maximum Input Sound Level | 143 dB at 1% THD/1 K Ohm Load | | Power Requirements | +5 Vdc on Pin 2, Return on Pin 1 (Ground) Note: Power is Provided by Wireless Transmitter | | Output Impedance | 150 Ohms | | Output Connectors | 4-Pin, Tini Q-G Connector | | Dimensions | 5' (1.5 m), small-diameter, shielded, with mini 4-pin connector (TA4F) | | Weight | 1.25 oz (35.35 g) microphone only | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 11.0 x 8.5 x 5.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
