The DH110 Digital Signage System from Shuttle is a slim PC that can be used as a digital signage media player. It comes equipped with an Intel i5-6400 quad-core processor and Windows 10 Pro operating system. It also comes with an integrated Intel HD graphics engine that allows the DH110 to support 4K/Ultra HD video playback. With a body thickness of 1.7" and a VESA mountable design, the DH110 is suitable for commercial applications where available space is limited. Thanks to its robust metal chassis and a wide ambient temperature range, the DH110 can run stably for a long time. To meet the demands of vertical applications, this system features built-in USB 2.0, RS232/422/485, and PS/2 I/O ports.
    • Equipped with 4GB RAM and 120GB SSD
    • On-board LGA1151 socket and H110 chipset
    • Supports dual-channel DDR3L 1600 memory with the maximum memory capacity of up to 32GB (2 x 16GB)
    • Supports two Intel Gigabit LAN interfaces, native SATA 6 Gbps, and USB 3.0 high-speed storage interfaces
    • One M.2 2260/2242 type-M built-in slot and one M.2 2230 type-A/E slot to install an M.2 SSD and a Wi-Fi card or other compatible devices (not included)
    • One DisplayPort and one HDMI video output to support dual independent screens
    • Allows you to use an adapter (not included) to convert HDMI into DVI interface and DisplayPort into HDMI or DVI interface for diversified signal selection
    • Supports Wake on LAN and Teaming Mode function to provide high-speed data transfer capacity
    • Connect to a single network using two cables (cables not included) at once with an appropriate switch (teaming mode with load balancing or failover function) or to two different networks depending on the needs of the user
    • Enter BIOS to set up the Power on by RTC function that allows you to set a time to boot up the computer and to turn off with the Windows task scheduler
    • Use Shuttle’s Watch Dog utility to maintain the normal operation and stability of the system at all times
    • Power-on from remote line to enable you to power-on the system from a separate location
    • Four-pin-connector at the back panel provides the Clear CMOS function
    • Reset the BIOS settings without opening the chassis
    • Supports multiple operating systems (Win 7, Win 8.1, Win 10, and Linux)
    • VESA mount compliance allows for versatile integration into hardware systems
    • Heat pipe cooling module with smart fan design
    • Better thermal efficiency and system stability due to increased airflow
    • Rugged design allows for 24/7 stable operation over long periods of time; even in 122°F
    • 1.3-liter slim design
In the Box Shuttle DH110 Digital Signage System with i5-6400 Processor and 120GB SSD
  • XPC DVD Driver
  • VESA Mount
  • Power Cord
  • SATA Cable
  • Mounting Screws
  • Digital Signage Software for Windows
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Shuttle DH110 Digital Signage System with i5-6400 Processor and 120GB SSD in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Shuttle DH110 Specs

    Processor Model Intel i5-6400 quad-core
    Threads 4
    Base Frequency 2.7 GHz
    L3 Cache 6 MB
    Bus Speed 8 GT/s DMI3
    Lithography 14 nm
    TDP 65 W
    Chipset Intel H110 Express chipset
    Type DDR3L SODIMM 1600 MHz
    Channel Dual
    Pins 204-pin
    Slots 2 x SODIMM
    Pre-Installed Memory 4 GB
    Total Capacity 32 GB (2 x 16 GB)
    Bays 1 x 2.5" HDD/SSD bay (120 GB SSD installed)
    Expansion Slot 1 x M.2 2260 type-M key socket
    1 x M.2 2230 type-A, E key socket

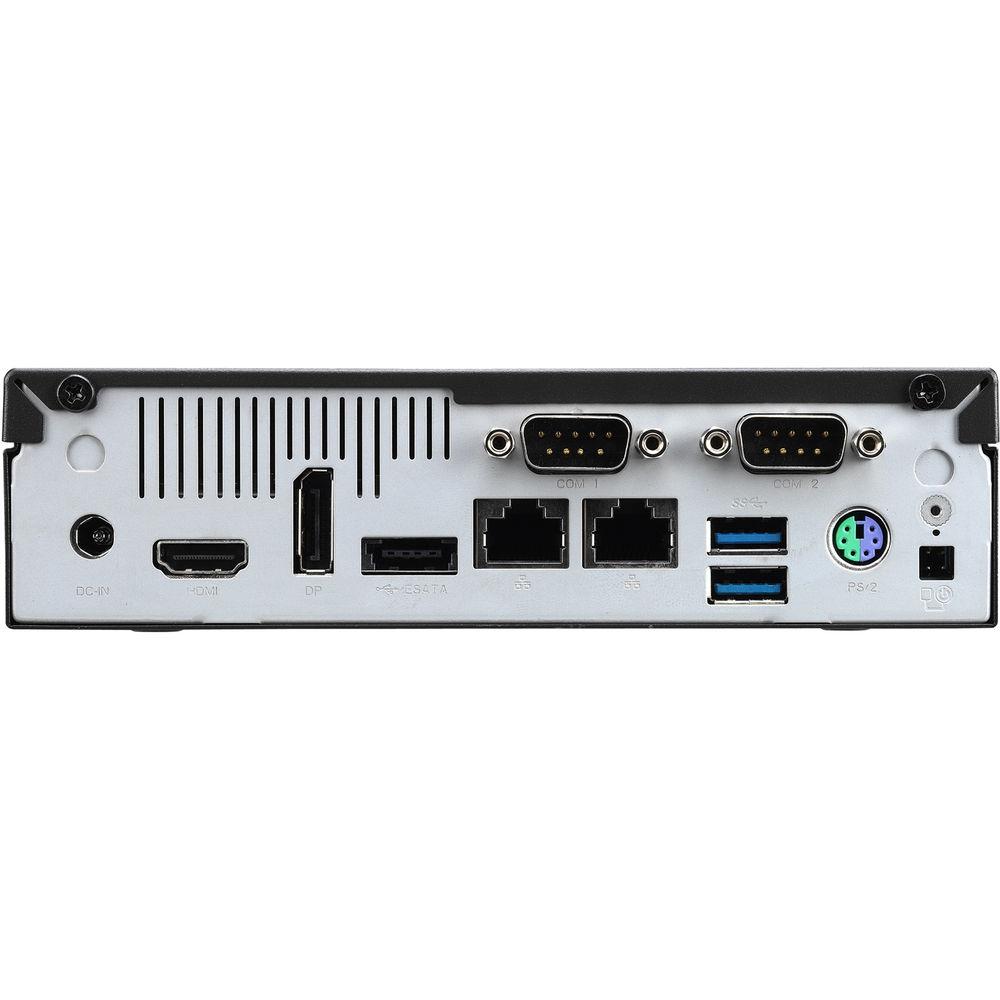

    HDMI 1 x HDMI
    DisplayPort 1 x DisplayPort
    Dual Display Capable Yes
    Playback Supports 4K playback
    Codec Realtek ALC662 channel High Definition Audio
    Storage Interface SATA 6.0 Gb/s
    On-Board Connectors 1 x SATA 6 connectors
    1 x SATA power connector
    1 x 4-pin fan connector
    1 x front audio header
    1 x 4-pin USB header
    1 x D-sub connector
    1 x auto power on header
    1 x external power on
    1 x RS232 voltage switch

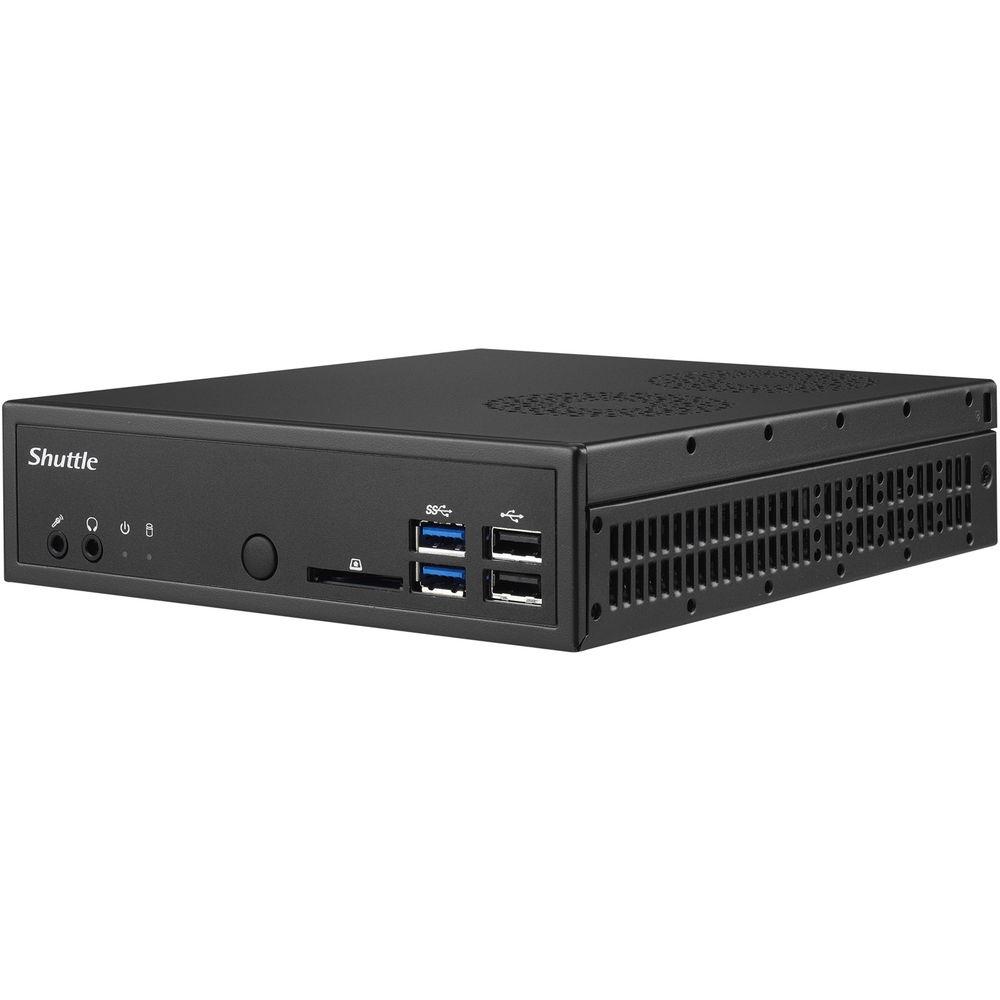

    Front Panel 1 x power-on button
    1 x power LED
    1 x HDD LED
    2 x USB 2.0 port
    2 x USB 3.0 port
    1 x earphone-out
    1 x microphone-in
    1 x SD card reader
    Back Panel 1 x external power on/clear CMOS header
    2 x USB 3.0 port
    1 x HDMI port
    1 x DisplayPort
    1 x eSATA + USB 2.0 COM port
    2 x RJ45 Gigabit LAN port
    1 x RS232
    1 x RS232/RS422/RS485
    1 x PS/2 port
    1 x DC-in
    1 x Kensington lock
    2 x wireless antenna fixtures
    Installed OS Win 10 Pro
    Supported OS Windows 7
    Windows 8.1
    Windows 10
    Linux
    Ethernet Intel i211+i219LM Dual LAN
    100 Mb/s and 1 Gb/s operation
    Form Factor 1.3 L
    Input 100 to 240 VAC
    Output 19 V; 4.47 A via DC
    Power Adapter 90 W
    Dimensions 7.5 x 6.5 x 1.7" (19.0 x 16.5 x 4.3 cm)
    Weight Not specified by the manufacturer
