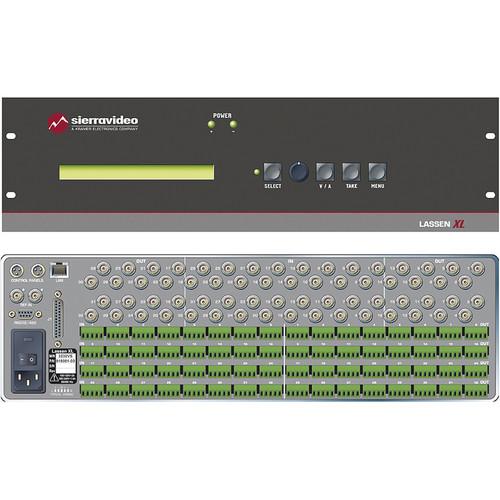

User Manual for Sierra Video 3232EE-XL Lassen XL 32 x 32 Composite Video and Digital Audio Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Sierra Video 3232EE-XL Lassen XL 32
- Product category: Routers & Switchers Sierra Video
- Brand: Sierra Video
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sierra Video Routers & Switchers
|
User manual for the Sierra Video 3232EE-XL Lassen XL 32 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sierra Video product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sierra Video user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sierra Video product will considerably shorten its lifespan!
|
Product description The Sierra Video 3232EE-XL Lassen XL 32 x 32 Composite Video and Digital Audio Matrix Switcher is designed for routing composite video and balanced AES/EBU audio signals. It features 32 inputs and 32 outputs, an LCD display, and a Qwik Adjust knob rotary control interface. The Lassen XL 32 x 32 measures only 3RU, and features BNC video connectors and 5-pin terminal block audio connectors. The Lassen XL also offers IP Ethernet control via a standard TCP/IP socket connection and a RS232/422 serial interface.
The Lassen XL routing switcher is designed to connect with other Sierra Video routing switcher families. The Lassen switcher can perform as either the master or the slave unit in your control system. The routing switcher can be inserted into an existing Sierra Video routing system providing additional format levels. Additional Lassen models can be linked to any Sierra Video SCP Series control panel for control of larger broadcast systems. - IP (Ethernet) Control via standard TCP/IP socket connection - Mac or PC
- Enhanced Video Boards 300MHz (-3dB)
- Qwik Adjust Knob Rotary Control Interface - Intuitive user interface with front panel LCD display
- Use with other Sierra Video Routing Switchers - Functions as either the master or the slave unit when used with other Sierra Video routing switchers
- Compact design at only 3RU
In the Box Sierra Video 3232EE-XL Lassen XL 32 x 32 Composite Video and Digital Audio Matrix Switcher Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sierra Video 3232EE-XL Lassen XL 32 x 32 Composite Video and Digital Audio Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSierra Video 3232EE-XL Specs | | | Bandwidth | > 100 MHz (-3 dB) | | Video Gain | Unity | | Crosstalk | -80 dB @ 1 MHz -47 dB @ 100 MHz | | Switching Speed | Deterministic | | Input/Output Signal | Video Level: 300 mV to 2.5V pp Max
Impedance: 75 Ω nominal
Return Loss: < -30 dB @ 5 MHz
Connector Type: BNC | | | | Type | AES-3 Digital audio | | Data Rates | 32 - 96 kHz | | Jitter | < 0.25 UI p-p | | Maximum Distance | 100 m | | Cable | STP | | Input Signal | Return Loss: < -30 dB @ 6 MHz
Minimum Input: 200 mV p-p
Connector Type: Terminal block | | Output Signal | Audio Level: 2.5 V nominal
Return Loss: < -30 dB @ 6 MHz
Connector Type: Terminal block | | | | Control Panels | Supports SCP programmable control panels, XY and single bus control panels | | Serial | General purpose 9-pin D-sub connector
Switchable RS232 or RS422
9600, 38400, 115200 baud | | Serial Protocol | SVS host, simple Kramer | | RS-485 | Mini-XLR for optional control panels | | Ethernet | 10/100 Base-T, full-duplex
Connector: RJ-45 | | Ethernet Protocol | ARP, ICMP, TCP/IP, Telnet, HTTP | | Web Server | For control interface | | | | Power | 90-240 VAC, 50/60 Hz (< 150 W) auto-detecting | | Storage Temperature | 40 to 150° F (4.4 to 65.5° C) | | Operating Temperature | 30 to 100° F ambient (-1.1 to 37.8° C) | | Humidity | 10% to 90 % non-condensing | | Dimensions (W x D x H) | 19 x 18.5 x 5.25" (48.3 x 46.9 x 13.3 cm) Depth measurements do not include front panel hardware or rear cabling | | Weight | 34 lb (15.4 kg) |
