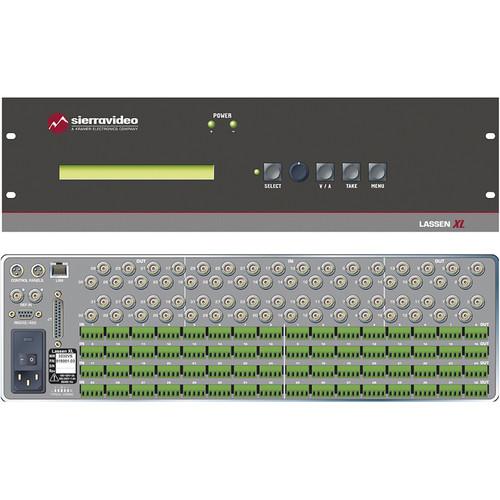

User Manual for Sierra Video 3232HDEER-XL Lassen 32x32 HD-SDI And Digital Audio Matrix Switcher with Redundant Power Supply Click to enlarge the picture
Contents of the user manual for the Sierra Video 3232HDEER-XL Lassen 32x32 HD-SDI
- Product category: Routers & Switchers Sierra Video
- Brand: Sierra Video
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sierra Video Routers & Switchers
|
User manual for the Sierra Video 3232HDEER-XL Lassen 32x32 HD-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sierra Video product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sierra Video user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sierra Video product will considerably shorten its lifespan!
|
Product description The 3232HDEER-XL Lassen 32x32 HD-SDI And Digital Audio Matrix Switcher with Redundant Power Supply from Sierra Video is designed for routing SD/HD-SDI video and balanced AES/EBU audio signals. It features 32 inputs and 32 outputs, an LCD display, and an intuitive rotary knob control interface. The 3232HDEER-XL is 4U rackmountable and features BNC video connectors and 5-pin terminal block audio connectors. The matrix switcher also offers IP Ethernet control via a standard TCP/IP socket connection and a RS-232/422 serial interface.
The 3232HDEER-XL is designed to connect with other Sierra Video routing switcher families. The Lassen switcher can perform as either the master or the slave machine in your control system. The routing switcher can be inserted into an existing Sierra Video routing system providing additional format levels. Additional Lassen models can be linked to any Sierra Video SCP Series control panel for control of larger broadcast systems. -
- Max data rate - 1.485 Gbps
- IP (Ethernet) control via standard TCP/IP socket connection - Mac or PC
- RS-232/422 control
- Intuitive rotary knob control interface with front panel LCD display
- 4U Rack size
- Functions as either the master or the slave unit when used with other Sierra Video routing switchers
In the Box Sierra Video 3232HDEER-XL Lassen 32x32 HD-SDI And Digital Audio Matrix Switcher with Redundant Power Supply Fuses Power Cord Power Supply Software Disk Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sierra Video 3232HDEER-XL Lassen 32x32 HD-SDI And Digital Audio Matrix Switcher with Redundant Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSierra Video 3232HDEER-XL Specs | | | Type | HD-SDI | | Max Data Transfer Rate | 1.485 Gbps | | Data Types | SMPTE 372M, SMPTE 344M, SMPTE 310M, SMPTE 292M, SMPTE 259, DVB-ASI, ITU-R BT.601 | | Jitter | < 0.2 UI | | Input Signal | Video Level: 800 mVpp ± 10%
Impedance: 75 Ω
Return Loss: < -15 dB up to 1.5 GHz
Cable Equalizing Range: 0 - 100 m for SMPTE 292, Belden 8281
0 - 300 m for all other standards, Belden 8281
Connector Type: BNC | | Output Signal | Video Level: 800 mVpp ± 10% Impedance: 75 Ω Return Loss: < -15 dB up to 1.5 GHz
Rise/Fall Times: < 270 psec Connector Type: BNC | | | | Type | AES-3 Digital audio | | Data Rates | 32 - 96 kHz | | Jitter | < 0.25 UI p-p | | Maximum Distance | 328' (100 m) | | Cable | STP | | Input Signal | Return Loss: < -30 dB @ 6 MHz
Minimum Input: 200 mV p-p
Connector Type: 5-pin terminal block | | Output Signal | Audio Level: 2.5 V nominal
Return Loss: < -30 dB @ 6 MHz
Connector Type: 5-pin terminal block | | | | Control Panels | Supports SCP programmable control panels, XY & single bus control panels | | Serial | General purpose 9-pin D-sub connector
Switchable RS232 or RS422
9600, 38400, 115200 baud | | Serial Protocol | SVS host, simple Kramer | | RS-485 | Mini-XLR for optional control panels | | Ethernet | 10/100 Base-T, full-duplex
Connector: RJ-45 | | Ethernet Protocol | ARP, ICMP, TCP/IP, Telnet, HTTP | | Web Server | For control interface | | | | Power | 90-240 VAC, 50/60 Hz (< 150 W) auto-detecting
Redundant power supply | | Storage Temperature | 40 to 150° F (4.4 to 65.5° C) | | Operating Temperature | 30 to 100° F ambient (-1.1 to 37.8° C) | | Humidity | 10% to 90 % non-condensing | | Rack Height | 4U | | Dimensions (W x D x H) | 19.0 x 18.5 x 7.0" (48.3 x 47.0 x 17.8 cm) | | Weight | 36.0 lb (16.3 kg) |
