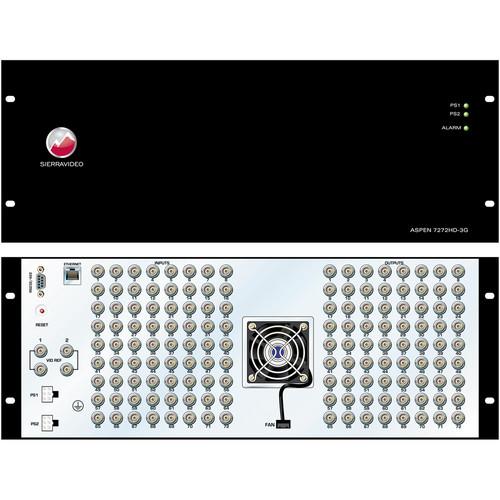

User Manual for Sierra Video 7272HD-3G Aspen 72 x 72 3G HD-SDI Routing Switcher Click to enlarge the picture
Contents of the user manual for the Sierra Video 7272HD-3G Aspen 72 x
- Product category: Routers & Switchers Sierra Video
- Brand: Sierra Video
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sierra Video Routers & Switchers
|
User manual for the Sierra Video 7272HD-3G Aspen 72 x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sierra Video product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sierra Video user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sierra Video product will considerably shorten its lifespan!
|
Product description The 7272HD-3G Aspen 72 x 72 3G HD-SDI Routing Switcher from Sierra Video is a 4RU rackmount routing switcher with 72 inputs and 72 outputs which supports SDI, HD-SDI, 3G HD-SDI and dual link HD-SDI video signals. It can switch any or all inputs to any or all outputs. The Aspen 7272HD-3G can be remotely controlled using an RS-232/485/422 serial interface or an Ethernet port by using the built-in web pages for configuration and operation. - Multi-Standard Operation; SDI (SMPTE 259M & SMPTE 344M), HD-SDI (SMPTE 292M), 3G HD-SDI (SMPTE 424M) and dual link HD-SDI (SMPTE 372M)
- System Range 500' (155m) at maximum data rate
- Sync Re-Clocking 5 modes: auto, bypass, 3G HD-SDI, HD-SDI & SD per input
- RS-232, RS-485, RS-422 & Ethernet control
- Supports TCP/IP Protocol with rear panel RJ-45 connector
In the Box Sierra Video 7272HD-3G Aspen 72 x 72 3G HD-SDI Routing Switcher Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sierra Video 7272HD-3G Aspen 72 x 72 3G HD-SDI Routing Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSierra Video 7272HD-3G Specs | | | Data Rates | 19 Mbps to 2.97 Gbps | | Data Types | SMPTE 259M-C, SMPTE 292, SMPTE 424M & DVB-ASI | | Input | Cable Equalization: 3G: 0 - 500' (155m)
HD: 0 - 650' (200m)
SD: 0 - 1,200' (400m)
Return Loss: ≥15db @ 1.485Gbps
≥10db @ 2.97Gbps | | Output | Level: 800 mV p-p ± 10%
Timing Jitter: SMPTE 424M ≤2.0UI
SMPTE 292 ≤1.0UI
SMPTE 259M ≤2.0UI
Alignment Jitter: SMPTE 424M ≤0.3UI
SMPTE 292 ≤0.2UI
SMPTE 259M ≤0.2UI
Return Loss: ≥15db @ 1.485 Gbps
≥10dB @ 2.97 Gbps | | | | Ethernet | 10/100 Base-T, RJ-45 | | Serial | RS-232/422, 9-pin Sub-D | | | | Power | 110 - 240 VAC, 50/60 Hz, 55 W | | Connectors | 72 x BNC input
72 x BNC output
2 x BNC looping sync input 1
2 x BNC looping sync input 2 | | Impedance | 75 Ω | | Operating Temperature | 32 to 104° F (0 to 40° C) | | Dimensions (H x W x D) | 7 x 19 x 2.5" (178 x 483 x 64 mm) | | Weight | 7 lb (3.2 kg) |
