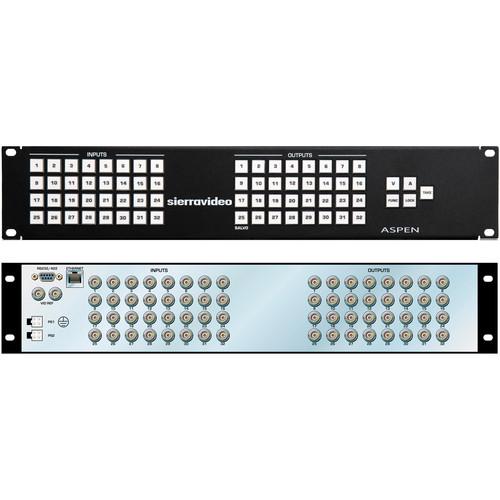

Product description The Sierra Video Aspen 3232HD-3G Video Router is a 2RU rackmount routing switcher with 32 inputs and 32 SDI outputs which supports SD-SDI, HD-SDI, and HD-3G video signals.
The Aspen 3232HD-3G has a front control panel with 64 routing control buttons and 5 control buttons. All buttons are multi-colored. The video router can be remotely controlled using an RS-232/422 serial interface or an Ethernet port by using the built-in web pages for configuration and operation. - High signal integrity supporting cable runs of 155m at 2.97Gb/s
- Front control panel standard with multi-color buttons
- Built-in GUI for configuration and operation via Ethernet, including Names, Salvos, Layers
- Output reclockers, Input equalizers
- External audio router control support (layers)
In the Box Sierra Video Aspen 3232HD-3G Video Router Worldwide Power Supply 110-240 VAC to 12 VDC Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sierra Video Aspen 3232HD-3G Video Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSierra Video 3232HD-3G Specs | | | Data Rates | 19 Mbps to 2.97 Gbps | | Data Types | SMPTE 259M-C, SMPTE 292, SMPTE 424M & DVB-ASI | | | | Cable Equalization | 3G: 0 - 500' (155 m)
HD: 0 - 650' (200 m)
SD: 0 - 1,200' (400 m) | | Return Loss | ≥15db @ 1.485 Gbps
≥10db @ 2.97 Gbps | | | | Level | 800mV p-p +/- 10% | | Timing Jitter | SMPTE 424M ≤ 2.0UI
SMPTE 292 ≤ 1.0UI
SMPTE 259M ≤ 2.0UI | | Alignment Jitter | SMPTE 424M ≤ 0.3UI
SMPTE 292 ≤ 0.2UI
SMPTE 259M ≤ 0.2UI | | Return Loss | ≥15db @ 1.485 Gbps
≥10dB @ 2.97 Gbps | | | | Ethernet | 10/100 Base-T (RJ-45) | | Serial | RS-232/422 (DB-9) | | | | I/O Connectors | 75 Ω BNC | | Operating Temperature | 32° to 104°F (0° to 40°C) | | Power | 110-240 VAC, 50/60 Hz, 18 W | | Dimensions | 3.5 x 19 x 2.5" (8.9 x 48.3 x 6.4 cm) | | Weight | 4 lb (1.8 kg) | | | | Package Weight | 7.4 lb | | Box Dimensions (LxWxH) | 21.6 x 11.1 x 4.2" |
