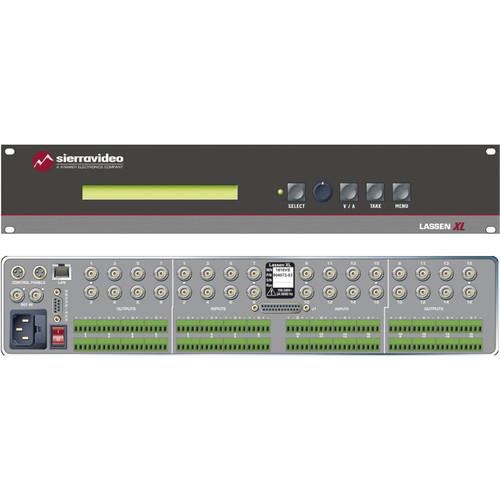

User Manual for Sierra Video Lassen XL 16 x 16 Composite Video Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Sierra Video Lassen XL 16 x
- Product category: Routers & Switchers Sierra Video
- Brand: Sierra Video
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sierra Video Routers & Switchers
|
User manual for the Sierra Video Lassen XL 16 x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sierra Video product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sierra Video user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sierra Video product will considerably shorten its lifespan!
|
Product description The Lassen XL 16 x 16 Composite Video Matrix Switcher (2RU) from Sierra Video is designed for routing composite video signals and features 16 inputs and 16 outputs via BNC connectors. The matrix switcher features a user-intuitive Qwik Adjust Knob Rotary Control Interface with an 80-character LCD display for quick and convenient setup, adjustment, and signal switching. In addition, the switcher features a genlock input for vertical interval switching. Features - High bandwidth and low crosstalk
- Intuitive user interface and 80-character LCD readout
- Video mute capability, genlock input, and output disconnect
Control - RS-232, RS-485, RS-422, and Ethernet ports
- Supports optional remote control panels via RS-485
- Supports TCP/IP protocol via rear panel RJ-45 connector
- TyLinx Pro router control software
In the Box Sierra Video Lassen XL 16 x 16 Composite Video Matrix Switcher (2RU) Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sierra Video Lassen XL 16 x 16 Composite Video Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSierra Video 1616V-XL Specs | | | Bandwidth | > 100 MHz (-3 dB) | | Video Gain | Unity | | Crosstalk | -80 dB @ 1 MHz
-47 dB @ 100 MHz | | Switching Speed | Deterministic | | Input / Output | Video Level: 300 mV to 2.5Vpp maximum
Impedance: 75 Ohms nominal
Return Loss: < -30 dB @ 5 MHz
Connector Type: BNC | | | | Control Panels | Supports SCP programmable control panels, XY, and single-bus control panels | | Serial | General purpose 9-pin D-sub connector
Switchable RS232 or RS422
9600, 38400, 115200 baud | | Serial Protocol | SVS host, simple Kramer | | RS-485 | Mini-XLR for optional control panels | | Ethernet | 10/100 Base-T, full-duplex
Connector: RJ-45 | | Ethernet Protocol | ARP, ICMP, TCP/IP, Telnet, HTTP | | Web Server | For control interface | | | | Rack Size | 2U | | Power | 90 to 240 VAC, 50/60 Hz (< 150 W) auto-detecting | | Storage Temperature | 40 to 150° F (4.4 to 65.5° C) | | Operating Temperature | 30 to 100° F ambient (-1.1 to 37.8° C) | | Humidity | 10 to 90 % non-condensing | | Dimensions (W x D x H) | 19.0 x 18.5 x 3.5" (48.3 x 47.0 x 8.9 cm) Depth measurements do not include front panel hardware or rear cabling |
