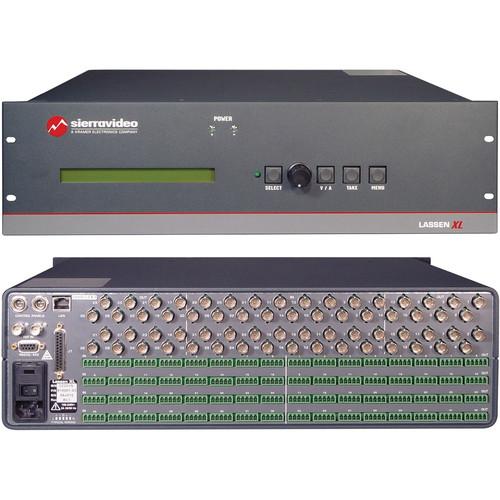

User Manual for Sierra Video Lassen XL 16x16 Balanced Stereo Audio Routing Switcher Click to enlarge the picture
Contents of the user manual for the Sierra Video Lassen XL 16x16 Balanced
- Product category: Routers & Switchers Sierra Video
- Brand: Sierra Video
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sierra Video Routers & Switchers
|
User manual for the Sierra Video Lassen XL 16x16 Balanced contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sierra Video product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sierra Video user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sierra Video product will considerably shorten its lifespan!
|
Product description The Sierra Video Lassen XL 16x16 Balanced Stereo Audio Routing Switcher is designed for routing balanced stereo audio signals. It features 16 inputs and 16 outputs, an LCD display, and a Qwik Adjust Knob rotary control interface. The Lassen 1616S-XL measures 2 RU, and features five-pin terminal block audio connectors. It also offers IP Ethernet control via a standard TCP/IP socket connection and an RS-232/422 serial interface. - IP (Ethernet) control via standard TCP/IP socket connection; macOS or Windows PC compatible
- Uses zero-crossover chip technology to eliminate "zipper" sound effect associated with digital volume controls
- Qwik Adjust Knob rotary control provides an intuitive user interface with front panel LCD display
- Balanced or unbalanced analog stereo on terminal blocks
- Input (level) and output (volume) adjustment capability: Each input via RS-232, front panel, or TyLinx Pro software
- Local front panel control with 80-Character LCD readout
- TyLinx Pro Router Control software
- RS-232, RS-485, RS-422, and Ethernet ports
In the Box Sierra Video Lassen XL 16x16 Balanced Stereo Audio Routing Switcher Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sierra Video Lassen XL 16x16 Balanced Stereo Audio Routing Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSierra Video 1616S-XL Specs | | | Inputs/Outputs | 16/16 | | Form Factor | 2 RU | | Type | Analog stereo | | Input Adjust Range | +20.5 dB to -8 dB | | Output Adjust Range | +15 dB to -59.5 dB and fully off (mute) | | Frequency Response | 20 Hz to 20 kHz ± 0.5 dB
Typical -3 dB @ 120 kHz (unity gain) | | Dynamic Range | 96 dB
20 Hz to 20 kHz unweighted (unity gain) | | Crosstalk | < -80 dB @ 1 kHz (unity gain)
< -60 dB @ 10 kHz (unity gain) | | Total Harmonic Distortion (THD) | < 0.025%
20 Hz to 20 kHz @ +4 dBu (unity gain) | | Intermodulation Distortion | < 0.025% SMPTE-DIN @ +4 dBu (unity gain)
< 0.01% CCIF @ +16 dBu (unity gain) | | Input Signal | Max Source Level: +24 dBu
Impedance: > 20 kOhms
Connector Type: 5-pin terminal block for balanced or unbalanced operation | | Output Signal | Max Source Level: +24 dBu balanced, +18 dBu unbalanced
Impedance: < 50 Ohms
Connector Type: 5-pin terminal block for balanced or unbalanced operation | | | | Control Panels | Supports SCP programmable control panels, XY and single-bus control panels | | Serial | General purpose 9-pin D-Sub connector
Switchable RS-232 or RS-422
9600, 38400, 115200 baud | | Serial Protocol | SVS host, simple Kramer | | RS-485 | Mini-XLR for optional control panels | | Ethernet | 10/100BASE-T, full-duplex
Connector: RJ45 | | Ethernet Protocol | ARP, ICMP, TCP/IP, Telnet, HTTP | | Web Server | For control interface | | | | Power | 90 to 240 VAC, 50/60 Hz (< 150 W), auto-detecting | | Storage Temperature | 40 to 150°F / 4.4 to 65.5°C | | Operating Temperature | 30 to 100°F / -1.1 to 37.8°C | | Humidity | 10% to 90%, non-condensing | | Dimensions (W x D x H) | 19 x 17.7 x 3.5" / 48.3 x 44.9 x 8.8 cm Depth measurements do not include front panel hardware or rear cabling | | Weight | Not specified by the manufacturer |
