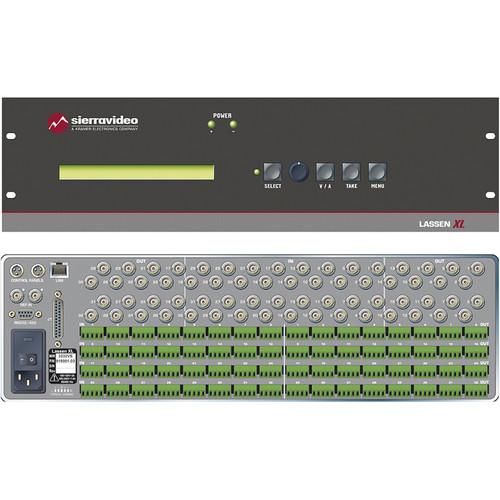

User Manual for Sierra Video Lassen XL 32x32 Composite Video Routing Switcher with Redundant Power Supply Click to enlarge the picture
Contents of the user manual for the Sierra Video Lassen XL 32x32 Composite
- Product category: Routers & Switchers Sierra Video
- Brand: Sierra Video
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sierra Video Routers & Switchers
|
User manual for the Sierra Video Lassen XL 32x32 Composite contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sierra Video product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sierra Video user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sierra Video product will considerably shorten its lifespan!
|
Product description The Lassen XL 32x32 Composite Video Routing Switcher with Redundant Power Supply from Sierra Video is designed for routing composite video signals. It features 32 inputs and 32 outputs on BNC connectors and is housed in a 4RU chassis for easy rackmount installation, making it ideal for both live-to-air and post-production facilities. The switcher can be controlled via an RS-232/422 serial interface, over Ethernet via a standard TCP/IP socket connection, or directly on the unit using the front buttons, rotary knob, and LCD screen.
The Lassen XL routing switcher is designed to connect with other Sierra Video routing switcher families. The Lassen switcher can perform as either the master or the slave unit in your control system. The routing switcher can be inserted into an existing Sierra Video routing system providing additional format levels. Additional Lassen models can be linked to any Sierra Video SCP Series control panel for control of larger broadcast systems. -
- 32 Composite video inputs / 32 Composite video outputs
- IP (Ethernet) control via standard TCP/IP socket connection - Mac or PC
- RS-232/422 control
- Supports SCP programmable control panels, XY and single bus control panels
- Rotary knob control interface with front panel LCD display
- Enhanced Video Boards 300 MHz (-3dB)
- Redundant power supply
- Use with other Sierra Video Routing Switchers - functions as either the master or the slave unit when used with other Sierra Video routing switchers
In the Box Sierra Video Lassen XL 32x32 Composite Video Routing Switcher with Redundant Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sierra Video Lassen XL 32x32 Composite Video Routing Switcher with Redundant Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSierra Video 3232VR-XL Specs | | | Bandwidth | > 100 MHz (-3 dB) | | Video Gain | Unity (adjustable per channel +/- 1.5 dB) | | Crosstalk | -80 dB @ 1 MHz
-47 dB @ 100 MHz | | Switching Speed | Deterministic | | Input/Output Signal | Video Level: 300 mV to 2.5V pp Max
Impedance: 75 Ω nominal
Return Loss: < -30 dB @ 5 MHz
Connector Type: BNC | | | | Serial | General purpose 9-pin D-sub connector
Switchable RS-232 or RS-422
9600, 38400, 115200 baud | | Serial Protocol | SVS host, simple Kramer, and select others | | Ethernet | 1 x 10/100 Base-T, full-duplex, RJ-45 connector | | Ethernet Protocol | ARP, ICMP, TCP/IP, Telnet, HTTP | | | | Power | 90 to 240 VAC, 50/60 Hz (< 150 W) auto-detecting
Redundant power supply | | Storage Temperature | -40 to 150° F (-40 to 65.5° C) | | Operating Temperature | 30 to 100° F ambient (-1.1 to 37.8° C) | | Humidity | 10% to 90 % non-condensing | | Rack Height | 4RU | | Dimensions (W x D x H) | 19.00 x 18.50 x 7.0" (48.3 x 46.9 x 17.8 cm)
Note: Depth measurements do not include front panel hardware or rear cabling | | Weight | 36 lb (16.3 kg) |
