User Manual for Sierra Video Mediator-EC System Controller and MediaNav Software Click to enlarge the picture
Contents of the user manual for the Sierra Video Mediator-EC System Controller and
- Product category: Switcher Accessories Sierra Video
- Brand: Sierra Video
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sierra Video Switcher Accessories
|
User manual for the Sierra Video Mediator-EC System Controller and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sierra Video product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sierra Video user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sierra Video product will considerably shorten its lifespan!
|

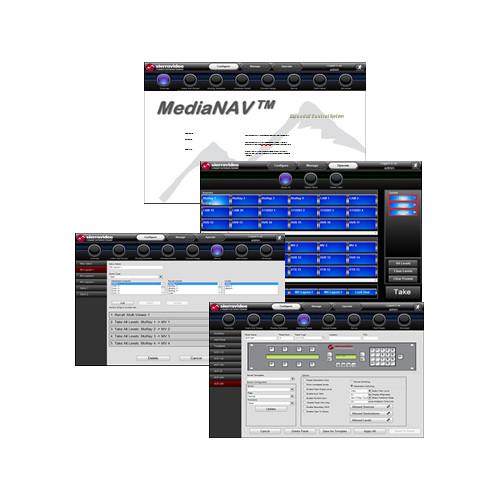

Product description The Mediator-EC System Controller from Sierra Video provides a central control point for video and audio routing, distribution, and monitoring systems employing the MediaNav System Control software. The control interface is accessible from any Windows or Mac computer, tablet, or phone with a web browser. - Configure with the Intuitive GUI
- Routing switchers, remote control panels, and GUI consoles
- Manage using Simple Tools
- Routing Switchers: crosspoints and names
Monitor hardware panels, multi-viewers, routing switchers - Operate Easily with any Web Browser
- Source, destination, level, and preset selections
Trigger routing switcher salvos and multi-viewer layout recalls - Features
-
- Hierarchical and modular to manage and control small or large systems; routing switchers, multi-viewers, and other devices
- Designed for today's mobile environment
- Allows the switching of multiple routing switchers from a single UI
- Control from hardware control panels or from a browser-based GUI
- User-access control with a powerful security layer
- Recall layouts on Sierra View Multi-Viewers
In the Box Sierra Video Mediator-EC System Controller and MediaNav Software Rack Ears Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sierra Video Mediator-EC System Controller and MediaNav Software in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSierra Video MEDIATOR-EC Specs | | | Ethernet | 2 x 10/100/1000 Base-T (RJ45) | | Serial Ports | 2 x RS-232/422 (DB-9) | | RS-485 | 2 x RS-485 mini-XLR for remote control panels; looped | | | | AC Input Range | 100 to 240 VAC, 50-60 Hz | | Power | 60 W | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions | 19.0 x 1.7 x 11.4" (48.0 x 4.4 x 28.8 cm) (1 RU) | | Weight | 7.92 lb (3.6 kg) |
