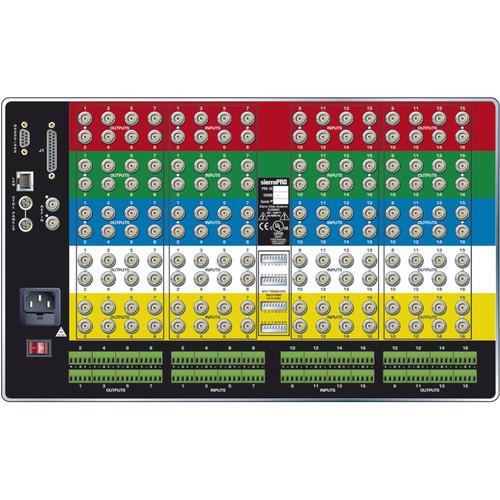

User Manual for Sierra Video Pro XL Series 16x16 RGBHV Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Sierra Video Pro XL Series 16x16
- Product category: Routers & Switchers Sierra Video
- Brand: Sierra Video
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sierra Video Routers & Switchers
|
User manual for the Sierra Video Pro XL Series 16x16 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sierra Video product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sierra Video user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sierra Video product will considerably shorten its lifespan!
|
Product description The 16x16 RGBHV Matrix Switcher from Sierra Video is a high-bandwidth routing switcher for RGBHV, RGB/YUV, S-Video (Y/C), and composite signals. This is a 16-input, 16-output unit with a 5-channel design (3 video channels, 2 sync channels) that operates at 450 MHz. It supports Matrix Mapping Universal Breakaway Switching that provides independent switching of every level of every R, G, B, H, and V input on the routing switcher. You can switch a single level or any combination of levels. For example, you can input a composite video signal on the R level of input one and an S-Video (Y/C) signal on the G and B levels of input one, then switch only the composite video signal on the R level, only the S-Video Y and C signals on the G and B levels, or switch all three levels together.With Room Grouping capability, several inputs may be grouped and operated independently of other input groups on the routing switchers. This allows one routing switcher to be used for multiple rooms where the control system for each room will address only the inputs and outputs assigned to that room. Thanks to Video Follow Sync switching, the H and V channels of an RGBHV signal are switched in advance of the RGB video channels of the signal. This helps the switcher to provide clean, glitch-free switching between most non-synchronous sources.Qwik Adjust Knob Rotary Control interface consists of a user-intuitive knob along with the 80-character LCD display. This provides quick and convenient setup, adjustment, and signal switching. The switcher comes in a 6RU frame and can route any or all inputs to any or all outputs. -
- High bandwidth (450 MHz) and low crosstalk
- With Video Mute capability, the switcher switches to no source for blank display
- The routing switcher can capture and report the input sync rates for each input signal
- The reported rates can be read using Sierra Video’s TyLinx Pro Router Control software or the Host port protocol
- Input detection function helps the switcher to reshape and re-square the sync to return the output to the correct TTL level
- Selectable termination for each input
- Looping external sync input for vertical interval switching
- Local front-panel control with 80-character LCD readout
- Supports RS-232, RS-485, RS-422, and Ethernet
- Optional remote control panels via RS-485
- Supports TCP/IP protocol
- Can be controlled via Web browser
- UL & CE approvals
In the Box Sierra Video Pro XL Series 16x16 RGBHV Matrix Switcher (6RU) Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sierra Video Pro XL Series 16x16 RGBHV Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSierra Video 1616V5-XL Specs | | | Type | RGBHV | | Channels | 16 inputs /16 outputs | | Bandwidth | 450 MHz @ -3 dB | | Video Gain | Unity | | Crosstalk | -80 dB @ 1 MHz
-47 dB @ 100 MHz
-30 dB @ 150 MHz | | Switching Speed | Deterministic | | Video Level | 0.2 to 5 Vpp | | Impedance | 75 Ohms | | Return Loss | <-30 dB @ 5 MHz | | Connector Type | BNC | | | | Display | 80-character LCD readout | | Control Panels | Supports SCP-programmable control panels, XY, & single-bus control panels | | Serial | Connectors: 1 x general-purpose 9-pin D-sub connectors (switchable RS-232/RS-422)
Baud Rates: 9600, 38400, 115200 baud
Protocols: SVS host, simple Kramer, and select others | | RS-485 | Mini-XLR for optional control panels | | Ethernet | 10/100 Base-T, full-duplex, RJ-45 connector
Protocol: ARP, ICMP, Telnet, TCP/IP, HTTP | | Power | 90 to 240 VAC, 50/60 Hz (<150 W) | | Redundant Power Supply | No | | Storage Temperature | -40 to 150°F (-40 to 66°C) | | Operating Temperature | 30 to 100°F (-1 to 38°C) | | Humidity (Non-Condensing) | 10 to 90% | | Dimensions (W x D x H) | 6RU; 19.0 x 18.5 x 10.5" (48.3 x 46.9 x 26.7 cm) | | Weight | Not specified by manufacturer |
