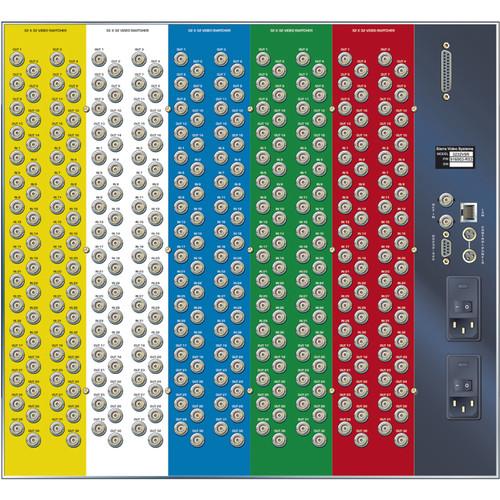

User Manual for Sierra Video Pro XL Series 32x16 YUV Matrix Switcher with Redundant Power Supply Click to enlarge the picture
Contents of the user manual for the Sierra Video Pro XL Series 32x16
- Product category: Routers & Switchers Sierra Video
- Brand: Sierra Video
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sierra Video Routers & Switchers
|
User manual for the Sierra Video Pro XL Series 32x16 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sierra Video product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sierra Video user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sierra Video product will considerably shorten its lifespan!
|
Product description The Pro XL Series 32x16 YUV Matrix Switcher from Sierra Video is a high-bandwidth routing switcher for RGB/YUV, S-Video (Y/C), and composite video signals, with a redundant power supply. This is a 32-input, 16-output unit with a 3-channel design that operate at 450 MHz. It supports Matrix Mapping Universal Breakaway Switching that provides independent switching of every level of every R, G, and B input on the routing switcher. You can switch a single level or any combination of levels. For example, you can input a composite video signal on the R level of input one and an S-Video (Y/C) signal on the G and B levels of input one, then switch only the composite video signal on the R level, only the S-Video Y and C signals on the G and B levels, or switch all three levels together.With Room Grouping capability, several inputs may be grouped and operated independently of other input groups on the routing switchers. This allows one routing switcher to be used for multiple rooms where the control system for each room will address only the inputs and outputs assigned to that room.The Qwik Adjust Knob Rotary Control interface consists of a user-intuitive knob along with the 80-character LCD display. This provides quick and convenient setup, adjustment, and signal switching. The switcher comes in a 9RU frame and can route any or all inputs to any or all outputs. - RGB Video
-
- High bandwidth (450 MHz) and low crosstalk
- Qwik Adjust Knob Rotary Control knob along with the 80-character LCD display provides quick and convenient setup, adjustment, and signal switching
- Video Mute capability to switch to no source for blank display
- Control & Approvals
-
- Local front-panel control with 80-character LCD readout
- RS-232, RS-485, RS-422, and Ethernet
- Supports optional remote control panels via RS-485
- Supports TCP/IP protocol
- Web browser control
- TyLinx Pro Router Control Software
- Meets UL & CE standards
In the Box Sierra Video Pro XL Series 32x16 YUV Matrix Switcher with Redundant Power Supply (9RU) Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sierra Video Pro XL Series 32x16 YUV Matrix Switcher with Redundant Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSierra Video 3216V3R-XL Specs | | | Type | RGB/YUV | | Channels | 32 x inputs / 16 x outputs | | Bandwidth | 450 MHz @ -3 dB | | Video Gain | Unity | | Crosstalk | -80 dB @ 1 MHz
-47 dB @ 100 MHz
-30 dB @ 150 MHz | | Switching Speed | Deterministic | | Video Level | 0.2 to 5 V p-p | | Impedance | 75 Ohms | | Return Loss | <-30 dB @ 5 MHz | | Connector Type | BNC | | | | Display | 80-character LCD readout | | Control Panels | Supports SCP programmable control panels, XY & single-bus control panels | | Serial | Connectors: 1 x general-purpose 9-pin D-sub (switchable RS-232 or RS-422)
Baud Rates: 9600, 38400, 115200 baud
Protocols: SVS host, simple Kramer, and select others | | RS-485 | Mini-XLR for optional control panels | | Ethernet | 10/100 Base-T, full-duplex, RJ-45 connector
Protocol: ARP, ICMP, Telnet, TCP/IP, HTTP | | Power | 90 to 240 VAC, 50/60 Hz (<150 W) | | Redundant Power Supply | Yes | | Storage Temperature | -40 to 150°F (-40 to 66°C) | | Operating Temperature | 30 to 100°F (-1 to 38°C) | | Humidity | 10 to 90% non-condensing | | Dimensions | 9RU; 19.0 x 16.5 x 15.5" (48.3 x 41.9 x 39.4 cm) | | Weight | Not specified by manufacturer |
