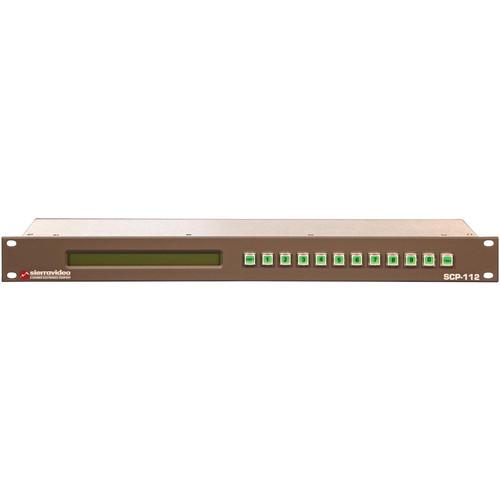

User Manual for Sierra Video SCP-112 Programmable LCD Keypad Control Panel Click to enlarge the picture
Contents of the user manual for the Sierra Video SCP-112 Programmable LCD Keypad
- Product category: Switcher Accessories Sierra Video
- Brand: Sierra Video
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sierra Video Switcher Accessories
|
User manual for the Sierra Video SCP-112 Programmable LCD Keypad contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sierra Video product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sierra Video user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sierra Video product will considerably shorten its lifespan!
|
Product description The SCP-112 Programmable LCD Keypad Control Panel from Sierra Video features a large LCD panel that gives users more readability and functionality. It comes with a host of features such as programmable buttons, salvo execution, category routing, locks and protects, and alpha/numeric labeling. With the help of a powerful on-board microprocessor, the control panel is capable of handling a large database. This design manages serial communications between the router and up to 64 SVS control panels. All buttons of the control panel are soft key. This means that every key can be programmed.
The SCP-112 control panel can be programmed using the free version of the Graphical Router Interface Program TyLinx Pro or MediaNav software. The software lets you choose your panel, select your functions, assign them to the buttons, store these settings in memory, and/or copy the configurations to multiple SCP panels. This control panel is designed to allow for maximum flexibility in the categorization of buttons. A button can have multiple functions depending how it is programmed and where the user is in the sequence of pushes.
The control panel can be rack-mounted on a standard 19" (RU) EIA rack assembly and includes rack "ears" at the ends of the front of the frames. Moreover, no spacing is required above or below the unit for ventilation. - Twelve programmable buttons
- Label-capable backlit buttons
- Memory locations for storing multiple switches to be recalled and executed all at once
- Set-up and programming via TyLinx Pro or MediaNav
- Routing switcher I/O names
In the Box Sierra Video SCP-112 Programmable LCD Keypad Control Panel Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sierra Video SCP-112 Programmable LCD Keypad Control Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSierra Video SCP-112 Specs | Number of Buttons | 12 | | Control | Looping RS-485 (mini XLR) | | Rack Mount | Standard 19" (1 RU) | | Power | 9 VDC | | Dimensions (H x W x D) | 1.8 x 19.0 x 2.5" / 44.5 x 482.6 x 63.5 mm |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 88 owners. Add your rating and experience with the product.
