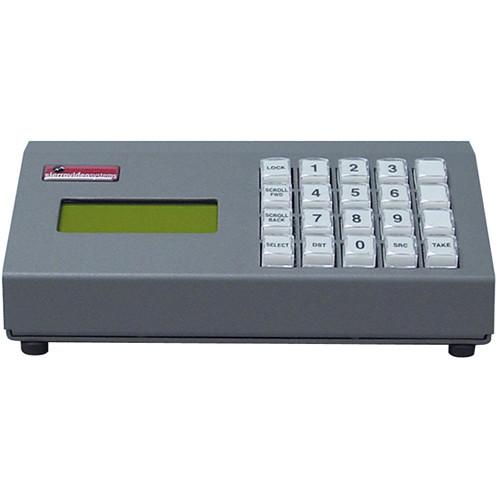

Product description The SCP-20 Programmable Desktop Control Panel for Routing Switchers from Sierra Video uses the SCP processor for reliable switching from workstations and control rooms. This control panel features alphanumeric naming, display, and programmable buttons. The backlit LCD display offers easy-to-read system information including input/output names, paging, scrolling, and multiple-level control. It can also execute salvos. In addition, the control panel is suitable for confined tabletop spaces.
With the help of a powerful onboard microprocessor, the control panel is capable of handling a large database. This design manages serial communications with the router and up to 64 SVS control panels. All buttons on the control panel are soft key; this means that each key can be programmed.
The SCP-20 control panel can be programmed using either the TyLinx Pro or the MediaNav software. This software lets you choose your panel, select functions and assign them to the buttons, store these settings in memory, and/or copy the configurations to multiple SCP panels. This control panel is designed to allow for maximum flexibility in the categorization of buttons. - Twenty programmable buttons
- Label-capable backlit buttons
- Memory locations for storing multiple switches to be recalled and executed all at once
- Setup and programming via TyLinx Pro or MediaNav
- Routing switcher I/O names
- Looping RS-485 (mini XLR) port
In the Box Sierra Video SCP-20 Programmable Desktop Control Panel for Routing Switchers AC Adapter Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sierra Video SCP-20 Programmable Desktop Control Panel for Routing Switchers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSierra Video SCP-20 Specs | Number of Buttons | 20 | | Control | Looping RS-485 (mini XLR) | | Rack Mount | Standard 19" (1 RU) | | Power | 9 VDC | | Dimensions (H x W x D) | 9.0 x 2.5 x 5.0" (228.6 x 63.5 x 127.0 mm) |
