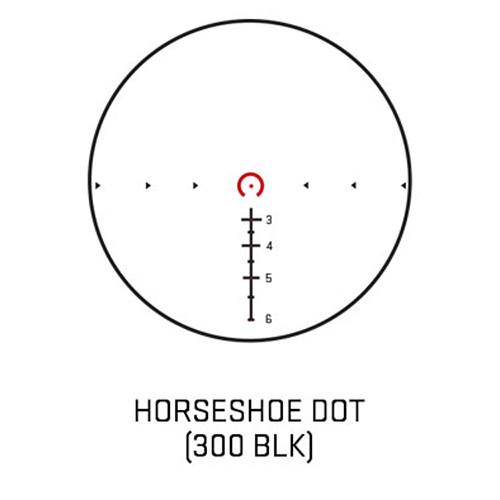

Product description Sig Sauer outfitted its battle-ready 1-4x24 TANGO4 Side Focus Tactical Riflescope with quality fully multi-coated optics and a 300 Blackout Horseshoe-Dot reticle. Made of Low-Dispersion glass (LD) the lenses are designed to provide true color and to maximize resolution of images. They are also fully multi-coated to enhance the transmission of light and to deliver high image brightness. Another highlight of this riflescope is its dedicated .300 Blackout Horseshoe-Dot reticle, which is located in the 1st focal plane and offers a variable illumination. The reticle offers an illuminated horseshoe and center dot, inward-pointing arrowheads, and a vertical post with ballistic marks for 5.56/7.62 cartridges. It is enhanced with their proprietary Motion-Activated Illumination function (MOTAC), which powers up brightness when it senses motion and powers down the brightness when at rest. The reticle features a full-field illuminated crosshair, no posts, and an extensive system of horizontal and vertical markings.

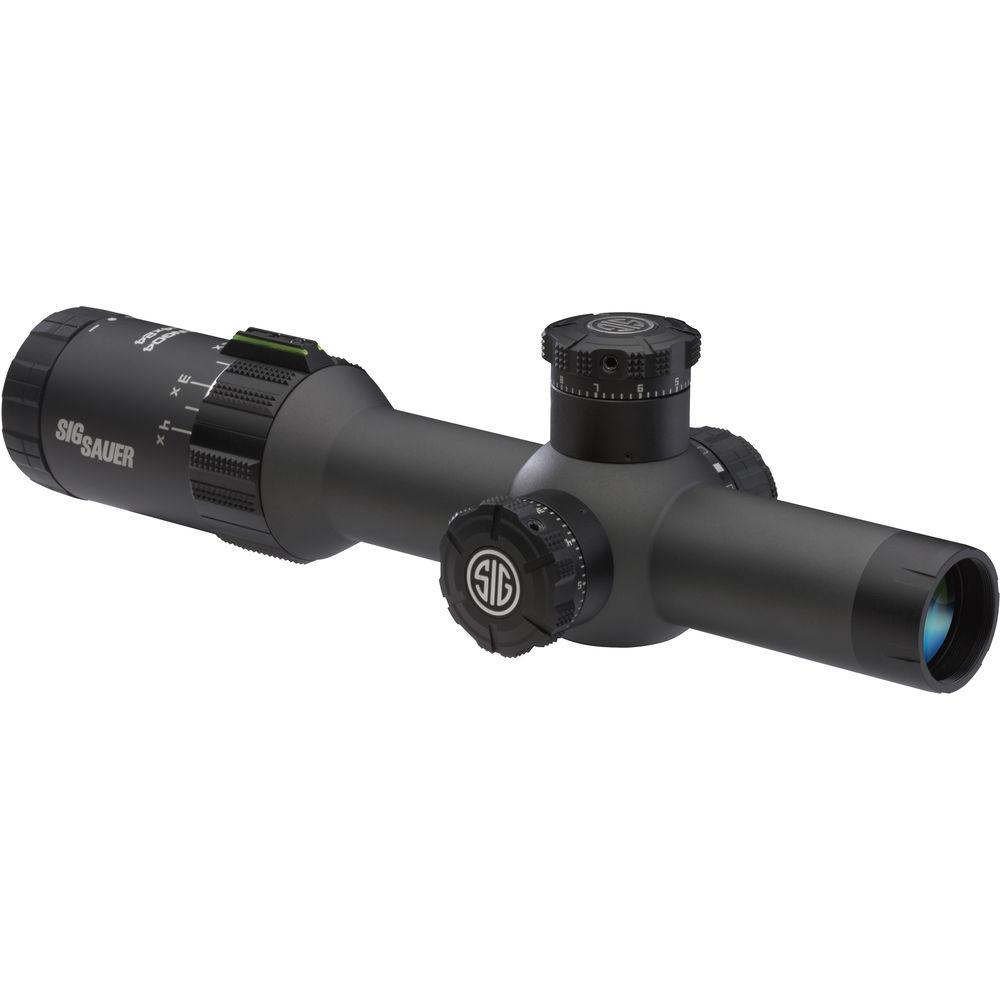

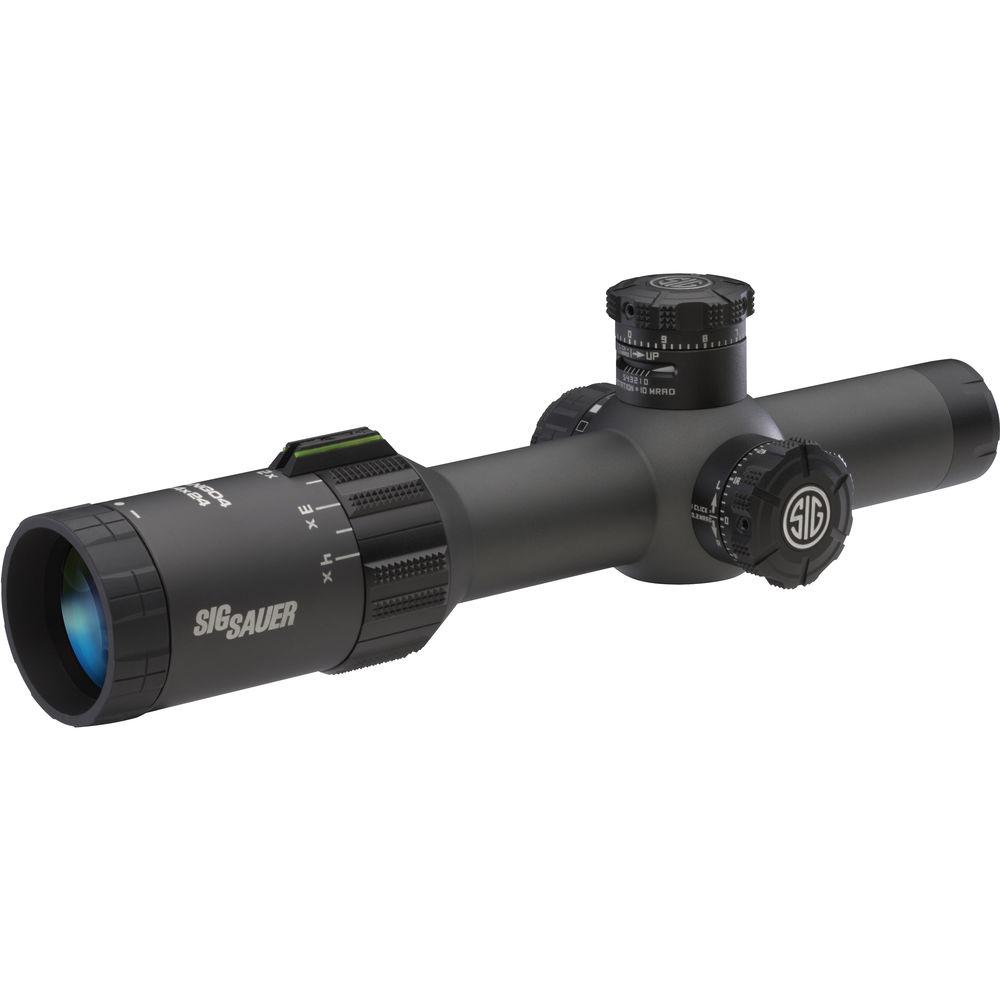

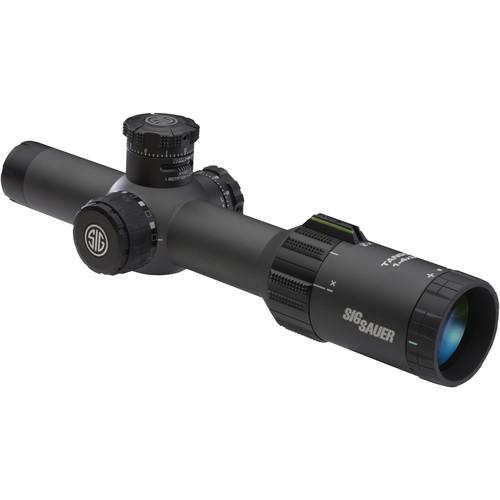

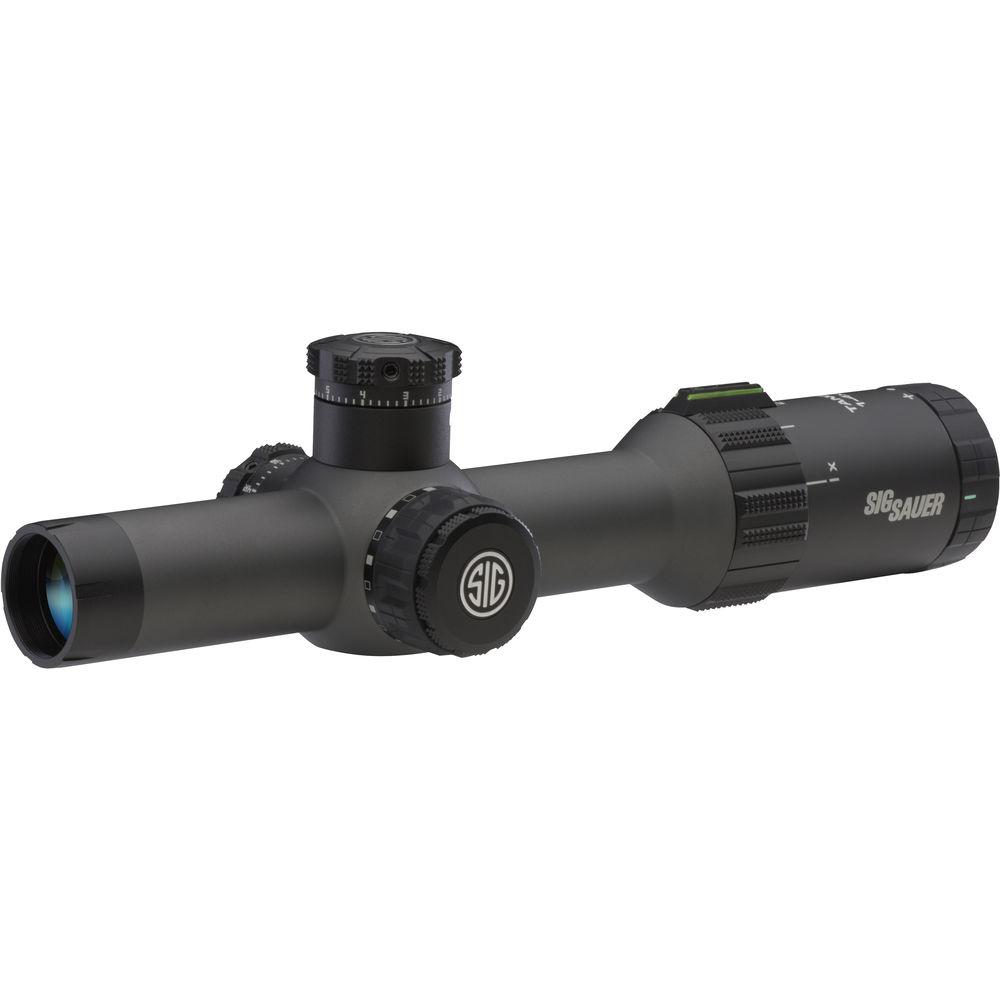

To endure the toughest battlefield conditions, the 30mm maintube is machined from a single piece of aluminum, and provides a waterproof and fogproof performance. The windage and elevation knobs are knurled for slip-free operation and offer 166 MOA adjustment ranges with 1/2 MOA increments. Also available with this riflescope is the Sig Ballistic Turret Dial (SBT), which features a precision tactical finger-operated knob with a fine diamond knurling and a slit read-out facing the ocular. The SIG Ballistic Turret (SBT) is a custom laser-etched elevation dial that uses your bullet specifications, ballistic coefficient, muzzle velocity, elevation, and other environmental factors for the correct bullet drop compensation and pinpoint accuracy. All other dials and rings are also enhanced with a fine diamond knurling for a slip-free grip, including a side focus parallax corrector and a fast focus eyepiece. The eyepiece also offers a low-profile zoom lever with a bright green mark for visibility. - 300 Blackout Horseshoe-Dot Reticle
-
- 1st focal plane
- Illuminated Horseshoe and center dot
- Horizontal arrowheads pointing inward
- Vertical post with ballistic marks for .300 Blackout cartridges
- MOTAC - Motion-Activated Illumination
- Motion powers up brightness
- Stillness powers down brightness
- Optical Performance
-
- 24mm objective diameter
- Fully multi-coated optics
- LD - Low Dispersion optical glass delivers true color and high resolution
- Use and Handling
-
- 1/2 MOA impact point correction
- 166 MOA windage and elevation range
- Construction
-
- 30mm single-piece maintube
- Aluminum alloy housing
- Tactical finger-operated turrets
- LockDown Zero System
- Resettable zero, zero-stop
- Auto-locks down at zero
- Custom SIG Ballistic Turret (SBT) laser-etched elevation dial
- Side focus parallax corrector knob
- Fast focus eyepiece
- Low-profile zoom lever
- Waterproof and fogproof
- Impact-resistant
UPC: 798681520916 In the Box SIG SAUER 1-4x24 TANGO4 Side Focus Tactical Riflescope (300 Blackout Horseshoe-Dot Illuminated Reticle, Graphite) - CR-2032 Battery
- Riflescope Lens Cover
- Tools
- Limited 5-Year Warranty
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SIG SAUER 1-4x24 TANGO4 Side Focus Tactical Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIG SAUER SOT41002 Specs | | | Magnification | 1 to 4x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 98' @ 100 yd / 32.7 m @ 100 m
4x: 24' @ 100 yd / 8 m @ 100 m | | Exit Pupil Diameter | 1x: 15.4 mm
4x: 6.1 mm | | Eye Relief | 3.3" / 84 mm | | | | Reticle Type | 300 Blackout Horseshoe-Dot Reticle (First Focal Plane) | | | | Filter Thread | M25.5 x 0.5 | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 166 MOA | | Elevation Adjustment | 166 MOA | | | | Water Resistance | IPX7 | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 10" / 254 mm
Eyepiece Diameter: 1.7" / 44 mm
Objective Diameter: 1.2" / 30 mm | | Weight | 19.7 oz / 558 g | | | | Package Weight | 2.95 lb | | Box Dimensions (LxWxH) | 14.1 x 6.5 x 4.3" |
