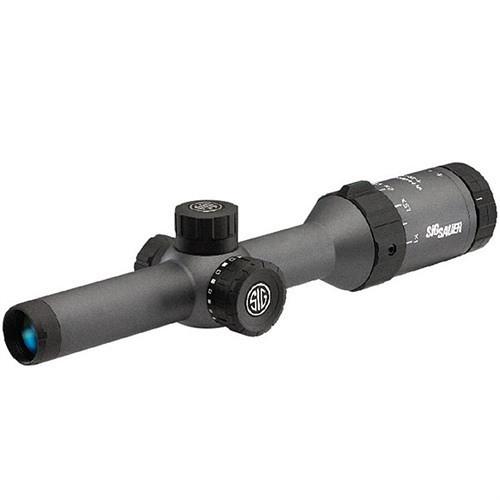

User Manual for SIG SAUER 1-5x20 WHISKEY5 Riflescope Click to enlarge the picture
Contents of the user manual for the SIG SAUER 1-5x20 WHISKEY5 Riflescope
- Product category: Riflescopes SIG SAUER
- Brand: SIG SAUER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIG SAUER Riflescopes
|
User manual for the SIG SAUER 1-5x20 WHISKEY5 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIG SAUER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIG SAUER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIG SAUER product will considerably shorten its lifespan!
|
Product description Sig Sauer outfitted its 1-5x20 WHISKEY5 Riflescope with high-quality optics and the HellFire QuadPlex reticle. The HDX optics feature High-Definition (HD), High-Transmission (HT), and Extra-Low Dispersion glass, which provides true color, and maximizes resolution and brightness. Coated with SpectraCoat anti-reflection coatings, the lenses exhibit high transmission across the entire visible spectrum, delivering bright and crisp images. To ensure that image quality is not degraded by the environmental conditions and elements, the optics are protected from abrasions and scratches by the LensArmor coatings. Additionally, the oleophobic LensShield coatings help whisk away oil, water, and debris. Another highlight of this riflescope is its illuminated QuadPlex reticle, which is located in the 2nd focal plane and offers a brilliant red center illumination. It features four medium posts and a fine crosshair.
To endure most outdoor conditions, the lightweight and durable housing's 1" maintube is made from a single piece of aluminum and provides a waterproof and fogproof performance. The windage and elevation knobs are knurled for slip-free operation and offer 110 MOA windage and 120 MOA elevation adjustment ranges with 1/2 MOA increments. Also available with this riflescope is the Sig Ballistic Turret Dial (SBT), which features a precision tactical finger-operated knob. The Sig Ballistic Turret (SBT) is a custom laser-etched elevation dial that uses your bullet specifications, ballistic coefficient, muzzle velocity, elevation, and other environmental factors for the correct bullet drop compensation and pinpoint accuracy. All other dials and rings are also enhanced with knurling for a slip-free grip. - Illuminated QuadPlex Reticle
-
- 2nd focal plane
- Four medium posts
- Fine crosshair
- Offers a clear and unobtrusive view
- Parallax-free at 100 yd
- Optical Performance
-
- SpectraCoat anti-reflection coatings deliver high transmission across the entire visible spectrum
- HDX optics: High Definition (HD) and High Transmission (HT) optical glass offers great detail, clarity, and brightness
- Extra-Low Dispersion lenses delivers true color enhances resolution
- LensArmor coatings protect lenses from abrasions and scratching
- LensShield proprietary coating repels oil, water, and debris from lens' surface
- Use and Handling
-
- 1/2 MOA impact point correction
- 120 MOA elevation
- 110 MOA windage
- Construction Details
-
- 1" single-piece maintube
- Aluminum alloy housing
- Black anodizing finish on objective bell
- Graphite anodizing finish on the body
- Stealth ID reduces visibility of the optic
- Capped, knurled turrets and adjustments
- Custom Sig Ballistic Turret (SBT) laser-etched elevation dial
- Fast focus eyepiece with a green fiber optics power indicator
- Low-profile zoom lever
- Waterproof and fogproof
- Impact-resistant
UPC: 798681521029 In the Box SIG SAUER 1-5x20 WHISKEY5 Riflescope (Illuminated QuadPlex Reticle, Graphite-Black) - CR-2032 Battery
- Riflescope Cover
- Limited 5-Year Electronics Warranty
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SIG SAUER 1-5x20 WHISKEY5 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIG SAUER SOW51001 Specs | | | Magnification | 1 to 5x | | Objective Lens Diameter | 20 mm | | Field of View | 1x: 100.4' @ 100 yd / 33.5 m @ 100 m
5x: 20.2' @ 100 yd / 6.7 m @ 100 m | | Exit Pupil Diameter | 1x: 10.6 mm
5x: 4 mm | | Eye Relief | 3.9 to 4" / 99 to 102 mm | | | | Reticle Type | HellFire QuadPlex Reticle (Second Focal Plane) | | | | Filter Thread | M21.5 x 0.5 | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 110 MOA | | Elevation Adjustment | 120 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 10.6" / 270 mm | | Weight | 17.2 oz / 488 g |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 58 owners. Add your rating and experience with the product.
