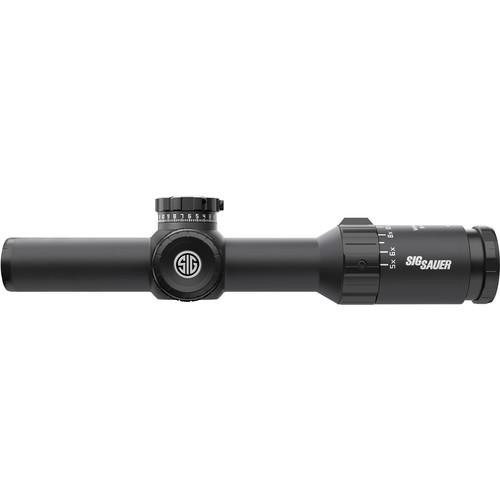

User Manual for SIG SAUER 1-5x24 WHISKEY5 Riflescope Click to enlarge the picture
Contents of the user manual for the SIG SAUER 1-5x24 WHISKEY5 Riflescope
- Product category: Riflescopes SIG SAUER
- Brand: SIG SAUER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIG SAUER Riflescopes
|
User manual for the SIG SAUER 1-5x24 WHISKEY5 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIG SAUER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIG SAUER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIG SAUER product will considerably shorten its lifespan!
|
Product description Sig Sauer outfitted its 1-5x24 WHISKEY5 Riflescope with superior quality fully multi-coated optics and the HellFire CirclePlex Illuminated reticle. The HDX optics feature High-Definition (HD), High-Transmission (HT), and Extra-Low Dispersion glass, which provides true color, and maximizes resolution and brightness. Coated with SpectraCoat anti-reflection coatings, the lenses exhibit high transmission across the entire visible spectrum, delivering bright and crisp images. To ensure that the image quality is not degraded by external environmental conditions and elements, the optics are protected by the LensArmor coatings against abrasions and scratching. Helping prevent deterioration of image quality from interfering debris, oil, or water droplets that can stick to lens' surface, the exterior surfaces are enhanced with the oleophobic LensShield coating. A definite highlight of this riflescope is its illuminated CirclePlex reticle, which is located in the 2nd focal plane and offers a brilliant red center illumination. It features a full-field fine crosshair, no posts, a fine target circle, and a brilliant red center dot . The illumination system offers 9 daytime brightness levels and 2 settings that are compatible with Night Vision devices.
To endure most outdoor conditions, the lightweight and durable housing features a single-piece 30mm maintube and provides a waterproof and fogproof performance. The windage and elevation knobs are knurled for slip-free operation and offer 110 MOA windage and 120 MOA elevation ranges with 1/2 MOA per click adjustments. To deliver unparalleled accuracy for that long-range laser-sharp shot, the scope is outfitted with the TH-100 Tactical Hunter Elevation Turret, which offers 100 clicks per revolution and a precision push button Lock Down Zero System. Also available with this riflescope is the Sig Ballistic Turret Dial (SBT), which features a precision tactical finger-operated knob. The Sig Ballistic Turret (SBT) is a custom laser-etched elevation dial that uses your bullet specifications, ballistic coefficient, muzzle velocity, elevation, and other environmental factors for the correct bullet drop compensation and pinpoint accuracy. All other dials and rings are also enhanced with knurling for a slip-free grip. Also noteworthy is the fast focus eyepiece with a low-profile zooming lever and a green fiber optic zoom indicator. - Optical Performance
-
- 5x Super-Zoom Advanced Optical System
- SpectraCoat anti-reflection coatings deliver high transmission across the entire visible spectrum
- HDX Optics: High Definition (HD) and High Transmission (HT) optical glass offers great detail, clarity, and brightness
- Extra-Low Dispersion lenses delivers true color enhances resolution
- LensArmor coatings protect lenses from abrasions and scratching
- LensShield proprietary coating repels oil, water, and debris from lens surface
- HellFire CirclePlex Illuminated Reticle
-
- 2nd focal plane
- Fine, full-field crosshair
- Target circle
- Illuminated center dot
- Fiber-optic technology allows fine control of red dot illumination
- 9 daytime illumination settings
- 2 Night Vision illumination settings
- Use and Handling
-
- 1/2 MOA impact point correction
- 110 MOA windage range
- 120 MOA elevation range
- Construction Details
-
- 30mm maintube diameter
- Aluminum alloy housing
- Capped, knurled turrets and adjustments
- TH-100 Tactical Hunter Elevation Turret offers 100 clicks per revolution and push-button LockDown Zero System for long-range accuracy
- Custom Sig Ballistic Turret (SBT) laser-etched elevation dial
- Low-profile zoom lever
- Waterproof and fogproof
- Impact-resistant
UPC: 798681558957 In the Box SIG SAUER 1-5x24 WHISKEY5 Riflescope (HellFire CirclePlex Illuminated Reticle, Matte Black) - CR-2032 Battery
- Scope Cover
- Limited 5-Year Warranty
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SIG SAUER 1-5x24 WHISKEY5 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIG SAUER SOW51012 Specs | | | Magnification | 1 to 5x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 100.4' @ 100 yd / 33.5 m @ 100 m
5x: 20.2' @ 100 yd / 6.7 m @ 100 m | | Exit Pupil Diameter | 1x: 10.6 mm
5x: 4 mm | | Eye Relief | 3.9 to 4" / 99 to 102 mm | | | | Reticle Type | HellFire CirclePlex Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Filter Thread | M25.5 x 0.6 | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 110 MOA | | Elevation Adjustment | 120 MOA | | | | Water Resistance | IPX7 | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 10.1" / 25.7 cm | | Weight | 19 oz / 538.6 g |
