User Manual for SIG SAUER 1-6x24 TANGO6 Side Focus Tactical Riflescope Click to enlarge the picture
Contents of the user manual for the SIG SAUER 1-6x24 TANGO6 Side Focus
- Product category: Riflescopes SIG SAUER
- Brand: SIG SAUER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIG SAUER Riflescopes
|
User manual for the SIG SAUER 1-6x24 TANGO6 Side Focus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIG SAUER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIG SAUER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIG SAUER product will considerably shorten its lifespan!
|

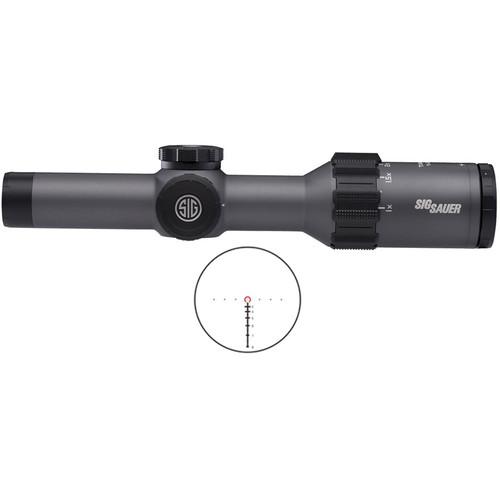

Product description Sig Sauer outfitted its battle-ready 1-6x24 TANGO6 Side Focus Tactical Riflescope with superior quality fully multi-coated optics and the .300 Blackout Horseshoe-Dot reticle. Their proprietary HDX optics feature High Definition (HD), High-Transmission (HT), and Extra-Low Dispersion (LD) glass, providing true color and maximizing resolution and transmission. Another highlight of this riflescope is its dedicated .300 Blackout Horseshoe-Dot reticle, which is located in the 1st focal plane and offers variable illumination. The reticle offers an illuminated horseshoe and center dot, inward-pointing arrowheads, and a vertical post with ballistic marks for .300 Blackout cartridges. It is enhanced with their proprietary Motion-Activated Illumination function (MOTAC), which powers up brightness when it senses motion and powers down the brightness when at rest. The illumination system offers 9 daytime brightness settings and 2 settings for Night Vision devices.
To endure the toughest battlefield conditions, the 30mm maintube is machined from a single piece of aluminum and provides a waterproof and fogproof performance. The windage and elevation knobs are knurled for slip-free operation and offer 125 MOA adjustment ranges with 1/2 MOA increments. Also available with this riflescope is the Sig Ballistic Turret Dial (SBT), which features precision tactical finger-operated knob with a fine diamond knurling and a slit read-out facing the ocular. The Sig Ballistic Turret (SBT) is a custom laser-etched elevation dial that uses your bullet specifications, ballistic coefficient, muzzle velocity, elevation, and other environmental factors for the correct bullet drop compensation and pinpoint accuracy. All other dials and rings are also enhanced with a fine diamond knurling for a slip-free grip, including a side focus parallax corrector and a fast focus eyepiece. The eyepiece also offers a low-profile zoom lever with a bright green mark for visibility. - .300 Blackout Horseshoe-Dot Reticle
-
- 1st focal plane
- Illuminated Horseshoe and center dot
- Horizontal arrowheads pointing inward
- Vertical post with ballistic marks for .300 Blackout cartridges
- Motion-Activated Illumination (MOTAC)
- Motion powers up brightness
- Stillness powers down brightness
- 9 daytime illumination brightness settings
- 2 Night Vision illumination settings
- Optical Performance
-
- Fully multi-coated HDX optics:
- High Definition (HD) and High Transmission (HT) optical glass offers great detail, clarity, and brightness
- Extra-Low Dispersion (LD) lenses delivers true color enhances resolution
- Use and Handling
-
- 1/2 MOA impact point correction
- 125 MOA windage and elevation range
- Construction
-
- 30mm single-piece maintube
- Aluminum alloy housing
- Tactical finger-operated turrets
- T120 tactical elevation turret with 120 clicks per revolution
- LockDown Zero System
- Resettable zero, zero-stop
- Auto-locks down at zero
- Custom Sig Ballistic Turret (SBT) laser-etched elevation dial
- Fine non-slip turrets and adjusters knurling
- Side focus parallax corrector knob
- Fast focus eyepiece with fiber optic power indicator
- Low-profile zoom lever
- Waterproof and fogproof
- Impact-resistant
UPC: 798681568024 In the Box SIG SAUER 1-6x24 TANGO6 Side Focus Tactical Riflescope (.300 Blackout Horseshoe-Dot Illuminated Reticle, Graphite) - CR-2032 Battery
- Riflescope Cover
- Adjustment Tools
- Limited 5-Year Warranty
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SIG SAUER 1-6x24 TANGO6 Side Focus Tactical Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIG SAUER SOT61012 Specs | | | Magnification | 1 to 6x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 92' @ 100 yd / 30.6 m @ 100 m
6x: 17' @ 100 yd / 5.7 m @ 100 m | | Exit Pupil Diameter | 1x: 12 mm
6x: 4 mm | | Eye Relief | 3.8 to 4.3" / 96.5 to 108 mm | | | | Reticle Type | .300 Blackout Horseshoe-Dot Reticle (First Focal Plane) | | | | Filter Thread | M25.5 x .5 | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 125 MOA | | Elevation Adjustment | 125 MOA | | | | Water Resistance | IPX7 | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 10.2" / 26 cm | | Weight | 25.4 oz / 720.1 g |
