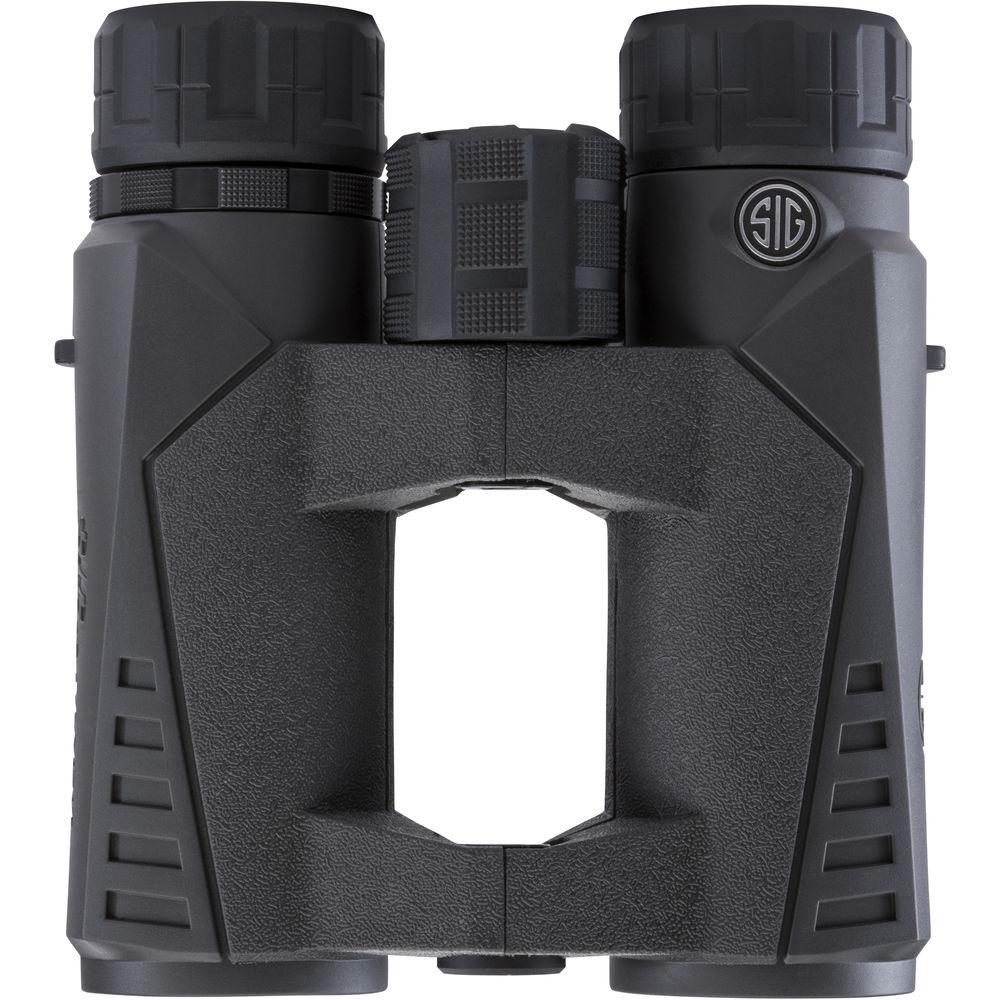

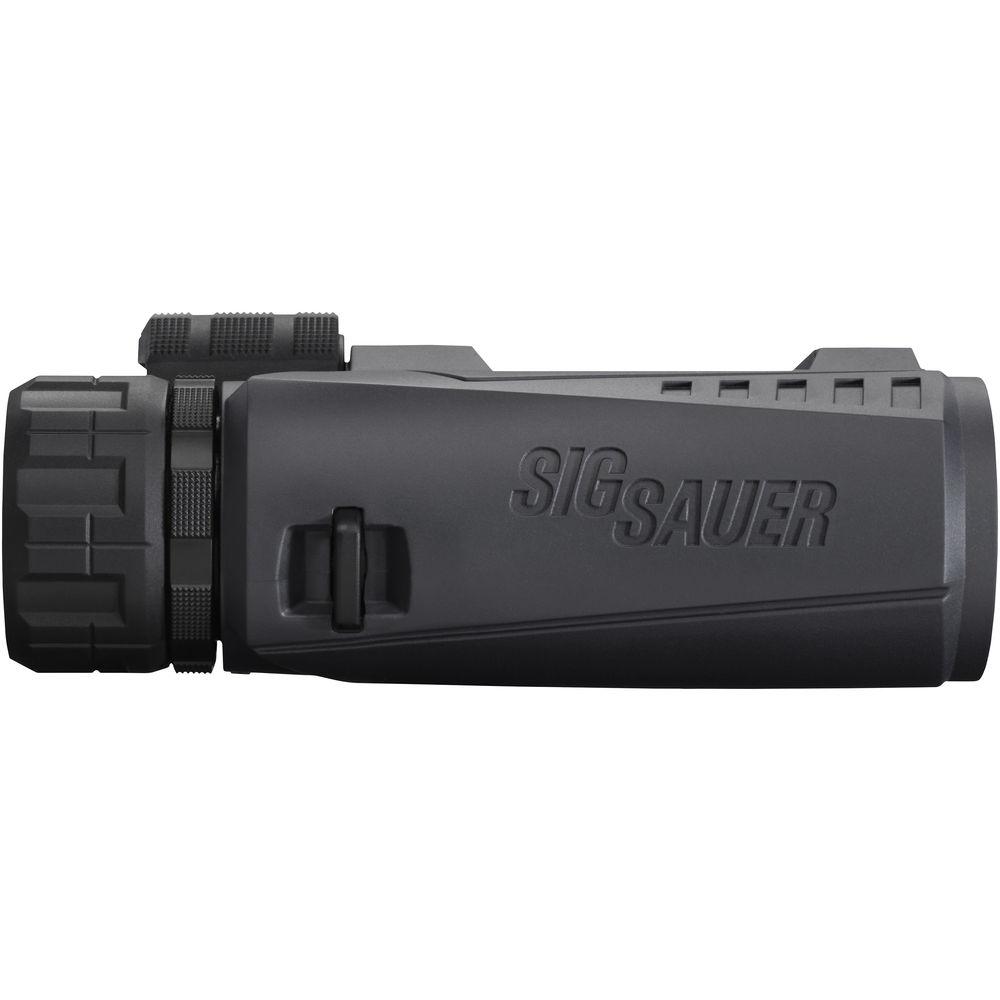

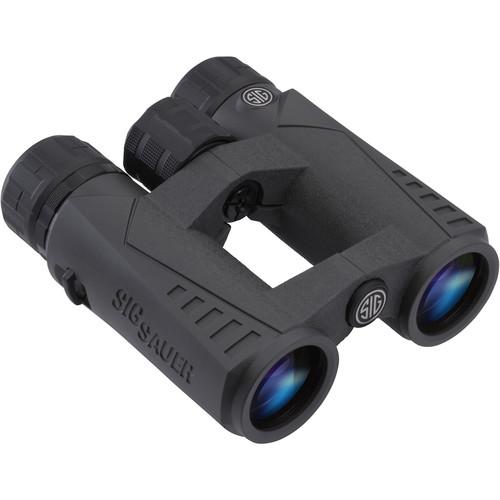

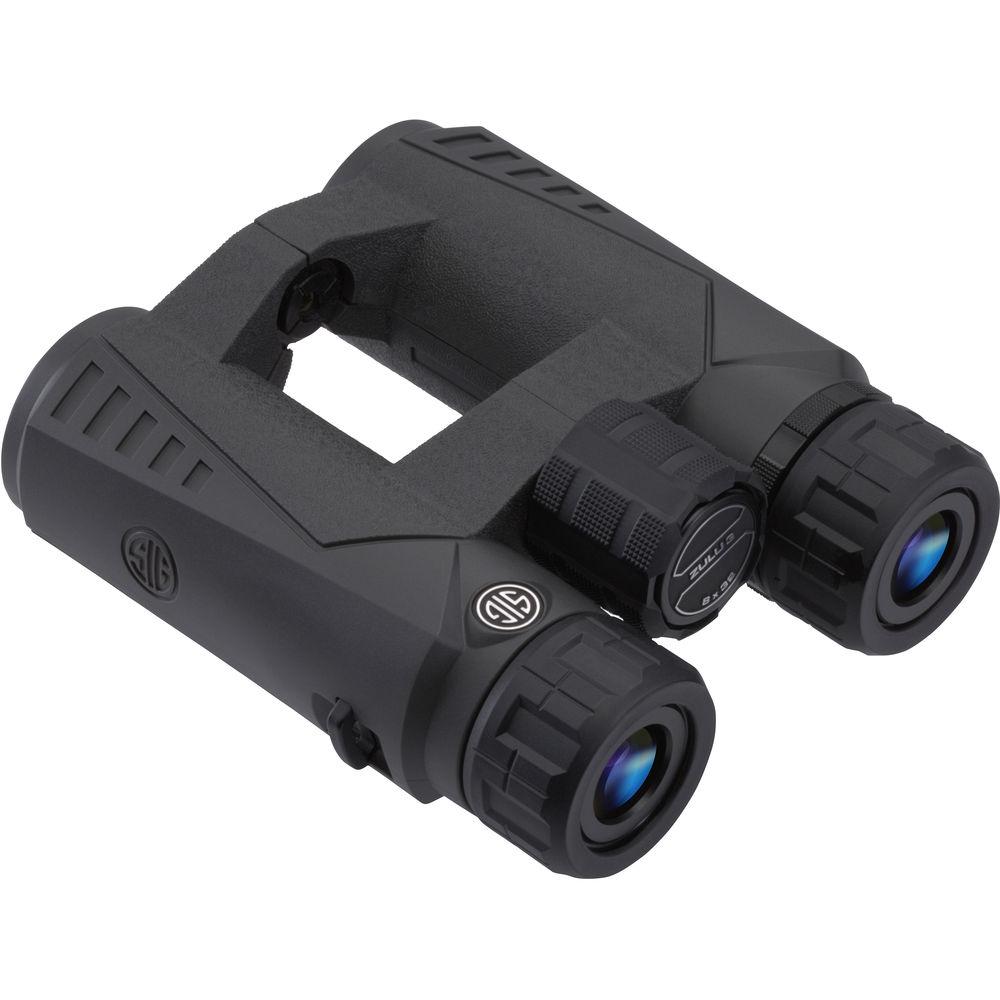

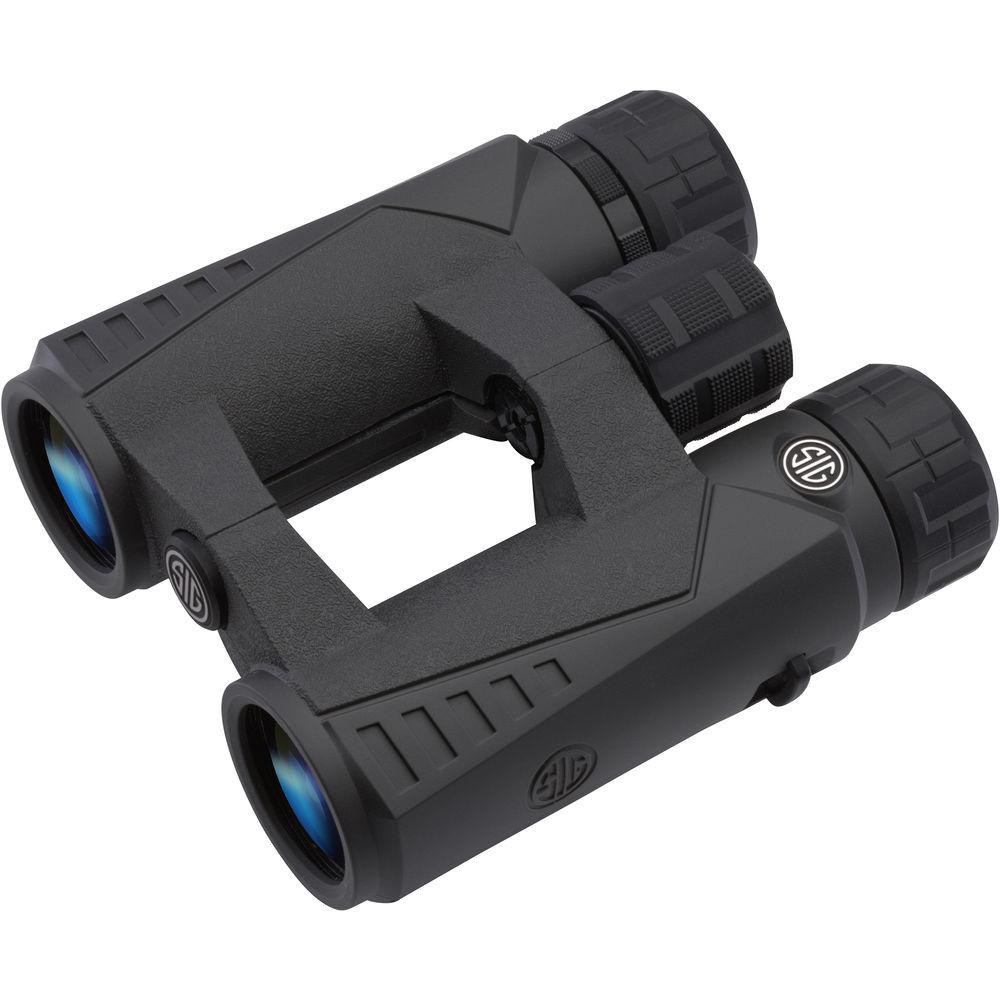

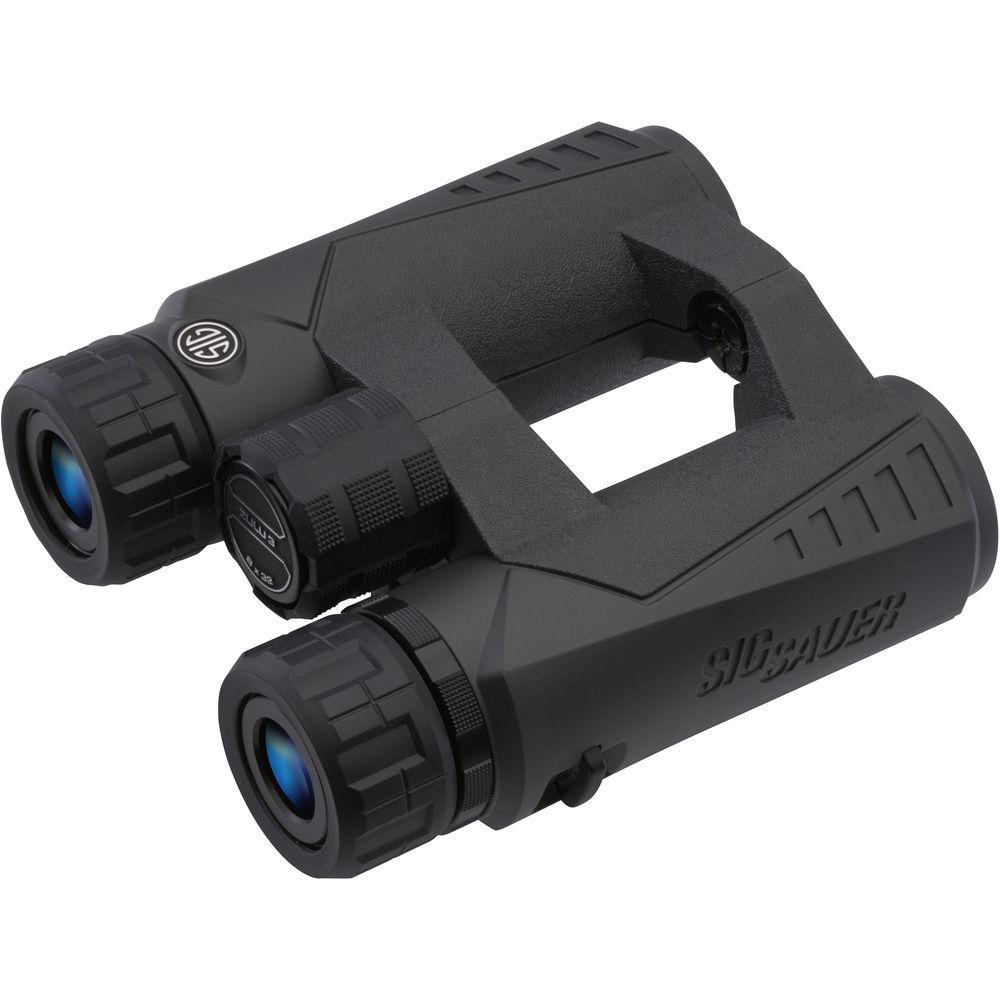

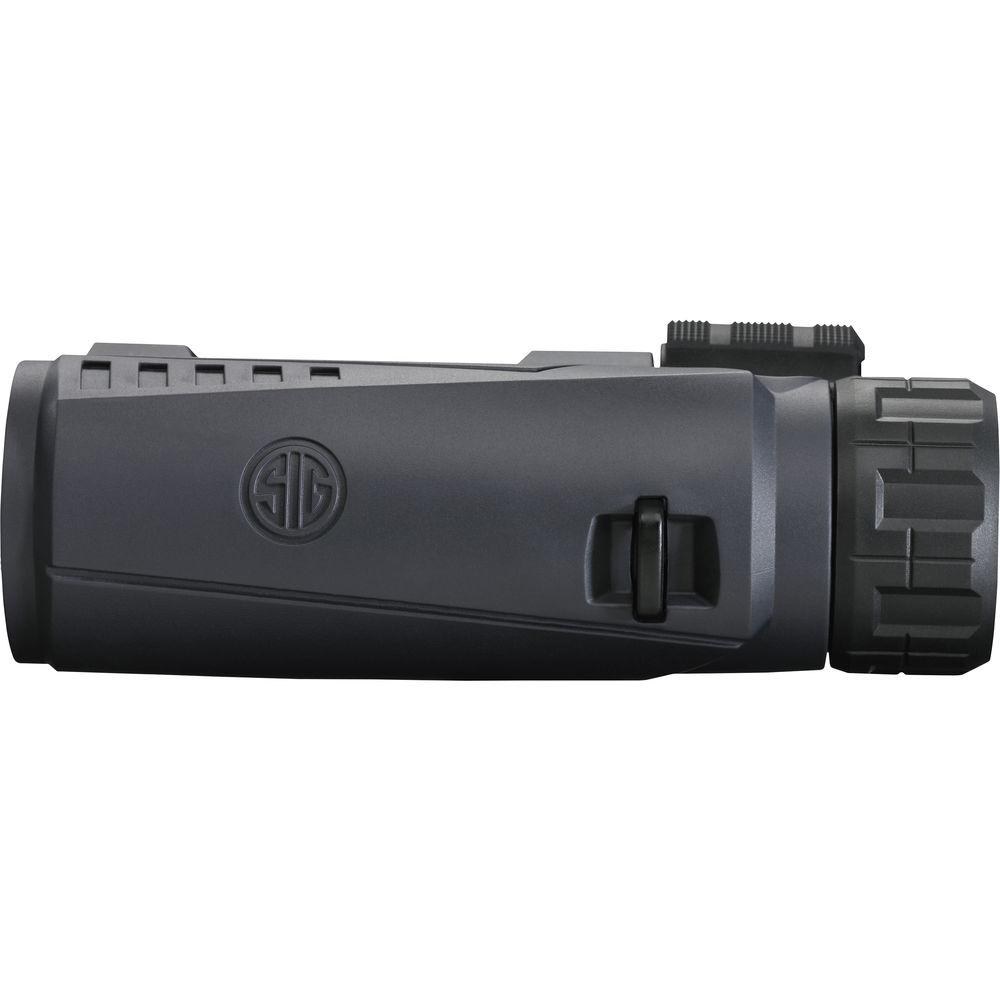

User Manual for SIG SAUER 10x32 ZULU3 Binocular Click to enlarge the picture
Contents of the user manual for the SIG SAUER 10x32 ZULU3 Binocular
- Product category: Binoculars SIG SAUER
- Brand: SIG SAUER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIG SAUER Binoculars
 |
User manual for the SIG SAUER 10x32 ZULU3 Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIG SAUER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIG SAUER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIG SAUER product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More rtvrveezzcvteswbfsxwcruracrbz Outfitted with low-dispersion glass, fully multi-coated optics, and phase-corrected roof prisms, the Sig Sauer 10x32 ZULU3 Binocular optical system produces bright and clear high-contrast images with true color fidelity across the entire wide field of view. Its 10x magnification allows for detailed observation of distant objects, while the visible hand-shake common with optics of this power is mitigated by the wide viewing angle. The 32mm objectives makes this a small full-sized optic that is still compact and lightweight enough to easily fit in most pockets or packs.Its open-bridge design helps to reduce weight without sacrificing strength and provides a large surface area to hold, even with the compact housing. Rubber armoring helps to give protection from drops and impacts while helping to provide a non-slip grip. Designed for durability, the lightweight polymer chassis is nitrogen-filled and O-ring sealed for fogproof performance and makes it submersible to 3.3 ft for up to 30 minutes. Twist-up eyecups provide a custom-fit eye relief for use with or without eye-wear. - Optical Performance
-
- 10x magnification
- 32mm objective lenses
- Compact BAK4 roof prisms
- Low-dispersion glass helps to correct chromatic aberration for true color rendition and improved contrast
- SpectraCoat lens coatings:
- Broadband, anti-reflection coatings
- Reduce surface reflections across the entire visible spectrum
- Improves overall light transmission for brighter images
- Phase-correction silver prism coatings improve image brightness, contrast, and resolution
- LensArmor lens coatings resists scratches and abrasions
- 341' field of view at 1000 yards
- Wide 65° apparent angle of view
- Comfortable 14.5mm eye relief
- 3.2mm exit pupil
- Use and Handling
-
- Dual-hinge, open-bridge configuration:
- Reduces overall weight without sacrificing strength or rigidity
- Provides additional surface are for a more comfortable and secure grip
- ±3 right-eye dioptric correction
- 56-74mm interpupillary adjustment range
- Twist-up eyecups for use with or without eyewear
- Construction Details
-
- Lightweight and durable polymer chassis
- StealthID rubber armoring
- Slip-resistant to improve grip
- Protects against drops and impacts
- Reduces light reflection off housing
- Nitrogen-filled for fogproof performance
- O-ring sealed to IPX7-rating, submersible to 3.3' (1m) for up to 30 minutes
- Weight: 16 ounces
UPC: 798681521487 In the Box SIG SAUER 10x32 ZULU3 Binocular (Graphite) Lens Cloth Padded Nylon Case Neck/Shoulder Strap 2 x Objective Lens Covers Limited Lifetime Warranty (Transferable) Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 rtvrveezzcvteswbfsxwcruracrbz Table of Contents
|
Upload User Manual
Have you got an user manual for the SIG SAUER 10x32 ZULU3 Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIG SAUER SOZ31001 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 32 mm | | Angle of View | 6.5° (actual) | | Field of View | 341.2' @ 1000 yd / 113.7 m @ 1000 m | | Minimum Focus Distance | 8.2' / 2.5 m | | Exit Pupil Diameter | 3.2 mm | | Eye Relief | 14.5 mm | | Interpupillary Adjustment | 56 to 74 mm / 2.2 to 2.9" | | Dioptric Correction | ±3 | | Focus Type | Center | | Tripod Mount | None | | Dimensions | Length: 5.5" / 14.0 cm | | Weight | 16.0 oz / 453.6 g | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 11.3 x 7.1 x 4.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
