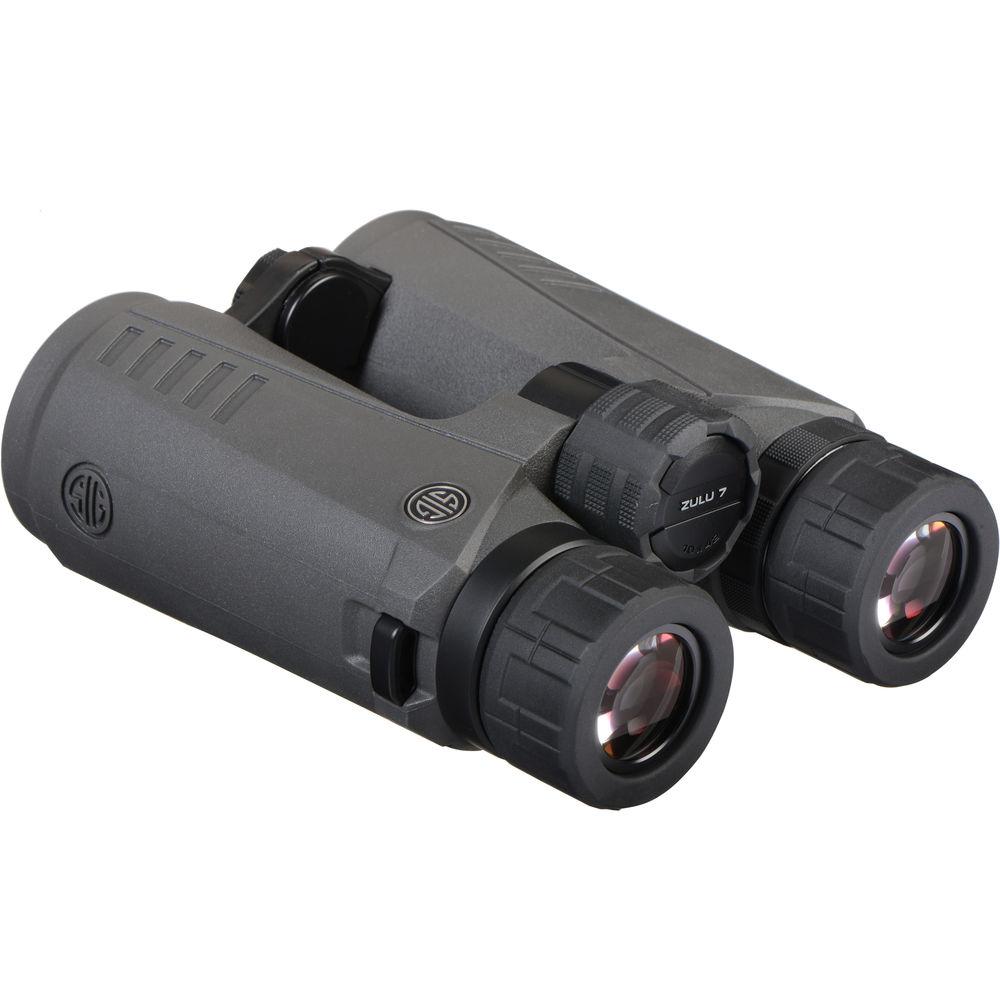

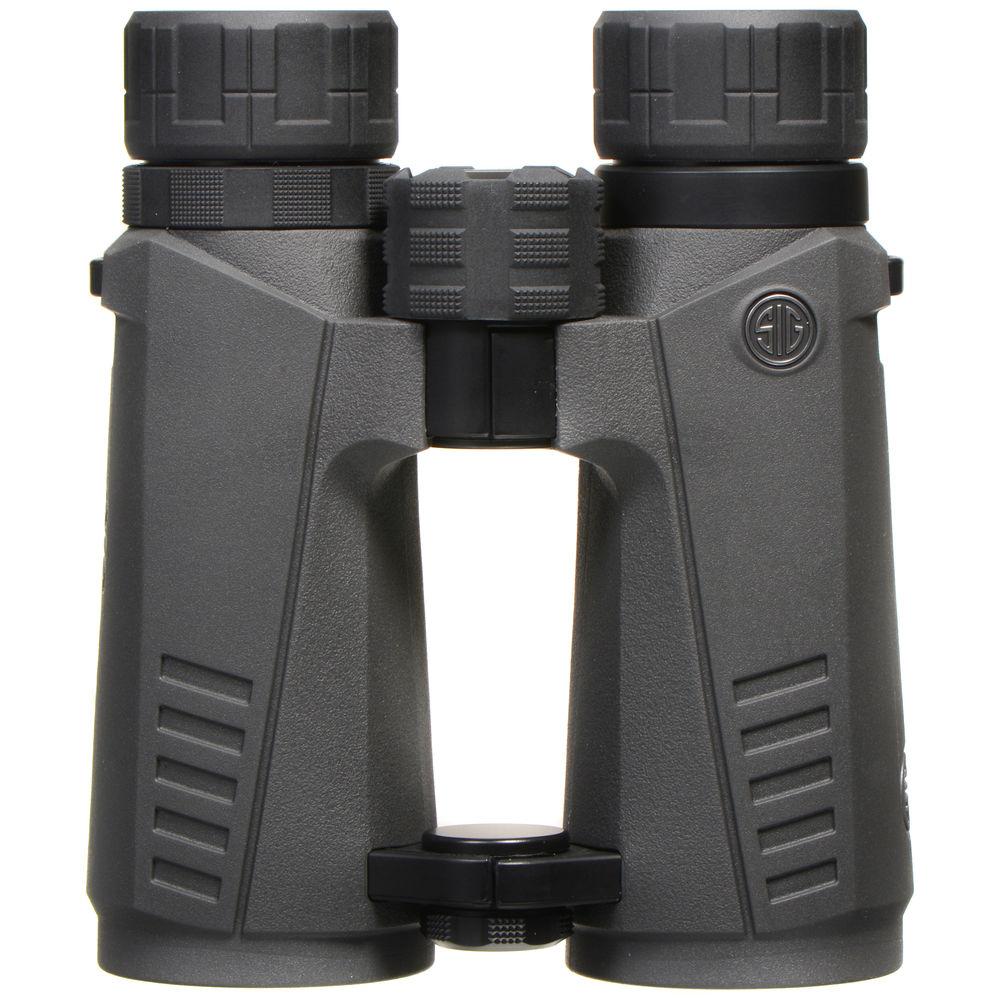

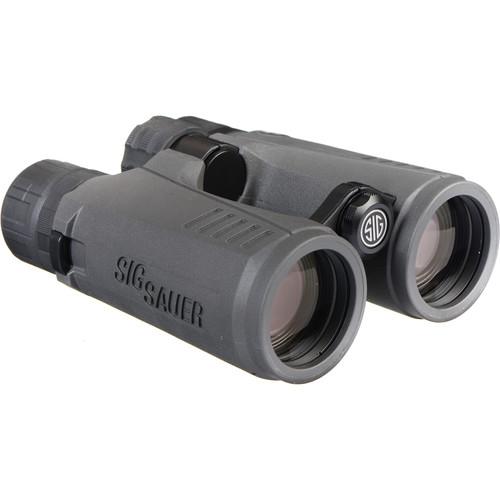

User Manual for SIG SAUER 10x42 ZULU7 Binocular Click to enlarge the picture
Contents of the user manual for the SIG SAUER 10x42 ZULU7 Binocular
- Product category: Binoculars SIG SAUER
- Brand: SIG SAUER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIG SAUER Binoculars
 |
User manual for the SIG SAUER 10x42 ZULU7 Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIG SAUER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIG SAUER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIG SAUER product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Outfitted with extra low-dispersion/high transmission glass, multiple proprietary lens coatings, and phase-corrected roof prisms, the Sig Sauer 10x42 ZULU7 Binocular optical system produces bright and clear high-contrast images with true color fidelity across the entire wide field of view. Its 10x magnification allows for viewing of distant objects, while its short 5.9' close-focus distance enables exceptionally detailed observation of birds, bugs, and insects at feeders or bushes. Additionally, the visible hand-shake common with optics of this power is mitigated by the wide viewing angle. Complementing the optical performance is a comfortable long eye relief, and wide exit pupil that will cover the eye even when fully dilated in low-light conditions.Its open-bridge design helps to reduce weight without sacrificing strength or rigidity, and provides a large surface area for a secure and steady grip. For long-duration observation sessions, the ZULU7 can be mounted on a tripod via a user-supplied optional adapter. Rubber armoring helps to give protection from drops and impacts while helping to provide a non-slip grip. Designed for durability, the lightweight polymer chassis is nitrogen-filled and O-ring sealed for fogproof performance and makes it submersible to 3.3 ft for up to 30 minutes. Twist-up eyecups provide a custom-fit eye relief for use with or without eye-wear. - Optical Performance
-
- 10x magnification
- 42mm objective lenses
- Compact BAK4 roof prisms
- HDX extra low-dispersion, high-transmission glass elements corrects chromatic aberration for true color rendition and improved contrast
- Fully multi-coated optics with a series of proprietary lens coatings
- Close 5.9' minimum focus distance
- 341' field of view at 1000 yards
- Wide 65° apparent angle of view
- Long 17mm eye relief
- Comfortable 4.2mm exit pupil
- Proprietary Optical Coatings
-
- SpectraCoat lens coatings:
- Broadband, anti-reflection coatings
- Reduce surface reflections across the entire visible spectrum
- Improves overall light transmission for brighter images
- Phase-correction silver prism coatings improve image brightness, contrast, and resolution
- LenShield lens coatings repels water, oil, and other materials to keep lens clear and clean
- LensArmor lens coatings resists scratches and abrasions
- Use and Handling
-
- Dual-hinge, open-bridge configuration:
- Reduces overall weight without sacrificing strength or rigidity
- Provides additional surface are for a more comfortable and secure grip
- ±3 right-eye dioptric correction
- 56-74mm interpupillary adjustment range
- Twist-up eyecups for use with or without eyewear
- Tripod mountable with optional adapter
- Construction Details
-
- Lightweight and durable polymer chassis
- StealthID rubber armoring
- Slip-resistant to improve grip
- Protects against drops and impacts
- Reduces light reflection off housing
- Nitrogen-filled for fogproof performance
- O-ring sealed to IPX7-rating, submersible to 3.3' (1m) for up to 30 minutes
- Tethered objective lens covers
- Weight: 33 ounces
UPC: 798681521449 In the Box SIG SAUER 10x42 ZULU7 Binocular (Graphite) Lens Cloth Padded Nylon Case Neck/Shoulder Strap 2 x Objective Lens Covers Limited Lifetime Warranty (Transferable) Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the SIG SAUER 10x42 ZULU7 Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIG SAUER SOZ71001 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 42 mm | | Angle of View | 6.5° (actual) | | Field of View | 341.2' @ 1000 yd / 113.7 m @ 1000 m | | Minimum Focus Distance | 5.9' / 1.8 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 17.0 mm | | Interpupillary Adjustment | 56 to 74 mm / 2.2 to 2.9" | | Dioptric Correction | ±3 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | Length: 5.8" / 14.7 cm | | Weight | 33.5 oz / 950.0 g | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 11.8 x 8.6 x 4.6" |
