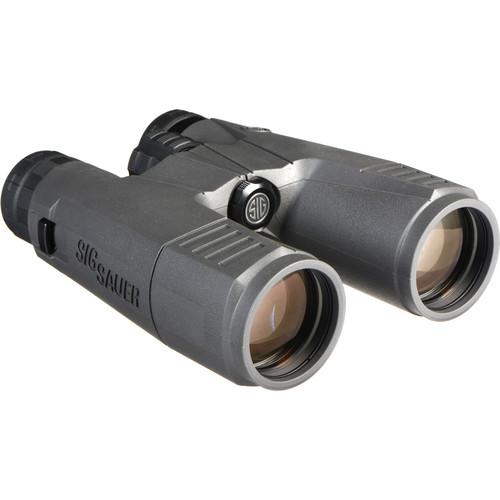

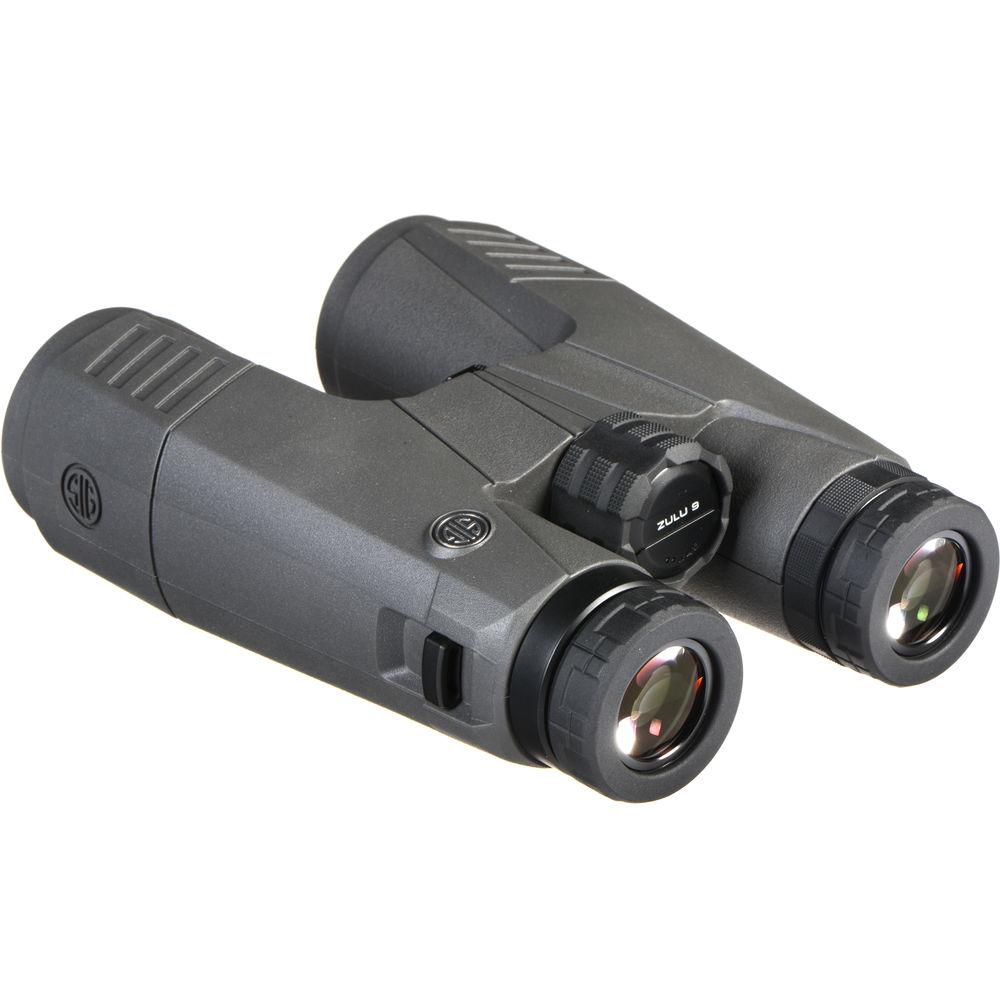

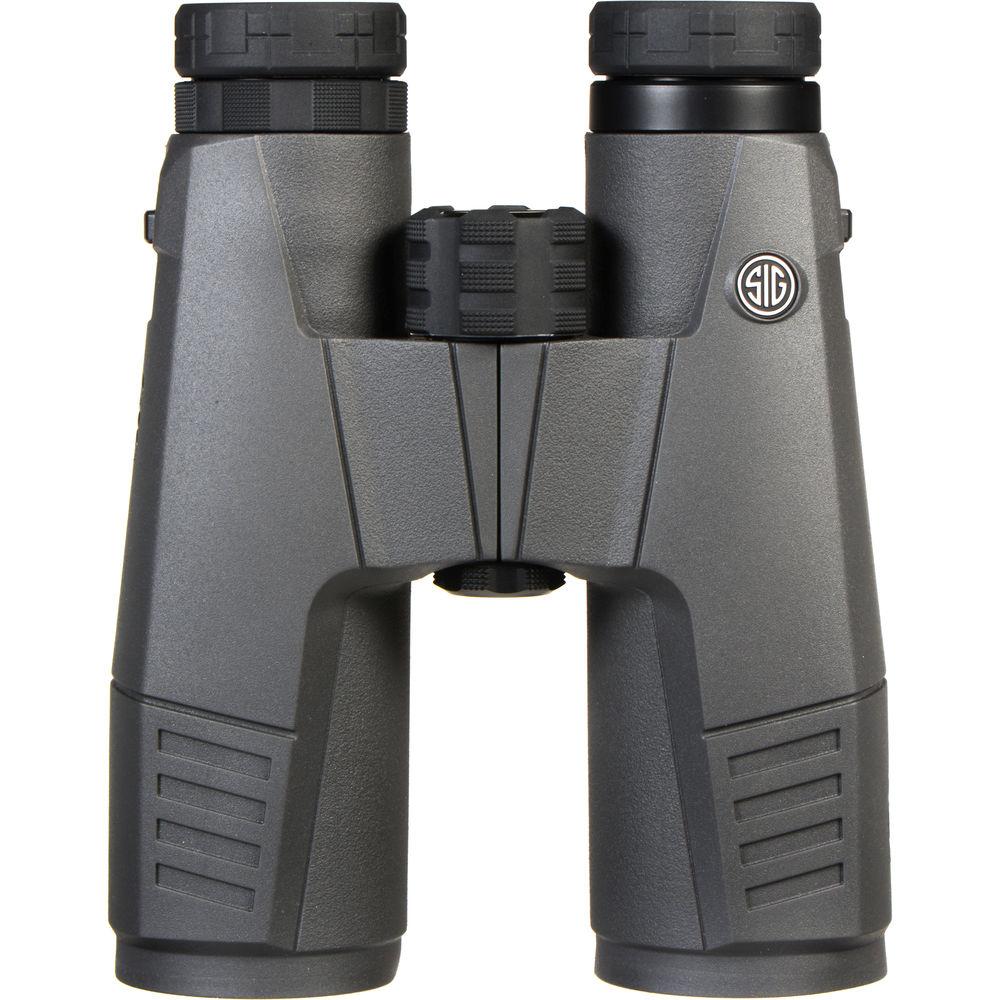

User Manual for SIG SAUER 11x45 ZULU9 Binocular Click to enlarge the picture
Contents of the user manual for the SIG SAUER 11x45 ZULU9 Binocular
- Product category: Binoculars SIG SAUER
- Brand: SIG SAUER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIG SAUER Binoculars
 |
User manual for the SIG SAUER 11x45 ZULU9 Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIG SAUER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIG SAUER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIG SAUER product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More dbbrtfwrzyxuveaqsrzxrycq Forgoing traditional magnification and objective configurations, the Sig Sauer 11x45 ZULU9 Binocular slightly increases both to boost performance without making them too powerful or large to use for long periods. Sig also engineered it with Abbe-Koenig prisms which make the optical tubes thinner than conventional roof prism binocular tubes - this translates to a more comfortable feel in the hand and a more secure grip. Complementing the prisms are extra low-dispersion/high transmission glass, multiple proprietary lens coatings, and phase-correction prism coatings which produce bright and clear high-contrast images with true color fidelity across the entire wide field of view.Its wide viewing angle and 11x magnification allows for viewing of distant objects versus a 10x, while helping to mitigate the visible hand-shake common in 12x binoculars; and the short 6' close-focus distance enables exceptionally detailed observation of birds, bugs, and insects at feeders or bushes. Rounding out the optical performance is a comfortable, long eye relief and an exit pupil that will cover the eye even when fully dilated in low-light conditions.For long-duration observation sessions, the ZULU9 can be mounted on a tripod via a user-supplied optional adapter. Rubber armoring helps to give protection from drops and impacts while helping to provide a non-slip grip. Designed for durability, the lightweight polymer chassis is nitrogen-filled and O-ring sealed for fogproof performance and makes it submersible to 3.3 feet for up to 30 minutes. Twist-up eyecups provide a custom-fit eye relief for use with or without eyewear. - Optical Performance
-
- 11x magnification
- 45mm objective lenses
- Compact Abbe-Koenig style roof prisms
- Reduced internal diffraction compared to conventional roof prisms for brighter images
- More compact design allows for thinner optical tubes for a more comfortable grip
- HDX extra low-dispersion, high-transmission glass elements corrects chromatic aberration for true color rendition and improved contrast
- Fully multi-coated optics with a series of proprietary lens coatings
- Short 6' minimum focus distance
- 315' field of view at 1000 yards
- Wide 66° apparent angle of view
- Long 16.7mm eye relief
- Comfortable 4.1mm exit pupil
- Proprietary Optical Coatings
-
- SpectraCoat lens coatings:
- Broadband, anti-reflection coatings
- Reduce surface reflections across the entire visible spectrum
- Improves overall light transmission for brighter images
- Phase-correction silver prism coatings improve image brightness, contrast, and resolution
- LenShield lens coatings repels water, oil, and other materials to keep lens clear and clean
- LensArmor lens coatings resists scratches and abrasions
- Use and Handling
-
- Closed-bridge configuration
- Large center focusing wheel
- ±3 right-eye dioptric correction
- 56-74mm interpupillary adjustment range
- Twist-up eyecups for use with or without eyewear
- Tripod mountable with optional adapter
- Construction Details
-
- Lightweight, durable, and corrosion-resistant magnesium-alloy chassis
- StealthID rubber armoring
- Slip-resistant to improve grip
- Protects against drops and impacts
- Reduces light reflection off housing
- Nitrogen-filled for fogproof performance
- O-ring sealed to IPX7-rating, submersible to 3.3' (1m) for up to 30 minutes
- Tethered objective lens covers
- Weight: 33 ounces
UPC: 798681522811 In the Box SIG SAUER 11x45 ZULU9 Binocular (Graphite) Lens Cloth Padded Nylon Case Neck/Shoulder Strap 2 x Objective Lens Covers Limited Lifetime Warranty (Transferable) Summer Binocular Buying Guide Christopher Witt 07/14/2016 dbbrtfwrzyxuveaqsrzxrycq A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 dbbrtfwrzyxuveaqsrzxrycq Table of Contents
|
Upload User Manual
Have you got an user manual for the SIG SAUER 11x45 ZULU9 Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIG SAUER SOZ99002 Specs | Prism Type | Roof | | Magnification | 11 x | | Objective Lens Diameter | 45 mm | | Angle of View | 6.0° (actual) | | Field of View | 315.0' @ 1000 yd / 105.0 m @ 1000 m | | Minimum Focus Distance | 6' / 1.8 m | | Exit Pupil Diameter | 4.1 mm | | Eye Relief | 16.7 mm | | Interpupillary Adjustment | 56 to 74 mm / 2.2 to 2.9" | | Dioptric Correction | ±3 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | Length: 7.5" / 19.1 cm | | Weight | 33.5 oz / 950.0 g | | | | Package Weight | 4.52 lb | | Box Dimensions (LxWxH) | 11.3 x 8.2 x 4.65" |
