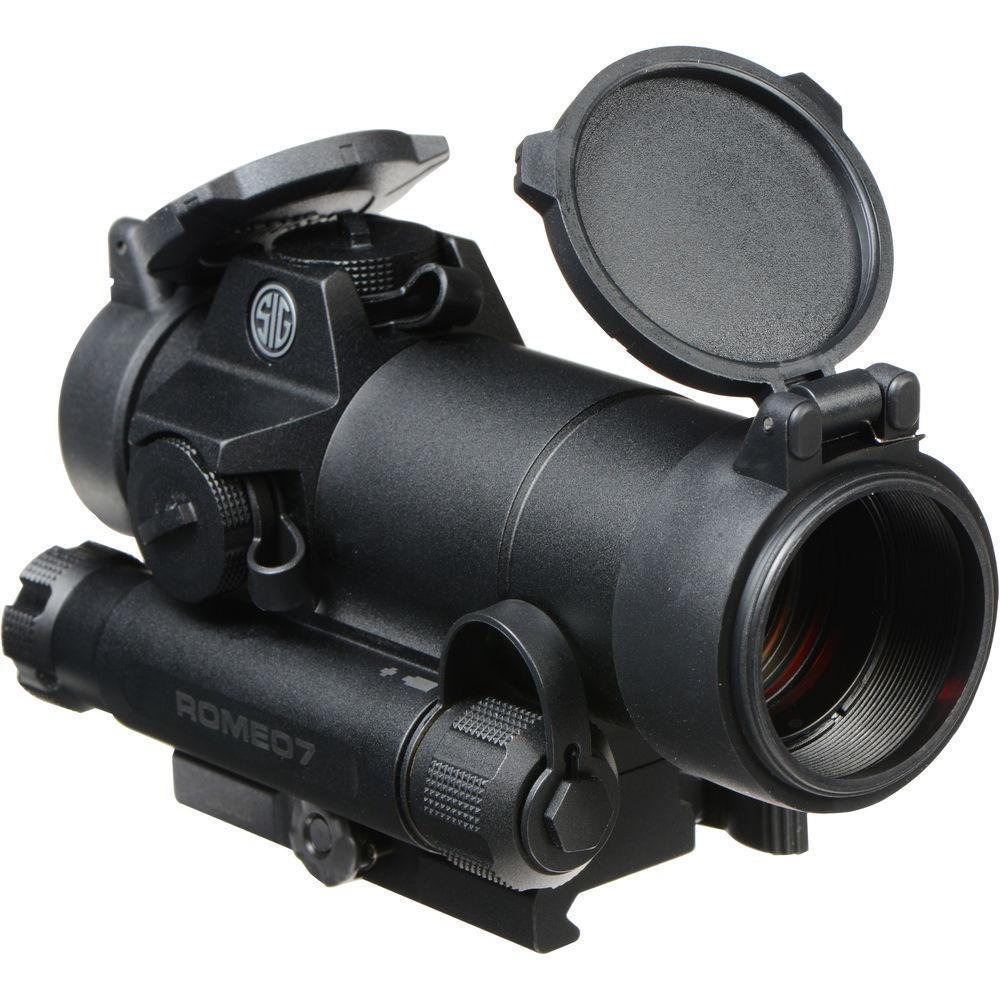

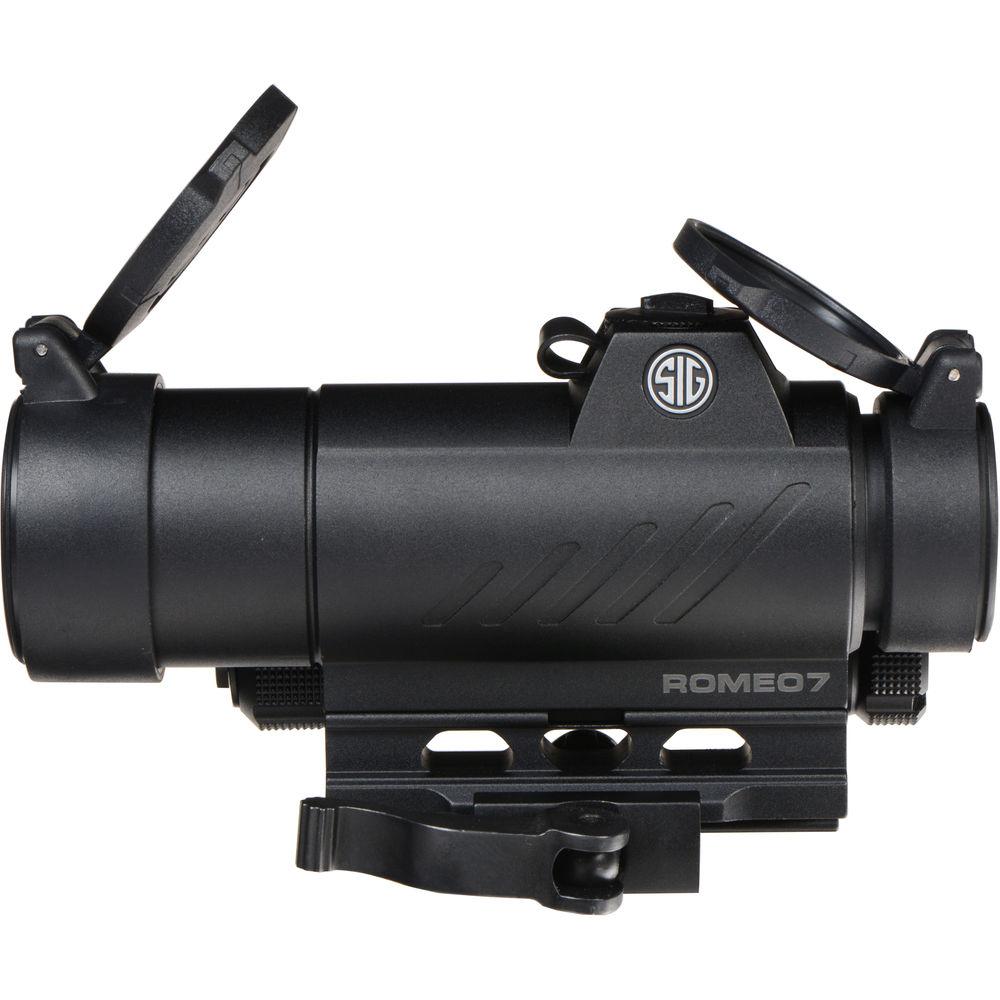

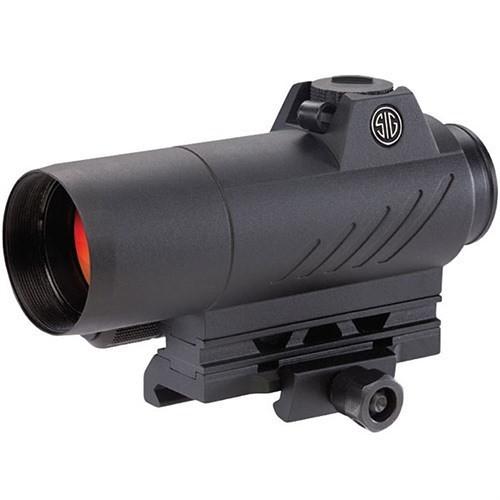

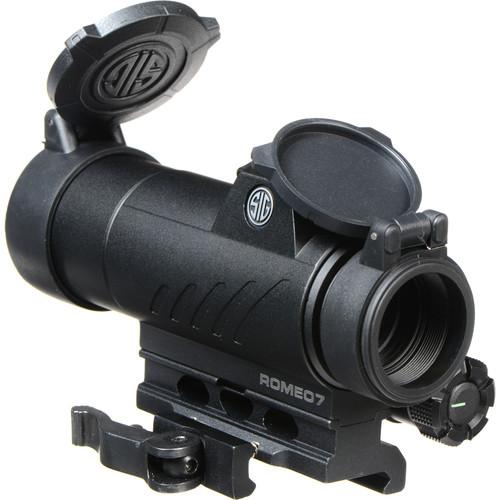

User Manual for SIG SAUER 1x30 Romeo7 Full-Size Red-Dot Sight Click to enlarge the picture
Contents of the user manual for the SIG SAUER 1x30 Romeo7 Full-Size Red-Dot
- Product category: Red Dot/Holographic Sights SIG SAUER
- Brand: SIG SAUER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIG SAUER Red Dot/Holographic Sights
 |
User manual for the SIG SAUER 1x30 Romeo7 Full-Size Red-Dot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIG SAUER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIG SAUER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIG SAUER product will considerably shorten its lifespan!
|
Product description Sig Sauer outfitted its battle-ready Romeo7 1x30 Full-Size Red-Dot Sight with a red-dot reticle and optics coated with their proprietary Spectracoat technology. The Spectracoat provides highly efficient, ultra-wide broadband, anti-reflection lens coatings that reduce reflections to extremely low levels across the entire visible spectrum and provide superior light transmission. The reticle offers a 2 MOA red dot with nine illumination settings for daytime target acquisitions and two low-light settings for night vision equipment. The illumination circuit also features a Motion-Activated Illumination function (MOTAC) that powers up brightness when it senses motion and powers the brightness down when at rest.
To endure the toughest battlefield conditions, the housing is made from aluminum and provides a waterproof and fogproof performance. The windage and elevation knobs are knurled for slip-free operation and offer 220 MOA elevation and 150 MOA windage adjustment ranges with 1/2 MOA increments. The sight offers two Picatinny mounting options: a standard quick detach Picatinny mount and a low-profile mount. - Reticle
-
- 2 MOA Red-Dot reticle
- LED illumination:
- Nine day settings
- Two night vision settings
- Parallax-free aiming
- Optical Performance
-
- 1x magnification
- 30mm objective lens diameter
- Spectracoat anti-reflection coatings:
- Highly efficient, broadband transmission
- LD - Low Dispersion glass
- Preserves true image color
- Aspherical lens design:
- Reduces spherical aberrations and distortions
- Provides flat images with edge-to-edge clarity
- Unlimited eye relief
- Use and Handling
-
- 1/2 MOA impact point correction
- 220 MOA windage and 150 MOA elevation
- Construction
-
- Ultralight and durable aluminum housing
- Picatinny rail mounts:
- Standard QD mount
- Low-profile mount
- Knurled turrets, knobs, and adjusters
- Waterproof, rated IPX7
- Flip-up lens caps
- Impact-resistant
UPC: 798681521388 In the Box SIG SAUER 1x30 Romeo7 Full-Size Red-Dot Sight (Red-Dot Illuminated Reticle, Graphite) - AA Battery
- Rubber Bikini Lens Cover
- Torx and Battery Removal Tool
- Side Mounted Battery Cover
- Absolute Co-Witness 1.535" Picatinny Torx Riser Mount
- Limited 5-Year Warranty
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SIG SAUER 1x30 Romeo7 Full-Size Red-Dot Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIG SAUER ROMEO7 Specs | | | Reticle | 2 MOA Dot | | Reticle Color | Red | | Power Source | 1 x AA | | Mounting | Picatinny / Weaver | | | | Magnification | 1 x | | Objective Lens Diameter | 30 mm | | | | Impact Point Correction | 1/2 MOA | | Windage Adjustment | 150 MOA | | Elevation Adjustment | 220 MOA | | | | Water Resistance | IPX7 | | Dimensions | L: 4.8 x W: 3.0 x H: 2.0" / L: 12.2 x W: 7.6 x H: 5.1 cm | | Weight | 12.5 oz / 354.4 g | | | | Package Weight | 1.82 lb | | Box Dimensions (LxWxH) | 7.75 x 4.75 x 3.35" |
