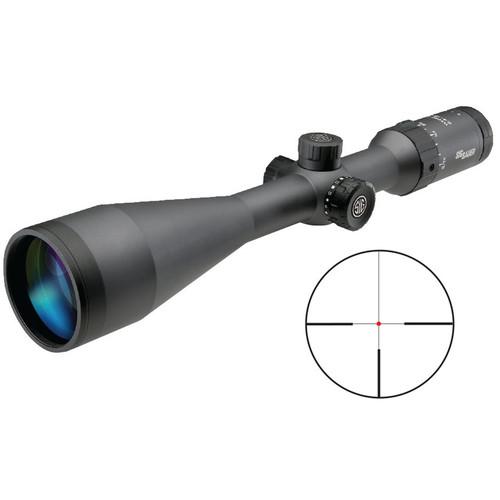

User Manual for SIG SAUER 2.4-12x56 WHISKEY5 Riflescope Click to enlarge the picture
Contents of the user manual for the SIG SAUER 2.4-12x56 WHISKEY5 Riflescope
- Product category: Riflescopes SIG SAUER
- Brand: SIG SAUER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIG SAUER Riflescopes
|
User manual for the SIG SAUER 2.4-12x56 WHISKEY5 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIG SAUER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIG SAUER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIG SAUER product will considerably shorten its lifespan!
|
Product description Sig Sauer outfitted its 2.4-12x56 WHISKEY5 Riflescope with high-quality optical elements, the HellFire TriPlex reticle, and a very wide 56mm objective aperture that collects lots of light, greatly improving visibility and image brightness in challenging lighting conditions. The HDX optics feature High-Definition (HD), High-Transmission (HT), and Extra-Low Dispersion glass, which provides true color, and maximizes resolution and brightness. Coated with SpectraCoat anti-reflection coatings, the lenses exhibit high transmission across the entire visible spectrum, delivering bright and crisp images. To ensure that the image quality is not degraded by external environmental conditions and elements, the optics are protected by the LensArmor coatings against abrasions and scratching. To prevent deterioration of image quality from interfering debris, oil, or water droplets that can stick to lens' surface, the exterior surfaces are enhanced with the oleophobic LensShield coating. Another highlight of this riflescope is its illuminated HellFire TriPlex reticle, which is located in the 2nd focal plane and offers a brilliant red center illumination. It features three medium posts, a fine crosshair, and uses fiber-optic technology to control illumination of the bright red center dot. It illumination system offers 7 daytime brightness levels and 2 settings that are compatible with Night Vision devices.
To endure most outdoor conditions, the lightweight and durable housing features a single-piece 30mm maintube and provides a waterproof and fogproof performance. The windage and elevation knobs are knurled for slip-free operation and offer 62 MOA windage and elevation adjustment ranges with 1cm per click adjustments. To deliver unparalleled accuracy for that long-range, laser-sharp shot, the scope is outfitted with the TH-100 Tactical Hunter Elevation Turret, which offers a 100 clicks per revolution and a precision push-button Lock Down Zero System. Also available with this riflescope is the Sig Ballistic Turret Dial (SBT), which features a precision tactical finger-operated knob. The Sig Ballistic Turret (SBT) is a custom laser-etched elevation dial that uses your bullet specifications, ballistic coefficient, muzzle velocity, elevation, and other environmental factors for the correct bullet drop compensation and pinpoint accuracy. All other dials and rings are also enhanced with knurling for a slip-free grip. Also noteworthy is the fast focus eyepiece with a low-profile zooming lever and a green fiber optic zoom indicator. - HellFire TriPlex Reticle
-
- Three medium posts
- Fine crosshair
- Fiber-optic technology allows fine control of red dot illumination
- 7 daytime illumination settings
- 2 Night Vision illumination settings
- Optical Highlights
-
- 5x Super-Zoom Advanced Optical System
- SpectraCoat anti-reflection coatings deliver high transmission across the entire visible spectrum
- 56mm objective aperture collects a lot of light and improves visibility in the most challenging light conditions
- HDX optics: High Definition (HD) and High Transmission (HT) optical glass offers great detail, clarity, and brightness
- Extra-Low Dispersion lenses delivers true color enhances resolution
- LensArmor coatings protect lenses from abrasions and scratches
- LensShield proprietary coating repels oil, water, and debris from lens' surface
- Use and Handling
-
- 1cm impact point correction
- 62 MOA windage and elevation
- Parallax-free at 100 yd
- Construction
-
- 30mm one-piece maintube
- Aluminum alloy housing
- Black anodizing finish on objective bell
- TH-100 Tactical Hunter Elevation Turret offers 100 clicks per revolution and push-button LockDown Zero System for long-range accuracy
- Capped, knurled turrets and adjustments
- Custom Sig Ballistic Turret (SBT) laser-etched elevation dial
- Stealth ID design reduces glint from body surface
- Fast focus eyepiece with a green fiber optics power indicator
- Side knob for reticle brightness adjustment
- Waterproof and fogproof, IPX7-rated
UPC: 798681567959 In the Box SIG SAUER 2.4-12x56 WHISKEY5 Riflescope (HellFire TriPlex Illuminated Reticle, Matte Black) - CR-2032 Battery
- Riflescope Cover
- Limited 5-Year Warranty
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SIG SAUER 2.4-12x56 WHISKEY5 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIG SAUER SOW52015 Specs | | | Magnification | 2.4 to 12x | | Objective Lens Diameter | 56 mm | | Field of View | 2.4x: 43.1' @ 100 yd / 14.3 m @ 100 m
12x: 9.3' @ 100 yd / 3.1 m @ 100 m | | Exit Pupil Diameter | 2.4x: 11.6 mm
12x: 4.7 mm | | Eye Relief | 3.9 to 4" / 99 to 102 mm | | | | Reticle Type | HellFire TriPlex Reticle (Second Focal Plane) | | | | Filter Thread | M58 x 0.75 | | Windage Adjustment | 62 MOA | | Elevation Adjustment | 62 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | IPX7 | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 14.1" / 358 mm | | Weight | 29.6 oz / 839 g |
