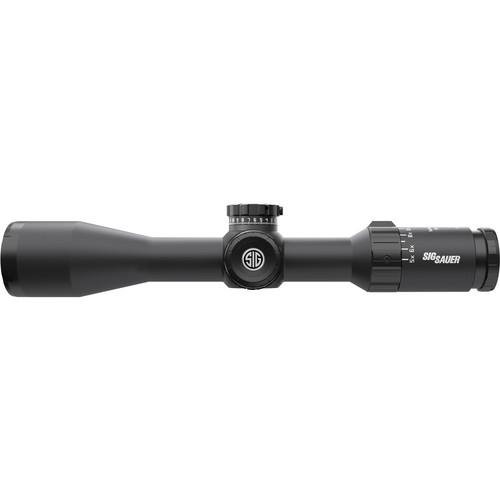

User Manual for SIG SAUER 3-15x44 WHISKEY5 Side Focus Riflescope Click to enlarge the picture
Contents of the user manual for the SIG SAUER 3-15x44 WHISKEY5 Side Focus
- Product category: Riflescopes SIG SAUER
- Brand: SIG SAUER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIG SAUER Riflescopes
|
User manual for the SIG SAUER 3-15x44 WHISKEY5 Side Focus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIG SAUER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIG SAUER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIG SAUER product will considerably shorten its lifespan!
|
Product description Sig Sauer outfitted its 3-15x44 WHISKEY5 Side Focus Riflescope with high-quality optics and the HellFire QuadPlex Illuminated reticle. The proprietary HDX optics feature High-Definition (HD), High-Transmission (HT), and Extra-Low Dispersion glass, which provides true color, maximizing resolution and brightness. Coated with SpectraCoat anti-reflection coatings, the lenses exhibit high transmission in the entire visible spectrum and deliver bright and crisp images. To ensure that image quality is not degraded by the environmental conditions and elements, the optics are protected from abrasions and scratches by the LensArmor coatings. Additionally, the LensShield coatings help whisk away oil, water, and debris. Another highlight of this riflescope is its illuminated HellFire QuadPlex reticle, which is located in the 2nd focal plane and offers brilliant red center illumination. It features four medium posts, a fine crosshair, and uses a fiber-optic technology to finely control illumination of the bright red center dot. This reticle uses fiber-optic technology to finely control illumination of the bright red center dot.
To endure the toughest conditions, the 30mm maintube is made from a durable and lightweight aluminum alloy, and provides a waterproof and fogproof performance. The windage and elevation knobs are knurled for slip-free operation and offer 45 MOA windage and 70 MOA elevation adjustment ranges with 1/4 MOA increments. To deliver unparalleled accuracy for that long-range laser-sharp shot, the scope is outfitted with the TH-100 Tactical Hunter Elevation Turret, which offers a 100 clicks per revolution and a precision push-button Lock Down Zero System. Also available with this riflescope is the Sig Ballistic Turret Dial (SBT), which features a precision tactical finger-operated knob. The Sig Ballistic Turret (SBT) is a custom laser-etched elevation dial that uses your bullet specifications, ballistic coefficient, muzzle velocity, elevation, and other environmental factors for the correct bullet drop compensation and pinpoint accuracy. All other dials and rings are also enhanced with knurling for a slip-free grip. - HellFire QuadPlex Illuminated Reticle
-
- 2nd focal plane
- Four medium posts
- Fine crosshair
- Offers a clear and unobstructed view
- Fiber-optic technology allows fine control of red dot illumination
- 7 daytime illumination settings
- 2 Night Vision illumination settings
- Fiber-optic technology allows fine control of red dot illumination
- Optical Performance
-
- 5x Super-Zoom Advanced Optical System
- HDX optics: High Definition (HD) and High Transmission (HT) optical glass offers great detail, clarity, and brightness
- Extra-Low Dispersion lenses delivers true color enhances resolution
- SpectraCoat anti-reflection coatings deliver high transmission for the entire visible spectrum
- LensArmor coatings protect lenses from abrasions and scratching
- LensShield proprietary coating repels oil, water, and debris from lens surface
- Use and Handling
-
- 1/4 MOA impact point correction
- 45 MOA windage
- 70 MOA elevation
- Construction
-
- 30mm maintube diameter
- Aluminum alloy housing
- Capped, knurled turrets and adjustments
- Custom Sig Ballistic Turret (SBT) laser-etched elevation dial
- Side focus parallax corrector knob
- Low-profile zoom lever with fiber optic power indicator
- Waterproof and fogproof
- Impact-resistant
UPC: 798681559008 In the Box SIG SAUER 3-15x44 WHISKEY5 Side Focus Riflescope (HellFire QuadPlex Illuminated Reticle, Graphite) - CR-2032 Battery
- Riflescope Cover
- Limited 5-Year Electronics Warranty
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SIG SAUER 3-15x44 WHISKEY5 Side Focus Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIG SAUER SOW53011 Specs | | | Magnification | 3 to 15x | | Objective Lens Diameter | 44 mm | | Field of View | 3x: 34.1' @ 100 yd / 11.4 m @ 100 m
15x: 6.8' @ 100 yd / 2.3 m @ 100 m | | Exit Pupil Diameter | 3x: 10 mm
15x: 2.9 mm | | Eye Relief | 3.9" / 99 mm | | | | Reticle Type | QuadPlex Reticle (Second Focal Plane) | | | | Filter Thread | M46 x 0.75 | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 45 MOA | | Elevation Adjustment | 70 MOA | | | | Water Resistance | IPX7 | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 12.5" / 31.9 cm | | Weight | 25 oz / 709 g |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
