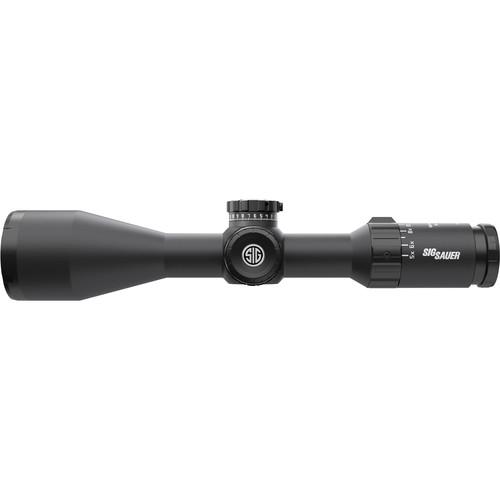

User Manual for SIG SAUER 3-15x52 WHISKEY5 Side Focus Riflescope Click to enlarge the picture
Contents of the user manual for the SIG SAUER 3-15x52 WHISKEY5 Side Focus
- Product category: Riflescopes SIG SAUER
- Brand: SIG SAUER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIG SAUER Riflescopes
|
User manual for the SIG SAUER 3-15x52 WHISKEY5 Side Focus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIG SAUER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIG SAUER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIG SAUER product will considerably shorten its lifespan!
|
Product description Sig Sauer outfitted its 3-15x52 WHISKEY5 Side Focus Riflescope with high-quality optical elements, the HellFire TriPlex reticle, and a wide 52mm objective aperture that collects lots of light, and greatly improves visibility and image brightness in challenging lighting conditions. The HDX optics feature High-Definition (HD), High-Transmission (HT), and Extra-Low Dispersion glass, which provides true color, and maximizes resolution and brightness. Coated with SpectraCoat anti-reflection coatings, the lenses exhibit high transmission across the entire visible spectrum, delivering bright and crisp images. To ensure that the image quality is not degraded by external environmental conditions and elements, the optics are protected by the LensArmor coatings against abrasions and scratching. To prevent deterioration of image quality from interfering debris, oil, or water droplets that can stick to lens' surface, the exterior surfaces are enhanced with the oleophobic LensShield coating. Another highlight of this riflescope is its illuminated TriPlex reticle, which is located in the 2nd focal plane and offers a brilliant red center illumination. It features three medium posts and a fine crosshair. This reticle also uses a fiber-optic technology to finely control illumination of the bright red center dot.
To endure most outdoor conditions, the lightweight and durable housing features a single-piece 30mm maintube and provides a waterproof and fogproof performance. The windage and elevation knobs are knurled for slip-free operation and offer 72 MOA windage and elevation adjustment ranges with 1 MRAD per click adjustments. To deliver unparalleled accuracy for that long-range, laser-sharp shot, the scope is outfitted with the TH-100 Tactical Hunter Elevation Turret, which offers a 100 clicks per revolution and a precision push-button Lock Down Zero System. Also available with this riflescope is the Sig Ballistic Turret Dial (SBT), which features a precision tactical finger-operated knob. The Sig Ballistic Turret (SBT) is a custom laser-etched elevation dial that uses your bullet specifications, ballistic coefficient, muzzle velocity, elevation, and other environmental factors for the correct bullet drop compensation and pinpoint accuracy. All other dials and rings are also enhanced with knurling for a slip-free grip. Also noteworthy is the fast focus eyepiece with a low-profile zooming lever and a green fiber optic zoom indicator. - HellFire TriPlex Reticle
-
- 2nd focal plane
- Three medium posts
- Fine crosshair
- Offers a clear and unobtrusive view
- Fiber-optic technology allows fine control of red dot illumination
- 7 daytime illumination settings
- 2 Night Vision illumination settings
- Optical Highlights
-
- SpectraCoat anti-reflection coatings deliver high transmission across the entire visible spectrum
- 52mm objective aperture collects a lot of light and improves visibility in challenging light conditions
- HDX optics: High Definition (HD) and High Transmission (HT) optical glass offers great detail, clarity, and brightness
- Extra-Low Dispersion lenses delivers true color enhances resolution
- LensArmor coatings protect lenses from abrasions and scratching
- LensShield proprietary coating repels oil, water, and debris from lens' surface
- Use and Handling
-
- 1 MRAD impact point correction
- 75 MOA elevation and windage
- Construction
-
- 30mm one-piece maintube
- Aluminum alloy housing
- Stealth ID reduces visibility of the optic
- Capped, knurled turrets and adjustments
- TH-100 Tactical Hunter Elevation Turret offers 100 clicks per revolution and push-button LockDown Zero System for long-range accuracy
- Custom Sig Ballistic Turret (SBT) laser-etched elevation dial
- Fast focus eyepiece with a green fiber optics power indicator
- Low-profile zoom lever
- Side focus parallax corrector
- Waterproof and fogproof
- Impact-resistant
UPC: 798681567973 In the Box SIG SAUER 3-15x52 WHISKEY5 Side Focus Riflescope (HellFire TriPlex Reticle, Matte Black) - CR-2032 Battery
- Riflescope Cover
- Limited 5-Year Electronics Warranty
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SIG SAUER 3-15x52 WHISKEY5 Side Focus Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIG SAUER SOW53014 Specs | | | Magnification | 3 to 15x | | Objective Lens Diameter | 52 mm | | Field of View | 3x: 34.1' @ 100 yd / 11.4 m @ 100 m
15x: 6.8' @ 100 yd / 2.3 m @ 100 m | | Exit Pupil Diameter | 3x: 10 mm
15x: 3.5 mm | | Eye Relief | 3.9" / 99 mm | | | | Reticle Type | HellFire TriPlex Reticle (Second Focal Plane) | | | | Filter Thread | M54 x 0.75 | | Impact Point Correction | 1.0 MRAD per Click | | Windage Adjustment | 75 MOA | | Elevation Adjustment | 75 MOA | | | | Water Resistance | IPX7 | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 12.5" / 31.9 cm | | Weight | 27 oz / 765 g |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
