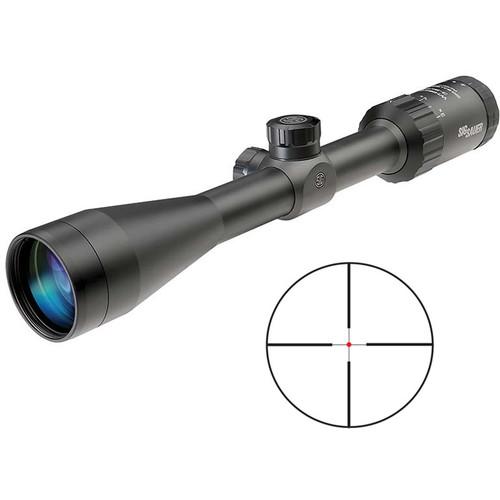

User Manual for SIG SAUER 3-9x40 WHISKEY3 Riflescope Click to enlarge the picture
Contents of the user manual for the SIG SAUER 3-9x40 WHISKEY3 Riflescope
- Product category: Riflescopes SIG SAUER
- Brand: SIG SAUER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIG SAUER Riflescopes
|
User manual for the SIG SAUER 3-9x40 WHISKEY3 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIG SAUER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIG SAUER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIG SAUER product will considerably shorten its lifespan!
|
Product description Sig Sauer outfitted its 3-9x40 WHISKEY3 Riflescope with quality optics and a HellFire QuadPlex reticle. The optics feature lenses that are crafted from Low-Dispersion (LD) glass to provide true color and to maximize resolution of images. Coated with the SpectraCoat full multi-coatings, the lenses offer high transmission throughout the entire visible spectrum, delivering bright and crisp images. To ensure that the image quality is not degraded by external environmental conditions and elements, the optics are protected by the LensArmor coatings against abrasions and scratching. Another highlight of this riflescope is its illuminated QuadPlex reticle, which is located in the 2nd focal plane and offers a brilliant red center illumination. It features four medium posts, a fine crosshair, and uses a fiber-optic technology to finely control illumination of the bright red center dot.
To endure the most outdoor conditions, the 1" maintube is made from a durable and lightweight aluminum alloy and provides a waterproof and fogproof performance. The windage and elevation knobs are knurled for slip-free operation and offer 1/2 MOA adjustment ranges with 90 MOA increments. Also available with this riflescope is the Sig Ballistic Turret Dial (SBT), which features a precision tactical finger-operated knob. The Sig Ballistic Turret (SBT) is a custom laser-etched elevation dial that uses your bullet specifications, ballistic coefficient, muzzle velocity, elevation, and other environmental factors for the correct bullet drop compensation and pinpoint accuracy. All other dials and rings are also enhanced with knurling for a slip-free grip. - HellFire QuadPlex Reticle
-
- 2nd focal plane
- Four medium posts
- Fine crosshair
- Offers a clear and unobstructed view
- Fiber-optic technology allows fine control of red dot illumination
- Parallax-free performance at 100 yd
- Optical Performance
-
- 40mm objective diameter
- Fully multi-coated optics
- Low Dispersion (LD) optical glass delivers true color and high resolution
- SpectraCoat anti-reflection coatings deliver high transmission throughout the entire visible spectrum
- LensArmor coatings protect lenses from abrasions and scratches
- Use and Handling
-
- 1/4 MOA impact point correction
- 90 MOA windage and elevation range
- Construction Details
-
- 1" maintube diameter
- Aluminum alloy housing
- Power optic power indicator
- Stealth ID design reduces glint from body surface
- Capped, knurled turrets and adjustments
- Custom Sig Ballistic Turret (SBT) laser-etched elevation dial
- Side knob for reticle brightness control
- Low-profile zoom lever
- Waterproof and fogproof
- Impact-resistant
UPC: 798681564699 In the Box SIG SAUER 3-9x40 WHISKEY3 Riflescope (HellFire QuadPlex Reticle, Matte Black) - 1 x CR-2032 Battery
- Riflescope Cover
- Limited 5-Year Electronics Warranty
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SIG SAUER 3-9x40 WHISKEY3 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIG SAUER SOW33013 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 40 mm | | Field of View | 3x: 34' @ 100 yd / 10.3 m @ 100 m
9x: 11.3' @ 100 yd / 3.4 m @ 100 m | | Exit Pupil Diameter | 3x: 15 mm
9x: 4.8 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | HellFire QuadPlex Wire Reticle (Second Focal Plane) | | | | Filter Thread | M43 x 0.75 | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 90 MOA | | Elevation Adjustment | 90 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 12.3" / 312 mm | | Weight | 15.7 oz / 446 g |
