User Manual for SIG SAUER 3-9x50 WHISKEY3 Riflescope Click to enlarge the picture
Contents of the user manual for the SIG SAUER 3-9x50 WHISKEY3 Riflescope
- Product category: Riflescopes SIG SAUER
- Brand: SIG SAUER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIG SAUER Riflescopes
|
User manual for the SIG SAUER 3-9x50 WHISKEY3 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIG SAUER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIG SAUER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIG SAUER product will considerably shorten its lifespan!
|

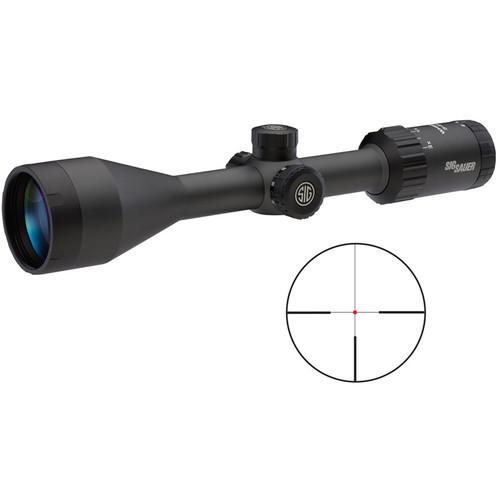

Product description Sig Sauer outfitted its 3-9x50 WHISKEY3 Riflescope with high-quality fully multi-coated elements, a HellFire TriPlex reticle, and a wide 50mm objective aperture that provides bright images in the most challenging of lighting conditions. The optics feature lenses that are crafted from Low-Dispersion (LD) glass to provide true color and to maximize resolution of images. Coated with the SpectraCoat full multi-coatings, the lenses offer high transmission throughout the entire visible spectrum, delivering bright and crisp images. To ensure that the image quality is not degraded by external environmental conditions and elements, the optics are protected by the LensArmor coatings against abrasions and scratching. Another highlight of this riflescope is its illuminated HellFire TriPlex reticle, which is located in the 2nd focal plane and offers brilliant red center illumination. It features three medium posts, a fine crosshair, and uses a fiber-optic technology to finely control illumination of the bright red center dot.
To endure most outdoor conditions, the 1" maintube is made from a durable and lightweight aluminum alloy and provides a waterproof and fogproof performance. The windage and elevation knobs are knurled for slip-free operation and offer 1/4 MOA adjustment ranges with 90 MOA increments. All other dials and rings are also enhanced with knurling for a slip-free grip. - HellFire TriPlex Reticle
-
- 2nd focal plane
- Three medium posts
- Fine crosshair
- Fiber-optic technology allows fine control of red dot illumination
- Parallax-free performance at 100 yd
- Optical Performance
-
- 50mm objective provides bright images even in very low-light conditions
- Low Dispersion (LD) optical glass delivers true color and high resolution
- SpectraCoat full multi-coatings deliver high transmission for the entire visible spectrum
- LensArmor coatings protect lenses from abrasions and scratches
- Use and Handling
-
- 1/4 MOA impact point correction
- 90 MOA windage and elevation range
- Construction Details
-
- 1" maintube diameter
- Aluminum alloy housing
- Custom Sig Ballistic Turret (SBT) laser-etched elevation dial
- Stealth ID design reduces glint from body surface
- Capped knurled turrets and adjustments
- Fiber optic power indicator on zoom eyepiece
- Side knob for reticle brightness control
- Low-profile zoom lever
- Waterproof and fogproof
- Impact-resistant
UPC: 798681569199 In the Box SIG SAUER 3-9x50 WHISKEY3 Riflescope (Illuminated HellFire TriPlex Reticle, Matte Black) - 1 x CR-2032 Battery
- Riflescope Cover
- Limited 5-Year Electronics Warranty
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SIG SAUER 3-9x50 WHISKEY3 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIG SAUER SOW33110 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 34' @ 100 yd / 10.3 m @ 100 m
9x: 11.3' @ 100 yd / 3.4 m @ 100 m | | Exit Pupil Diameter | 3x: 15.1 mm
9x: 5.6 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | HellFire TriPlex Wire Reticle (Second Focal Plane) | | | | Filter Thread | M52 x 0.75 | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 90 MOA | | Elevation Adjustment | 90 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | IPX7 | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 12.4" / 315 mm | | Weight | 17.4 oz / 496 g |
