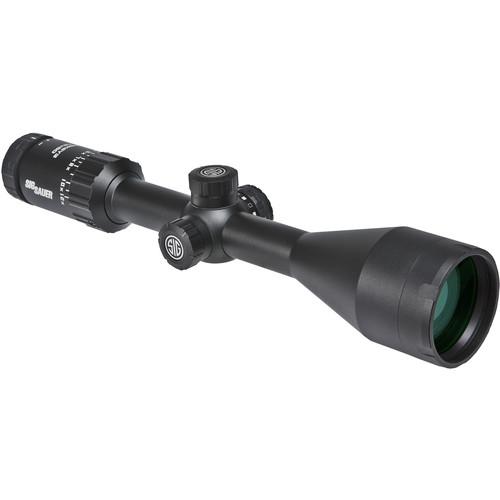

User Manual for SIG SAUER 4-12x50 WHISKEY3 Riflescope Click to enlarge the picture
Contents of the user manual for the SIG SAUER 4-12x50 WHISKEY3 Riflescope
- Product category: Riflescopes SIG SAUER
- Brand: SIG SAUER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIG SAUER Riflescopes
|
User manual for the SIG SAUER 4-12x50 WHISKEY3 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIG SAUER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIG SAUER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIG SAUER product will considerably shorten its lifespan!
|
Product description Sig Sauer outfitted its 4-12x50 WHISKEY3 Riflescope with quality anti-reflection coated optics, a QuadPlex reticle, and a wide 50mm objective aperture that provides bright images in the most challenging of lighting conditions. The optics feature lenses that are crafted from Low-Dispersion (LD) glass to provide true color and to maximize resolution of images. Coated with the SpectraCoat full multi-coatings, the lenses offer high transmission throughout the entire visible spectrum, delivering bright and crisp images. To ensure that the image quality is not degraded by external environmental conditions and elements, the optics are protected by the LensArmor coatings against abrasions and scratching. One of the highlights of this riflescope is its QuadPlex reticle, which is located in the 2nd focal plane and features four medium posts with a fine crosshair.
To endure the toughest conditions, the 1" maintube is made from a durable and lightweight aluminum alloy, and provides a waterproof and fogproof performance. The windage and elevation knobs are knurled for slip-free operation and offer 1/4 MOA adjustment ranges with 70 MOA increments. Also available with this riflescope is the Sig Ballistic Turret Dial (SBT), which features a precision tactical finger-operated knob. The Sig Ballistic Turret (SBT) is a custom laser-etched elevation dial that uses your bullet specifications, ballistic coefficient, muzzle velocity, elevation, and other environmental factors for the correct bullet drop compensation and pinpoint accuracy. All other dials and rings are also enhanced with knurling for a slip-free grip. - QuadPlex Reticle
-
- 2nd focal plane
- Four medium posts
- Fine crosshair
- Offers a clear and unobtrusive view
- Optical Performance
-
- Anti-reflection coated optics
- 50mm objective delivers bright images in the most challenging lighting conditions
- Low-Dispersion (LD) optical glass delivers true color and high resolution
- SpectraCoat full multi-coatings deliver high transmission for the entire visible spectrum
- LensArmor coatings protect lenses from abrasions and scratches
- Use and Handling
-
- 1/4 MOA impact point correction
- 70 MOA windage and elevation range
- Construction
-
- 1" maintube diameter
- Aluminum alloy housing
- Knurled turrets and adjustments
- Custom SIG Ballistic Turret (SBT) laser-etched elevation dial
- Side focus parallax corrector knob
- Low-profile zoom lever with fiber optic power indicator
- Waterproof and fogproof
- Impact-resistant
UPC: 798681563234 In the Box SIG SAUER 4-12x50 WHISKEY3 Riflescope (QuadPlex Reticle, Matte Black) - Riflescope Cover
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SIG SAUER 4-12x50 WHISKEY3 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIG SAUER SOW34011 Specs | | | Magnification | 4 to 12x | | Objective Lens Diameter | 50 mm | | Field of View | 4x: 23.6' @ 100 yd / 7.2 m @ 100 m
12x: 7.9' @ 100 yd / 2.4 m @ 100 m | | Exit Pupil Diameter | 4x: 10 mm
12x: 3.3 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | QuadPlex Reticle (Second Focal Plane) | | | | Filter Thread | M52 x 0.75 | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 70 MOA | | Elevation Adjustment | 70 MOA | | | | Water Resistance | IPX7 | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 14" / 356 mm | | Weight | 18.9 oz / 536 g |
