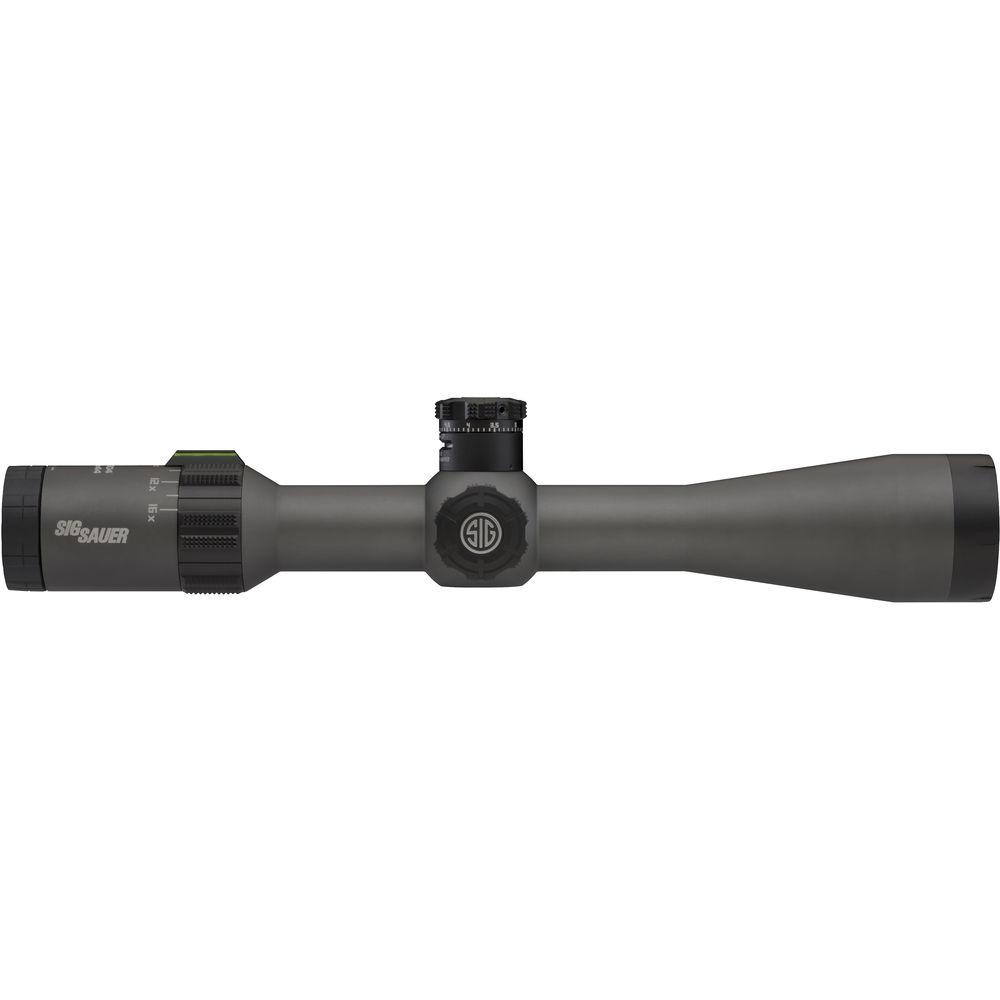

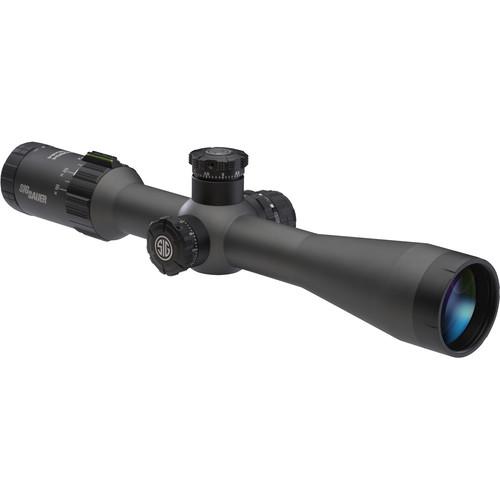

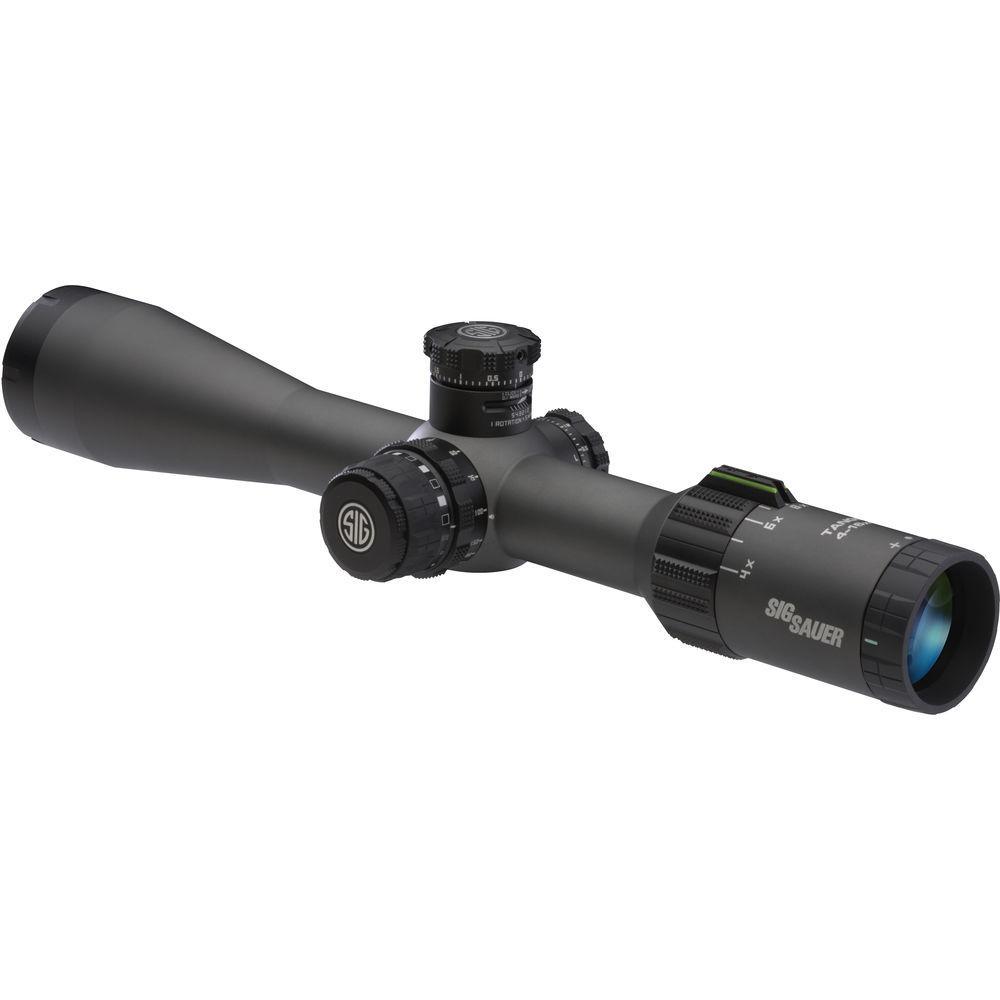

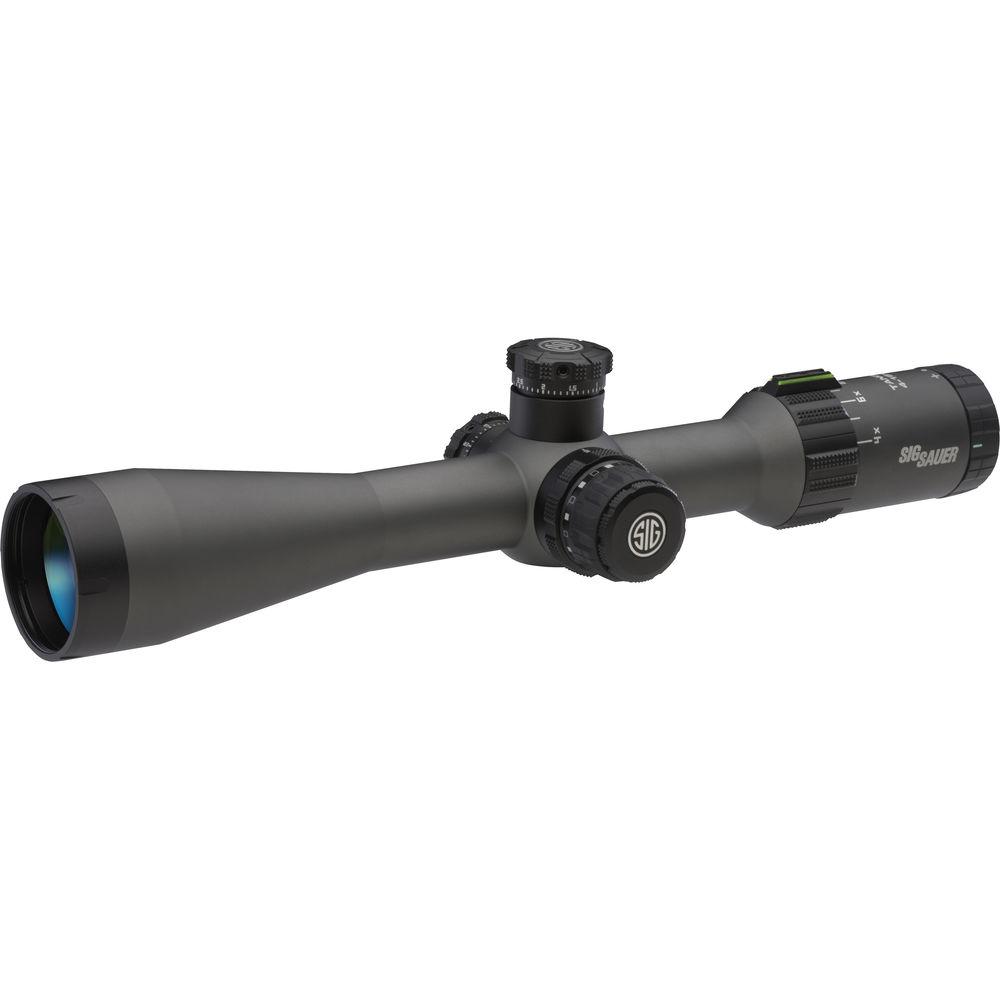

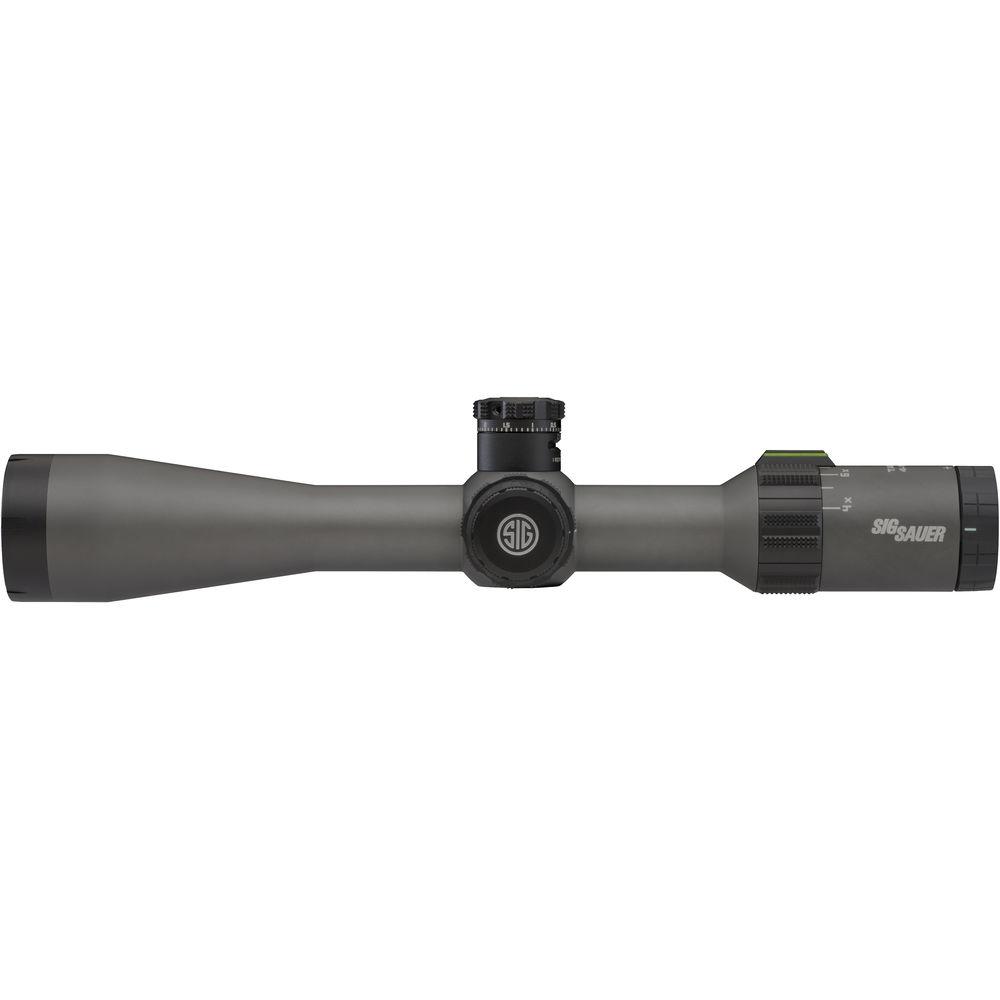

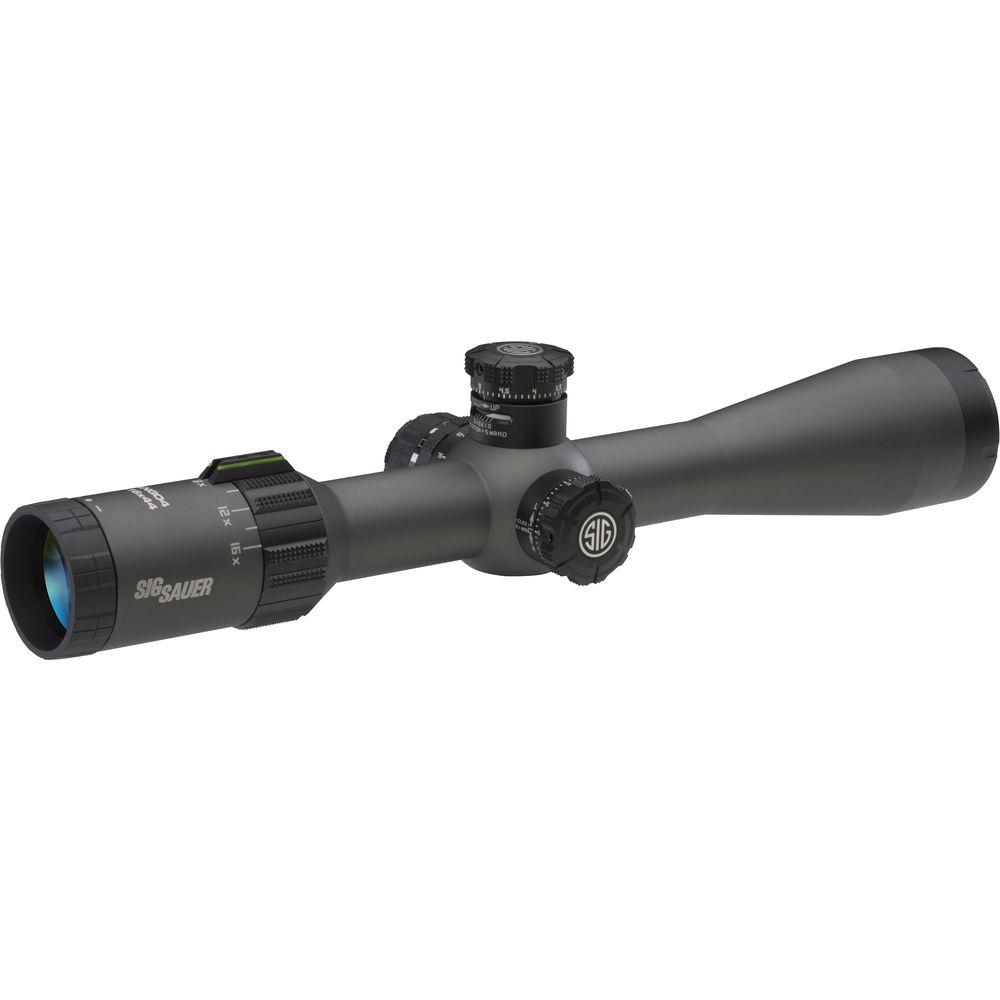

User Manual for SIG SAUER 4-16x44 TANGO4 Side Focus Tactical Riflescope Click to enlarge the picture
Contents of the user manual for the SIG SAUER 4-16x44 TANGO4 Side Focus
- Product category: Riflescopes SIG SAUER
- Brand: SIG SAUER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIG SAUER Riflescopes
 |
User manual for the SIG SAUER 4-16x44 TANGO4 Side Focus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIG SAUER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIG SAUER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIG SAUER product will considerably shorten its lifespan!
|

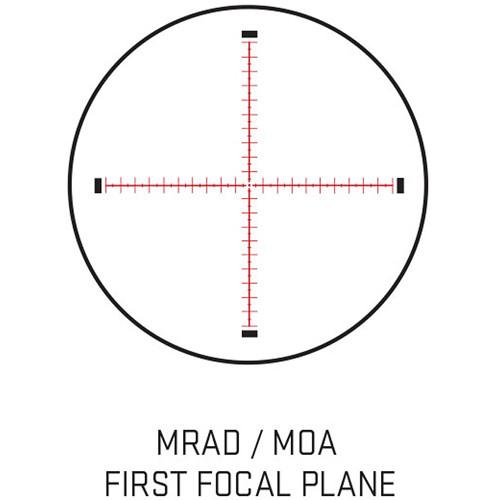

Product description Sig Sauer outfitted its battle-ready 4-16x44 TANGO4 Side Focus Tactical Riflescope with quality fully multi-coated optics and an MRAD Milling reticle. Made of Low-Dispersion glass (LD), the lenses are designed to provide true color and to maximize resolution of images. They are also fully multi-coated to enhance the transmission of light and to deliver high image brightness. Another highlight of this riflescope is its dedicated MRAD Milling reticle, which is located in the 1st focal plane and offers a variable illumination system. It is enhanced with Sig's proprietary Motion-Activated Illumination function (MOTAC), which powers up brightness when it senses motion and powers down when at rest.
To endure the toughest battlefield conditions, the 30mm maintube is machined from a single piece of aluminum and provides a waterproof and fogproof performance. The windage and elevation knobs are knurled for slip-free operation and offer 21 MRAD adjustment ranges with 1/10 MRAD increments. Also available with this riflescope is the Sig Ballistic Turret Dial (SBT), which features precision tactical finger-operated knob with a fine diamond knurling and a slit read-out facing the ocular. All other dials and rings are also enhanced with a fine diamond knurling for a slip-free grip, including a side focus parallax corrector and a fast focus eyepiece. The eyepiece also offers a low-profile zoom lever with a bright green fiber optic power indicator mark for visibility. - MRAD Milling Illuminated Reticle
-
- 1st focal plane
- Full-field illuminated crosshair with no posts
- Extensive system of vertical and horizontal markings
- MOTAC: Motion-Activated Illumination powers up/down brightness with motion or at rest
- 8 daytime illumination brightness settings
- 2 Night Vision brightness settings
- Optical Performance
-
- 44mm objective diameter
- Fully multi-coated optics
- Low Dispersion (LD) lens glass preserves true color and enhances resolution
- Use and Handling
-
- 1/10 MRAD impact point correction
- 21 MRAD windage and elevation range
- Construction
-
- 30mm single-piece maintube
- Aluminum alloy housing
- Tactical finger-operated turrets
- LockDown Zero System
- Resettable zero, zero-stop
- Auto-locks down at zero
- Fine non-slip turrets and adjusters knurling
- Fiber-optic power indicator
- SBT - Sig Ballistic Turret Dial
- Side focus parallax corrector knob
- Fast focus eyepiece
- Low-profile zoom lever
- Waterproof and fogproof
- Impact-resistant
UPC: 798681520992 In the Box SIG SAUER 4-16x44 TANGO4 Side Focus Tactical Riflescope (MRAD Milling Illuminated Reticle, Matte Black) - CR-2032 Battery
- Riflescope Lens Cover
- Tools
- Limited 5-Year Warranty
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SIG SAUER 4-16x44 TANGO4 Side Focus Tactical Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIG SAUER SOT44002 Specs | | | Magnification | 4 to 16x | | Objective Lens Diameter | 44 mm | | Field of View | 4x: 24.1' @ 100 yd / 8 m @ 100 m
16x: 6.3' @ 100 yd / 2.1 m @ 100 m | | Exit Pupil Diameter | 4x: 11 mm
16x: 2.75 mm | | Eye Relief | 3.3" / 84 mm | | | | Reticle Type | MRAD Milling Reticle (First Focal Plane) | | | | Filter Thread | M46 x 0.75 | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 21 MRAD | | Elevation Adjustment | 21 MRAD | | | | Water Resistance | IPX7 | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.6" / 34.6 cm | | Weight | 26.1 oz / 742 g |
