User Manual for SIG SAUER 4x Slide-to-Side JULIET4 Reflex Sight Magnifier Click to enlarge the picture
Contents of the user manual for the SIG SAUER 4x Slide-to-Side JULIET4 Reflex
- Product category: Multipliers (Magnifiers) SIG SAUER
- Brand: SIG SAUER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIG SAUER Multipliers (Magnifiers)
 |
User manual for the SIG SAUER 4x Slide-to-Side JULIET4 Reflex contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIG SAUER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIG SAUER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIG SAUER product will considerably shorten its lifespan!
|

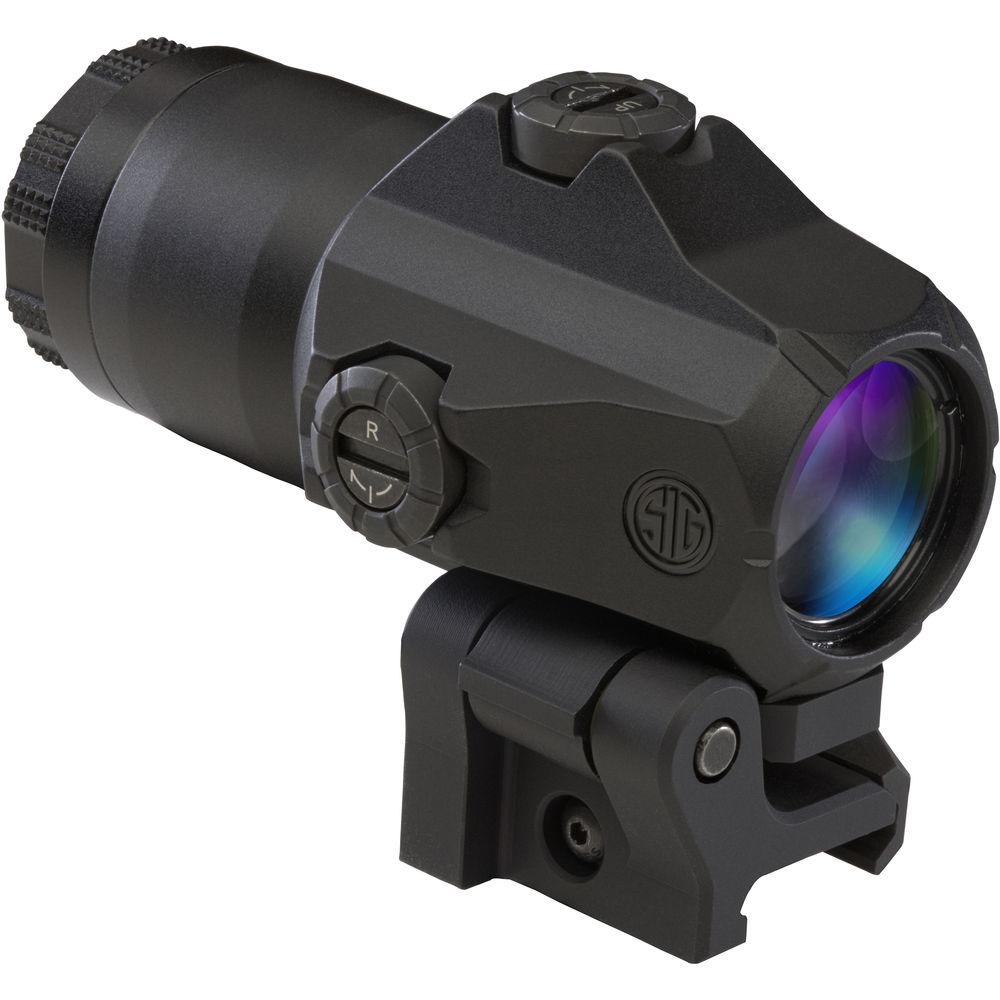

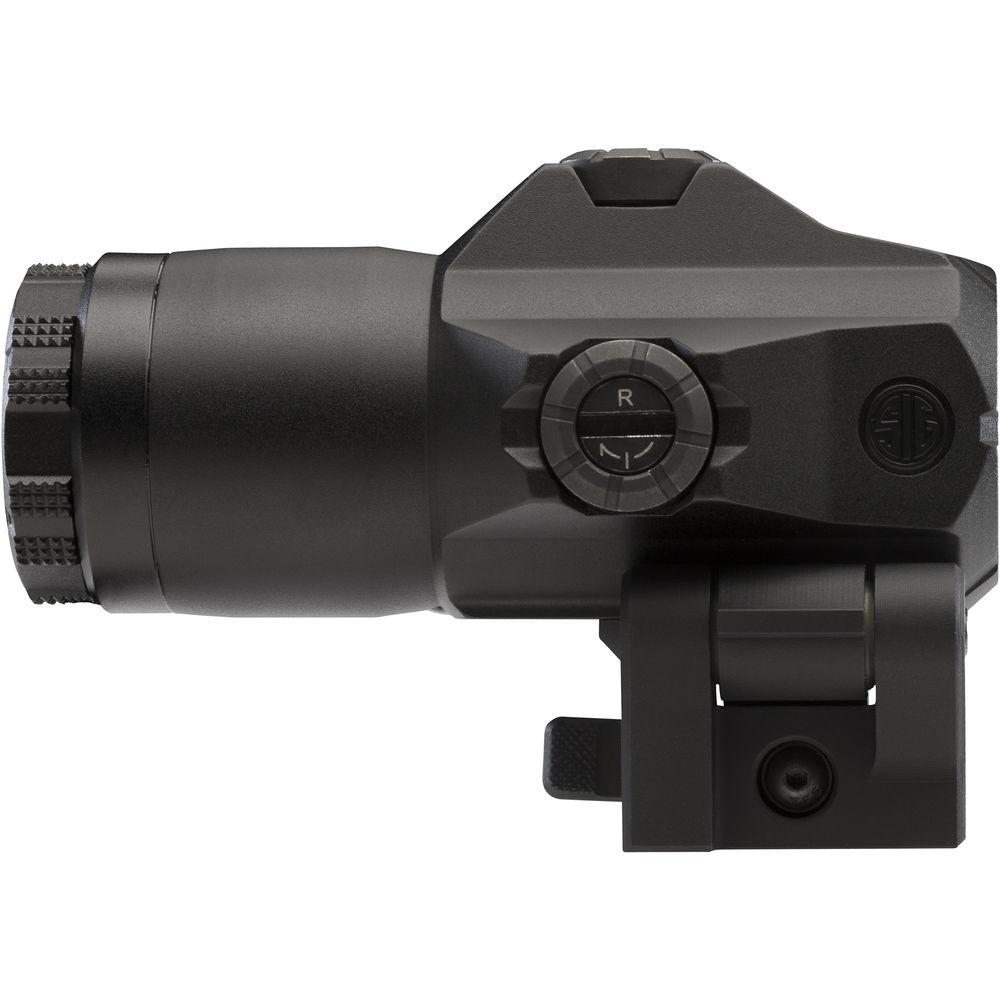

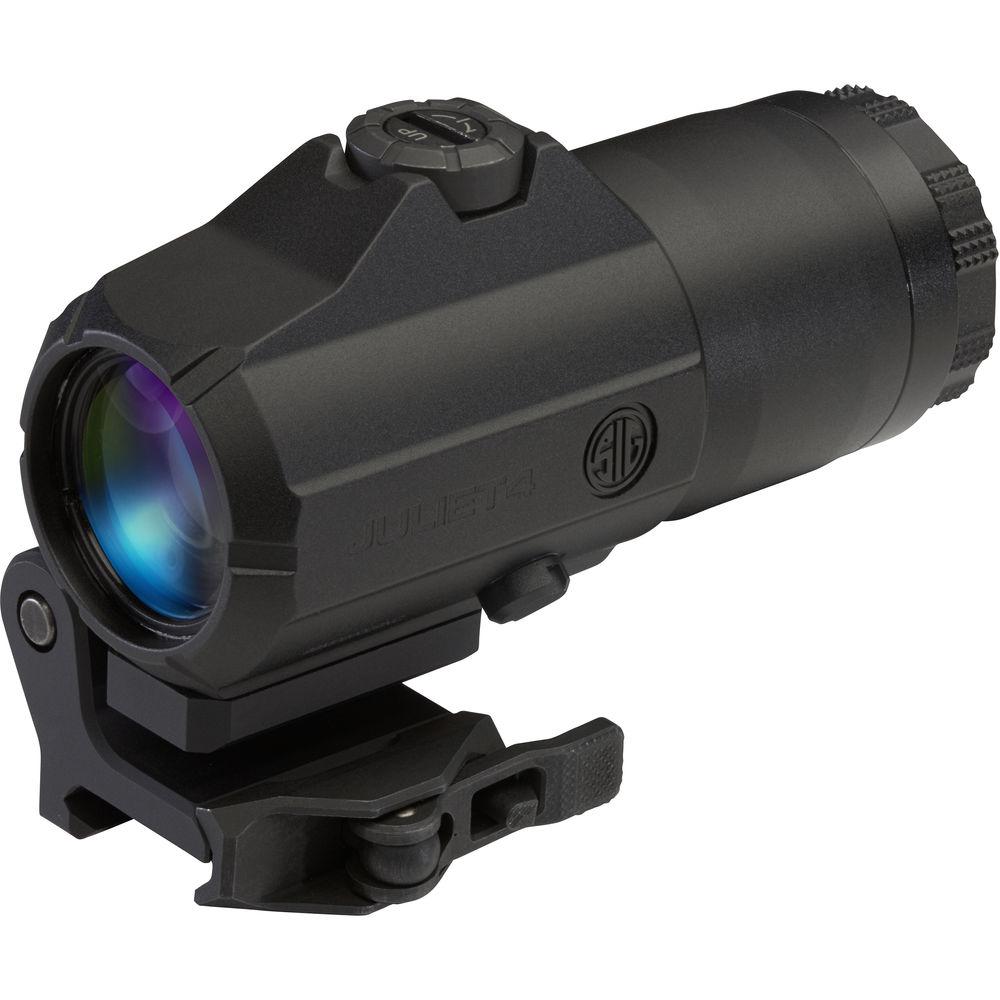

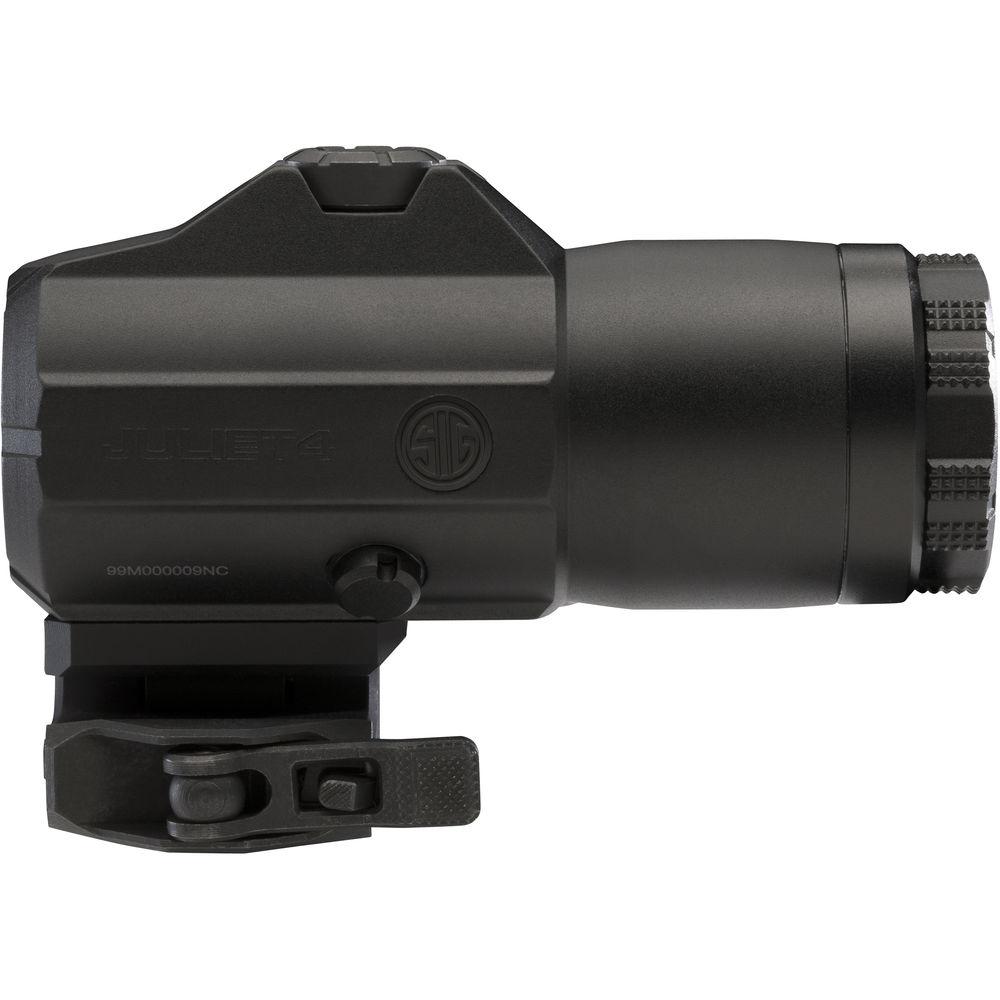

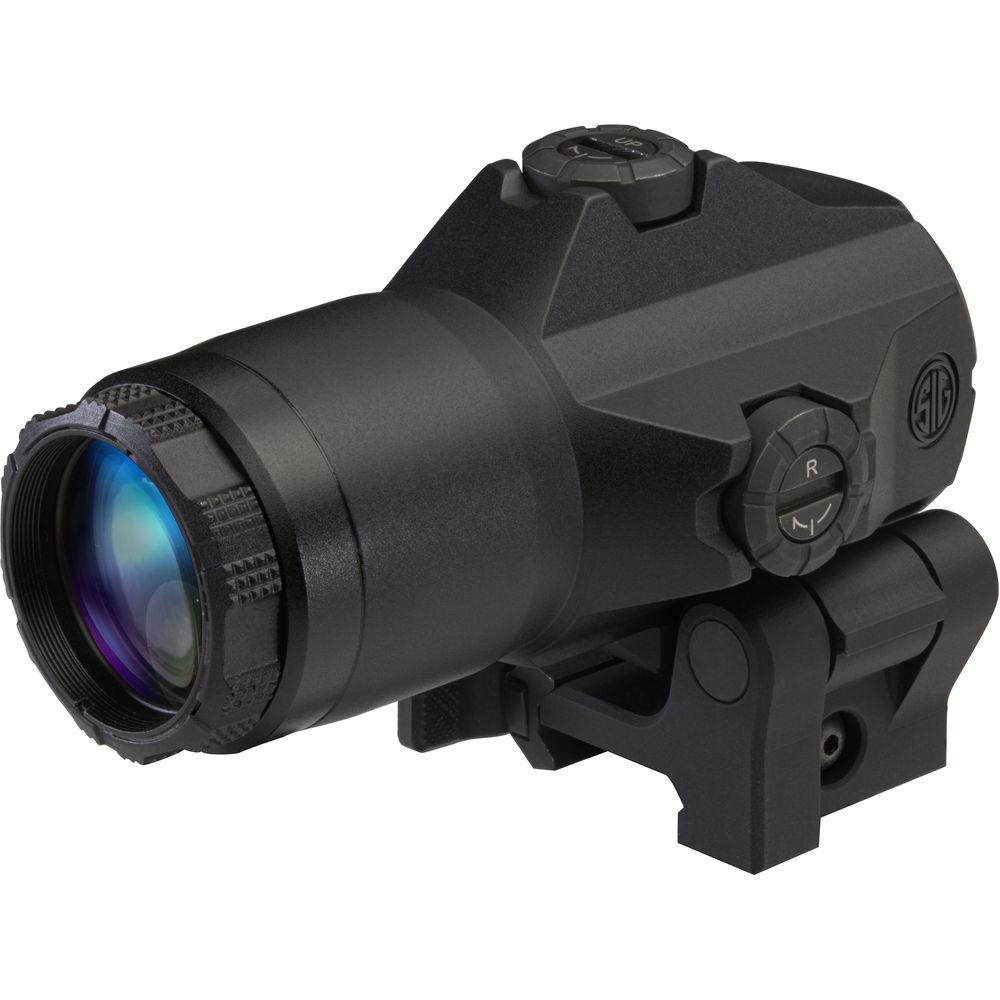

Product description Quickly zoom between distant and close targets using the Sig Sauer 4x Slide-to-Side JULIET4 Reflex Sight Magnifier. This 4x optic can be used as a stand-alone device or with another reflex sight. Its pivoting PowerCam 90° mount allows you to move it in and out of line of sight instantaneously and to shift from near to faraway targets without a delay. The optical system features a 24mm objective (guarded by a thread-in protector), a 6.25° field of view, and a coated prism. Other highlights of the magnifier are its 90 MOA windage and elevation range, 65mm eye relief, and adjustable diopter. To protect the device from the environment, the housing is waterproof and submersible to 66'. Attaching and detaching the magnifier is also made easy, thanks to a single-lever quick release mount with built-in recoil lugs. Also included, are three spacers that enable you to change the scope's height above the rail by 1.63", 1.53", and 1.41". UPC: 798681563142 In the Box SIG SAUER 4x Slide-to-Side JULIET4 Reflex Sight Magnifier (Matte Black) Limited Lifetime Warranty (Transferable) Table of Contents
|
Upload User Manual
Have you got an user manual for the SIG SAUER 4x Slide-to-Side JULIET4 Reflex Sight Magnifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIG SAUER JULIET4 Specs | Magnification | 4x | | Objective Diameter | 24mm | | Angular Field of View | 6.25° | | Exit Pupil | 6.0 mm | | Eye Relief | 65 mm | | Diopter Adjustment | +2 to -2 | | Windage/Elevation Adjustment | 90 MOA | | Impact Point Correction | Not provided by manufacturer | | Waterproofing | Waterproof (IPX8-rated), submersible to 66' (20 m) for 1 hour | | Dimensions | 4.2 x 2.6 x 2.1" / 107.0 x 66.0 x 53.0 mm
Height Adjustments: 1.63" (41.4 mm), 1.53" (38.9 mm), 1.41" (35.8 mm) | | Weight | 12.5 oz / 357.0 g | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 8.0 x 5.0 x 3.0" |
