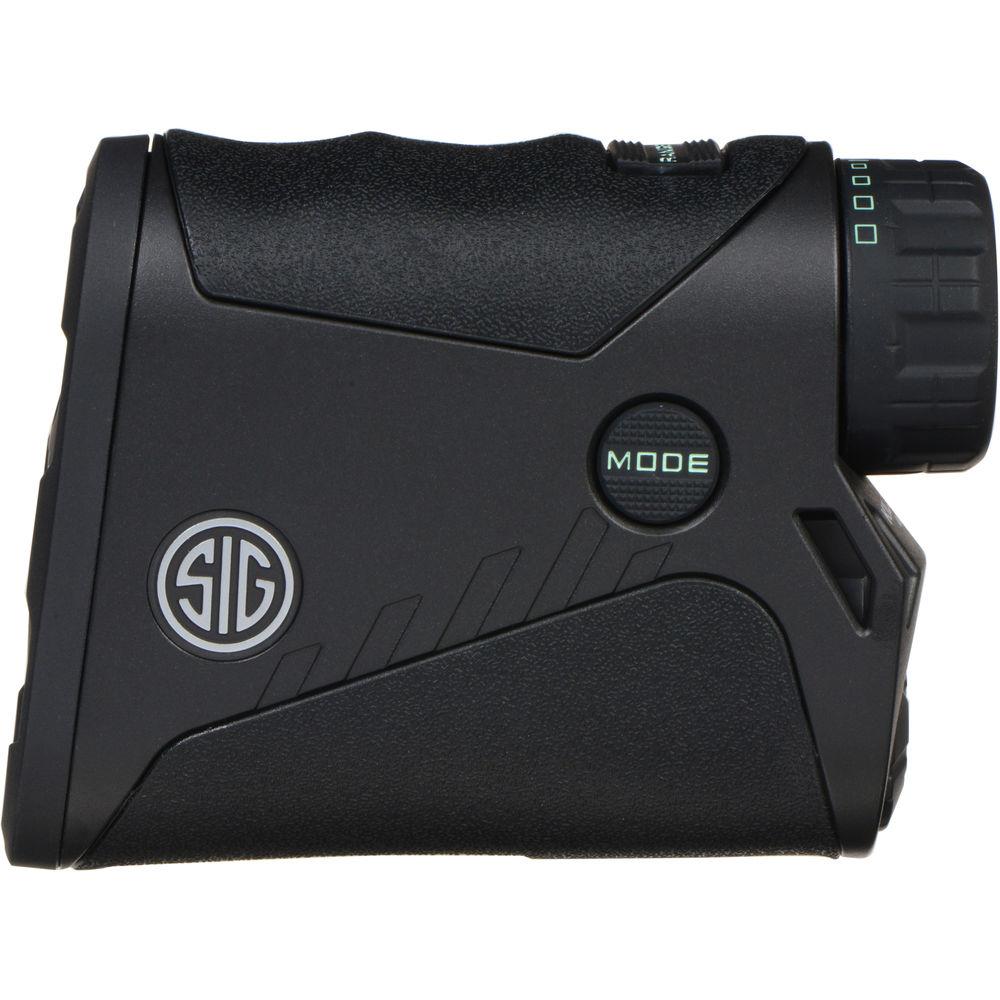

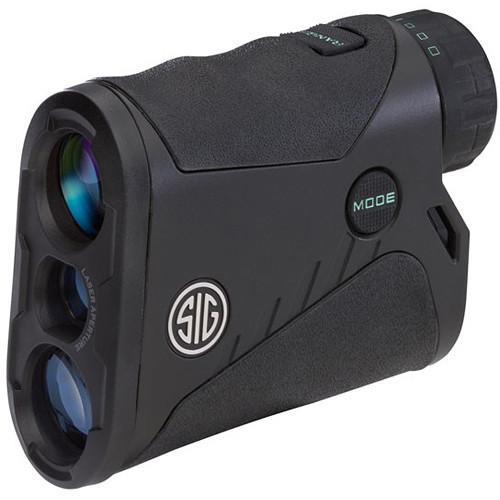

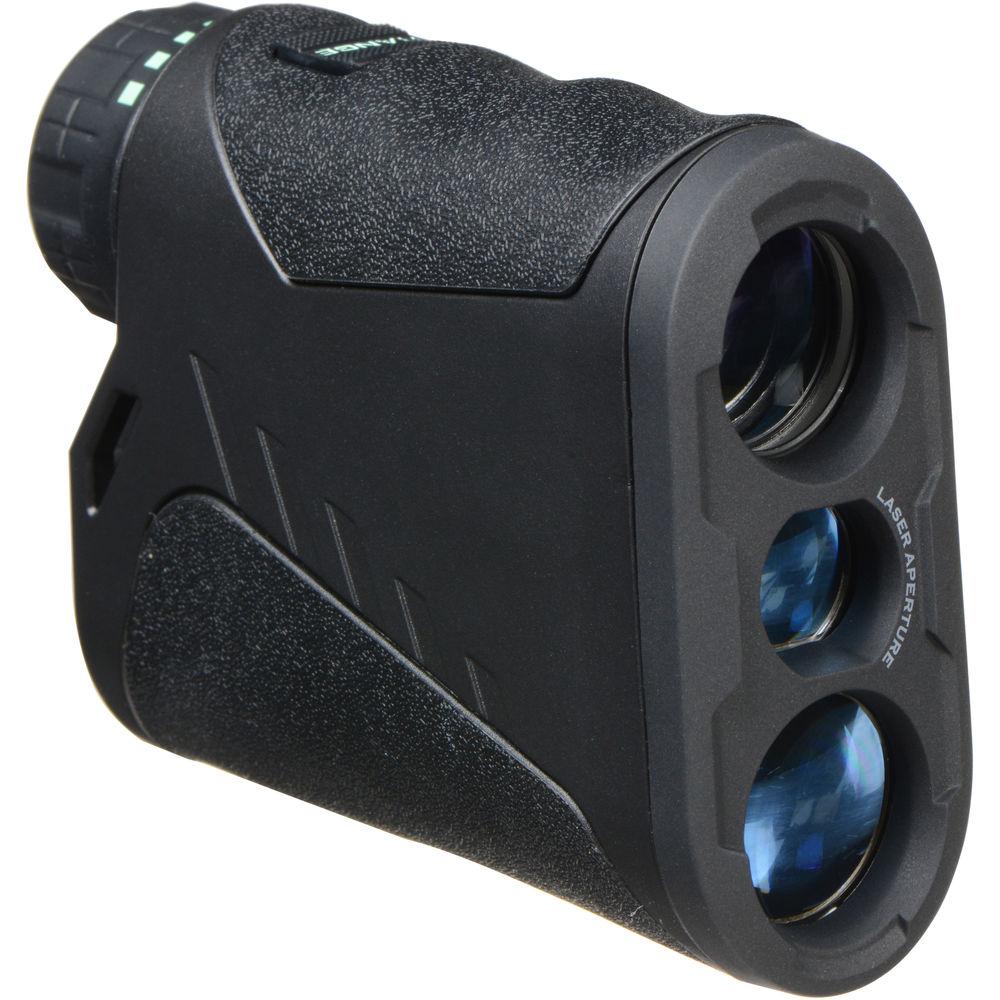

User Manual for SIG SAUER 4x20 KILO850 Laser Rangefinder Click to enlarge the picture
Contents of the user manual for the SIG SAUER 4x20 KILO850 Laser Rangefinder
- Product category: Laser Rangefinders SIG SAUER
- Brand: SIG SAUER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIG SAUER Laser Rangefinders
 |
User manual for the SIG SAUER 4x20 KILO850 Laser Rangefinder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIG SAUER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIG SAUER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIG SAUER product will considerably shorten its lifespan!
|
Product description When you need every advantage to confidently take a shot, the black Sig Sauer 4x20 KILO850 Laser Rangefinder gives you a critical edge when it matters most. Its relatively low-magnification monocular provides a wide field of view to help find and track moving targets while bringing them in close to ensure you range to it. With a simple push of a button a 905nm invisible IR laser measures the distance out to as far as 1200 yards.A dedicated processing engine provides a fast refresh rate for the laser, enabling four measurements per second so you'll have the most accurate range possible for moving targets or to confirm the range to a stationary subject. Complementing the rangefinder is an integrated inclinometer that measures the relative angle to the target. When the angle and range are combined, Sig's AMR ranging system adjusts the displayed range so you can compensate correctly for uphill or downhill shots and greatly improve your accuracy.A simple two-button interface provides critical ease-of-use and a high-transmittance LCD display clearly shows the ranging information in your line-of-sight in an uncluttered layout. Designed for durability, the housing is made of a lightweight and durable polymer that is wrapped in slip-resistant protective black rubber armor. Weighing in at under 5 ounces, including the CR2 battery, the KILO850 will be a valuable addition to your kit. - Optical Performance
-
- 4x magnification
- 20mm objective
- Compact roof prism
- Proprietary SpectraCoat broadband, anti-reflection lens coatings reduce surface reflections across the entire visible spectrum
- 436' field of view at 1000 yards
- Exceptionally long 24mm eye relief
- Wide 5mm exit pupil
- Rangefinder
-
- Class 3R eye-safe IR laser
- Max power output: <14W
- Peak wavelength: 905nm
- Beam divergence: 1.9 mrad
- Effective range distance:
- Reflective surface: Up to 1200 yd
- Trees: Up to 800 yd
- Deer: Up to 600 yd
- Integrated inclinometer measures relative angle to target and displays adjusted distance for more accurate aiming
- Runs on one included CR2 battery
- Ranging Technologies
-
- Lightwave DSP engine: An advanced power management system for fast refresh rates and reduced instances of false-positives when ranging to distant or weak targets
- HyperScan mode refreshes range 4 times per second
- RangeLock displays the last range result when ranging distant targets
- Selectable target modes featuring LAST or BEST for enhanced accuracy
- Line-of-Sight (LOS) or Angle Modified Range (AMR) display/ranging options
- Use and Handling
-
- Simple and intuitive two-button control: Mode and Range
- Displays distance in Yards or Meters in 1/10th increments
- In-view high-transmittance LCD display for easy viewing in all light conditions; especially low-light
- Uncluttered display with simple center circle aiming point
- Battery status, Last target selection, unit of measurement, LOS/AMR selection, 5-character range/angle display
- Twist-up eyecup for comfortable use with or without eyewear
- Dioptric correction to clearly focus LCD display
- Construction Details
-
- Lightweight, durable, and temperature-resistant polymer housing
- Ergonomic design allows for easy one-hand operation
- Slip-resistant protective StealthID black rubber armoring
- Weight: 4.9 ounces, with battery
UPC: 798681559541 In the Box SIG SAUER 4x20 KILO850 Laser Rangefinder (Black) Lanyard Nylon Case CR2 Battery Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SIG SAUER 4x20 KILO850 Laser Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIG SAUER SOK85401 Specs | Prism Type | Roof | | Magnification | 4x | | Objective Lens Diameter | 20 mm | | Field of View | 436' @ 1000 yd / 145 m @ 1000 m | | Laser Type | Eye-Safe Class 3R IR
Max Power Output: <14 w
Peak Wavelength: 905 nm
Beam Divergence: 1.9 mrad | | Metering Range | Reflective: Up to 1,200 yd / 1100 m
Trees: Up to 800 yd / 730 m
Deer: Up to 600 yd / 550 m | | Exit Pupil Diameter | 5.0 mm | | Eye Relief | 24.0 mm | | Weatherproofing | Not specified by manufacturer | | Tripod Socket | None | | Power Source | 1 x CR2 battery | | Dimensions | 3.9 x 2.9 x 1.4" / 9.9 x 7.4 x 3.6 cm | | Weight | 4.9 oz / 140.0 g, with battery | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 5.7 x 3.9 x 2.3" |
