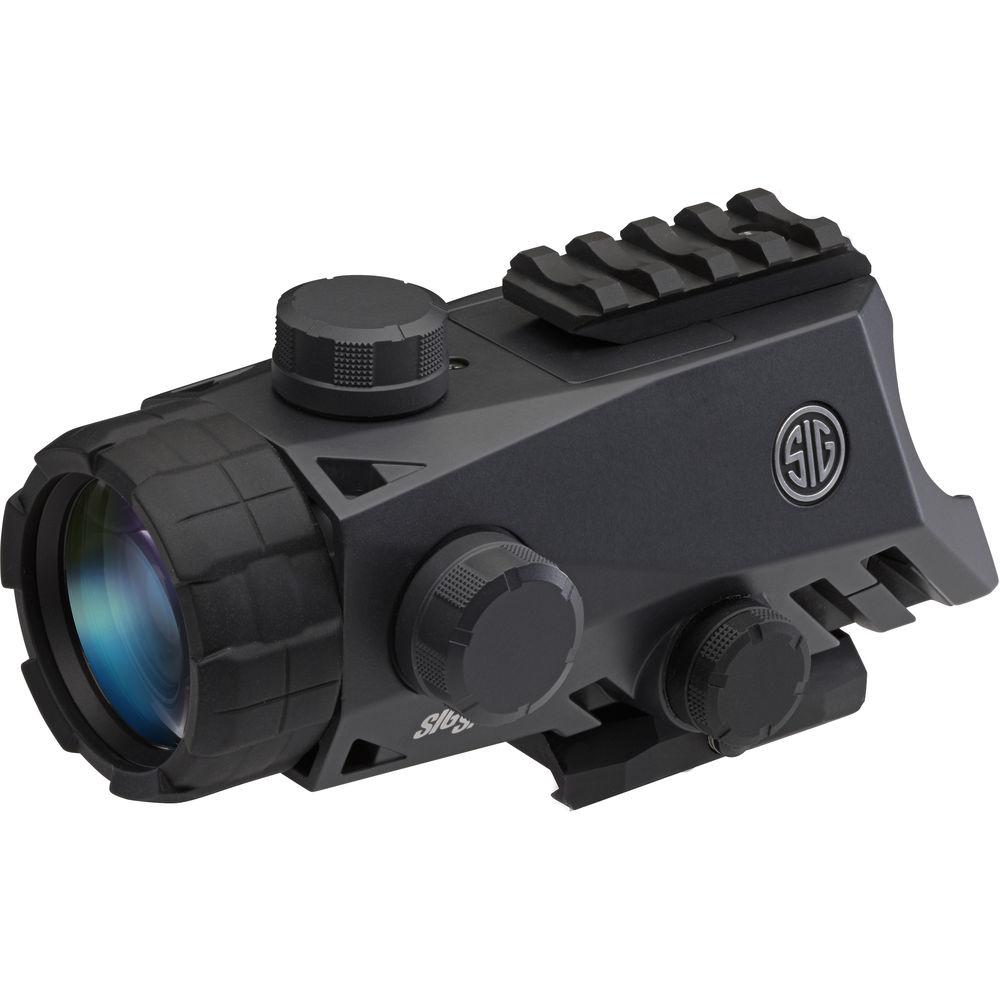

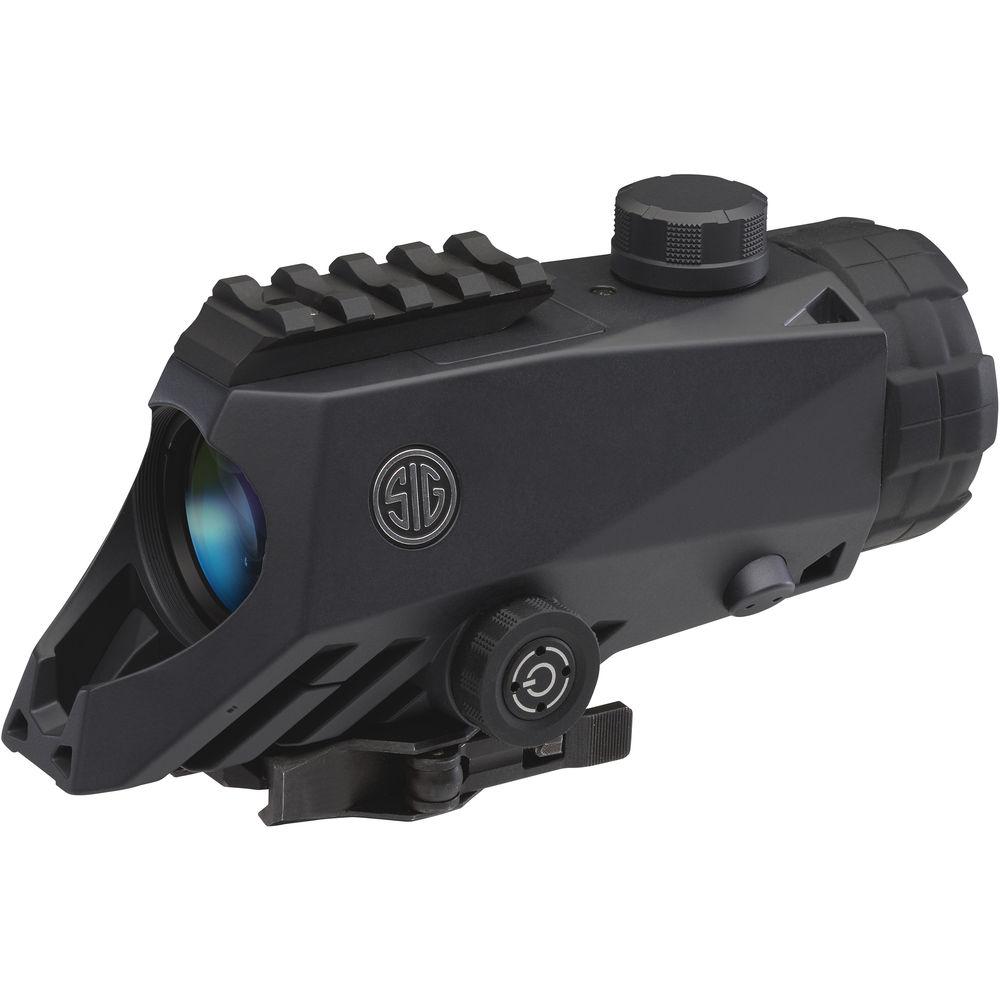

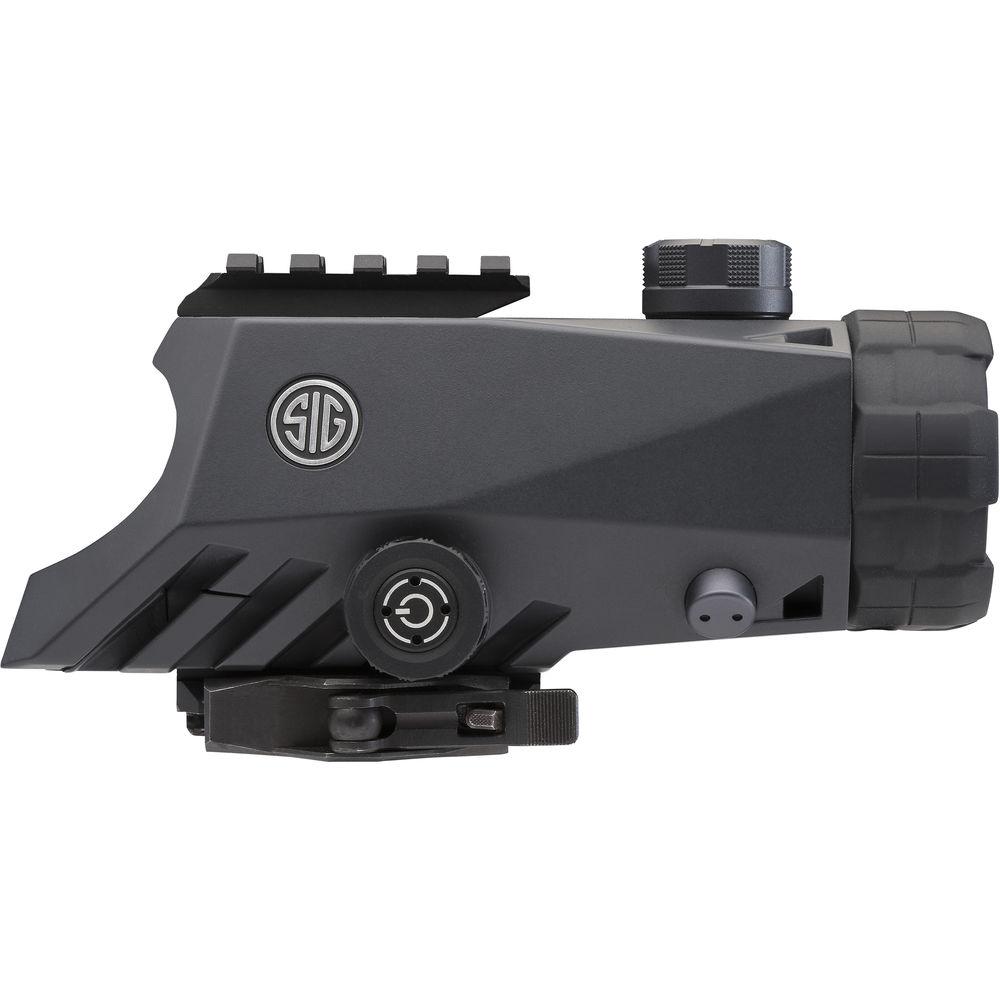

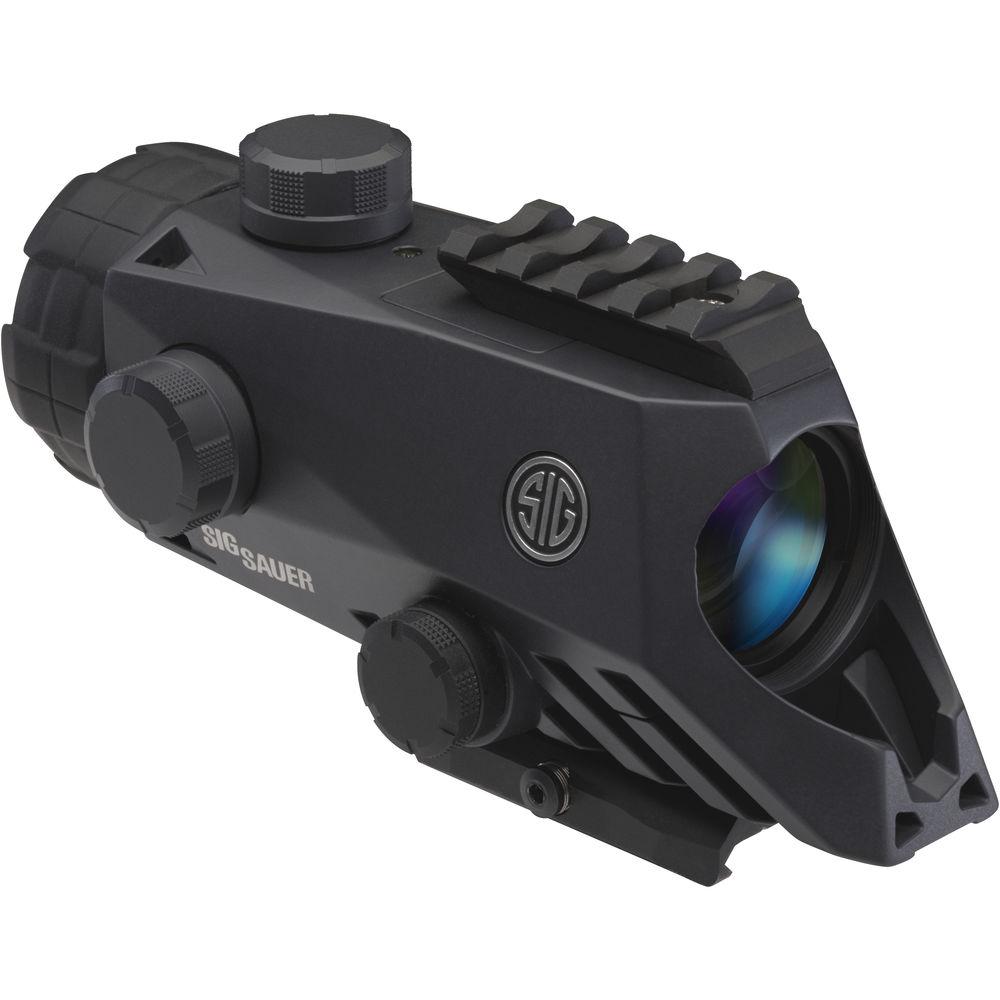

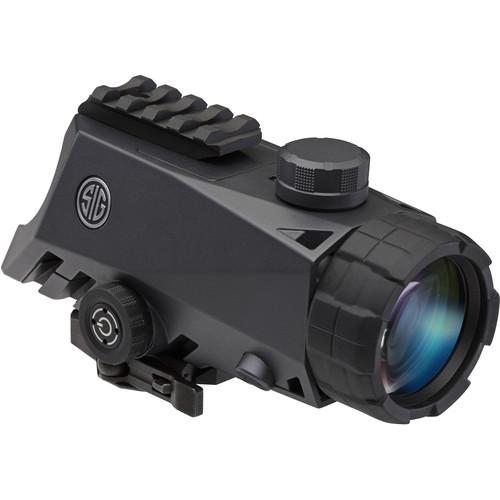

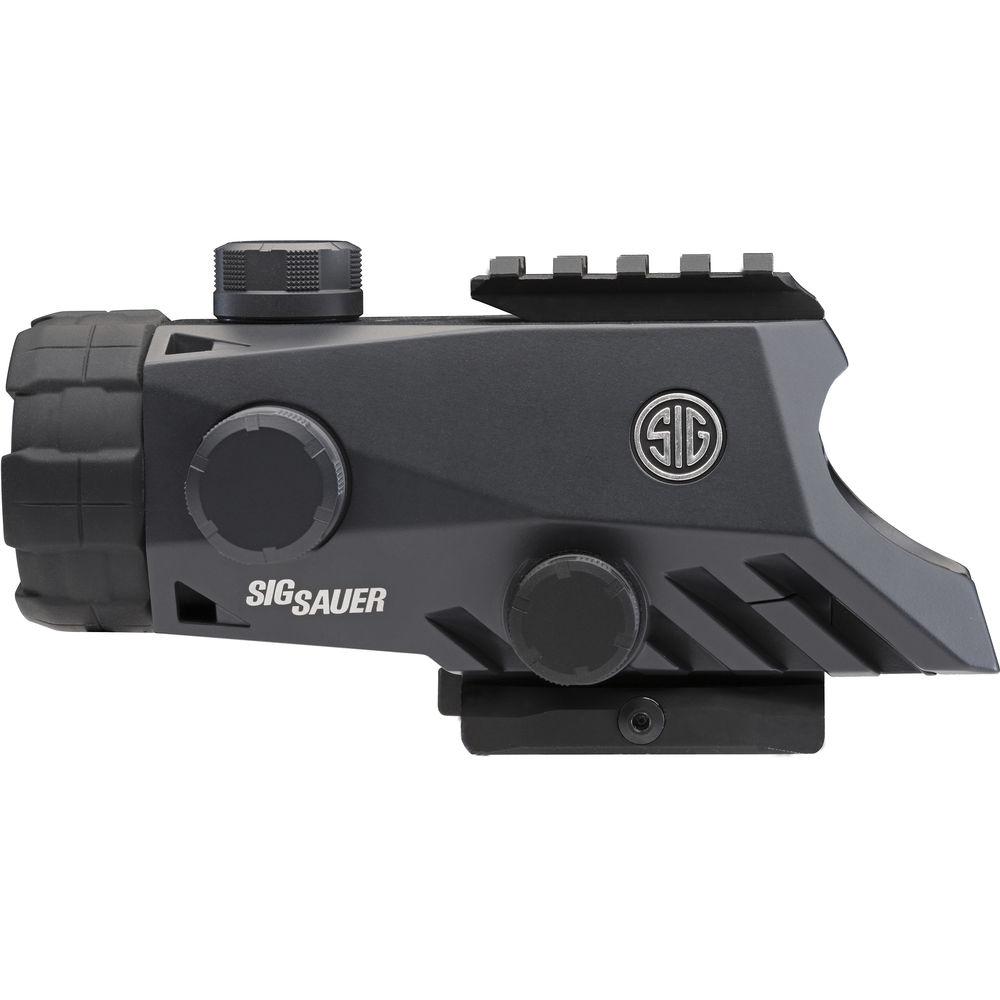

User Manual for SIG SAUER 4x30 Bravo4 Red Dot Wide Field Battle Sight Click to enlarge the picture
Contents of the user manual for the SIG SAUER 4x30 Bravo4 Red Dot
- Product category: Red Dot/Holographic Sights SIG SAUER
- Brand: SIG SAUER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIG SAUER Red Dot/Holographic Sights
 |
User manual for the SIG SAUER 4x30 Bravo4 Red Dot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIG SAUER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIG SAUER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIG SAUER product will considerably shorten its lifespan!
|
Product description Sig Sauer outfitted its battle-ready 4x30 BRAVO4 Wide Field Battle Sight with enviable optical features such as fully multi-coated lenses, Low-Dispersion (LD) glass, and aspherical lenses. While the coatings provide glare-free, clear and bright images, the LD glass was given aspherical curvatures in order to deliver true colors with high edge-to-edge image flatness and resolution. Another highlight of the optical system is the MegaView advanced prism and ocular design, which increases field of view to 10°.

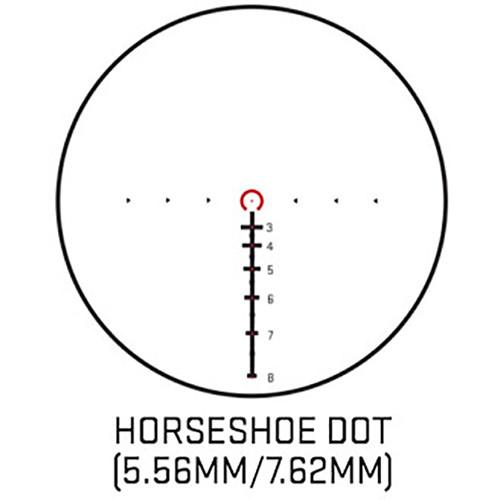

At the core of this gunsight is the illuminated horseshoe-dot reticle. It is calibrated for 5.56/7.62 cartridges and features an illuminated horseshoe and a fine center dot, a medium vertical hair with holdover markings, and horizontal arrowheads pointing towards the center. The reticle's illumination circuit also features a Motion-Activated Illumination function (MOTAC) that powers up brightness when it senses motion and powers down when at rest.
CNC-machined from a single piece of magnesium, the housing meets tight specs imposed by unfriendly battlefields: it is ultra-lightweight, compact, durable, and waterproof to 13'. To allow mounting secondary accessories such as lasers or flashlights, the sight features a Picatinny accessory rail on top. Additionally, it offers slip-free knurled adjustment rings and knobs and a rubberized eyecup. For easy and fast attachment when time matters, the sight is outfitted with a quick release Picatinny mount. - 5.56/7.62 Horseshoe-Dot Reticle
-
- Calibrated for 5.56/7.62 cartridges
- Illuminated horseshoe and fine center dot
- Horizontal arrowheads pointing inward
- Ballistic drop compensation markings on lower vertical axis
- Optical Performance
-
- 4x magnification
- 30mm objective lens diameter
- Optical axis is 1.54" above the rail
- LD-Low Dispersion glass
- Preserves true image color
- Aspherical lens design:
- Reduces spherical aberrations and distortions
- Provides flat images with edge-to-edge clarity
- MegaView advanced prism and ocular design:
- Use and Handling
-
- 0.1 mrad impact point correction
- 60 MOA (17.5 mrad) windage and elevation
- Construction
-
- Magnesium housing
- Ultra-lightweight and durable
- Picatinny accessory rail on top
- Picatinny quick release mount
- Knurled turrets, knobs, and adjusters
- Rubberized eyecup
- Impact-resistant
- Waterproof to 13'
- Fogproof
UPC: 798681521227 In the Box SIG SAUER 4x30 Bravo4 Red Dot Wide Field Battle Sight (5.56/7.62 Horseshoe-Dot Illuminated Reticle) - CR2 Battery
- Quick Release Picatinny Mount
- Limited Lifetime Warranty
- Limited 5-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SIG SAUER 4x30 Bravo4 Red Dot Wide Field Battle Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIG SAUER BRAVO4 Specs | | | Reticle | Horseshoe-Dot | | Power Source | 1 x CR2 | | Mounting | Picatinny / Weaver | | Quick Release | Yes | | | | Magnification | 4 x | | Objective Lens Diameter | 30 mm | | Field of View | 53 @ 100 yd17.5 @ m | | Exit Pupil Diameter | 7.5 mm | | | | Impact Point Correction | 0.1 MRAD | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | Diopter Adjustment |
