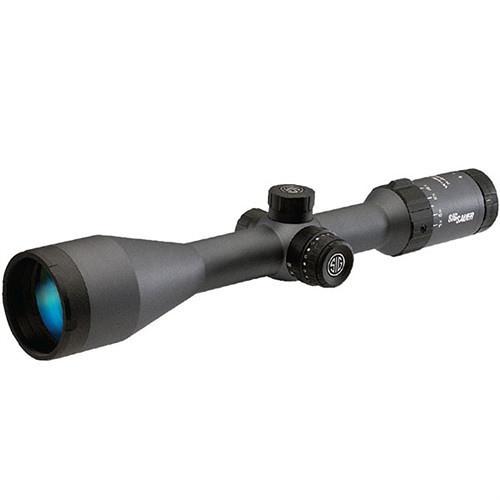

User Manual for SIG SAUER 5-25x52 WHISKEY5 Side Focus Riflescope Click to enlarge the picture
Contents of the user manual for the SIG SAUER 5-25x52 WHISKEY5 Side Focus
- Product category: Riflescopes SIG SAUER
- Brand: SIG SAUER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIG SAUER Riflescopes
|
User manual for the SIG SAUER 5-25x52 WHISKEY5 Side Focus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIG SAUER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIG SAUER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIG SAUER product will considerably shorten its lifespan!
|
Product description Sig Sauer outfitted its 5-25x52 WHISKEY5 Side Focus Riflescope with high-quality optical elements, the QuadPlex reticle, and a wide 52mm objective aperture that collects lots of light and greatly improves visibility and image brightness in challenging lighting conditions. The HDX optics feature High-Definition (HD), High-Transmission (HT), and Extra-Low Dispersion glass, which provides true color and maximizes resolution and brightness. Coated with SpectraCoat anti-reflection coatings, the lenses exhibit high transmission throughout the entire visible spectrum, delivering bright and crisp images. To ensure that the image quality is not degraded by external environmental conditions and elements, the optics are protected by the LensArmor coatings against abrasions and scratches. To prevent deterioration of image quality from interfering debris, oil, or water droplets that can stick to lens' surface, the exterior surfaces are enhanced with the oleophobic LensShield coating. Another highlight of this riflescope is its QuadPlex reticle, which is located in the 2nd focal plane and features four medium posts and a fine crosshair.
To endure most outdoor conditions, the lightweight and durable housing features a single-piece 30mm maintube and provides a waterproof and fogproof performance. The windage and elevation knobs are knurled for a slip-free operation and offer 48 MOA windage and elevation adjustment ranges with 1/4 MOA per click adjustments. Also available with this riflescope is the Sig Ballistic Turret Dial (SBT), which features a precision tactical finger-operated knob. The Sig Ballistic Turret (SBT) is a custom laser-etched elevation dial that uses your bullet specifications, ballistic coefficient, muzzle velocity, elevation, and other environmental factors for the correct bullet drop compensation and pinpoint accuracy. All other dials and rings are also enhanced with knurling for a slip-free grip. Also noteworthy is the fast focus eyepiece with a low-profile zooming lever and a green fiber optic zoom indicator. - QuadPlex Reticle
-
- 2nd focal plane
- Four medium posts
- Fine crosshair
- Offers a clear and unobtrusive view
- 7 daytime brightness levels
- 2 Night Vision brightness settings
- Optical Performance
-
- 5x Super-Zoom Advanced Optical System
- SpectraCoat anti-reflection coatings deliver high transmission across the entire visible spectrum
- 52mm objective aperture collects a lot of light and improves visibility in challenging light conditions
- HDX optics: High Definition (HD) and High Transmission (HT) optical glass offers great detail, clarity, and brightness
- Extra-Low Dispersion lenses delivers true color enhances resolution
- LensArmor coatings protect lenses from abrasions and scratches
- LensShield proprietary coating repels oil, water, and debris from lens' surface
- Use and Handling
-
- 1/4 MOA impact point correction
- 48 MOA elevation and windage
- Construction
-
- 30mm one-piece maintube
- Aluminum alloy housing
- Black anodizing finish on objective bell
- Stealth ID reduces visibility
- Capped, knurled turrets and adjustments
- Custom Sig Ballistic Turret (SBT) laser-etched elevation dial
- Fast focus eyepiece with a green fiber optics power indicator
- Low-profile zoom lever
- Side focus parallax corrector
- Waterproof and fogproof
- Impact-resistant
UPC: 798681523818 In the Box SIG SAUER 5-25x52 WHISKEY5 Side Focus Riflescope (QuadPlex Reticle, Graphite) - Riflescope Cover
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SIG SAUER 5-25x52 WHISKEY5 Side Focus Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIG SAUER SOW55003 Specs | | | Magnification | 5 to 25x | | Objective Lens Diameter | 52 mm | | Field of View | 5x: 20.2' @ 100 yd / 6.7 m @ 100 m
25x: 4' @ 100 yd / 1.3 m @ 100 m | | Exit Pupil Diameter | 5x: 8.3 mm
25x: 2.1 mm | | Eye Relief | 3.8" / 97 mm | | | | Reticle Type | QuadPlex Reticle (Second Focal Plane) | | | | Filter Thread | M54 x 0.75 | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 48 MOA | | Elevation Adjustment | 48 MOA | | | | Water Resistance | IPX7 | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 14.3" / 36.3 cm | | Weight | 28.2 oz / 799.5 g |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 57 owners. Add your rating and experience with the product.
