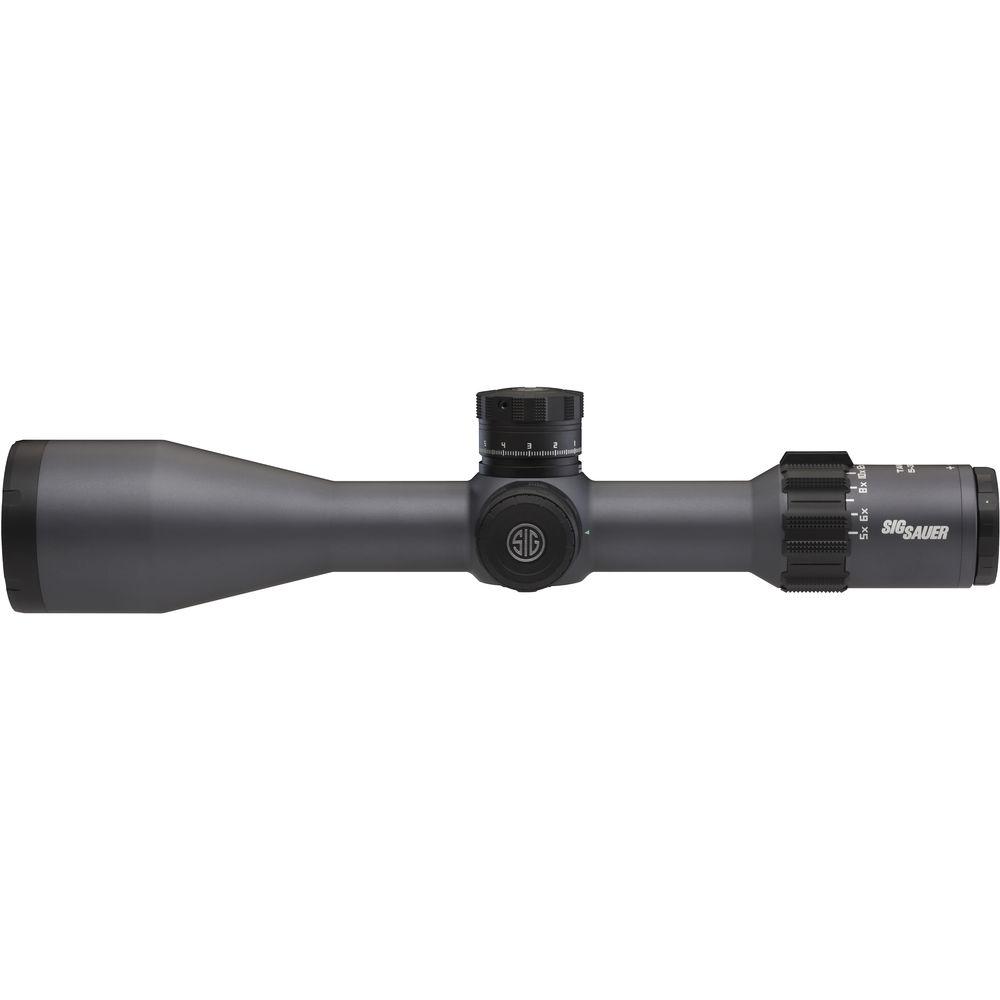

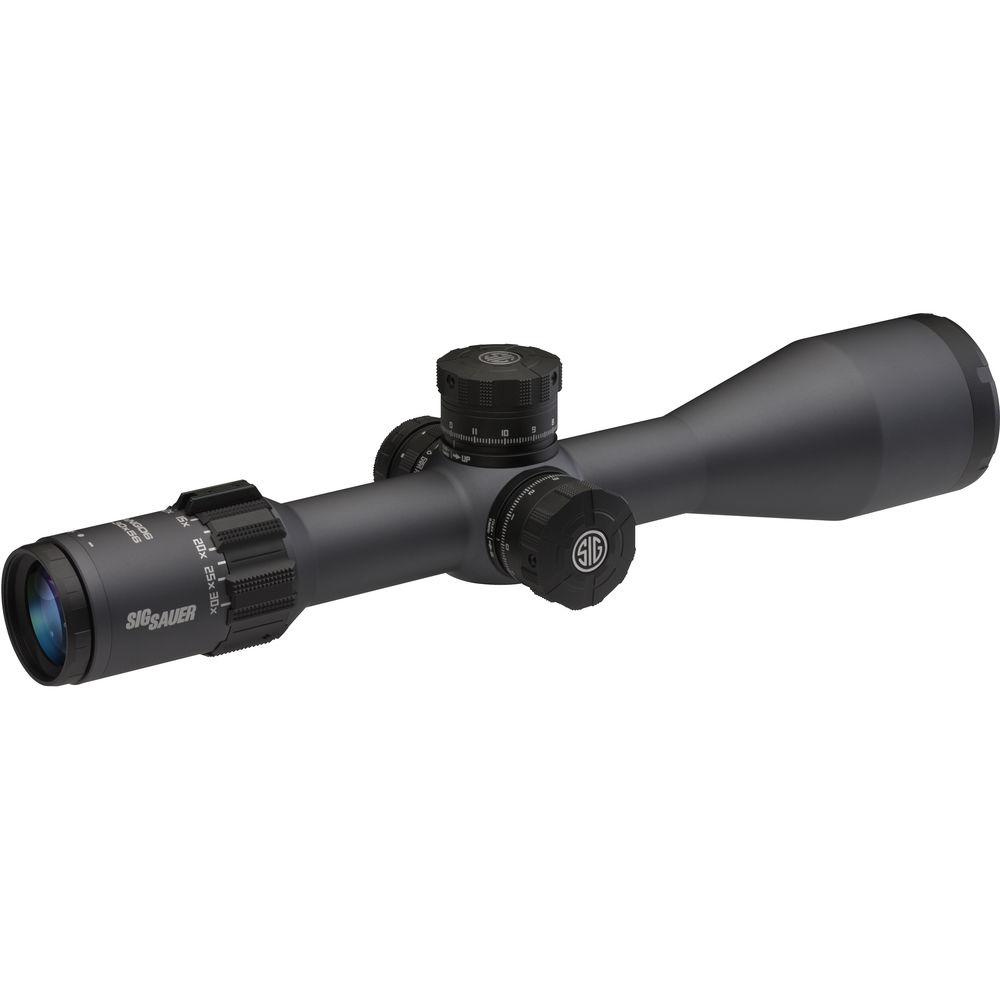

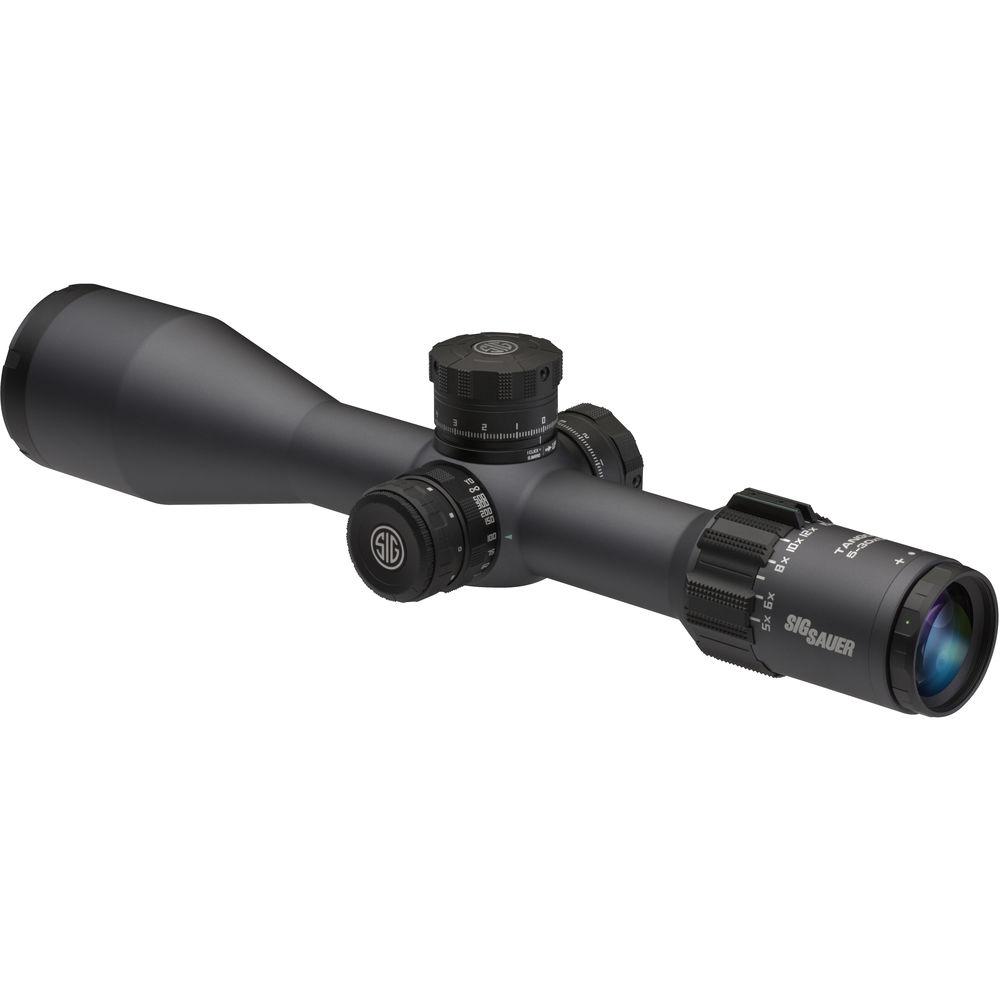

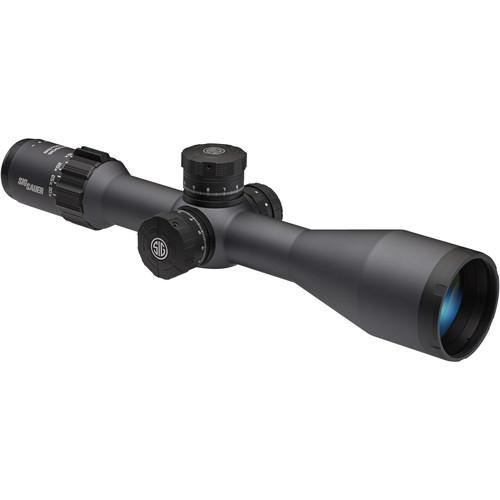

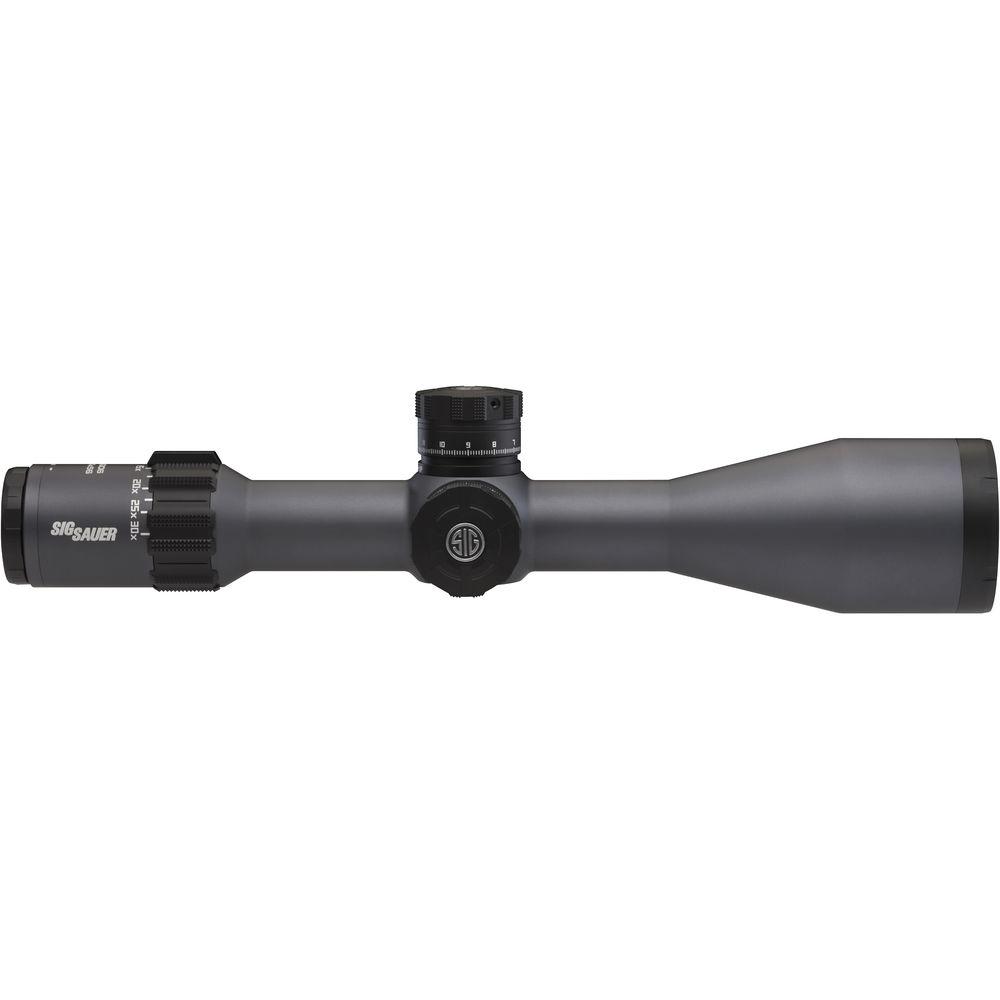

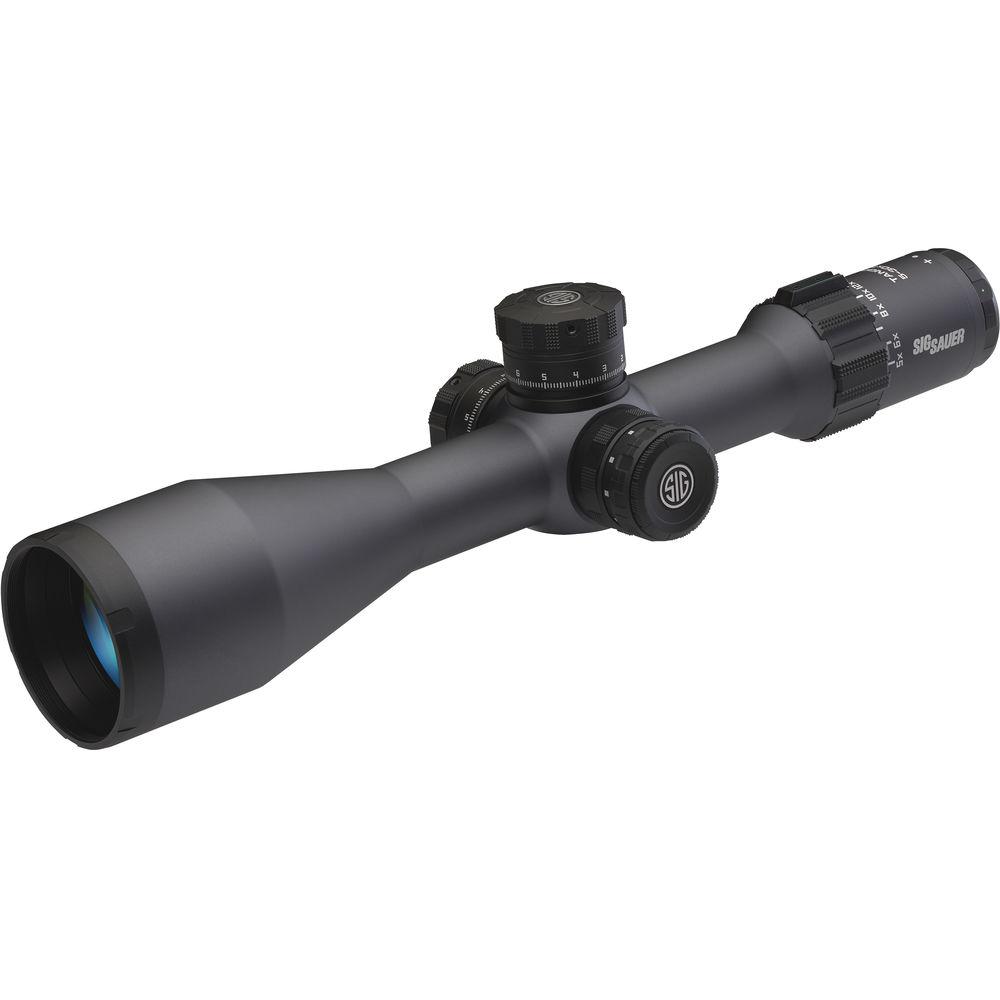

User Manual for SIG SAUER 5-30x56 TANGO6 Side Focus Tactical Riflescope Click to enlarge the picture
Contents of the user manual for the SIG SAUER 5-30x56 TANGO6 Side Focus
- Product category: Riflescopes SIG SAUER
- Brand: SIG SAUER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIG SAUER Riflescopes
 |
User manual for the SIG SAUER 5-30x56 TANGO6 Side Focus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIG SAUER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIG SAUER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIG SAUER product will considerably shorten its lifespan!
|
Product description Sig Sauer outfitted its battle-ready 5-30x56 TANGO6 Side Focus Tactical Riflescope with superior quality fully multi-coated optics and construction. Its HDX optics are made of High-Definition (HD), High-Transmission (HT), and Extra-Low Dispersion (ED) glass to provide true color and maximize resolution and transmission. Another highlight of this riflescope is its dedicated MOA Milling reticle, which is located in the 2nd focal plane and offers a variable illumination system. It is enhanced with their proprietary Motion-Activated Illumination function (MOTAC), which powers up brightness when it senses motion and powers down the brightness when at rest. The reticle features a full-field illuminated crosshair, no posts, and an extensive system of horizontal and vertical markings. Its entire area between the posts is illuminated by a brilliant red light with 7 brightness levels for daytime and 2 settings for Night Vision devices.
To endure the toughest battlefield conditions, the 34mm maintube is machined from a single piece of aluminum and provides a waterproof and fogproof performance. The windage and elevation knobs are knurled for slip-free operation and offer adjustments with 1/4 MOA increments. Also available with this riflescope is the Sig Ballistic Turret (SBT), featuring precision tactical finger-operated knobs with a fine diamond knurling and a slit read-out facing the ocular. The SIG Ballistic Turret (SBT) is a custom laser-etched elevation dial that uses your bullet specifications, ballistic coefficient, muzzle velocity, elevation, and other environmental factors for the correct bullet drop compensation and pinpoint accuracy. All other dials and rings are also enhanced with a fine diamond knurling for a slip-free grip, including a side focus parallax corrector and a fast focus eyepiece. The eyepiece has a low-profile zoom lever with a bright green mark for visibility. - Optical Performance
-
- 6x Super-Zoom Advanced Optics System
- Fully multi-coated HDX optics
- High-Definition (HD) and High Transmission (HT) optical glass offers great detail, clarity, and brightness
- Extra-Low Dispersion (ED) lenses deliver true color and enhance resolution
- Field of View: 18.9 - 3.3' at 100 yards
- MOA Milling Reticle
-
- 1st focal plane
- Full-field illuminated crosshair with no posts
- Extensive system of vertical and horizontal markings
- Motion-Activated Illumination (MOTAC)
- Motion powers up brightness
- Stillness powers down brightness
- LevelpPex Digital Anti-Cant System is an integrated digital level that is accurate to +/- 0.5°
- 7 daytime illumination brightness settings
- 2 Night Vision illumination settings
- Use and Handling
-
- 1/4 MOA impact point correction
- 50 MOA windage and 80 MOA elevation ranges
- Side focus parallax corrector knob
- Fast focus eyepiece
- T120 tactical elevation turret with 120 clicks per rotation
- Tactical finger-operated turrets
- LockDown Zero System
- Resettable zero, zero-stop
- Auto-locks down at zero
- Custom SIG Ballistic Turret (SBT) laser-etched elevation dial
- Low-profile zoom lever
- Exit Pupil: 8.9mm
- Eye Relief: 3.6"
- Construction
-
- 34mm single-piece maintube
- Aluminum alloy housing
- Waterproof and fogproof
- Impact-resistant
- Powered by one CR-2032
- Weight: 2.5 lb / 1.1 kg
UPC: 798681558902 In the Box SIG SAUER 5-30x56 TANGO6 Side Focus Tactical Riflescope (MOA Milling Reticle, Graphite) - CR-2032 Battery
- Riflescope Cover
- Adjustment Tools
- Limited 5-Year Warranty
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SIG SAUER 5-30x56 TANGO6 Side Focus Tactical Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIG SAUER SOT65011 Specs | | | Magnification | 5 to 30x | | Objective Lens Diameter | 56 mm | | Field of View | 5x: 18.9' @ 100 yd / 6.3 m @ 100 m
30x: 3.3' @ 100 yd / 1.1 m @ 100 m | | Exit Pupil Diameter | 5x: 8.8 mm
30x: 1.9 mm | | Eye Relief | 3.6" / 92 mm | | | | Reticle Type | MOA Milling Reticle (First Focal Plane) | | | | Filter Thread | M56 x 0.75 | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 50 MOA | | Elevation Adjustment | 80 MOA | | | | Water Resistance | IPX7 | | Fogproof | Yes | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 14.4" / 36.5 cm | | Weight | 2.5 lb / 1.1 kg |
