User Manual for SIG SAUER 7x25 KILO2000 Laser Range Rangefinder Click to enlarge the picture
Contents of the user manual for the SIG SAUER 7x25 KILO2000 Laser Range
- Product category: Laser Rangefinders SIG SAUER
- Brand: SIG SAUER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIG SAUER Laser Rangefinders
 |
User manual for the SIG SAUER 7x25 KILO2000 Laser Range contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIG SAUER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIG SAUER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIG SAUER product will considerably shorten its lifespan!
|

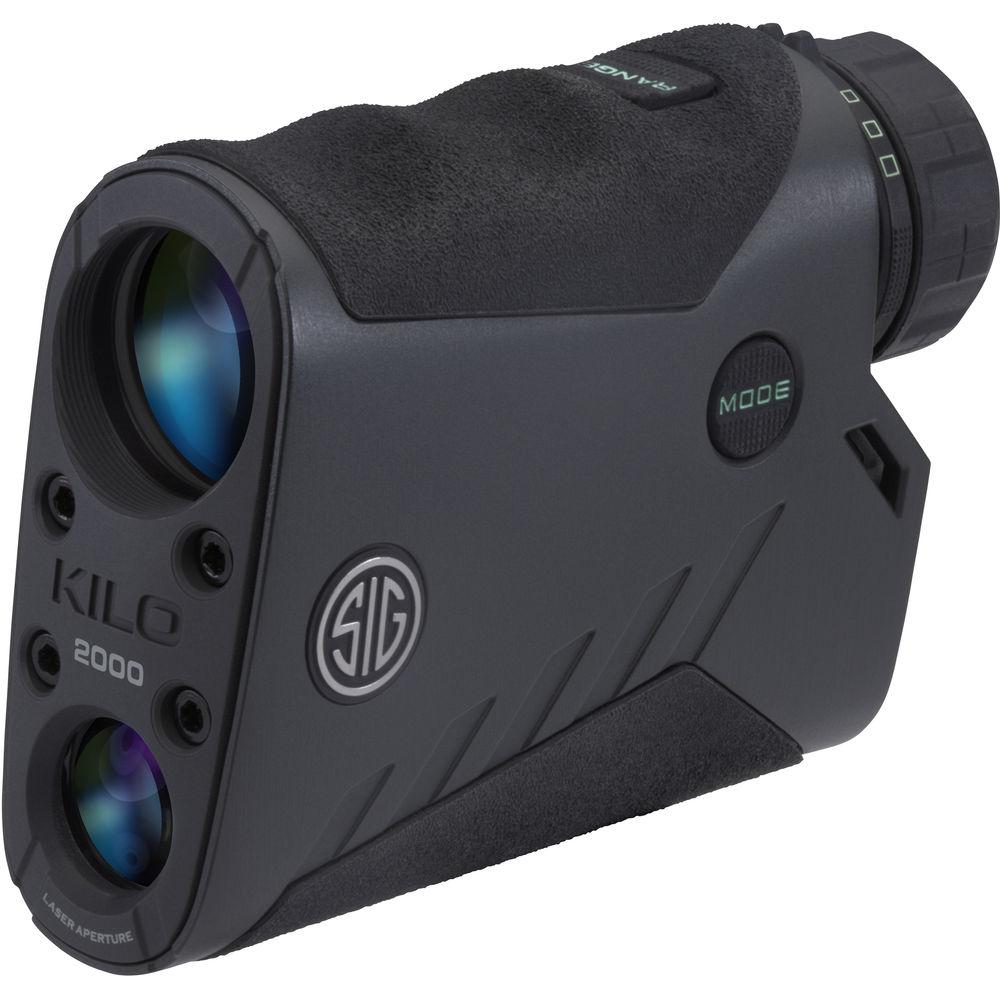

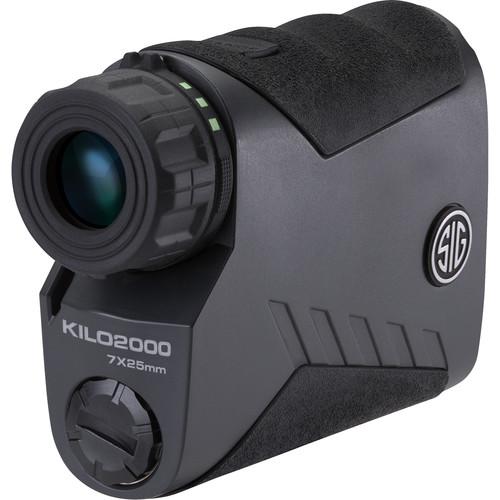

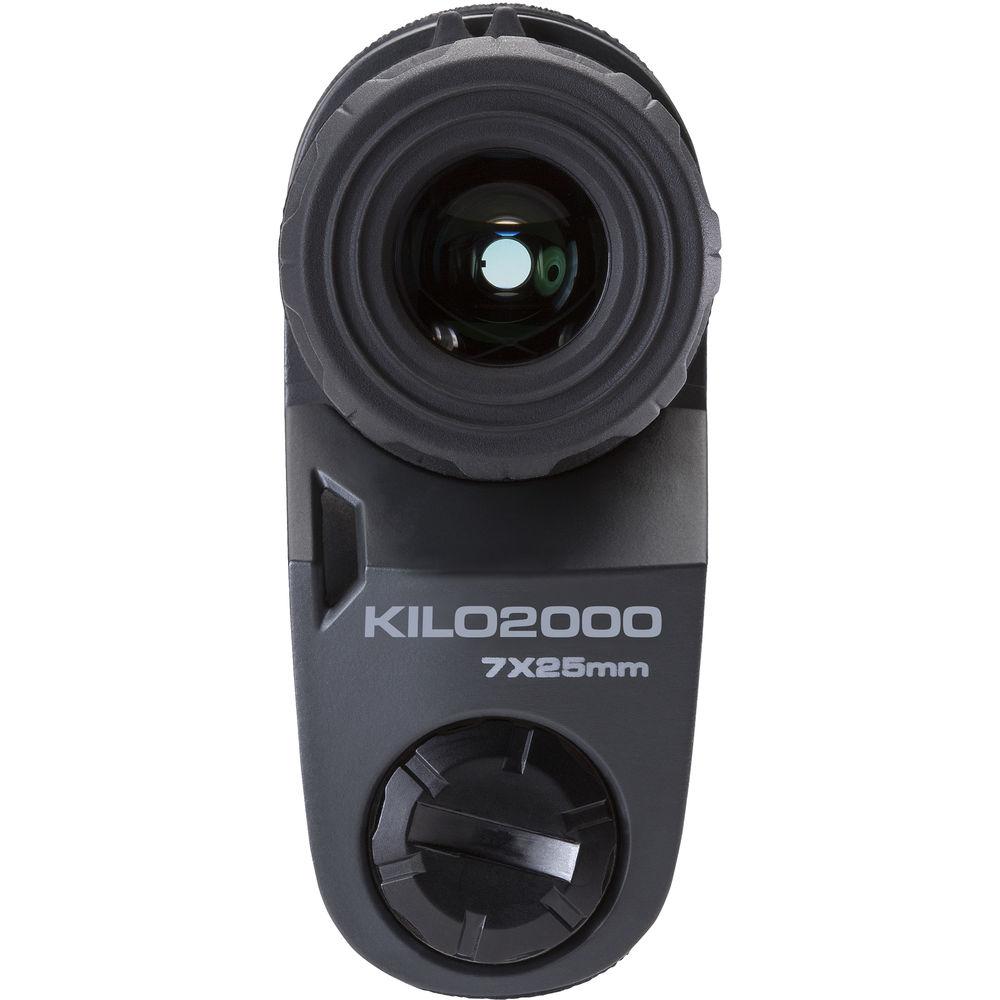

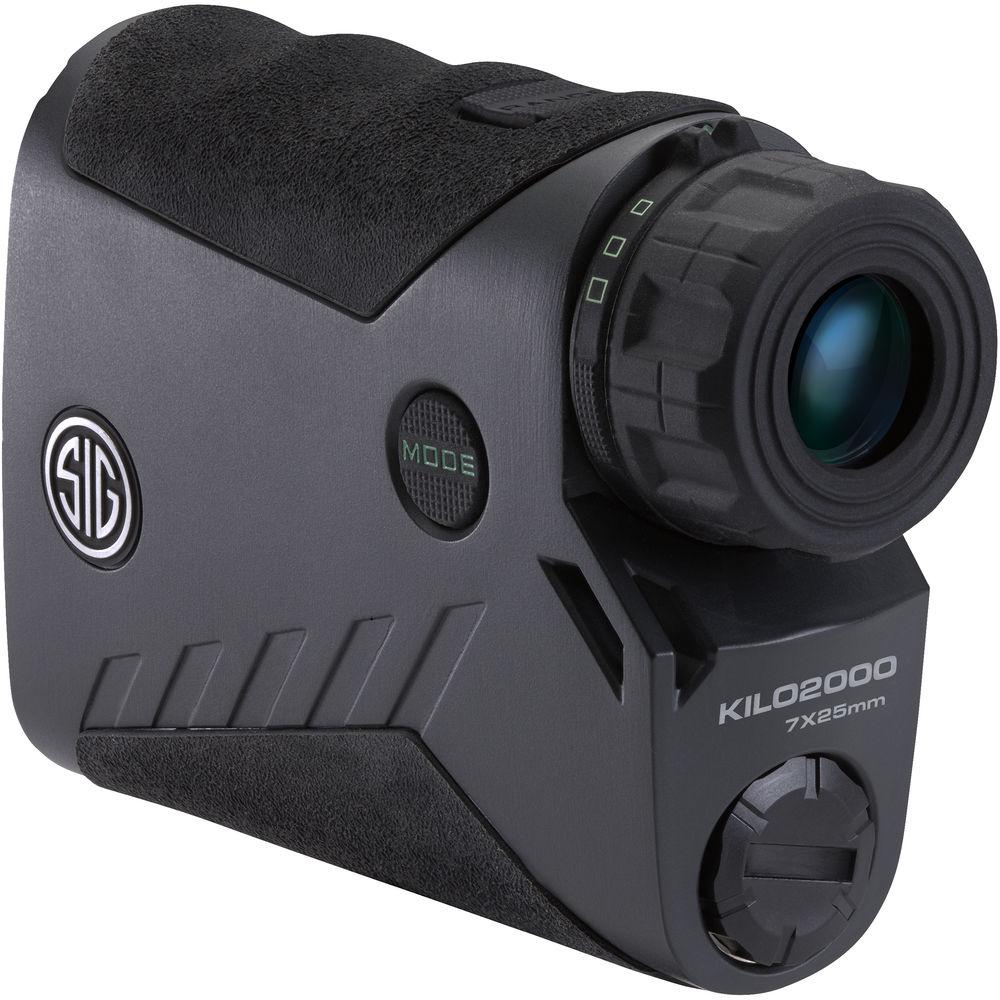

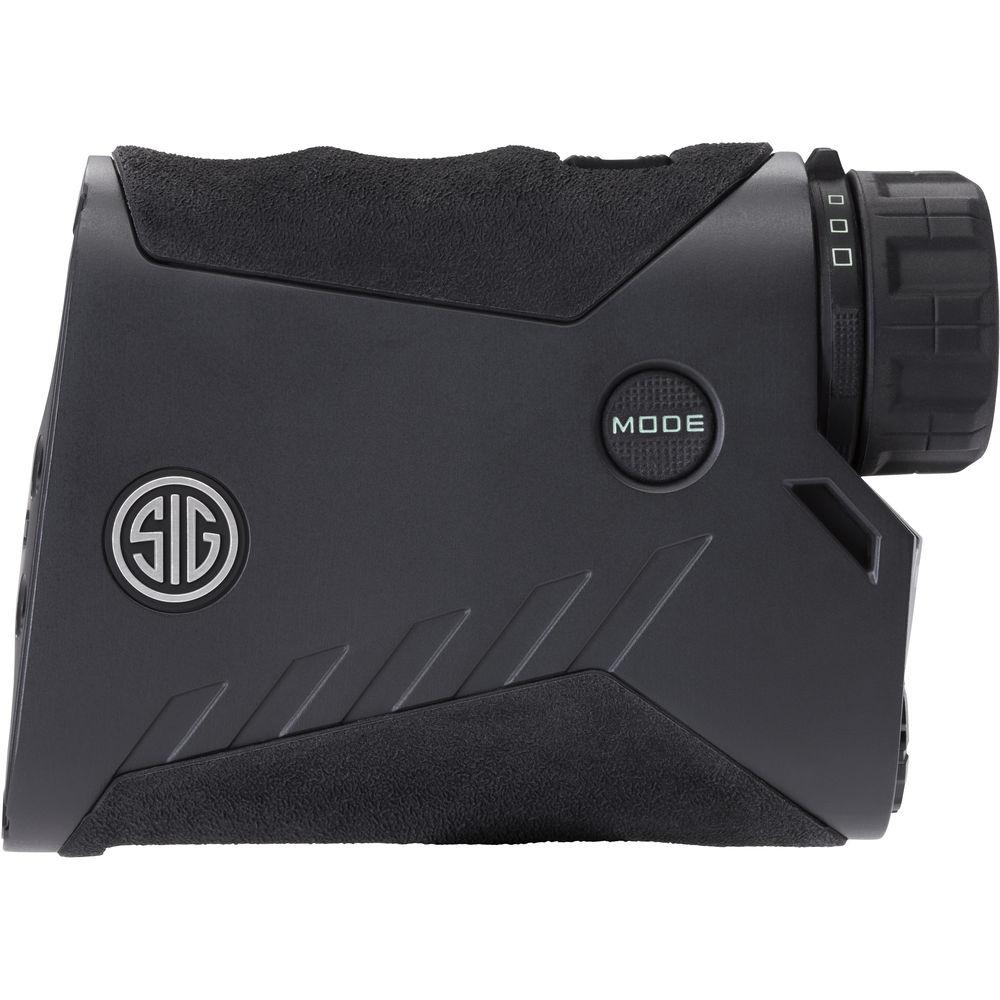

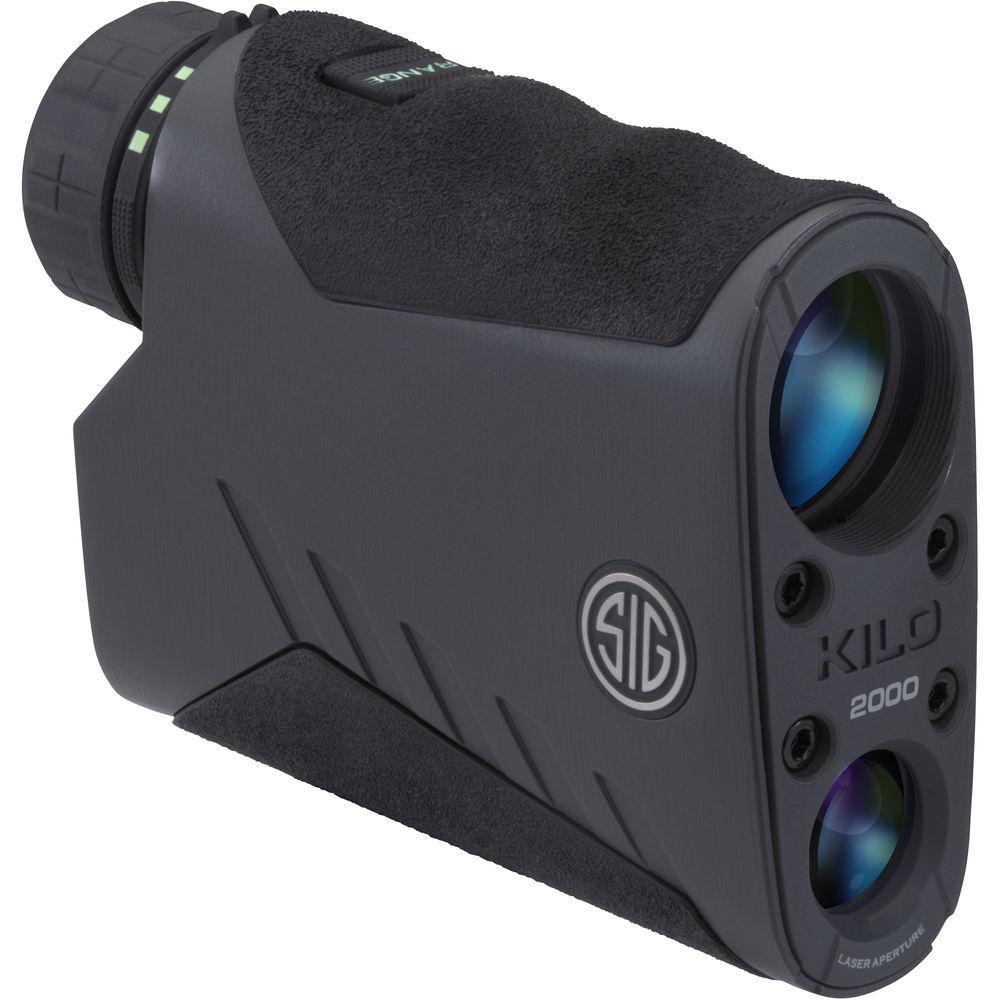

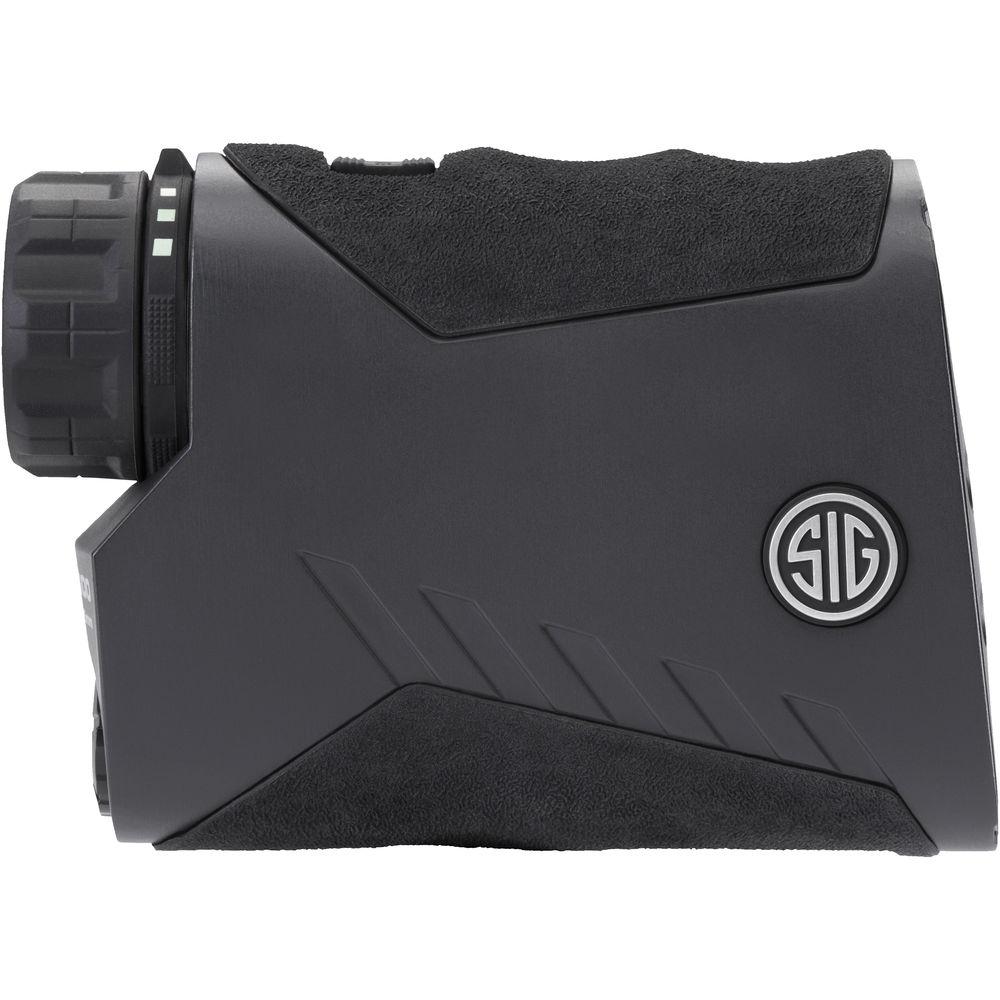

Product description With an impressive range and a suite of premium optical and technological features, the graphite-gray Sig Sauer 7x25 KILO2000 Laser Range Rangefinder will give you the confidence to take that long shot. Its moderate-magnification monocular provides a wide field of view to help find and track moving targets while bringing them in close to ensure you range the right subject. With a simple push of a button an invisible IR laser measures the distance out to as far as 1.8 miles in just 0.25 seconds.A dedicated processing engine provides a fast refresh rate for the laser, enabling four measurements per second so you'll have the most accurate range possible for moving targets or to confirm the range to a stationary subject. Complementing the rangefinder is an integrated inclinometer that measures the relative angle to the target. When the angle and range are combined, Sig's Angle Modified Range (AMR) ranging system adjusts the displayed range so you can compensate correctly for uphill or downhill shots and greatly improve your accuracy.A simple two-button interface provides critical ease-of-use and a high-transmittance OLED display clearly shows the ranging information in your line-of-sight in an uncluttered layout. Designed for durability, the housing is made of a lightweight and durable magnesium alloy that is wrapped in slip-resistant protective black rubber armor. Weighing in at 7.5 ounces, including the CR2 battery, the KILO2200 will be a valuable addition to your kit. - Optical Performance
-
- 7x magnification
- 25mm objective
- Compact roof prism
- Proprietary SpectraCoat broadband, anti-reflection lens coatings reduce surface reflections across the entire visible spectrum
- 357' field of view at 1000 yards
- Long 15mm eye relief
- 3.6mm exit pupil
- Rangefinder
-
- Class 1M eye-safe IR laser
- Range Response Time: 0.25 sec
- Beam Divergence: 1.3 MRAD
- Effective Range Distance: Up to 1.8 miles to reflective surface; 1300 yards to trees; 1100 yards to deer
- Spot or scan mode to range to a single stationary target or track moving targets
- Integrated inclinometer measures relative angle to target and displays adjusted distance for more accurate aiming using the AMR algorithm
- Lightwave DSP Engine: An advanced power management system for fast refresh rates and reduced instances of false-positives when ranging to distant or weak targets
- HyperScan mode refreshes range 4 times per second
- RangeLock displays the last range result when ranging distant targets
- Angle Modified Range (AMR) reads the incline/decline angle to the target and modifies the effective ballistic shooting range to the target, showing the equivalent horizontal range
- Line-of-Sight (LOS) or Angle Modified Range (AMR) display/ranging options
- Runs on one included CR2 battery
- Use and Handling
-
- Simple and Intuitive Two-Button Control: Mode and Range
- Displays distance in Yards or Meters in 1/10th increments
- In-view high-transmittance OLED display for easy viewing in all light conditions; especially low-light
- Lumatic ambient light sensor which continuously monitors light conditions and adjusts the display brightness automatically
- Uncluttered display with simple center circle aiming point
- Battery status, unit of measurement, LOS/AMR selection, 5-character range/angle display
- Twist-up eyecup for comfortable use with or without eyewear
- Dioptric correction to clearly focus LCD display
- Construction Details
-
- Lightweight and durable magnesium alloy chassis
- Ergonomic design allows for easy one-hand operation
- IPX4-rated, weather-resistant against light rain or snow
- Slip-resistant protective StealthID black rubber armoring
- Weight: 7.5 ounces, with battery
UPC: 798681563159 In the Box SIG SAUER 7x25 KILO2000 Laser Range Rangefinder Lanyard Nylon Case CR2 Battery Limited 5-Year Electronics Warranty Limited Lifetime Warranty (Transferable) Table of Contents
|
Upload User Manual
Have you got an user manual for the SIG SAUER 7x25 KILO2000 Laser Range Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIG SAUER SOK20702 Specs | | | Laser Type | Class 1M Eye Safe | | Metering Range | Reflective: 3280 yd / 3000 m
Deer: 1100 yd / 1000 m
Tree: 1312 yd / 1200 m | | Accuracy | < 100 yd / 91 m: 0.1 yd / 0.09 m | | Beam Divergence | 1.3 MRAD | | | | Prism Type | Roof | | Magnification | 7x | | Objective Lens Diameter | 25 mm | | Angle of View | 6.8° (Actual) | | Field of View | 357' @ 1000 yd / 118.5 m @ 1000 m | | Exit Pupil Diameter | 3.6 mm | | Eye Relief | 15.0 mm | | | | Form Factor | Monocular | | Power Source | 1 x CR2 | | | | Tripod Mount | No | | Water Resistance | Water Resistant, IPX4 | | Dimensions | 4.2 x 3 x 1.3" / 10.7 x 7.6 x 3.3 cm | | Weight | 7.5 oz / 212.6 g (with Battery) |
