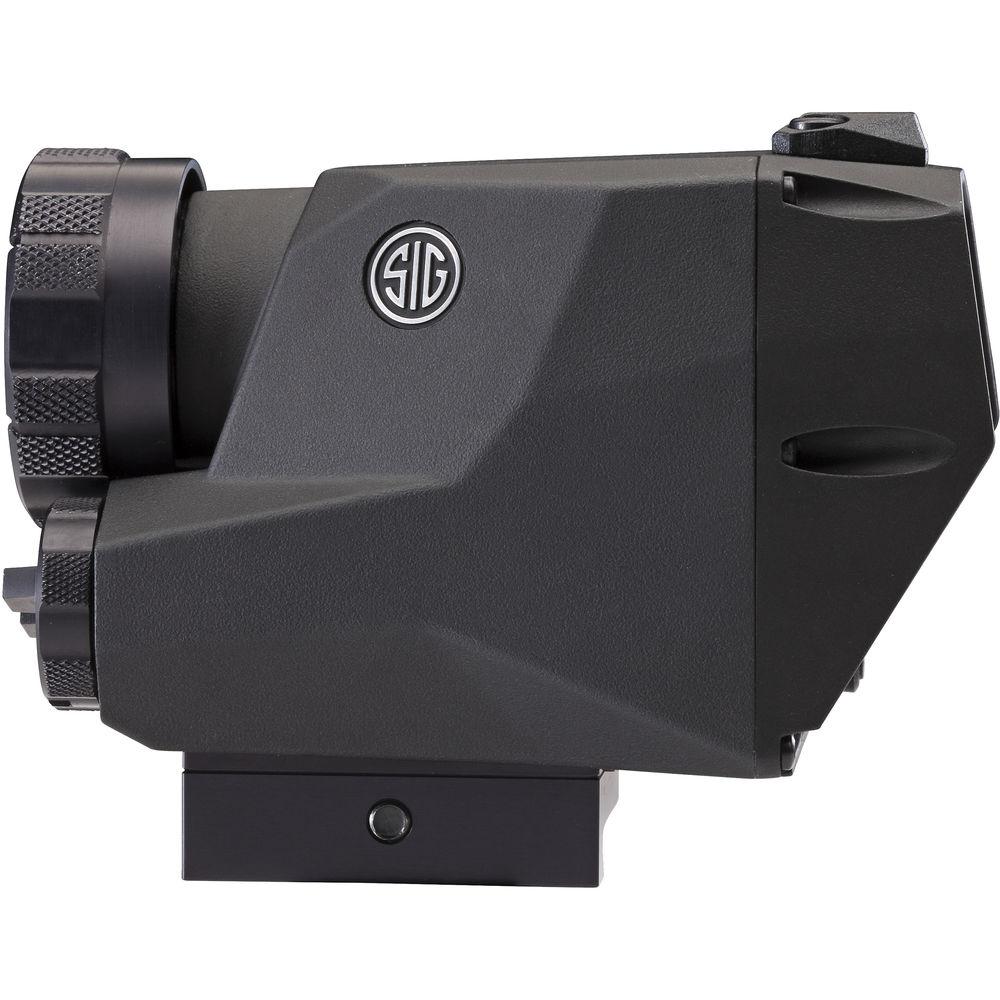

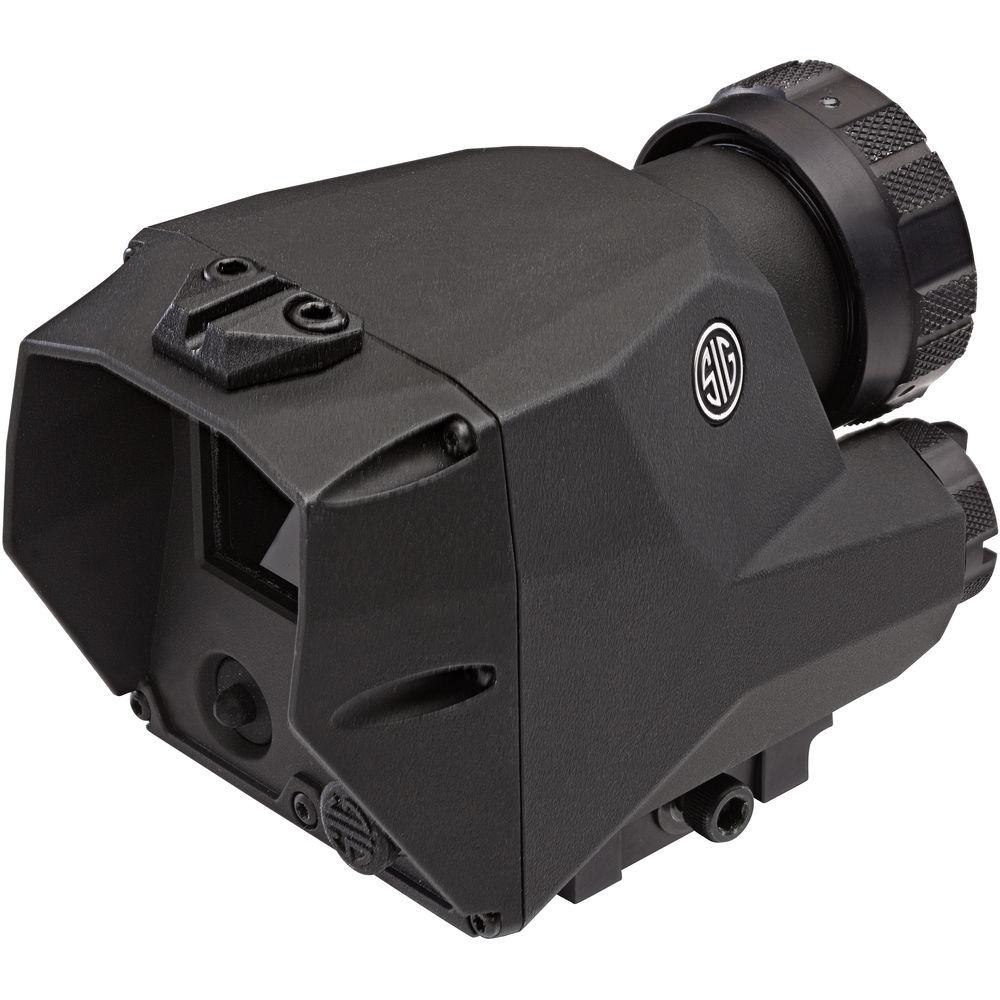

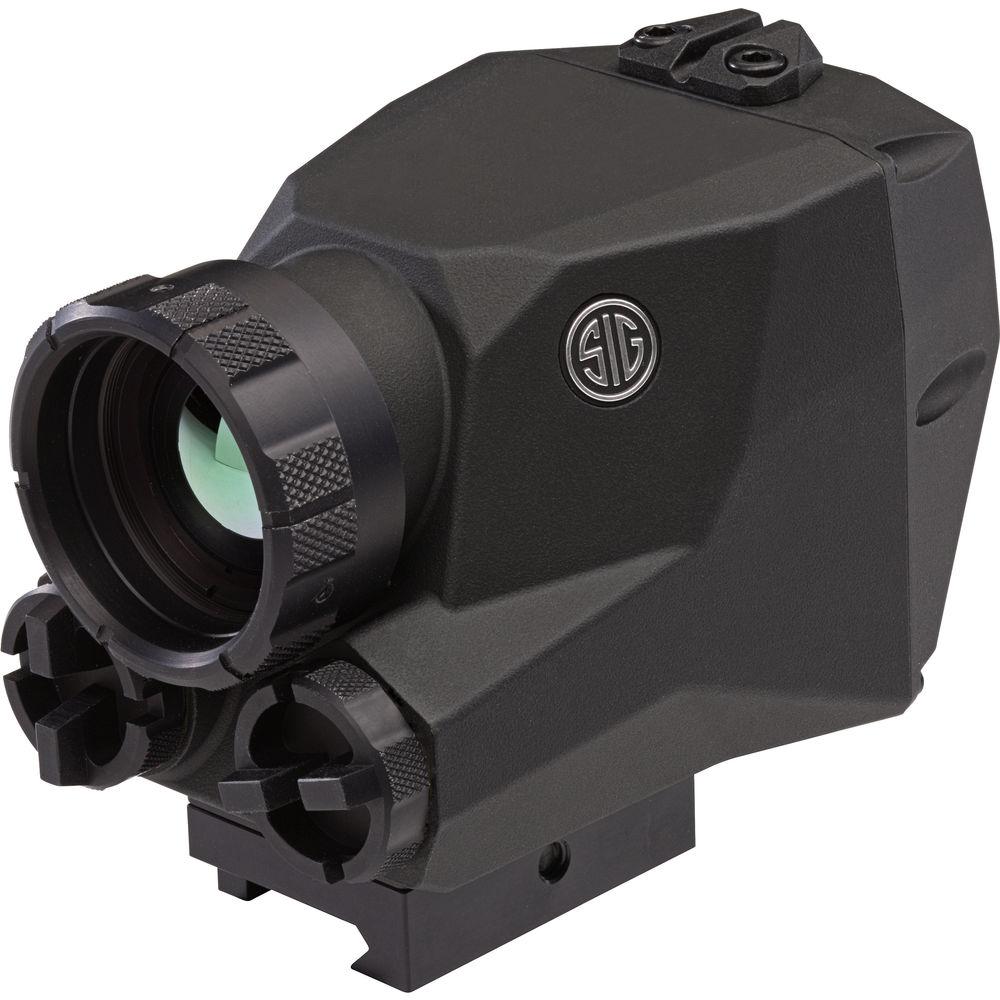

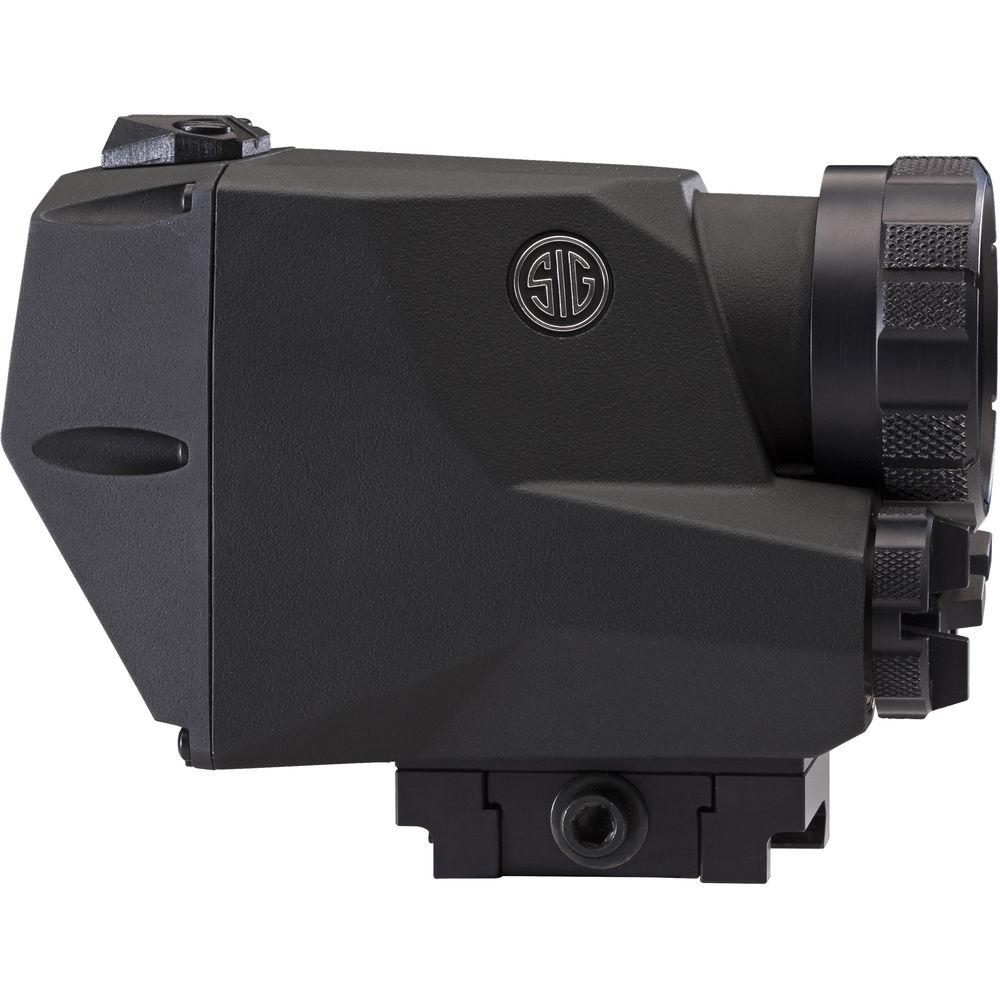

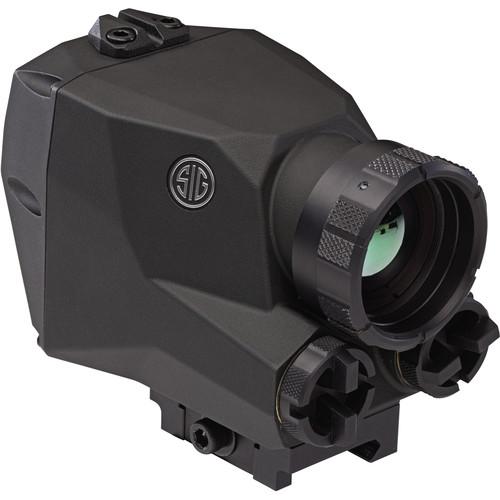

Product description Gain a tactical advantage during the day or night with the Sig Sauer ECHO1 1-2x Digital Thermal Imaging Reflex Sight Kit. The main components of the kit are an Echo1 thermal sight, a scope coat, a Romeo1 adapter plate, a USB cable, and a set of mounting tools. The sight attaches to your firearm via its Picatinny/Weaver style mount and allows you to see thermal profiles of your targets. Its uncooled VOx microbolometer detects long-wave infrared spectrum and allows you to see heat sources in nearly complete darkness through fog, smoke, foliage, and dust. The sensor has resolution of 206x156 pixels and a refresh rate up to 30 Hz. The optical system features 1x magnification and digital zoom up to 2x. To accommodate your preferences, the sight offers five pre-set color digital reticle patterns and the capability to design and configure custom reticles.
The built-in color LCD display features 220x176 resolution and offers White Hot, Black Hot, Color, and Game Highlight viewing palettes. For documenting your observations, the imager is capable of image capture and star-burst capture and offers a connection to your PC's USB port.
To enable you to use it in most conditions, its lightweight and durable magnesium housing is rated IPX6 for water-resistant performance. It features a built-in Picatinny/Weaver style mount and a detachable peep sight. - Sensor and Display
-
- 206x156 Uncooled VOx bolometer
- 7-14µm spectral response
- 220x176 color LCD display
- White hot, black hot, color palettes, and game highlight
- Five contrast settings
- Refresh rates: 30 Hz
- Digital windage and elevation adjustments: 100 MOA
- Easy-to-use intuitive menu
- Mini-joystick menu navigator
- Image capture and star-burst capture
- 5-Pin-to-USB input/output port

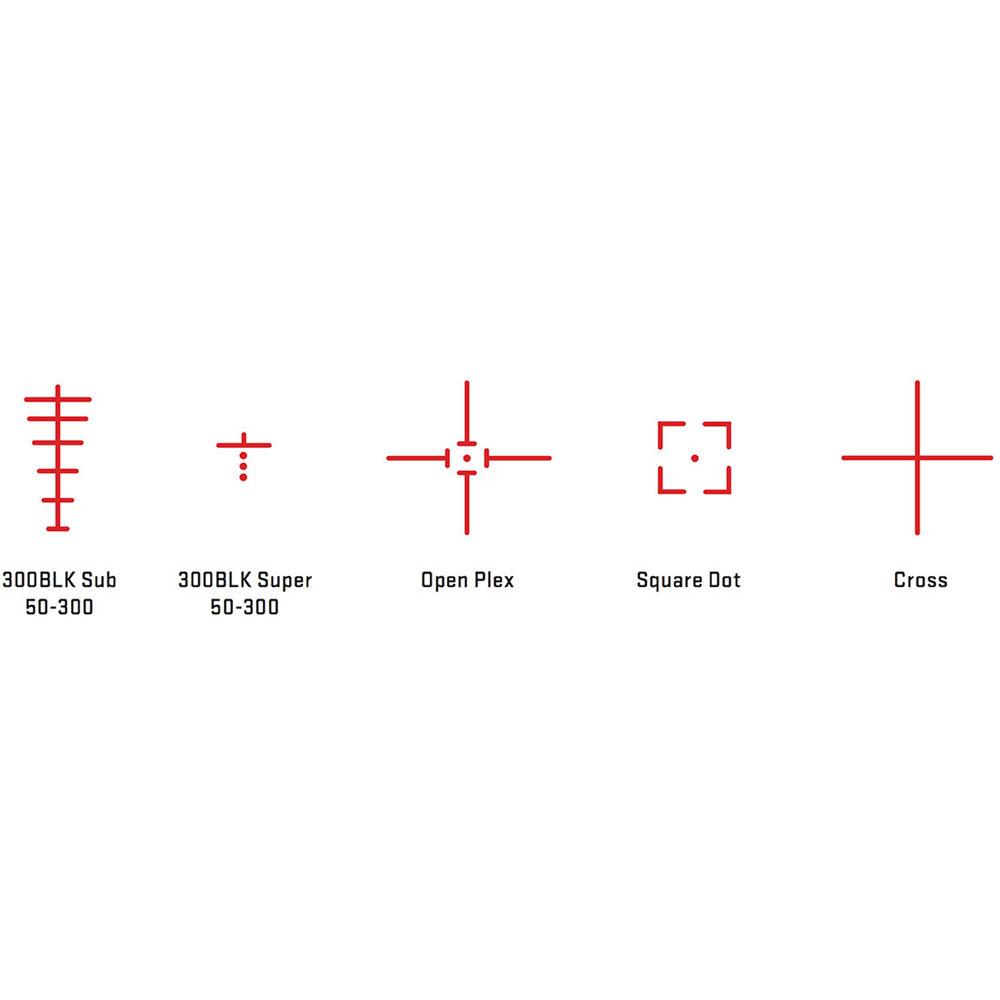

- Five Digital Reticles
-
- 300Blk Sub 50-300
- 300Blk Super 50-300
- Open Plex
- Square Dot
- Cross
- Selectable pattern colors
- Customization and download of new reticles allowed
- Optical Performance
-
- 1-2x magnification
- 4.7x3.7° angle of view
- Unlimited eye relief
- Close focus: 3.3'
- Construction
-
- Magnesium housing: Lightweight and durable
- Detachable top mount peep sight
- Built-in Picatinny/Weaver mount
- Knurled non-slip knobs and adjusters
- Water-resistant, IPX6-rated
UPC: 798681552047 In the Box SIG SAUER ECHO1 1-2x Digital Thermal Imaging Reflex Sight Kit (Digital Multi-Reticle, Graphite) - 2 x CR-123 Lithium Batteries
- USB Cable
- Peep Sight
- Romeo1 Sight Top Adapter
- Allen Wrench
- Scope Coat
- Fischer Plug Cover
- Limited 5-Year Warranty on Electronics
- Limited Lifetime Warranty (Transferable)
Table of Contents
|
Upload User Manual
Have you got an user manual for the SIG SAUER ECHO1 1-2x Digital Thermal Imaging Reflex Sight Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIG SAUER SOE11001 Specs | Sensor | 206x156 uncooled VOx bolometer array | | Spectral Response | 7-14µm | | Display | 220x176 color LCD | | Reticle | 5 default digital patterns
Customization, upload allowed | | Magnification | 1-2x | | Eye Relief | Unlimited | | Field of View | 4.7-3.7° | | Frame Rate | 30 Hz | | Battery / Runtime | 2 x CR-123 batteries / 8 h | | Contrast Adjustment | 5 settings | | Close Focus | 3.3' / 1 m | | Windage/Elevation Adjustment | 100 MOA, digital | | Weatherproofing | Water-resistant, rated IPX6 | | Dimensions | 4.3 x 2.7 x 2.6" / 110 x 68 x 65 mm | | Weight | 14.7 oz / 417 g | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 10.1 x 7.0 x 4.4" |
