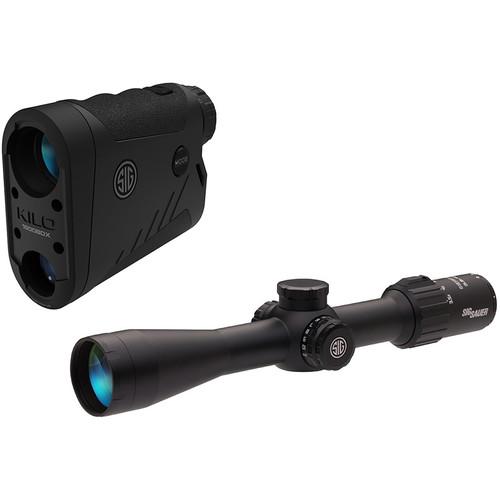

User Manual for SIG SAUER KILO1800BDX 6x22 Rangefinder & 4.5-14x44 SIERRA3BDX Riflescope Combo Kit

• Product category: Riflescopes SIG SAUER
• Brand: SIG SAUER
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for SIG SAUER Riflescopes

Product description

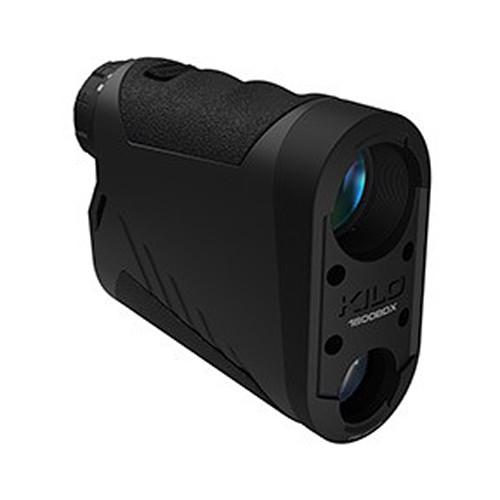

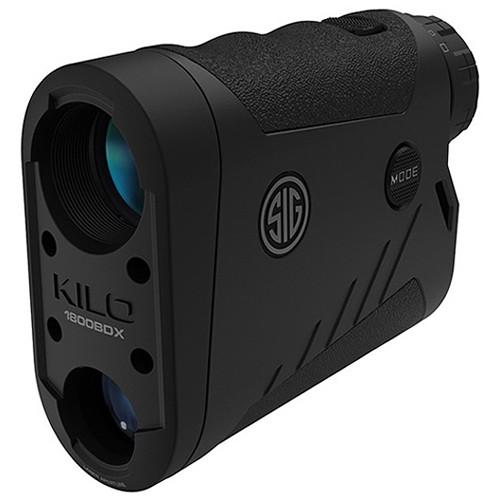

• 6x22 KILO1800BDX Laser Rangefinder (Black, Class 3R) With optics and electronics that quickly and accurately range the target and the ability to send holdover data straight to compatible riflescopes, the Sig Sauer 6x22 KILO1800BDX Laser Rangefinder gives you a critical edge when it matters most. Its moderate magnification monocular gives you a good look at the target, then with the simple push of a button measures the distance out to as far as 2000 yards. Paired with the Sig Sauer SIERRA3BDX scope via Bluetooth and the SIG BDX app for iOS or Android, the rangefinder sends elevation and windage info directly to the scope's reticle—simply put the digital ballistic holdover dot on target, and fire.

  A dedicated processing engine provides a fast refresh rate for the laser, enabling four measurements per second so you'll have the most accurate range possible for moving targets or to confirm the range to a stationary subject. Complementing the rangefinder is an integrated inclinometer that measures the relative angle to the target. When the angle and range are combined, Sig's AMR ranging system adjusts the displayed range so you can compensate correctly for uphill or downhill shots, greatly improving your accuracy.

  The advanced LCD display clearly shows the ranging information in an uncluttered layout with a small, precise targeting circle. Designed for durability, the housing is made of a lightweight and durable magnesium with a binocular-style eyecup and diopter adjustment. Measuring 4.1 x 3.0" and weighing just 8 ounces, including the CR2 battery, the KILO1800BDX will be a valuable addition to your kit.
  Optical Performance
  • • 6x magnification
    • 22mm objective
    • Compact roof prism
    • Proprietary SpectraCoat broadband, anti-reflection lens coatings reduce surface reflections across the entire visible spectrum
    • 315' field of view at 1000 yards
    • Long 17mm eye relief
    • Comfortable 3.6mm exit pupil
  Rangefinder
  • • Class 3R laser
    • Effective range distance: reflective surfaces up to 2000 yards, trees up to 1200 yards, deer up to 1000 yards
    • Runs on one included CR2 battery
    • Integrated inclinometer measures relative angle to target and displays adjusted distance for more accurate aiming
  Ranging Technologies
  • • BDX (Ballistic Data Exchange) transmits windage and bullet-drop calculation for Sig Sauer SIERRA3BDX riflescope
    • SIG BDX app for iOS or Android
    • Embedded Applied Ballistics Ultralite with bullet database and support for G1/G7 bullets
    • Create up to 25 custom ballistic profiles
    • Lightwave DSP engine: an advanced power management system for fast refresh rates and reduced instances of false-positives when ranging to distant or weak targets
    • HyperScan mode refreshes range four times per second
    • RangeLock displays the last range result when ranging distant targets

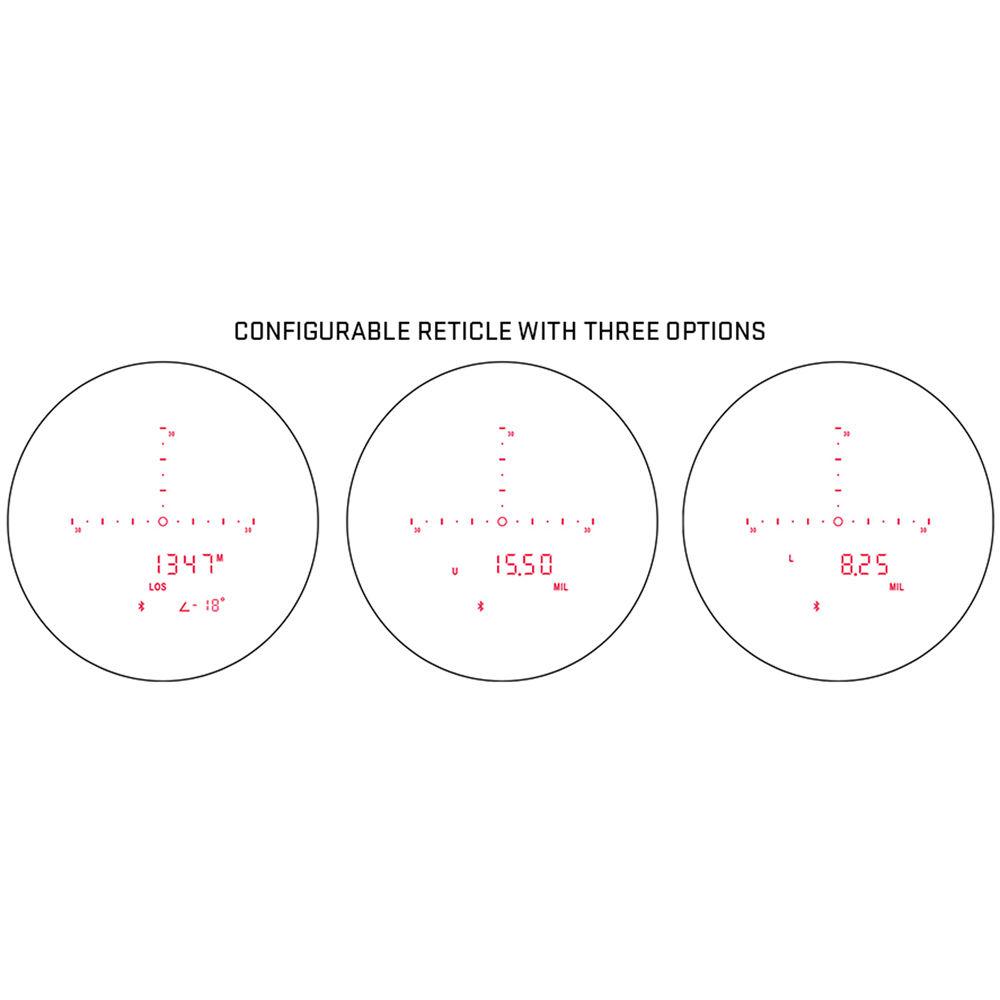

    • Line of Sight (LOS) or Angle Modified Range (AMR) display/ranging options
    • Full ballistic holdover and windage results in MIL or MOA
  Use and Handling

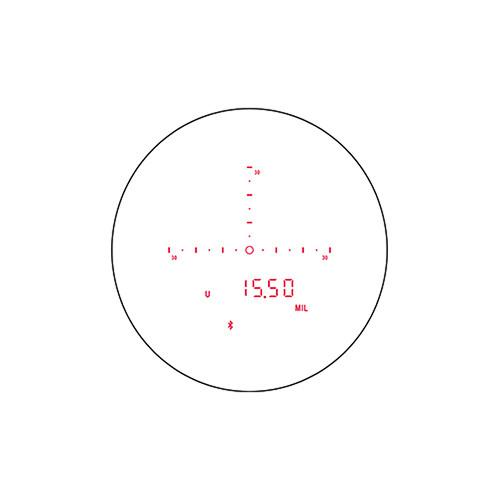

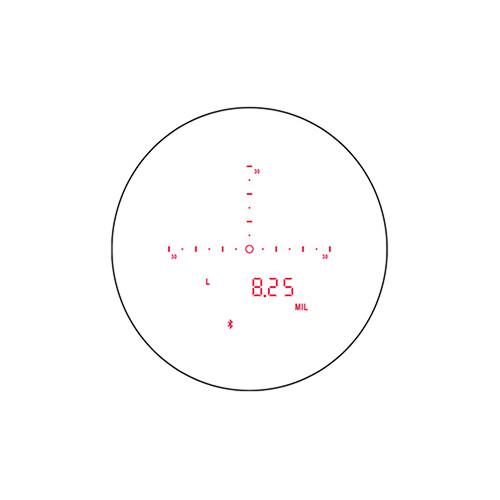

  • • In-view high-transmittance OLED display for easy viewing in all light conditions, especially in low light
    • Uncluttered display with small center circle aiming point

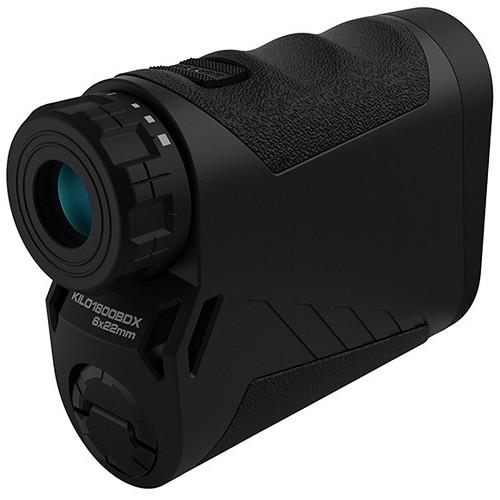

    • Binocular-style eyecup
    • Dioptric correction
  Construction Details
  • • Lightweight, durable, and temperature-resistant polymer housing
    • Ergonomic design allows for easy one-hand operation
    • Slip-resistant protective StealthID graphite gray rubber armoring
    • Weight: 8 ounces, with battery
  UPC: 798681588145

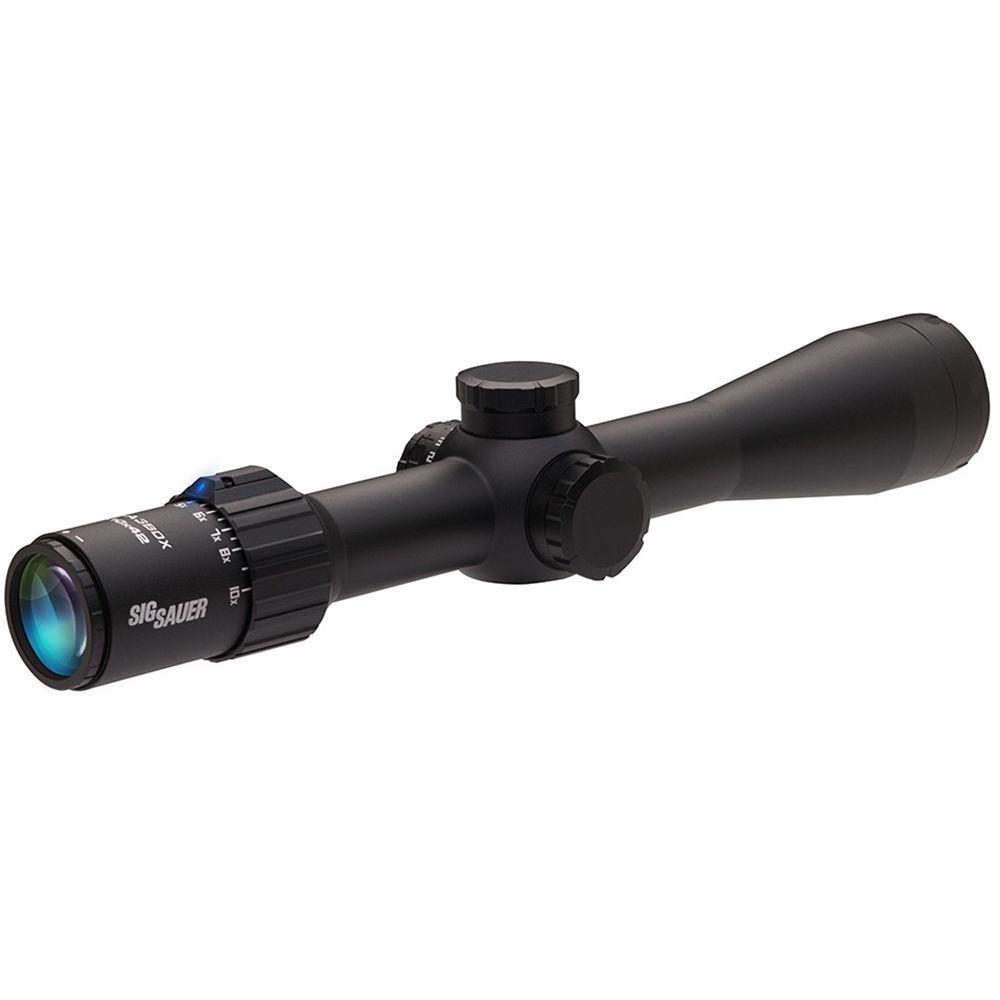

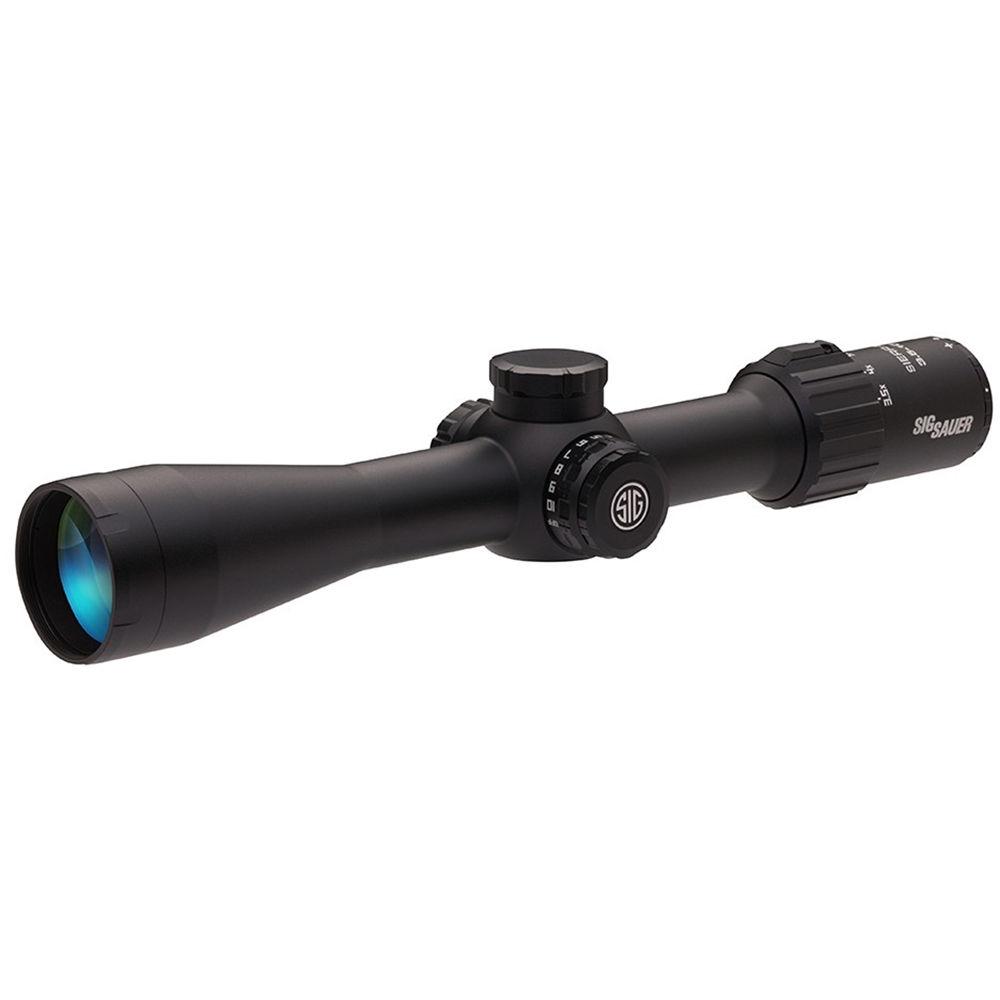

• 4.5-14x44 Sierra3BDX Side Focus Riflescope (BDX-R1 Digital Ballistic Illuminated Reticle, Black)

• CR2 Battery

• Limited Lifetime Warranty on Optics

• Limited 5-Year Warranty on Electronic/Tritium Components

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 6x22 KILO1800BDX Laser Rangefinder (Black, Class 3R)

  Metering Range	Reflective: 2000 yd / 1829 m Tree: 1200 yd / 1097 m Deer: 1000 yd / 914 m

  Prism Type	Roof
  Magnification	6x
  Objective Lens Diameter	22 mm
  Field of View	315' @ 1000 yd / 104.8 m @ 1000 m
  Exit Pupil Diameter	3.6 mm
  Eye Relief	17 mm

  Form Factor	Monocular
  Power Source	1 x CR2

  Dimensions	4.1 x 3 x 1.4" / 10.4 x 7.6 x 3.6 cm
  Weight	7.8 oz / 221.0 g

  Box Dimensions (LxWxH)	7.1 x 5.9 x 3.0"

• 4.5-14x44 Sierra3BDX Side Focus Riflescope (BDX-R1 Digital Ballistic Illuminated Reticle, Black)
