User Manual for SIG SAUER OSCAR3 10-20x30 Spotting Scope Click to enlarge the picture
Contents of the user manual for the SIG SAUER OSCAR3 10-20x30 Spotting Scope
- Product category: Spotting Scopes SIG SAUER
- Brand: SIG SAUER
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIG SAUER Spotting Scopes
 |
User manual for the SIG SAUER OSCAR3 10-20x30 Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIG SAUER product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIG SAUER user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIG SAUER product will considerably shorten its lifespan!
|

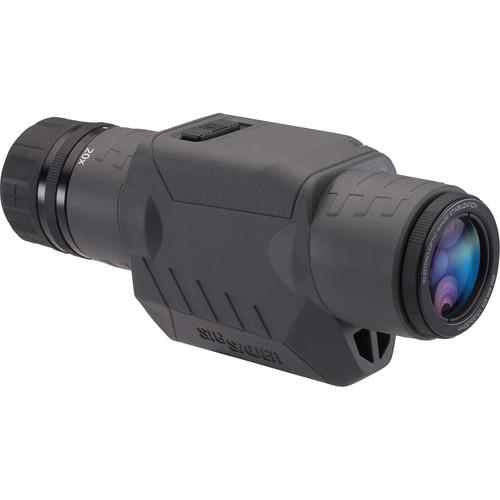

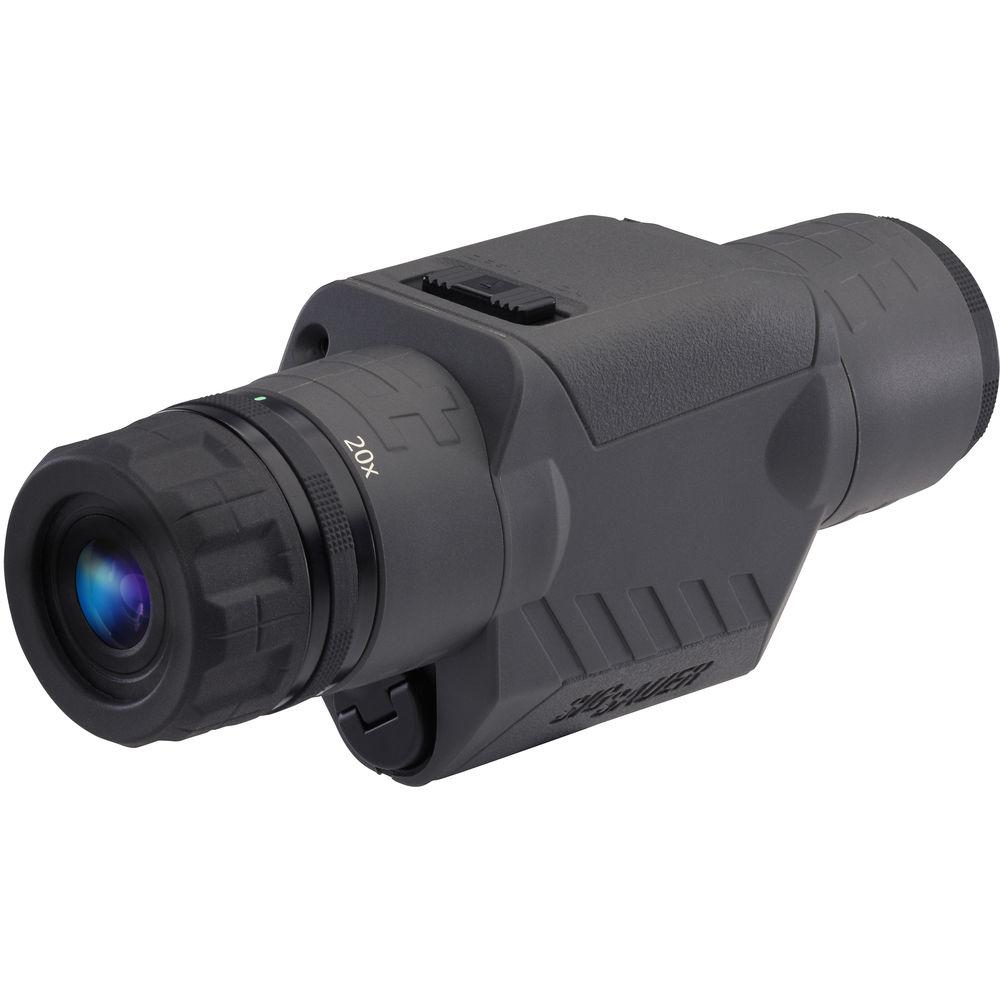

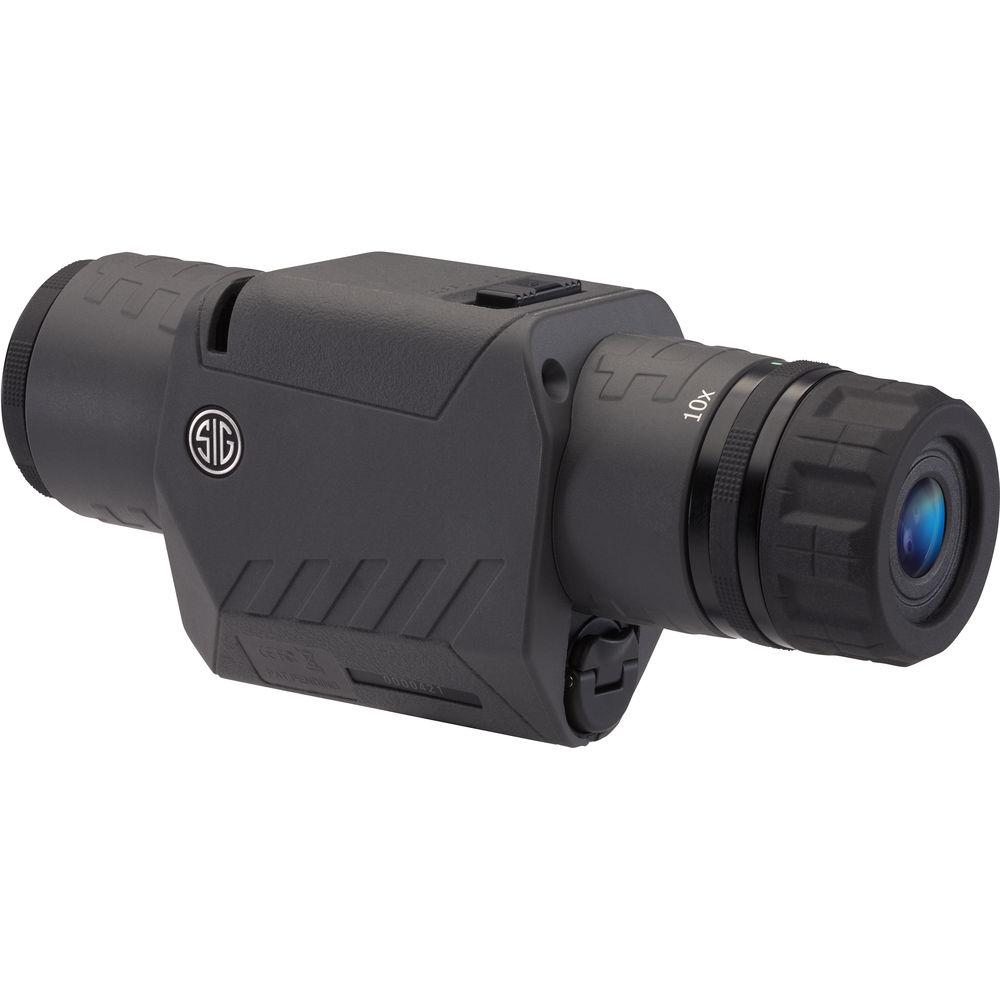

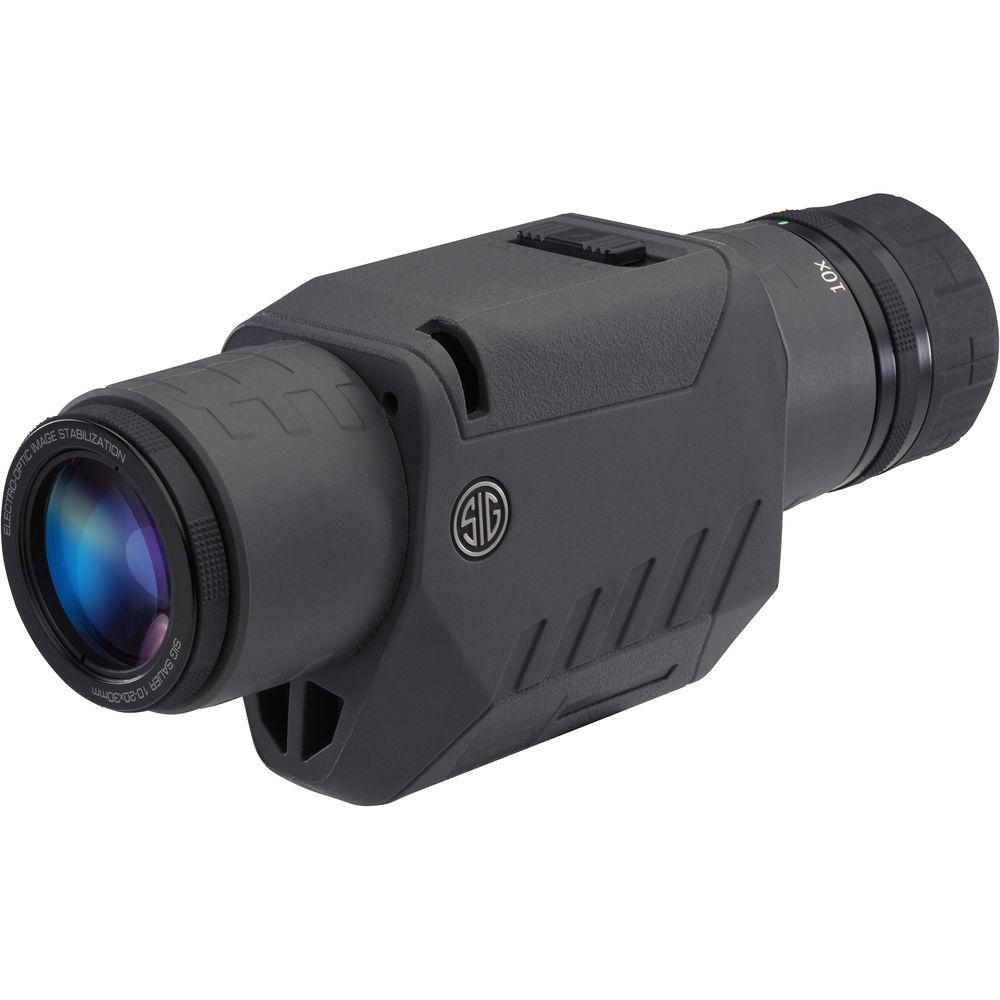

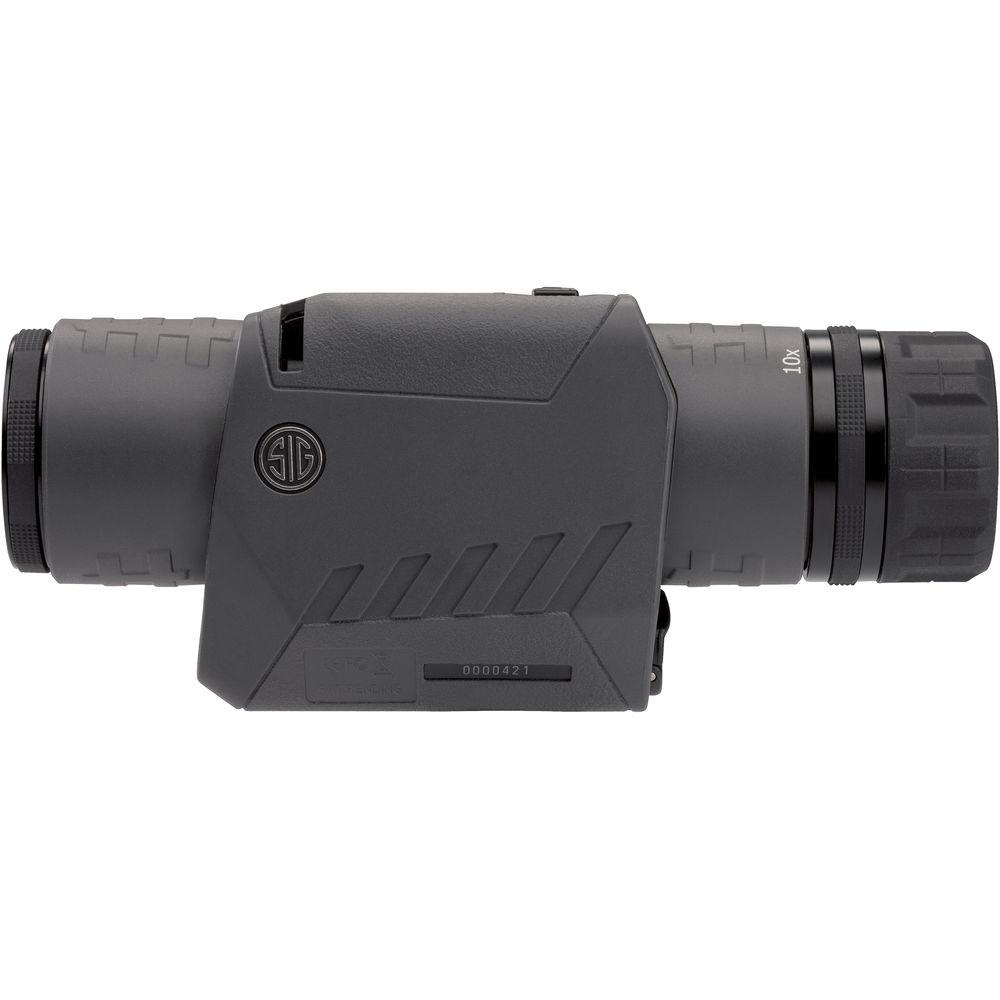

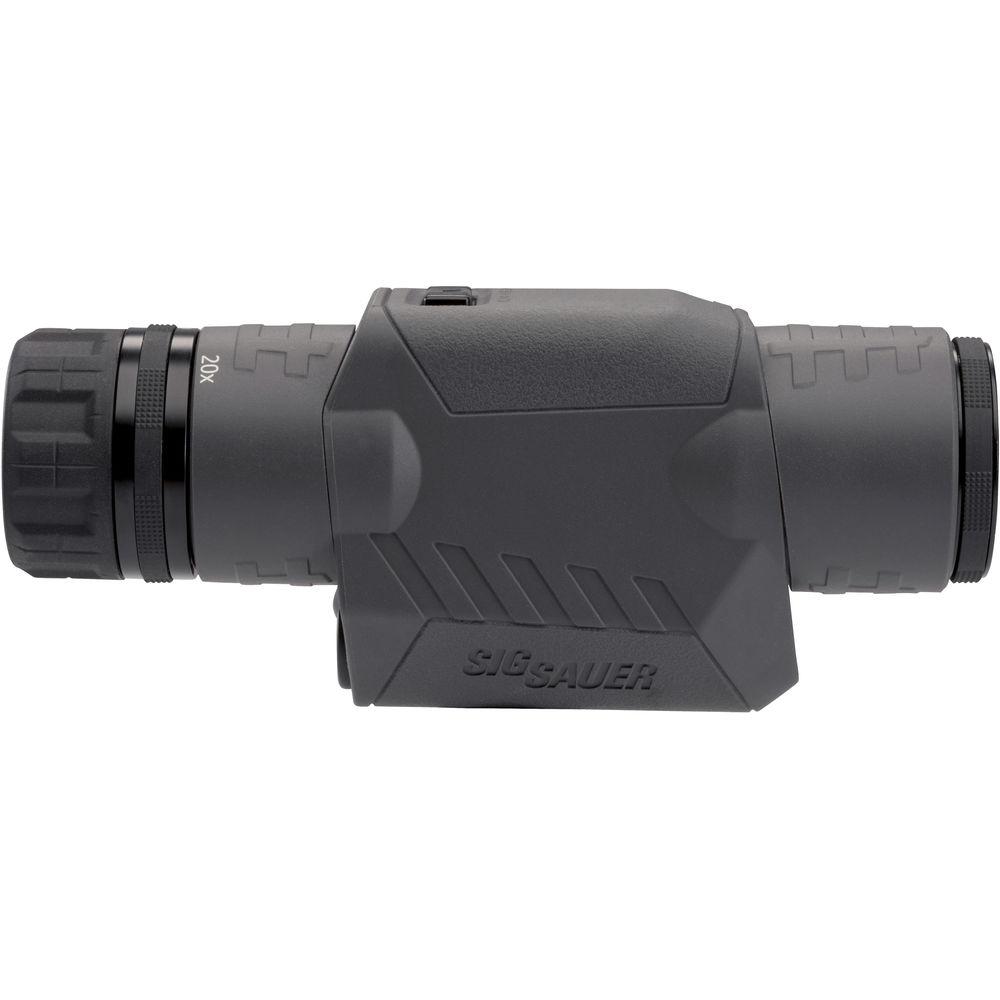

Product description A Guide to Birding with Spotting Scopes Read More SIG SAUER's straight-viewing OSCAR3 10-20x30 Spotting Scope features a high-performing optical system enhanced with gyroscopic image stabilization. You will be able to see highly magnified jitter-free images with high contrast, true color, and high resolution thanks to multi-coated optical elements, BAK4 prisms, and low-dispersion (LD) optical glass.
For ease of use in outdoor environments, the housing is made of lightweight and durable glass-fiber-reinforced polymer and is protected with a rubberized covering for a secure grip. The body offers a compact straight-viewing configuration that is ideal for handheld operation and offers easy-to-use controls and knurled adjustment rings. For achieving desirable eye relief, the rubberized eyecup provides several twist-up positions. Also included with this scope are two CR2 batteries, a padded ballistic nylon case, and a lanyard. - Optical Performance
-
- 10-20x zoom magnification
- 30mm objective diameter
- Multi-coated optics and BAK4 prisms
- SIG Optical Stabilizer (SOS) System offers gyroscopic image stabilization
- Provides image stabilization and reduces jitter
- Low-dispersion (LD) glass offers true color and high resolution
- Precision focusing system
- Construction Details
-
- Straight-viewing configuration
- Glass-fiber-reinforced polymer housing
- Ergonomic handheld body design
- Rubberized covering for non-slip grip
- Lightweight and durable
- Twist-up eyecup
- Water resistant
UPC: 798681521517 In the Box SIG SAUER OSCAR3 10-20x30 Spotting Scope (Straight Viewing) 2 x CR2 Batteries Padded Ballistic Nylon Case Lanyard Limited 5-Year Warranty Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SIG SAUER OSCAR3 10-20x30 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIG SAUER SOV31001 Specs | | | Magnification | 10 to 20x | | Objective Lens Diameter | 30 mm | | Angle of View | 10x: 3.4° (Actual)
20x: 2.4° (Actual) | | Field of View | 10x: 179.0' @ 1000 yd / 54.6 m @ 1000 m
20x: 126.0' @ 1000 yd / 38.4 m @ 1000 m | | Minimum Focus Distance | 19.7' / 6.0 m | | Exit Pupil Diameter | 10x: 3 mm
20x: 1.5 mm | | Eye Relief | 23.0 to 15.0 mm | | | | Water Resistance | Water Resistant, IPX4 | | | | Tripod Mounting Thread | None | | Dimensions | L: 6.7" / L: 170.2 mm | | Weight | 16.0 oz / 454.0 g | | | | Package Weight | 1.715 lb | | Box Dimensions (LxWxH) | 8.45 x 4.15 x 3.05" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
