SIG SAUER Romeo5 XDR Compact Red

Search your instruction manual in PDF to download

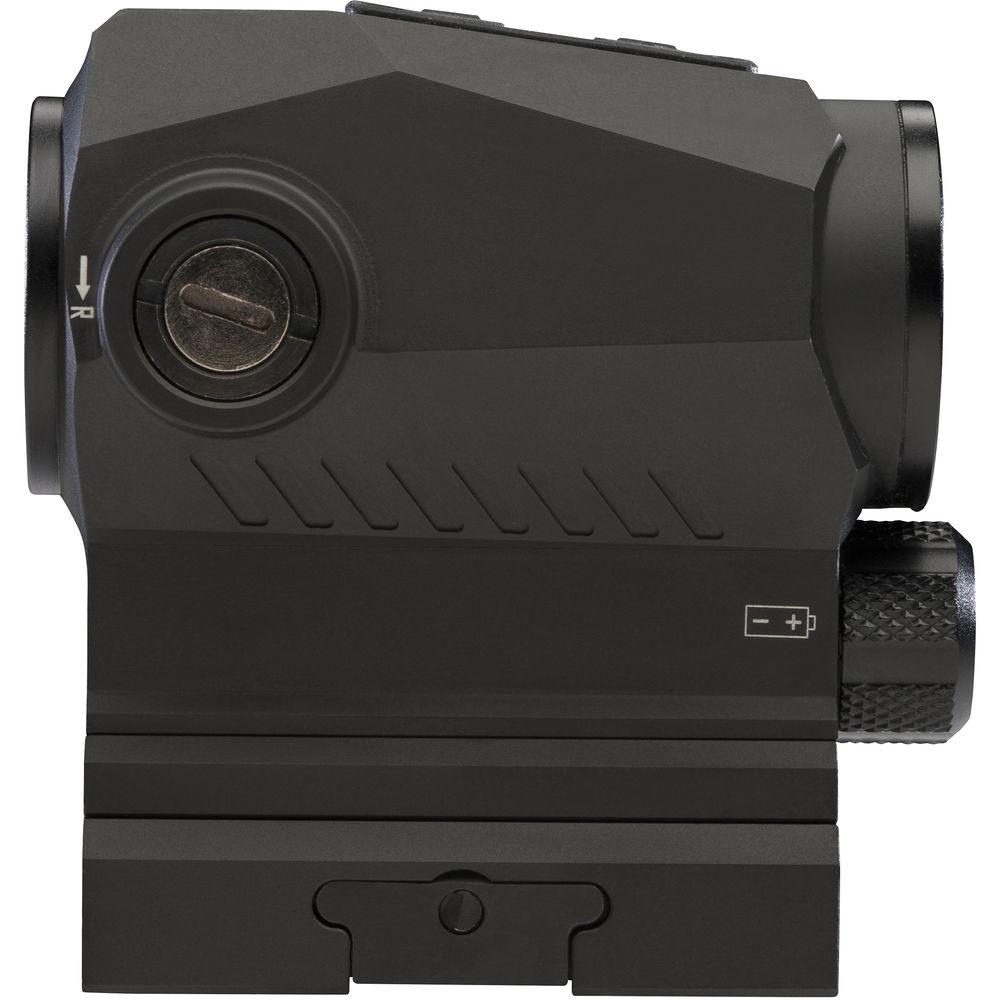

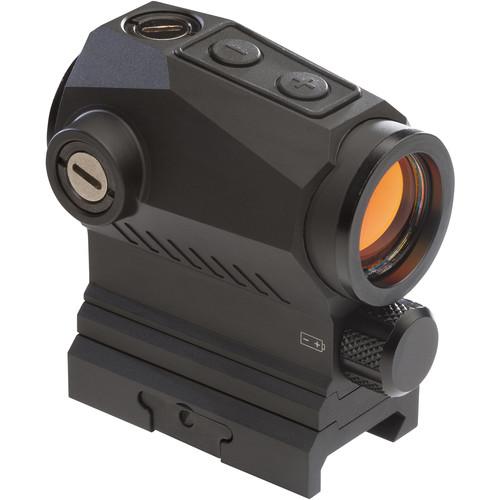

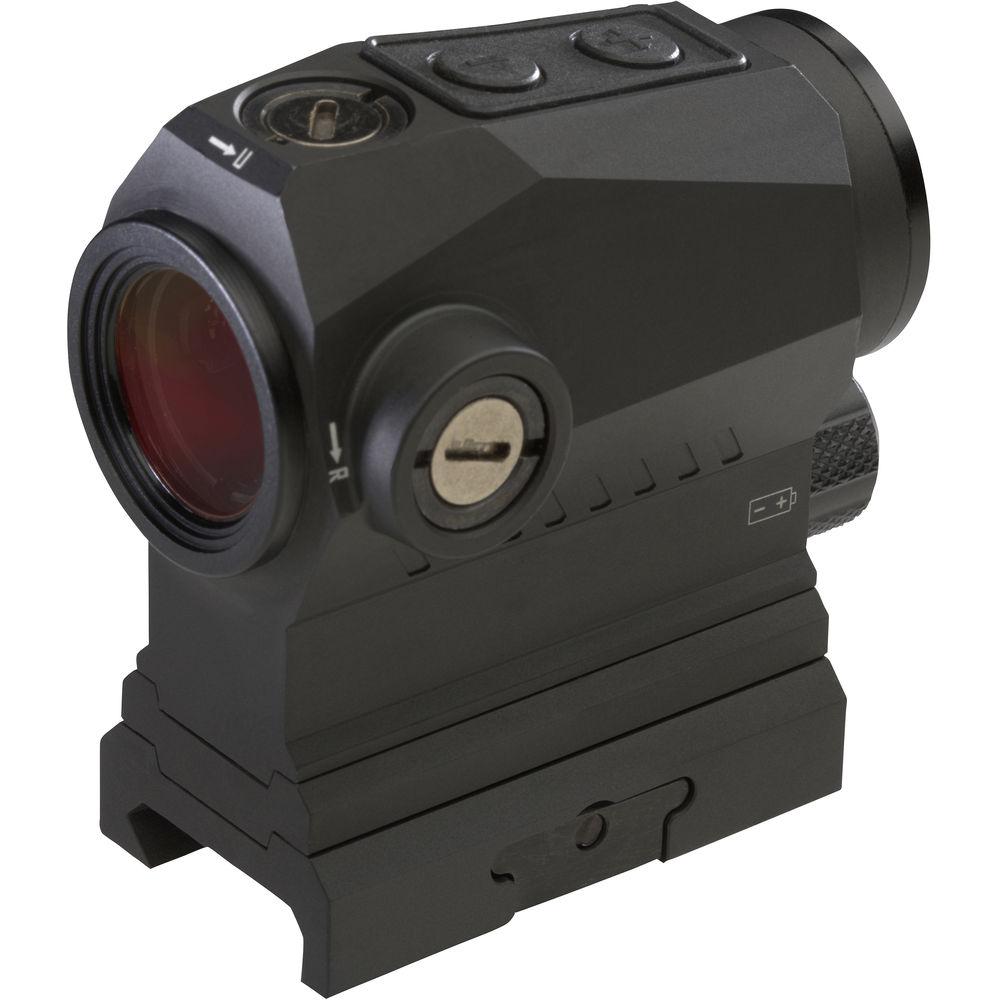

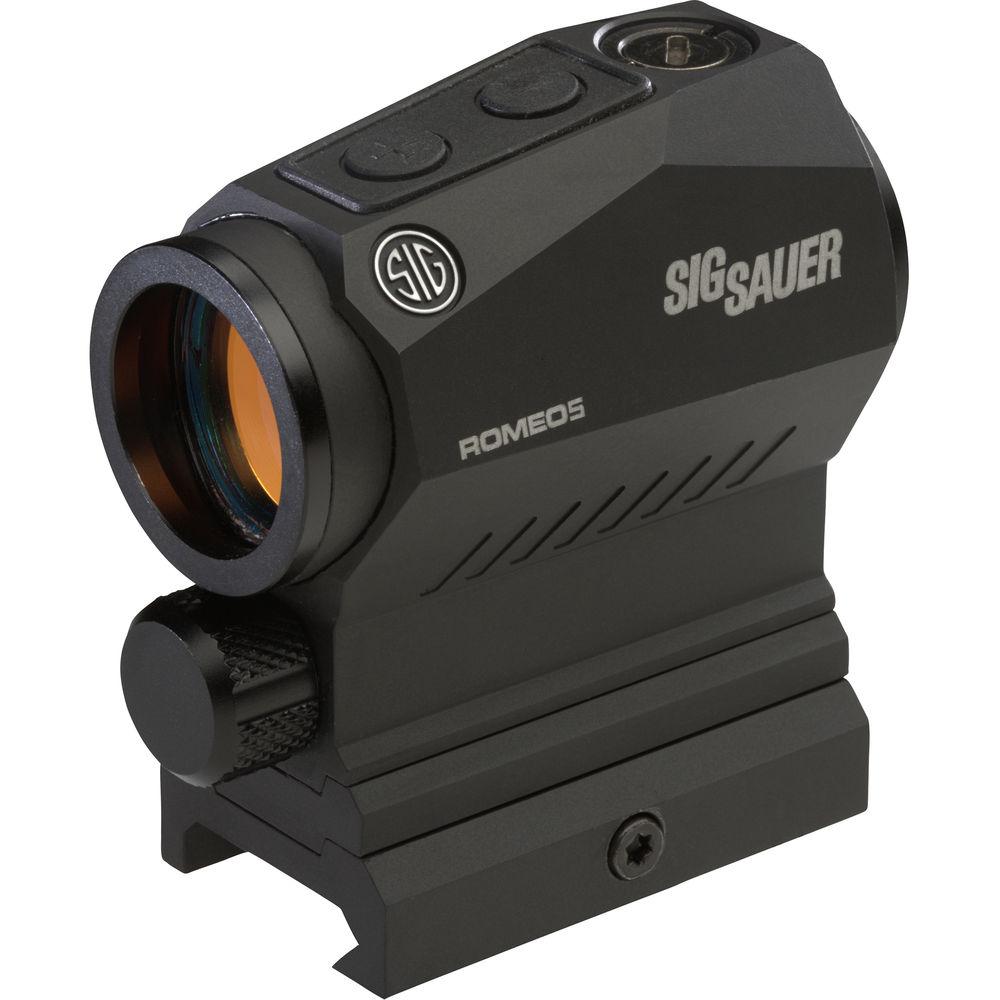

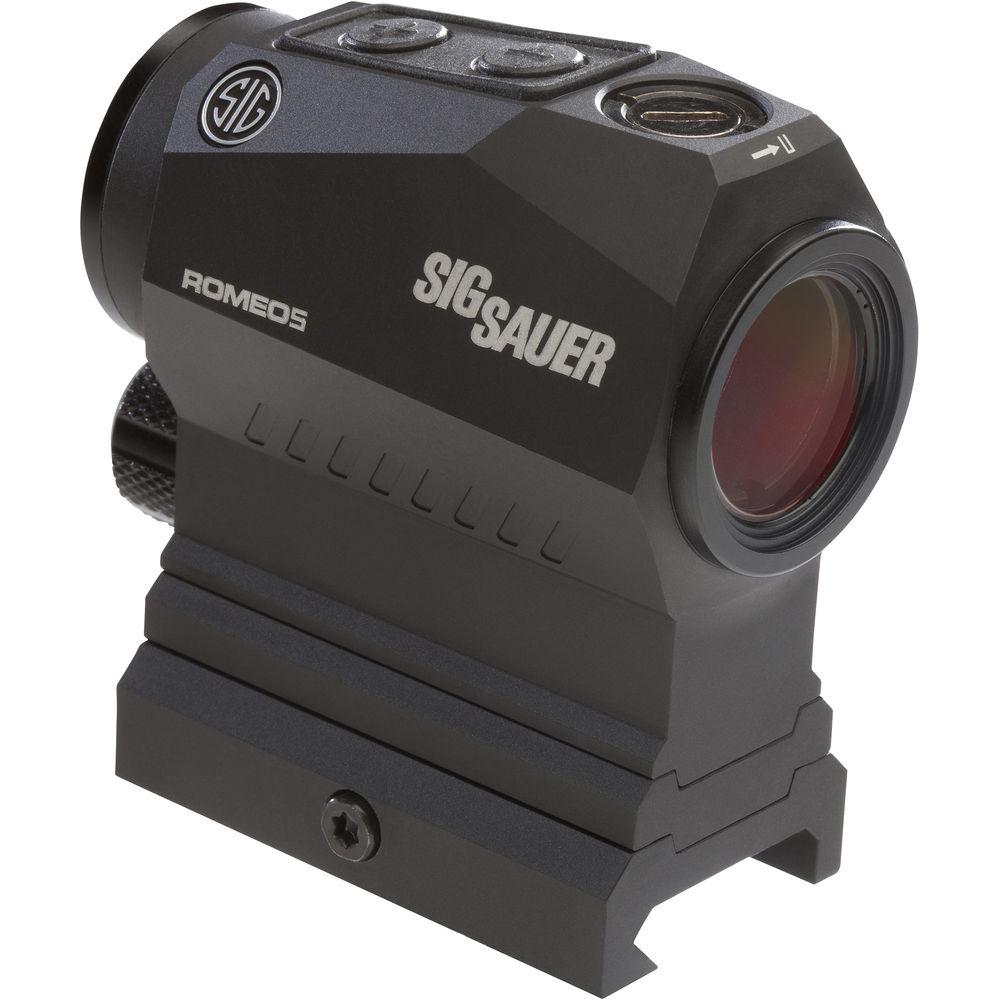

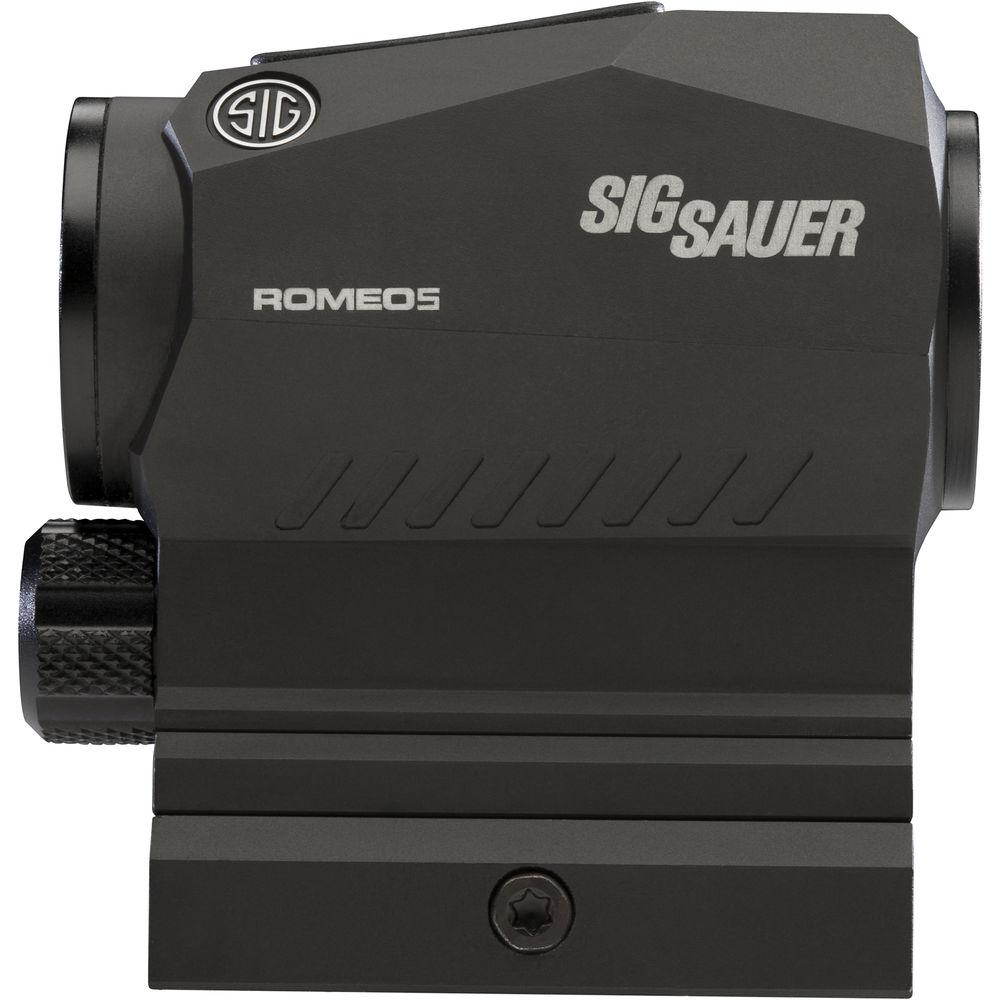

User Manual for SIG SAUER Romeo5 XDR Compact Red Dot Sight

Click to enlarge the picture
SIG SAUER Romeo5 XDR Compact Red Dot Sight Contents of the user manual for the SIG SAUER Romeo5 XDR Compact Red
  • Product category: Red Dot/Holographic Sights SIG SAUER
  • Brand: SIG SAUER
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for SIG SAUER Red Dot/Holographic Sights

SIG SAUER Romeo5 XDR Compact Red Dot Sight SIG SAUER Romeo5 XDR Compact Red Dot Sight SIG SAUER Romeo5 XDR Compact Red Dot Sight SIG SAUER Romeo5 XDR Compact Red Dot Sight SIG SAUER Romeo5 XDR Compact Red Dot Sight
User manual for the SIG SAUER Romeo5 XDR Compact Red contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any SIG SAUER product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official SIG SAUER user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a SIG SAUER product will considerably shorten its lifespan!



Product description

Powered by a single AAA battery, which is readily available in most parts of the world, the Sig Sauer Romeo5 ${PrN} Compact Red Dot Sight is a truly battle-ready gun sight. Its optics are enhanced with the SpectraCoat anti-reflection coatings for high transmission across the entire visible spectrum and deliver bright and crisp images. The reticle combines a brilliant red 2 MOA dot and a 65 MOA ring, and allows you to toggle between the dot and the ring while also offering eight brightness settings for daytime and two for night vision devices. The illumination circuit has a special Motion-Activated Illumination function (MOTAC) for powering up and down the reticle depending on the level of movement. It also helps to extend the battery life to 50,000 hours in normal use.

To endure the toughest battlefield conditions, the housing is CNC-machined from a single piece of aluminum and provides a waterproof and fogproof performance. The sight offers two Picatinny mounting options: a standard torx Picatinny mount and an absolute co-witness Picatinny riser mount. The Picatinny co-witness mount offers a see-through base that allows for sure sighting and raises the optical axis 1.41" above the rail.
    Reticle
    • 2 MOA Dot / 65 MOA Circle reticle
    • LED illumination
    • Reticle can be toggled between 2 MOA dot and 65 MOA circle
    • 8 day settings
    • 2 night vision settings
    • Powered a single AAA battery for up to 50,000 hours
    • MOTAC function powers up and down illumination depending on the level of motion
      Optical Performance
      • 1x magnification
      • 20mm objective lens diameter
      • SpectraCoat full multi-coatings deliver high transmission across the entire visible spectrum
      • Unlimited eye relief
        Use and Handling
        • 1/2 MOA impact point correction
        • 80 MOA windage and elevation
        • Rubberized brightness adjustment pad
          Construction
          • Aluminum housing
          • CNC-machined from a single piece
          • Ultralight and durable
          • Stealth ID trapezoidal surface angles reduce glint from the housing
          • Picatinny co-witness 1.41" riser mount
          • Picatinny low-profile mount
          • Waterproof, rated IPX7
          • Rubberized eyecup
          • Impact-resistant
          UPC: 798681576838 In the Box SIG SAUER Romeo5 XDR Compact Red Dot Sight (2 MOA Dot / 65 MOA Circle Illuminated Reticle, Graphite)
        • AAA Battery
        • Absolute Co-Witness Picatinny Riser Mount
        • Low-Profile Picatinny Mount
        • Allen Wrench
        • Limited 5-Year Warranty
        • Limited Lifetime Warranty
        Table of Contents




Upload User Manual

Have you got an user manual for the SIG SAUER Romeo5 XDR Compact Red Dot Sight in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:


User manual for SIG SAUER Romeo5 XDR Compact Red Dot Sight can be downloaded below, so the upload option is not active.


OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%

User manual for SIG SAUER Romeo5 XDR Compact Red Dot Sight can be downloaded below, so the upload option is not active.

Download User Manual

The user manual for the SIG SAUER Romeo5 XDR Compact Red Dot Sight can be downloaded in PDF format at the link stated below.
Download PDF user manual - SIG SAUER Romeo5 XDR Compact Red Dot SightDownload PDF User Manual - https://www.search-manual.com/ upload/ sig-sauer-romeo5-xdr-compact-red-dot-sight-299832-user-manual.pdf
(PDF file, 6.11 MB)


Technical parameters

SIG SAUER ROMEO5 XDR Specs

Reticle 2 MOA Dot / 65 MOA Circle reticle
Magnification 1x
Objective Lens Diameter 20mm
Mounting System Picatinny co-witness riser mount
Low-profile Picatinny mount
Impact Point Correction 1/2 MOA
Windage/Elevation Adjustment 80 MOA
Weatherproofing IPX7-rated, waterproof, and submersible
Battery / Runtime 1 x AAA battery / 50,000 hours
Dimensions 2.47 x 1.52 x 1.50" / 62.7 x 38.6 x 38.1 mm
Weight 5.6 oz / 159.0 g (with 1.41" riser and battery)

Rating

80% users recommend this product to others. And what about you?
Rating: 4.0 of 5

This product has already been rated by 32 owners. Add your rating and experience with the product.

Discussion

Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

Post new comment to SIG SAUER Romeo5 XDR Compact Red Dot Sight

Subject: Romeo 5X/XDR 1 X 20 mm Compact
Date: 29.01.2021 02:29:19Name: Jack Cornelius
The sight will turn on and off. The red dot object (not dot) is located at the 3 o'clock position at the edge of the lens. The red object will lighten and darken. The fed object looks like a finger print. Have replaced the battery with no change. The illuminations do not work.
