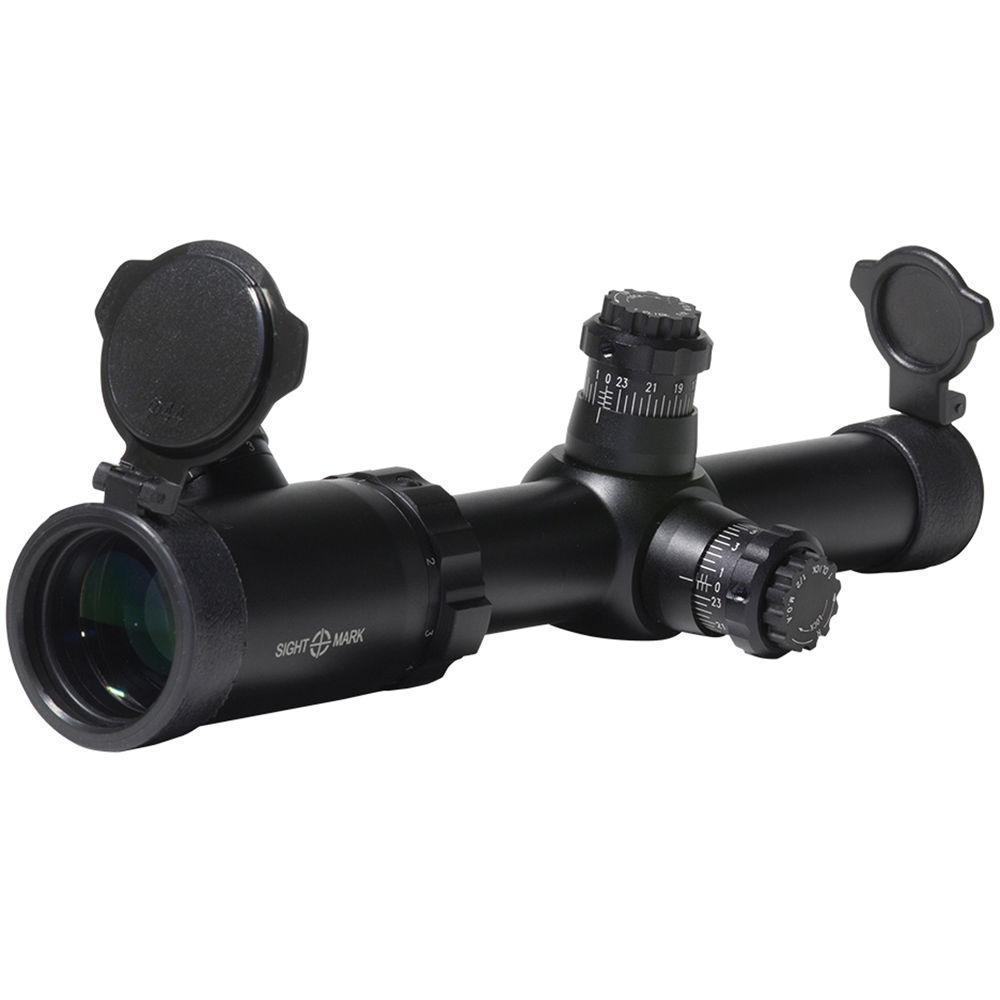

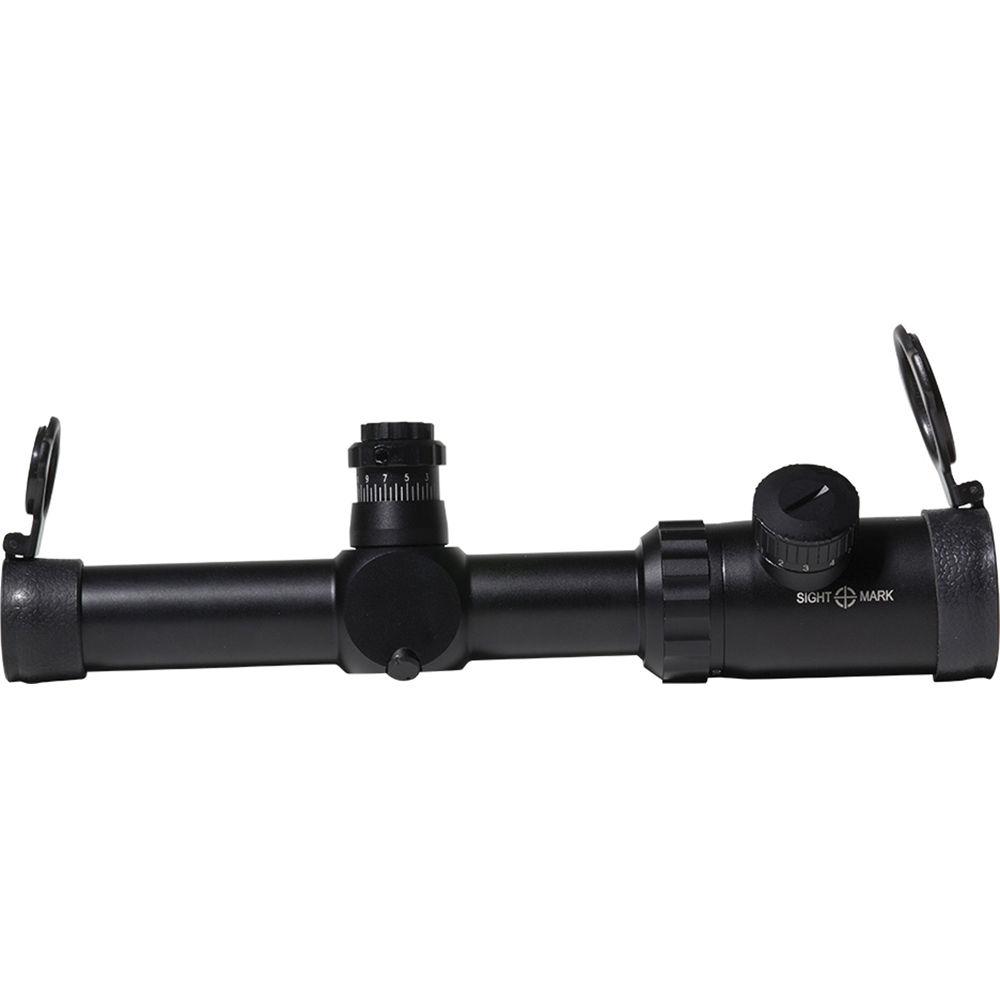

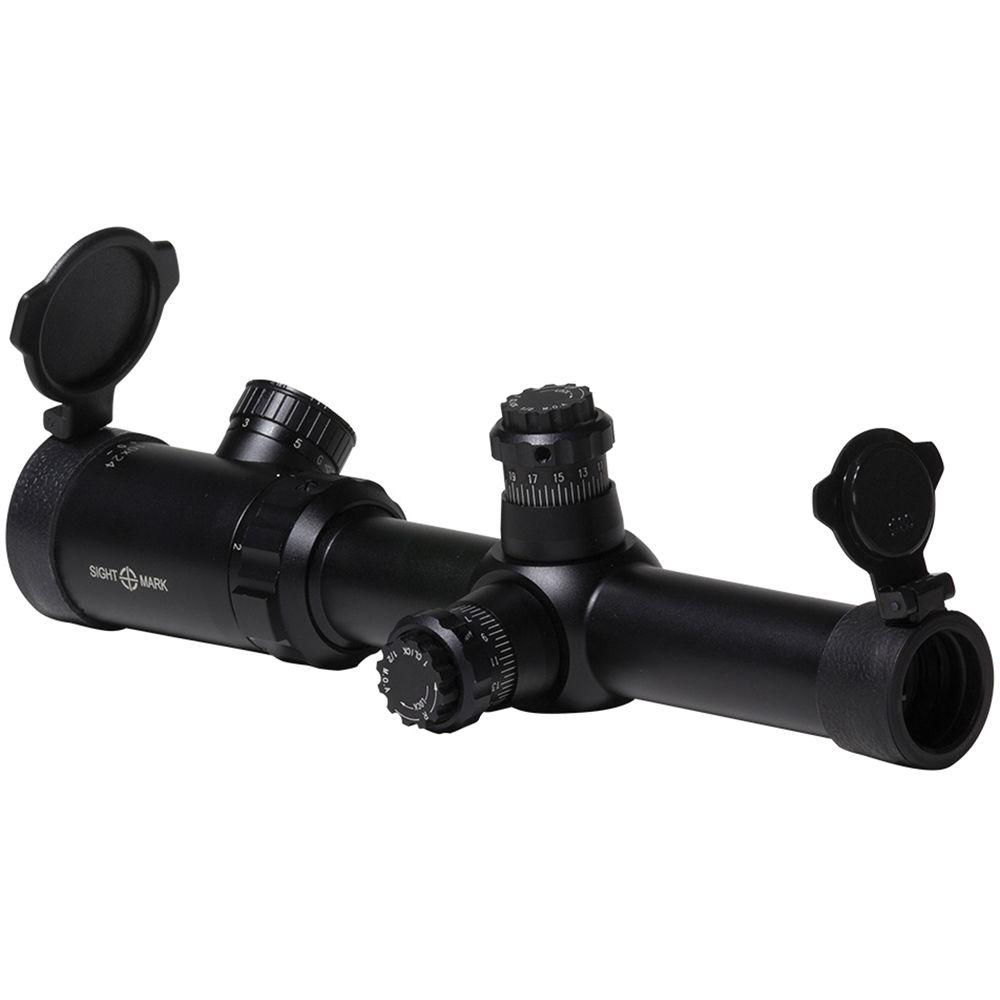

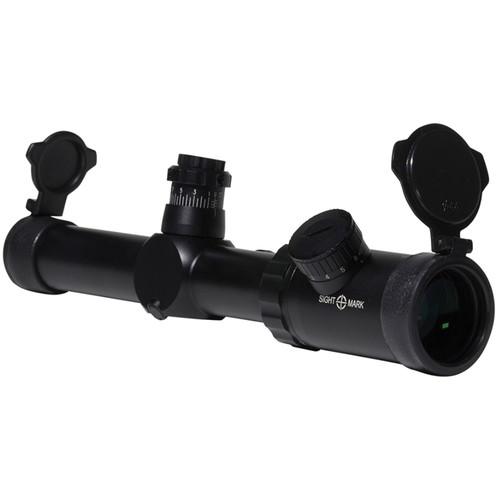

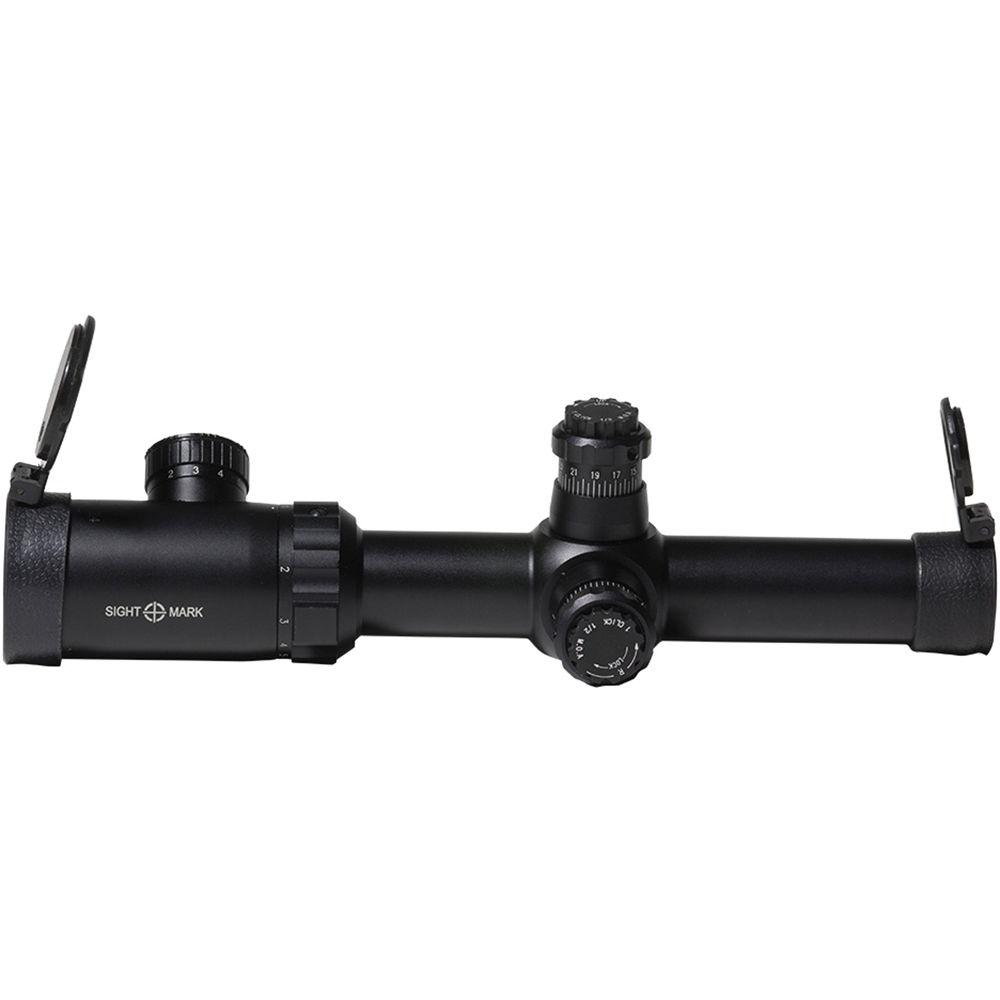

Product description The 1-10x24 Ezekiel Riflescope from Sightmark is designed for both short range and long range shooting. The Mil-dot reticle has red and green illumination options with five brightness levels. It is located at the second focal plane and maintains a constant size while you change magnification. The optical system features multicoated optics for improved image brightness and a large 1x to 10x zoom magnification. To ensure you have a comfortable aiming, the eye relief has a range from 160 to 12 mm. The eyepiece has also a diopter adjustment of ±2. To help you improve precision of shots by compensating for a wind and a projectile motion, this riflescope has lockable windage and elevation adjustments with a range of 200 MOA and 1/2 MOA per click correction.
To enable you to use this scope in a variety of weather conditions and situations, the black matte housing is made of high grade aluminum, weatherproof, and nitrogen-filled fogproof. The windage and elevation adjustment dials are made over-sized and have knurling for a non-slip grip even with winter gloves. Also included with the scope are two flip-up protective caps, and mounting rings. - Optical Performance
-
- Zoom magnification: 1-10x
- Objective lens diameter: 24mm
- Fully multicoated for better brighter and contrast
- Field of view at 100 yd: 88 - 12'
- Reticle
-
- Second Focal Plane Mil-dot
- Red and green illumination
- Five brightness settings
- Use and Handling
-
- 1/2 MOA per click impact point correction
- Lockable windage and elevation turrets
- 200 MOA windage and elevation adjustment
- Parallax-free at 100yd
- Exit pupil diameter: 24-2.4mm
- Eye relief: 160-112 mm
- Diopter adjustment from +2 to -2
- Construction Details
-
- Weatherproof with IPX6 rating
- Nitrogen-filled fogproof
- High grade aluminum housing with matte black finish
- Large knurled adjustment knobs
UPC: 810119017741 In the Box Sightmark 1-10x24 Ezekiel Riflescope (Mil-Dot Reticle) - Mount Rings
- 2 x Flip Up Lens Caps
- Limited Lifetime Warranty
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sightmark 1-10x24 Ezekiel Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSightmark SM13023 Specs | | | Magnification | 1 to 10x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 88' @ 100 yd / 29.2 m @ 100 m
10x: 12' @ 100 yd / 4 m @ 100 m | | Exit Pupil Diameter | 1x: 24 mm
10x: 2.4 mm | | Eye Relief | 4.4 to 6.3" / 112 to 160 mm | | Diopter Correction | -2.0 to +2.0 | | | | Reticle Type | MIL Dot Reticle (Second Focal Plane) | | Illuminated Color | Green, Red | | Brightness Settings | Adjustable Brightness (5 Levels) | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 200 MOA | | Elevation Adjustment | 200 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | IPX6 | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Battery Runtime | 80 Hours (Minimum) | | Dimensions | Length: 10.5" / 26 cm
Height: 1.2" / 3 cm
Width: 1.2" / 3 cm | | Weight | 21.2 oz / 601 g | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 14.4 x 4.1 x 3.2" |
