User Manual for Sightmark 10x42 Solitude XD Binocular Click to enlarge the picture
Contents of the user manual for the Sightmark 10x42 Solitude XD Binocular
- Product category: Binoculars Sightmark
- Brand: Sightmark
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sightmark Binoculars
 |
User manual for the Sightmark 10x42 Solitude XD Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sightmark product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sightmark user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sightmark product will considerably shorten its lifespan!
|

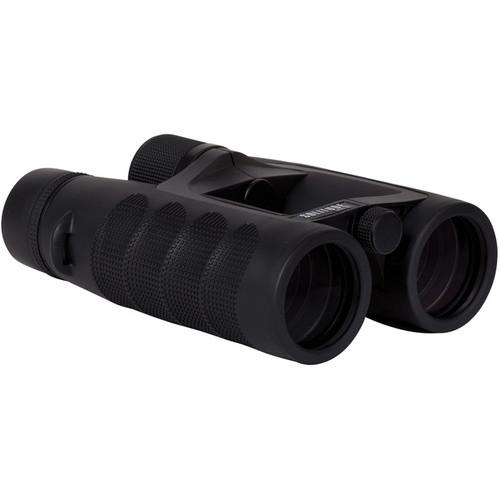

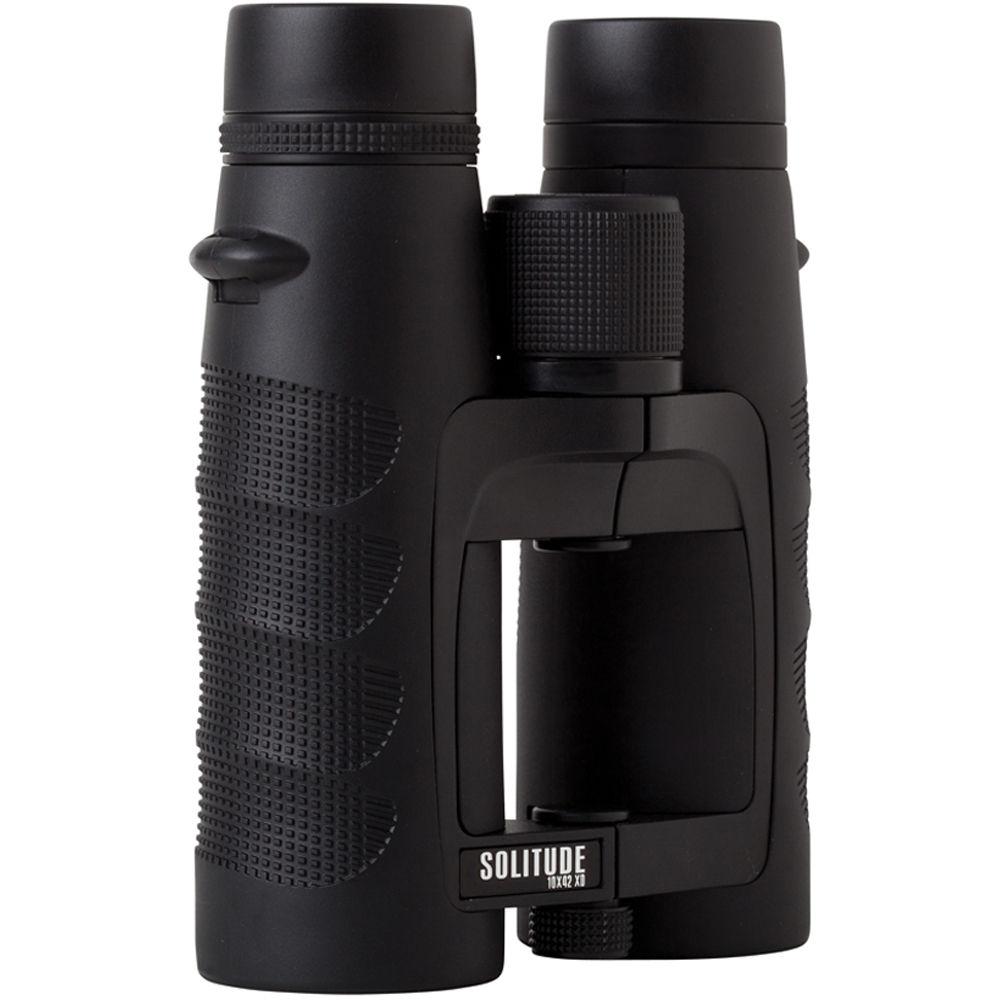

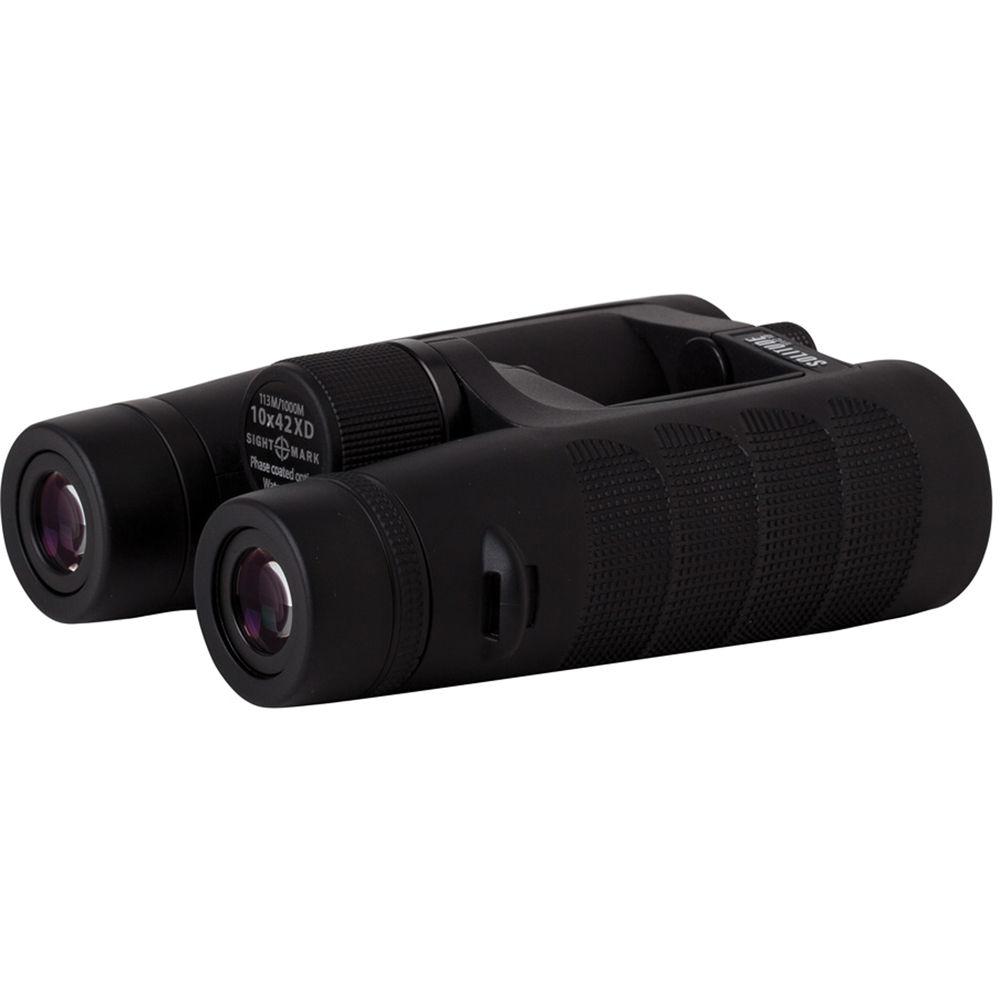

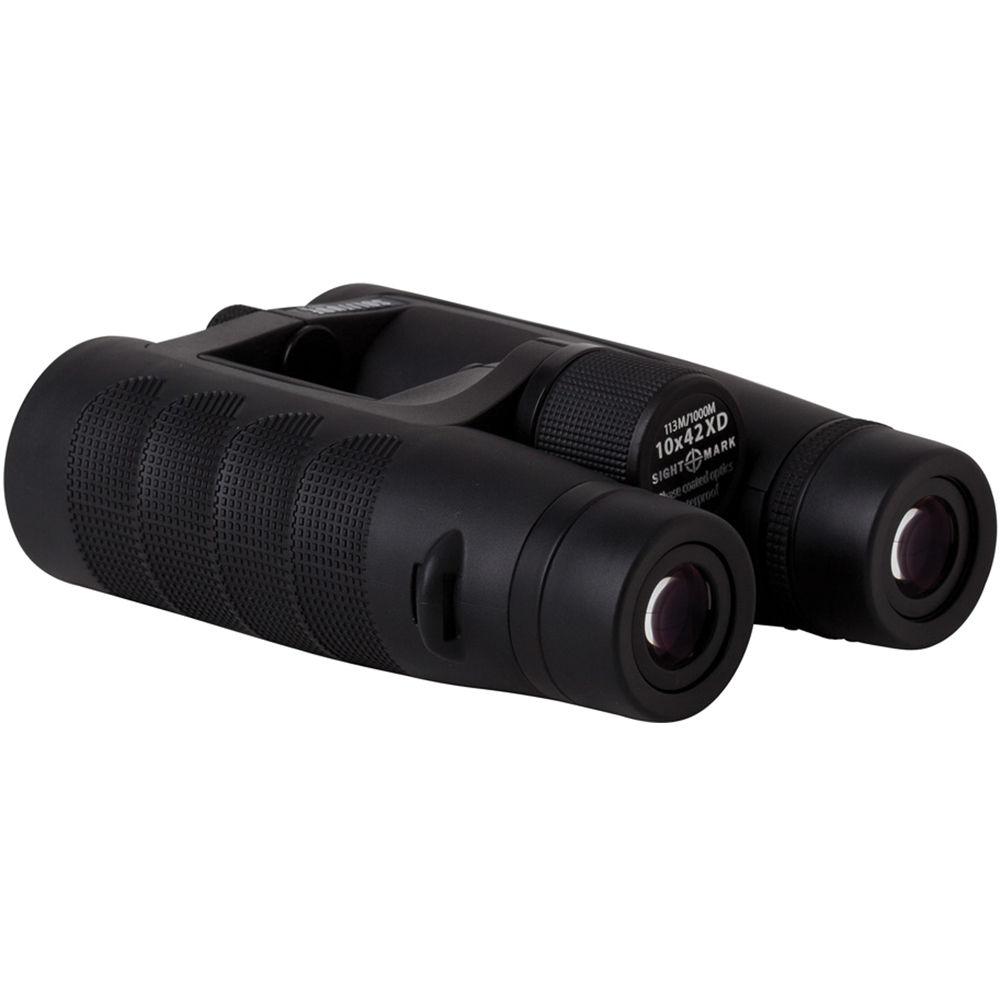

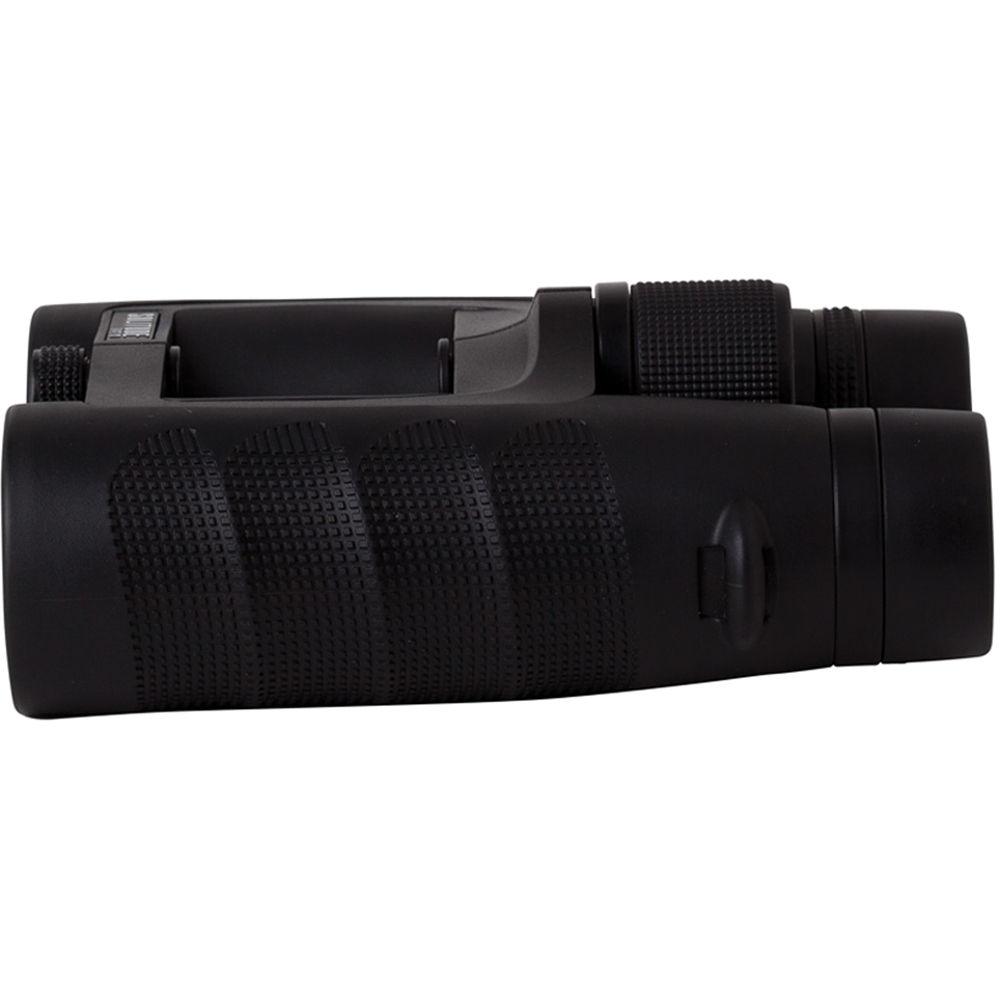

Product description The B&H Binocular Buying Guide Read More ufvzdeaafrsfeaztebyyvcfauxaszbybrazaz The 10x42 Solitude XD Binocular from Sightmark combines a weather-sealed housing and extra-low dispersion (XD) lens system to create a high-transmission optic for close to mid-range observations. Fully multicoated XD elements and phase-corrected BaK-4 prisms render color faithful images with enhanced brightness, clarity, and contrast. Complementing the premium caliber optics is an impressive 65° apparent viewing angle and a 6.5 ft minimum focus distance. In addition to the image quality, the Solitude XD binocular has a nitrogen-filled fogproof housing and a range of handling features that equip this optic for years of reliable observation. Although they weigh less than 2 lbs, these lightweight glasses come with a shoulder harness that evenly distributes the binocular's weight and holds the optic relatively close to the wearer's body. A dual-bridge body design and ergonomic indentations with a slip-resistant gripping surface help to balance the binocular in the observer's hands. Rubber armoring, twist-up rubber eyecups, and a long 15mm eye relief that make the Solitude XD binocular a full-featured binocular that is comfortable to use and delivers weather-resistant performance. - Optical Performance
-
- 10x magnification, 42mm objectives
- Extra-low dispersion glass elements
- Full-Band fully multicoated optics
- Phase-corrected BaK-4 prisms
- 6.5° angle of view, 65° apparent viewing angle
- 6.5 ft close focus distance, 15mm eye relief
- Use and Handling
-
- Twist-up rubber eyecups
- Textured center focus wheel
- Shoulder harness for comfortable long-duration observations
- Textured indentations for improved grip and handling
- Construction Details
-
- Nitrogen-filled fogproof and waterproof
- Submersible to 1.5 m for 3 minutes
- Balanced dual-bridge design
- Magnesium bridge
- Rubber armored body
- 26.7 oz weight

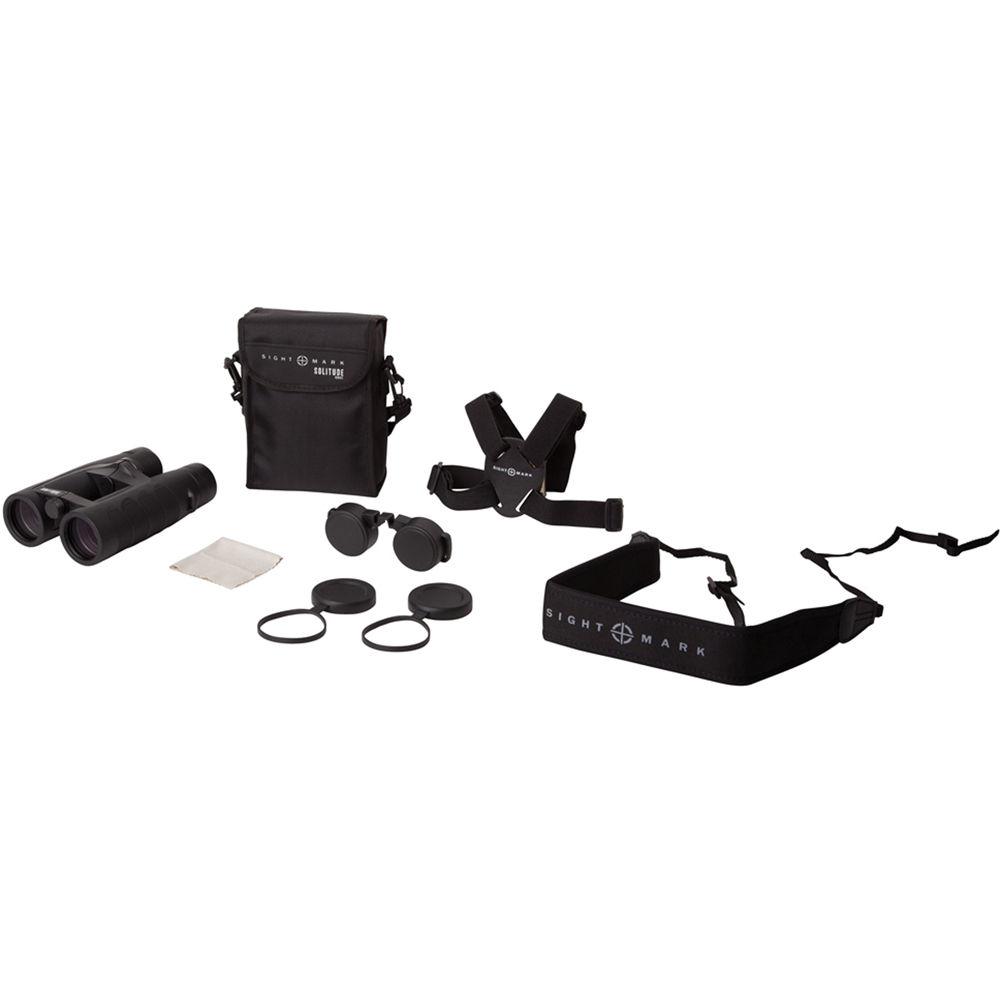

In the Box Sightmark 10x42 Solitude XD Binocular Shoulder Harness Carrying Case Neck Strap Lens Covers Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Sightmark 10x42 Solitude XD Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSightmark SM12103 Specs | Prism Type | Roof | | Magnification | 10.0 x | | Objective Lens Diameter | 42 mm | | Angle of View | 6.5° (Actual) | | Field of View | 341.2' @ 1000 yd / 113.7 m @ 1000 m | | Minimum Focus Distance | 42.7' / 13 m | | Exit Pupil Diameter | 4.3 mm | | Eye Relief | 15 mm | | Interpupillary Adjustment | 8.7 to 11.3 mm / 22 to 28.7" | | Dioptric Correction | ±3 | | Focus Type | Center | | Dimensions | 6.7 x 5.0 x 2.0" / 17.0 x 12.7 x 5.1 cm | | Weight | 26.7 oz / 756.9 g |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
