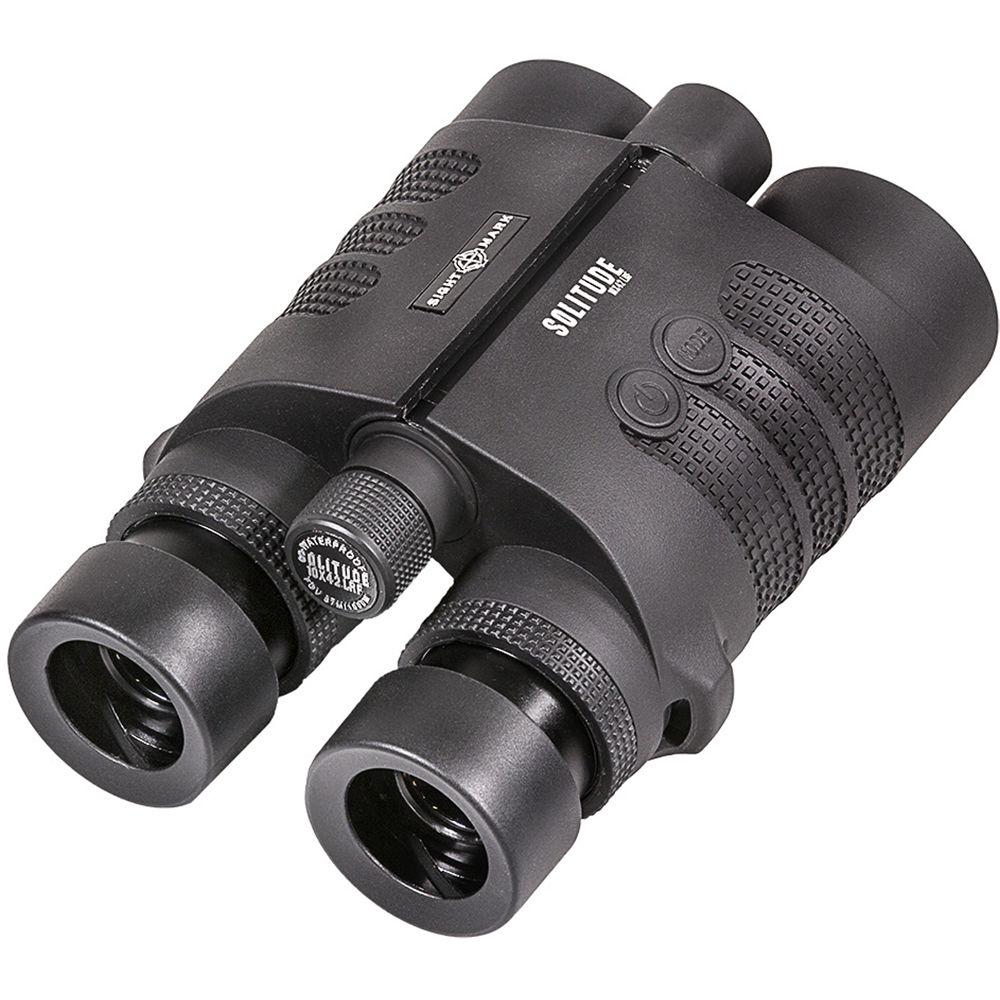

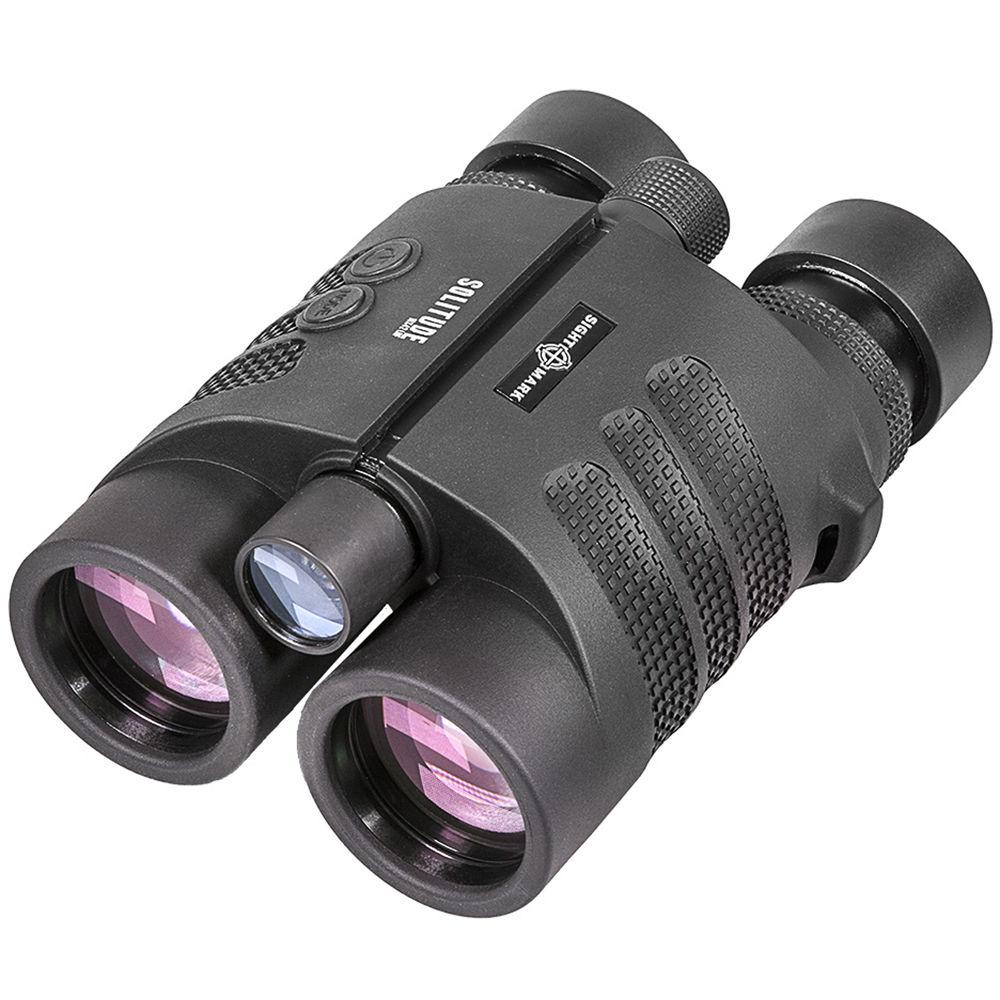

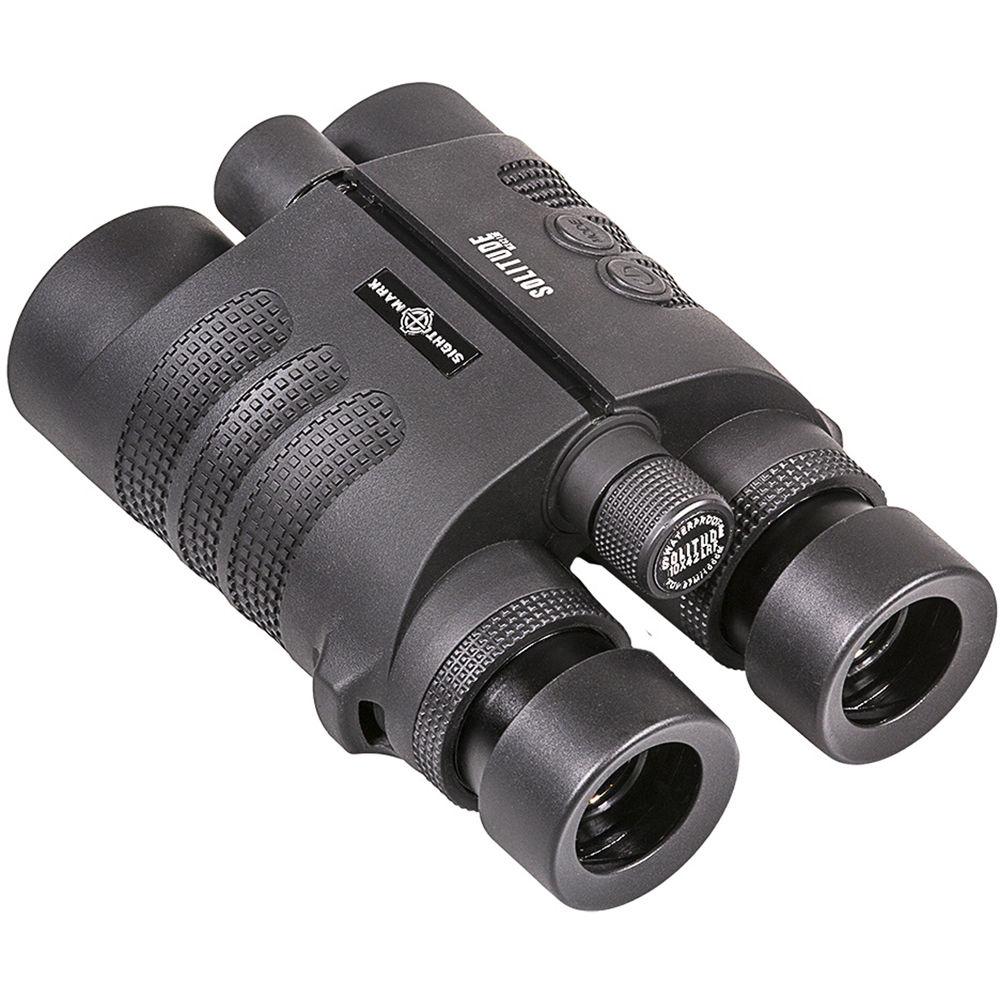

Product description The Sightmark 10x42LRF Solitude Laser Rangefinder Binocular combines a powerful optic with the functionality of an IR laser rangefinder to give you the ability to make detailed observations of distant subjects and the confidence to take the long shot. Outfitted with anti-reflection fully multi-coated lenses and BAK4 roof prisms, views through the binocular are bright and clear, with color-faithful images and improved contrast and clarity from dawn to dusk. A nitrogen-filled and O-ring housing carries an IP67 rating to be dustproof, resistant to internal fogging, and waterproof to a depth of 3.3 feet. The optical tubes are wrapped in a slip-resistant rubber armor, with textured finder indents that ergonomically set the user's fingers naturally onto the two control buttons. - Optical Performance
-
- Powerful 10x magnification enables detailed observations of distant subjects
- Moderate 42mm objective lens diameter improves low-light performance without excessive bulk or weight
- Compact BAK4 roof prisms deliver a round exit pupil, and a crisp and clear image with limited edge distortion
- Anti-reflection fully multi-coated optics produce neutral and accurate color fidelity, and improves contrast and image brightness
- 261' field of view at 1000 yards
- Long 19mm eye relief helps to reduce eye strain and improve viewing comfort during long glassing sessions
- Comfortable 4.2mm exit pupil will completely cover most pupils as they open and dilate as light fades
- Laser Rangefinder
-
- Displays distance in yards or meters
- Range: 5 to 1312 yards (4.5 to 1200m) to a reflective target; 5 to 1093 yards (4.5 to 1000m) to a deer
- Accuracy: ±1 yard/meter
- Class 1 eye-safe infrared laser
- Clear in-view LCD display won't get washed-out in bright sunlight, and shows all info without interfering with view, including reticle, range, and battery status
- Simple and intuitive two-button right-hand user interface
- Automatic power-off after 35 seconds of inactivity to preserve battery charge
- Runs on one CR2 battery
- Use and Handling
-
- Closed-bridge configuration provides a solid platform for the focusing system and laser emitter
- Large textured center focus wheel is easy to manipulate with or without gloves, or in cold or wet weather
- Twist-up rubber eyecups for use with or without eyewear
- 58 - 72mm interpupillary adjustment range
- ±4 dioptric correction
- Construction Details
-
- Slip-resistant and protective rubber armoring
- Textured finger indents improve grip security and place fingers naturally on control buttons
- IP67-rated — dustproof, and waterproof to 3.3' (1m) for up to 60 minutes
- Nitrogen-filled to be resistant to internal fogging when moving between extreme temperature or environmental changes
- Weight: 33 ounces
UPC: 812495020988 In the Box Sightmark 10x42LRF Solitude Laser Rangefinder Binocular Carrying Case Neck Strap 2 x Objective Caps 2 x Eyepiece Caps Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sightmark 10x42LRF Solitude Laser Rangefinder Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSightmark Solitude Specs | | | Prism Type | BAK4 roof | | Magnification | 10x | | Objective Lens Diameter | 42mm | | Angle of View | 5°, actual | | Field of View | 261.0' @ 1000 yd / 87.0 m @ 1000 m | | Minimum Focus Distance | 15.0 yd / 13.7 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 19.0 mm | | Interpupillary Adjustment | 58.0 - 72.0 mm / 2.2 - 2.8" | | Dioptric Correction | ±4 | | Focus Type | Center | | | | Laser Type | FDA Class 1, eye-safe infrared | | Metering Range | Reflective Target: 5 - 1312 yd / 4.5 - 1200 m
Deer: 5 - 1100 yd / 4.5 - 1000 m | | Accuracy | 1.0 yd / m | | | | Weatherproofing | IP67-rated, dust and waterproof
Nitrogen-filled, fogproof | | Tripod Socket | None | | Power Source | 1 x CR2 battery | | Dimensions | 6.3 x 4.9 x 2.4" / 16.0 x 12.4 x 6.1 cm | | Weight | 33.0 oz / 935.5 g | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 7.5 x 6.6 x 3.5" |
